This ultra-efficient Thin ITX motherboard features Intel‘s 12th Gen Celeron N100 processor (4C, 3.4GHz, 6W TDP) in a compact Thin ITX form factor (170×170mm), combining modern performance with industrial reliability for space-constrained applications.
Key Features:
✔ Low-Power Processing: Intel N100 (Alder Lake-N) with UHD Graphics
✔ Multi-Display Support: VGA + HDMI + LVDS/eDP (quad display capable)
✔ High-Speed Memory: Single DDR4 3200MHz (max 16GB)
✔ Industrial Connectivity:
1×GbE + 10×USB (4×USB3.2)
2×COM (RS232/485) + LPT
✔ Storage & Expansion:
1×SATA + 1×mSATA
1×M.2 SSD + 1×M.2 WiFi + 1×M.2 5G
✔ Rugged Design:
GPIO + Watchdog Timer
4Ω/3W audio amplifier
✔ Power Input: 12V DC

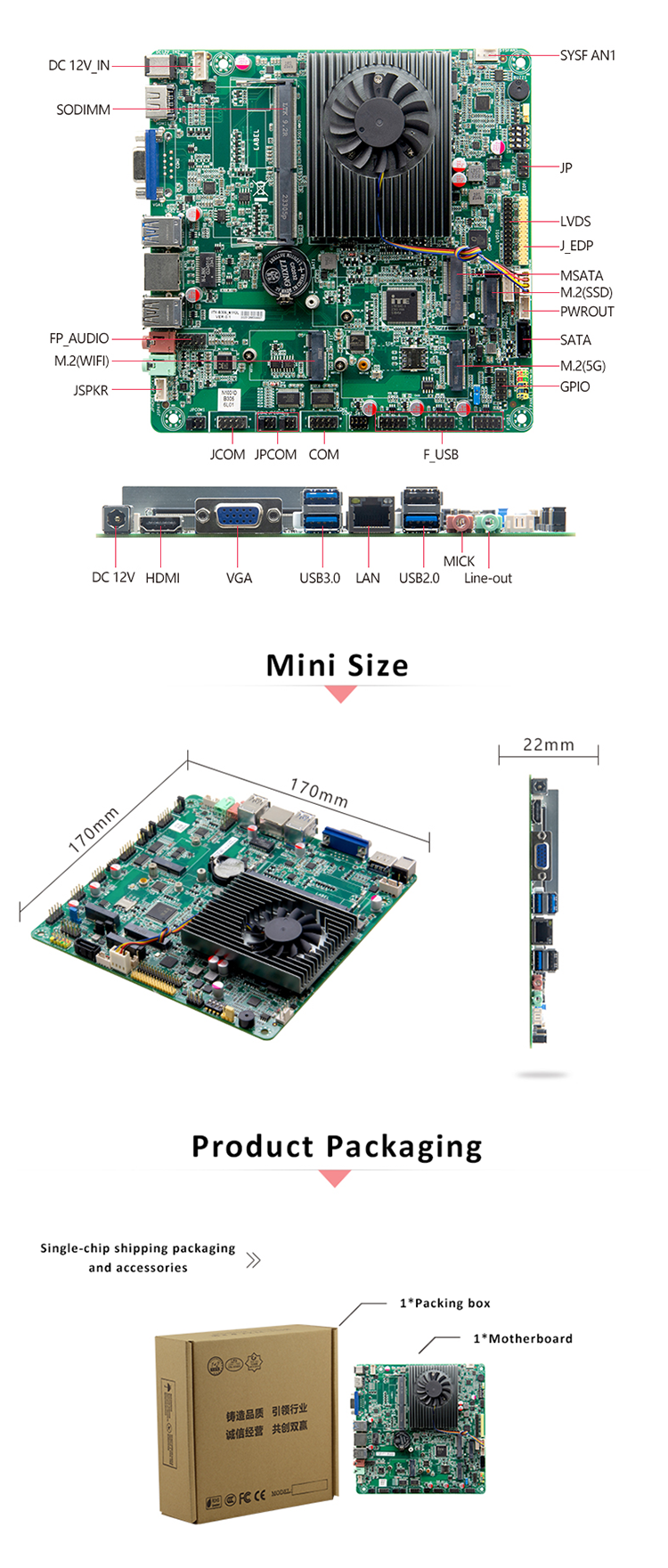

Detail Display
Product Description

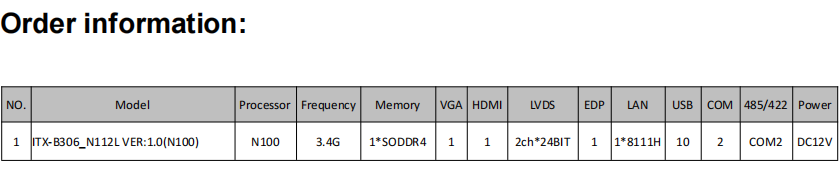

Model NO.: ITX-B306_N112L VER:0.1(N100)
Processor: Integrated Intel®Alder Lake-N N100 3.4GHz quad-core quad- thread processor，TDP 6W
Compatible with Intel® Alder Lake-N full range of CPUs for customers to choose flexibly
Chipset: SOC
Memory: 1x SODIMM memory slot, single channels 3200MHz DDR4 memory ,up to16GB
Display: Integrated Intel® UHD Graphics ,support DirectX 12.1，OpenGL4.6
1x VGA,1x HDMI1.4,1x LVDS，1x EDP
Note: The LVDS and EDP interfaces are selected through hopping.
Ethernet: 1x RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0,the transfer rate is up to 6Gbps
1x MSATA slot, supports SSD solid state drive, SSD transmission speed up to 6Gbps
1x M.2 slot, supports M.2 Key M 2280 PCIE X1 standard SSD
Audio: Onboard ALC897 7.1+2 channel high fidelity audio controller,supporting MIC/Line-out,power amplifier
Suggest power amplifier use 4Ω3W horn
Expansion Slot:
1x M.2 slot, supports M.2 Key B 2242/2252 5G module
1x M.2 slot, supports M.2 Key E 2230 WIFI module
Rear I/O interface:
1x DC 12V
1x VGA display interface, alternative to DB9 serial port
1x HDMI2.0
3x USB3.0,1* USB2.0
1x RJ45 Gigabit Network Interface
1x Line-out（Green）,1x MICK（Red)
Built in I/O interface:
1x DC power interface, 1x 4pin supports 12V power input and output
1x JVGA,1x 12pin,(Same signal as DB15)
1x LVDS,2*15pin，Support dual channel 24BIT,
1x EDP interface (yellow), 2x 15pin, with LVDS, choose one of the two via jump
1x Screen backlight power supply interface 1x 6pin
6x USB2.0,2x 5pin
2x RS232 serial interface, COM1/2 supports the 9th pin live function, COM2 supports RS485/422 function, COM1 and external DB9 are optional.
1x Hard disk power supply interface, 1x 4pin
1x Front audio interface, 2x 5pin
1x Power amplifier interface, 1x 4pin
1x LPT, 2x 13pin
1x SIM card slot
1x Front panel function button and indicator light interface 2x 5pin
Fan Connector: 1x 4pin CPU smart fan connector, 1x 4Pin system smart fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: Windows 10/Windows 11/Linux
Working temperature: DC 12V
Storage temperature: -10℃～60℃
Working Humidity: -20℃～70℃
Dimension: 5%-95%( relative humidity, non-condensing)
Watchdog: 170mm x 170mm
