Key Features:
✔ Power-Efficient Quad-Core: Intel N5095A (15W TDP) with UHD Graphics
✔ Multi-Display Support: VGA + HDMI + LVDS/eDP (triple output)
✔ High-Speed Memory: Single DDR4 2933MHz (max 16GB)
✔ Industrial Connectivity:
1×GbE (optional dual) + 8×USB
6×COM + LPT + SIM slot
✔ Storage & Expansion:
1×SATA3.0 + 1×mSATA
1×M.2 SSD + 1×M.2 WiFi + 1×M.2 5G
✔ Rugged Design:
GPIO + Watchdog + 4Ω/3W audio
Fan/Fanless 12V DC options
Detail Display
Product Description

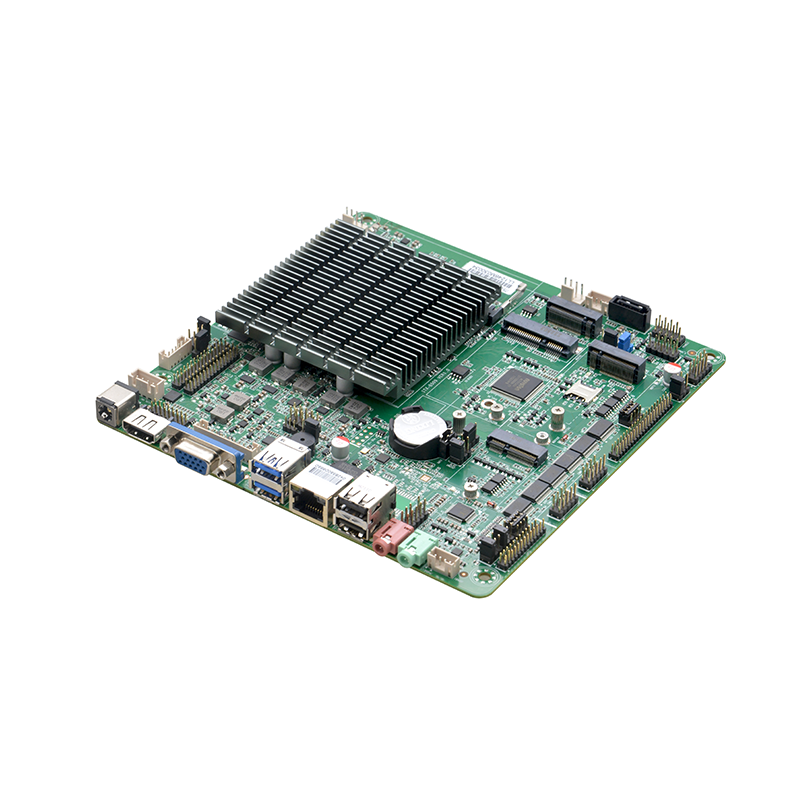

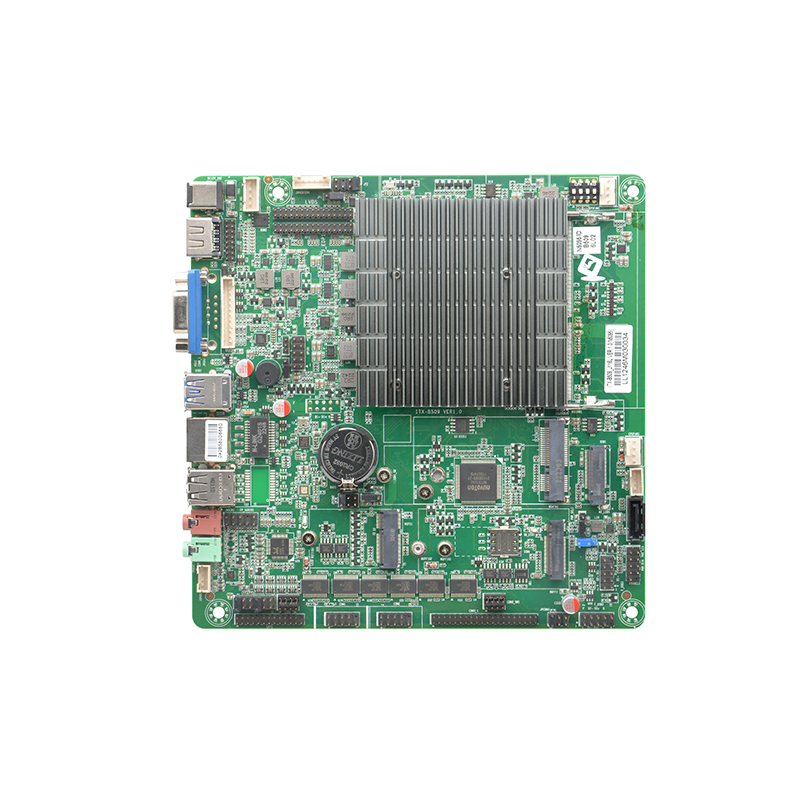

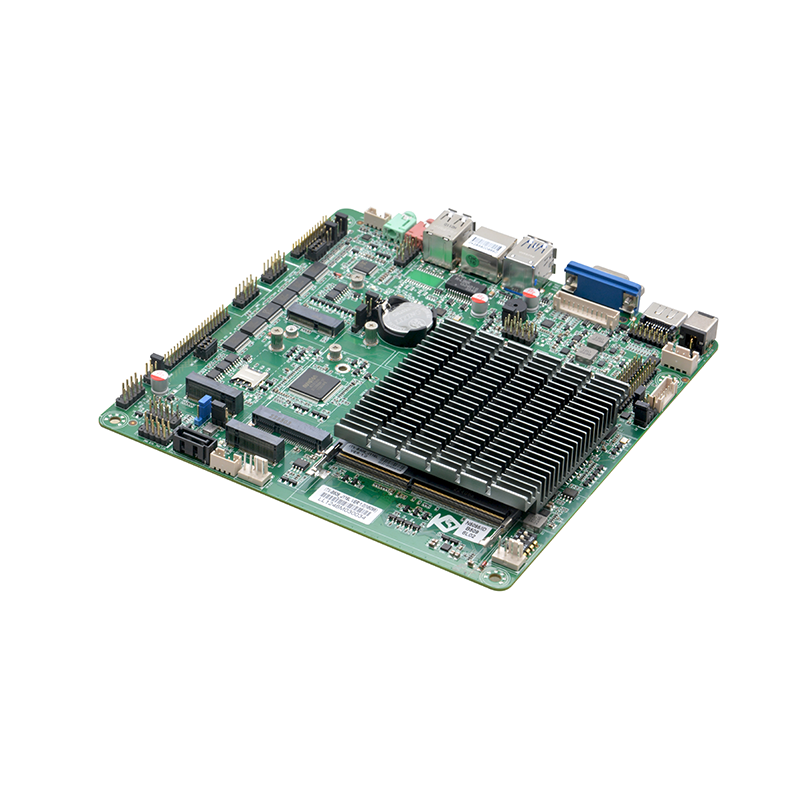

Model No.: ITX-B509_J116L VER:1.0(N5095)
Processor: Integrated Intel®Celeron N5095A 2.0GHz Quad core Quad thread processor ,TDP 15W
Compatible with Intel® Jasper Lake all series CPU,customers can choose flexibly
Chipset: SOC
Memory: 1x SODIMM slot,supports single channel 2933MHz DDR4 memory,up to 16GB
Display: Integrated Intel® UHD Graphics Core Graphics
1x VGA,1x HDMI,1x LVDS，1x EDP
Note:LVDS and EDP interfaces are self-adaptive and choose one
Ethernet: 1x RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0 hard disk interface，the transfer rate is up to 6Gbps
1x M.2 slot,supports M.2 Key M 2260/2280 PCIE X2 specification SSD
1x MSATA slot, supports Intel protocol SSD solid state drive, transmission rate up to 6Gbps
Audio: Onboard ALC897 7.1+2 channel high fidelity audio controller,supporting MIC/Line-out.power amplifier
Suggest power amplifier 4Ω3W horn
Expansion Slot:
1x M.2 slot,supports M.2 Key B 2242/2252 5G module
1x M.2 slot,supports M.2 Key E 2230 WIFI module
NOTE: The Bluetooth function of M.2 is an alternative to F_USB2. The default is F_USB2.

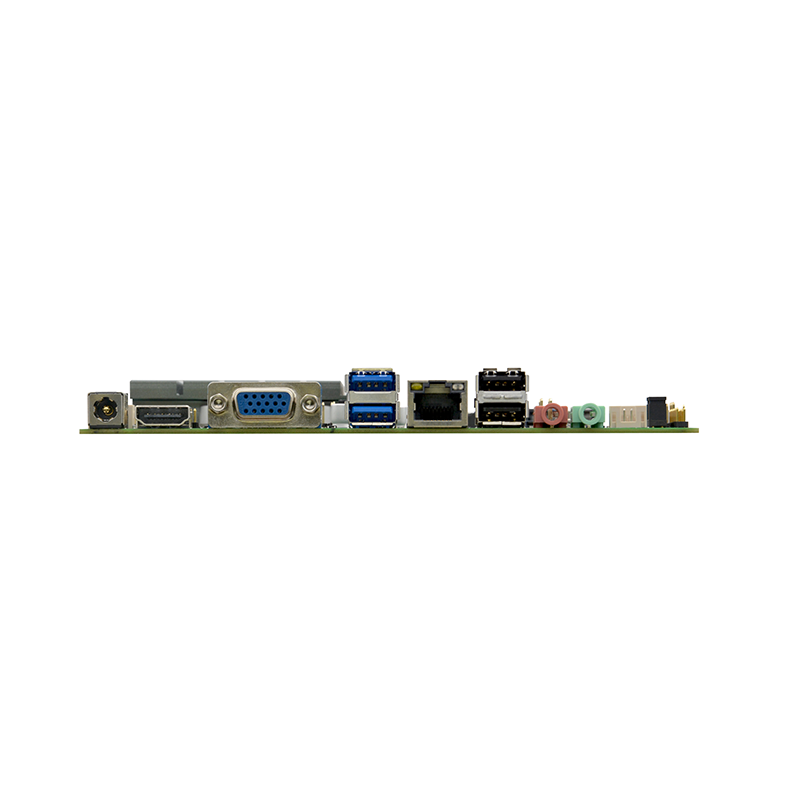

Rear I/O interface:
1x DC 12V power input interface
1x VGA
1x HDMI
2x USB3.0,2x USB2.0
1x RJ45 Gigabit Network Interface
1x Line-out(Green)，1x MICK (Red)

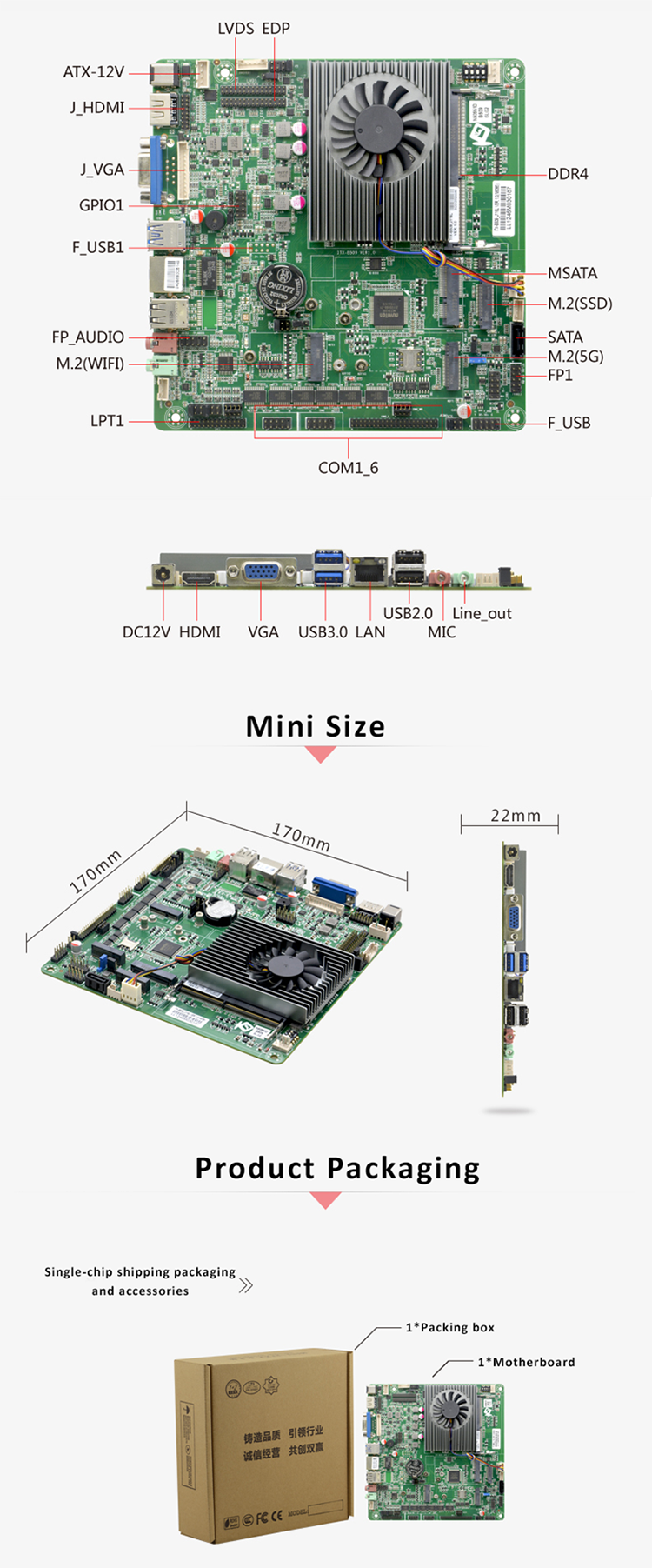

Built in I/O interface:
1x DC power interface，1x 4pin supports 12V input and output power interface
1x JVGA interface 1x 12pin,same signal as DB15
1x J_HDMI interface,2x 8pin,same signal as HDMI
1x LVDS interface,2x 15pin,Support dual channel 24BIT,
1x EDP interface,2x 15pin,Choose one of the two adaptive options with LVDS
1x Screen backlight power supply interface 1x 6pin
4x USB2.0 interface，2x 5pin
6x RS232 serial interface,COM2/COM3 supports RS485/422
1x HDD power supply interface 1x 4pin
1x Front audio interface 2x 5pin
1x Power amplifier interface 1x 4pin
1x LPT, 2x 13pin
1x SIM card slot
1x Front panel switch button and indicator light interface 2x 5pin
Fan Connector: No fan cooling design, reserve 1x 4pin CPU fan connector,1x 4pin system fan connector
GPIO: Supports 4 input and output GPIOs (optional with PS/2)
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Power type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm x 170mm
