Product Description

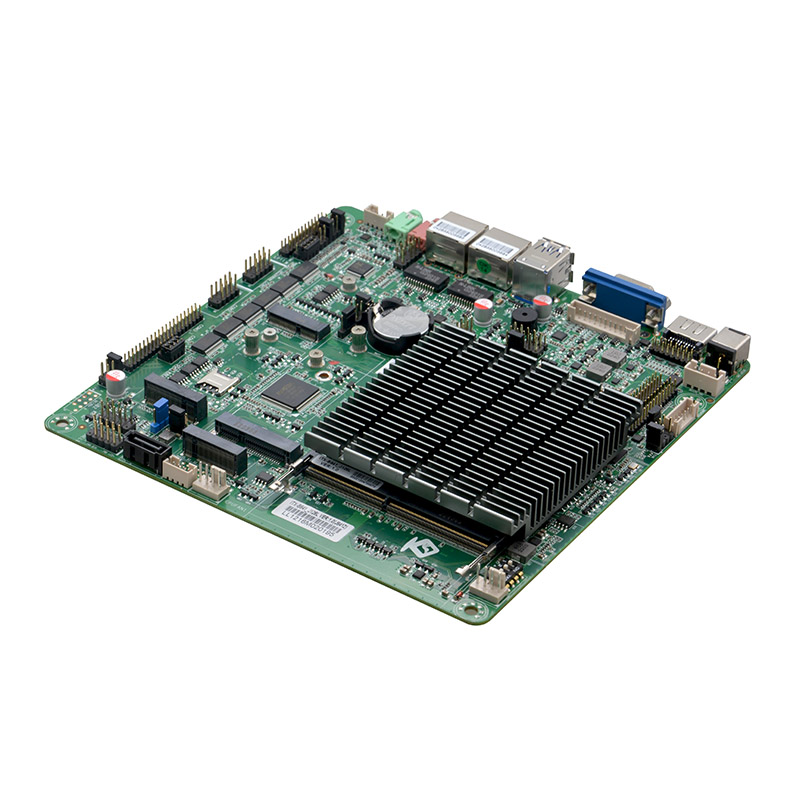

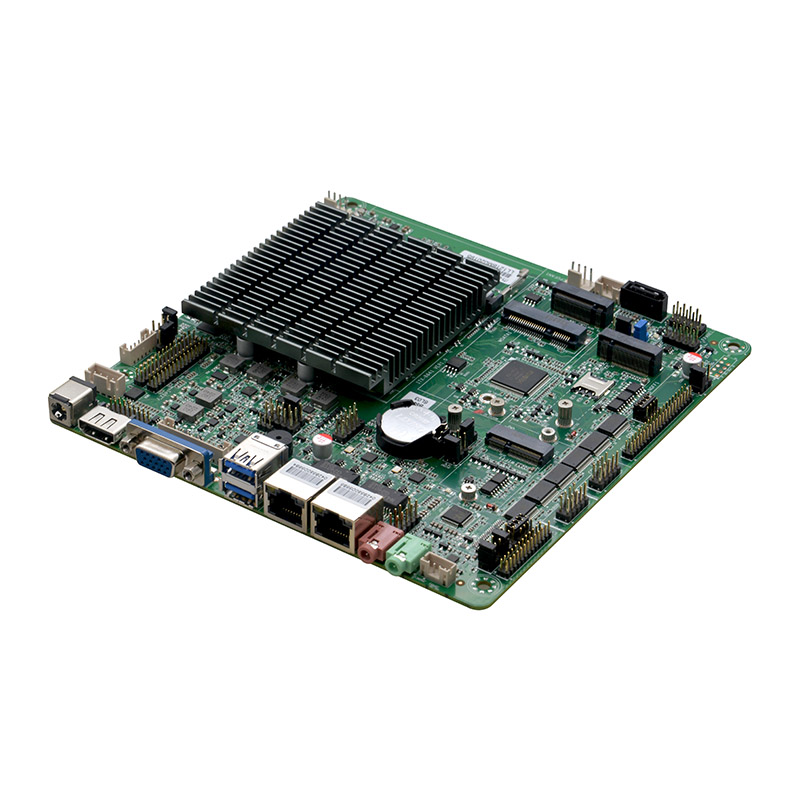

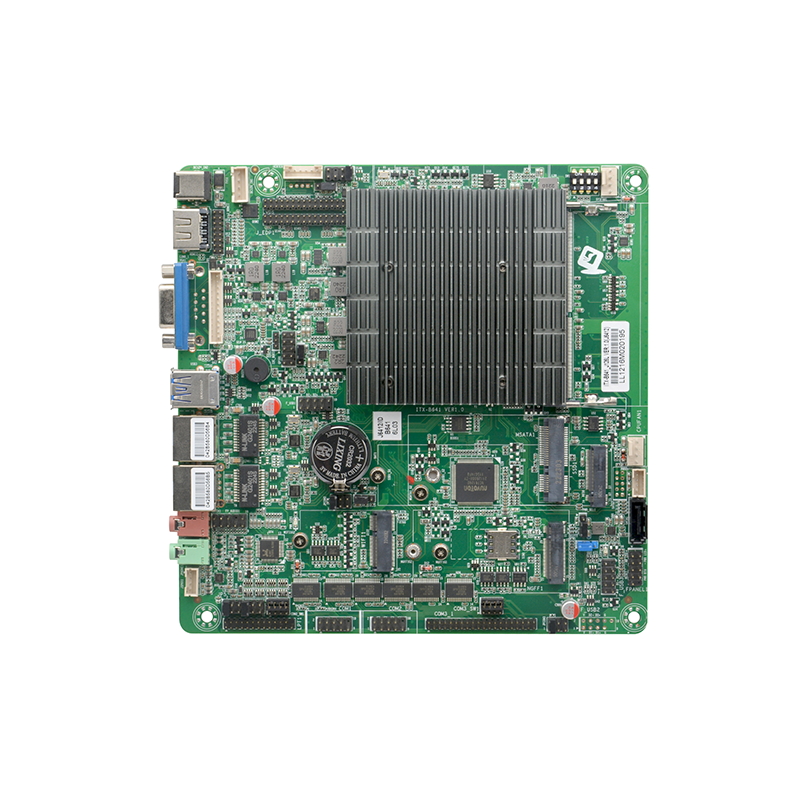

Model No.: ITX-B641_J126L VER:1.0(J6412)
Processor: Integrated Intel®Celeron J6412 2.0GHz quad core quad thread processor ,TDP 10W
Compatible with Intel® Elkhart Lake all series CPU
Chipset: SOC
RAM: 1x SODIMM slot, support single channel 2400MHz DDR4 memory, is up to 16GB
Display: Integrated Intel® UHD Graphics
1x VGA, 1x HDMI, 1x LVDS, 1x EDP
Note: LVDS and EDP interfaces are optional
Ethernet: 2x RTL8111H Gigabit LAN,support Wake-on-LAN, PXE function.
Storage: 1x 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
1x MSATA slot,support SSD,transfer rate up to 6Gbps
1x M.2 slot，support M.2 Key M 2260/2280 PCIE X2 specification SSD
Audio: Onboard ALC897 7.1+2 channel high-fidelity audio controller, support MIC, Line_out, power amplifier
Support power amplifier 4Ω3W speaker
Expand slot: 1x M.2 slot, support M.2 Key B 2242/2252 5G module
1x M.2 slot, support M.2 Key E 2230 WIFI module

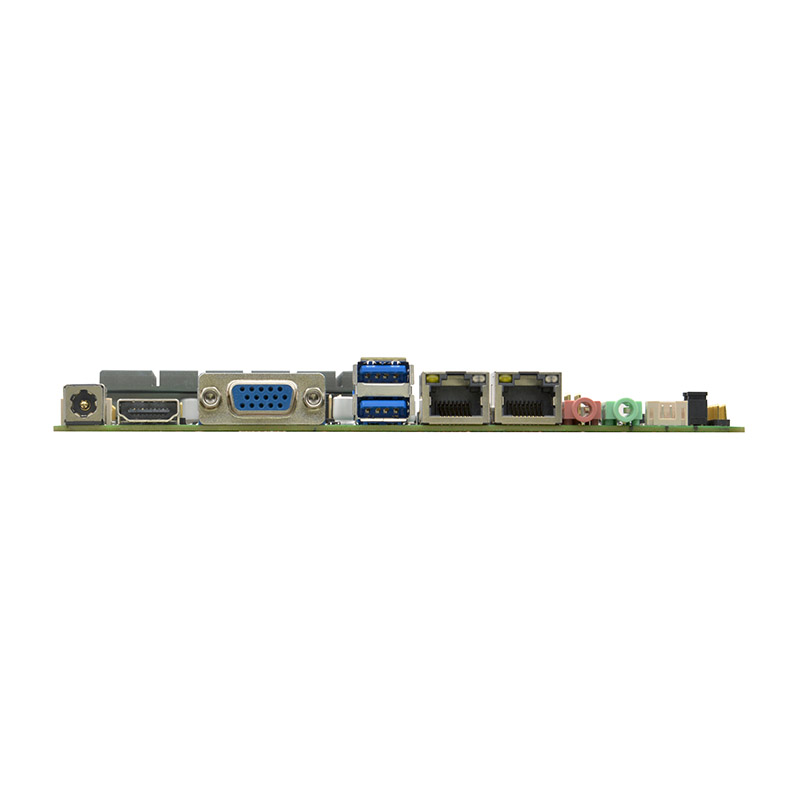

Backplane I/O Interface:
1x DC 12V power supply input interface
1x VGA
1x HDMI
2x USB3.0
2x RJ45 Gigabit network interface
1x Line-out（green）,1x MICK(red)

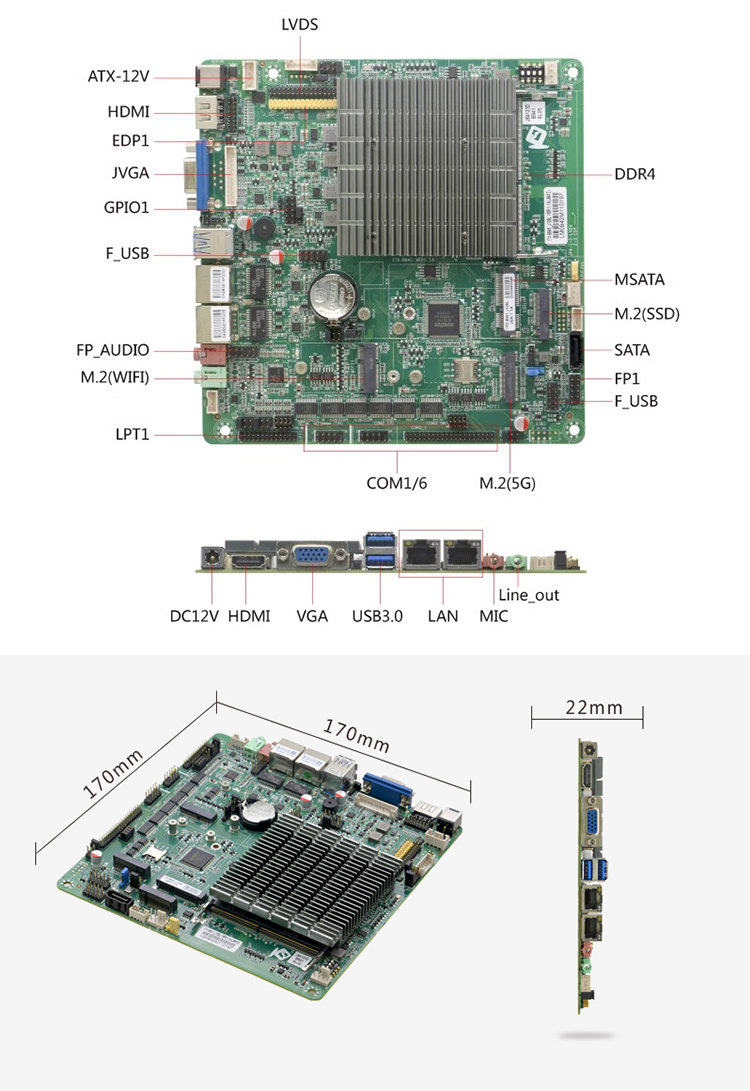

Built-in I/O interface:
1x DC power supply interface，1x 4pin support 12V power supply input output
1x JVGA,1x 12pin(same signal as DB15)
1x J_HDMI, 2x 8pin(same signal as HDMI)
1x LVDS, 2x 15pin, support dual channels 24BIT
1x EDP, 2x 15pin(LVDS and EDP interfaces are optional)
1x screen backlight power supply interface, 1x 6pin
4x USB2.0，2x 5pin
6x RS232 serial port, COM1/2 supports the 9th pin live, and COM2/COM3 support RS485/422
1x HDD power supply interface, 1x 4pin
1x front audio interface, 2x 5pin
1x amplifier interface, 1x 4pin
1x LPT, 2x 13pin
1x SIM card slot
1x front panel function button and indicator light interface, 2x 5pin
Fan interface: Fanless cooling, reserved 1x 4pin CPU smart fan interface, 1x 4pin system fan interface
GPIO: support 4-way input and output GPIO
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function(256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 170mm x 170mm
