Product Description

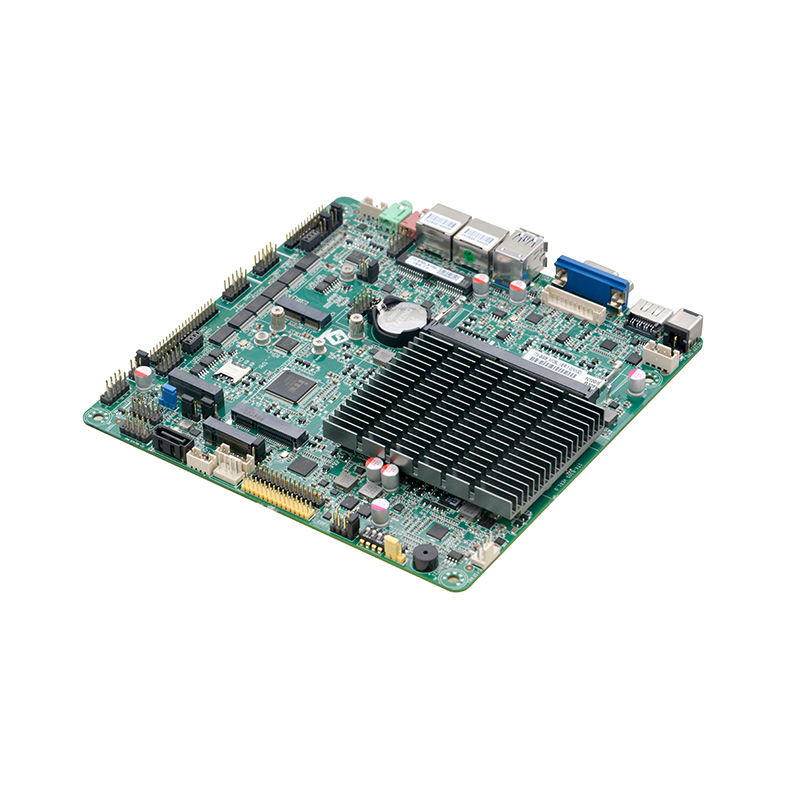

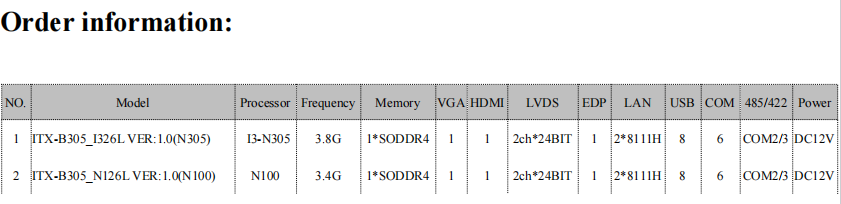

Model No.: ITX-B305_N126L VER:1.0(N100)
Processor: Integrated Intel®Alder Lake-N N100 3.4GHz quad-core quad-thread processor, TDP 6W
Compatible with the full range of Intel® Alder Lake-N cpus, customers can flexibly choose
Chipset: SOC
Memory: 1x SODIMM slot, Supports single channel 3200MHz DDR4 memory, up to 16GB
Display: Integrated Intel® UHD Graphics core graphics card,support DirectX 12.1,OpenGL4.6
1x VGA,1x HDMI2.0 interface,1x LVDS interface,1x EDP interface
Note:LVDS and EDP interfaces can be selected by jumper
Ethernet: 2x RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps
1x MSATA slot, support SSD,SSD transfer speed up to 6Gbps
1x M.2 slot, supporting the M.2 Key M 2280 PCIE X1 SSD
Audio: Onboard ALC897 7.1+2 channel high-fidelity audio controller, support MIC, Line_out, power amplifier
Suggest power amplifier 4Ω3W horn
Expansion Slot: 1x M.2 slot, supporting the M.2 Key B 2242/2252 5G module
1x M.2 slot, supporting the M.2 Key E 2230 WIFI module

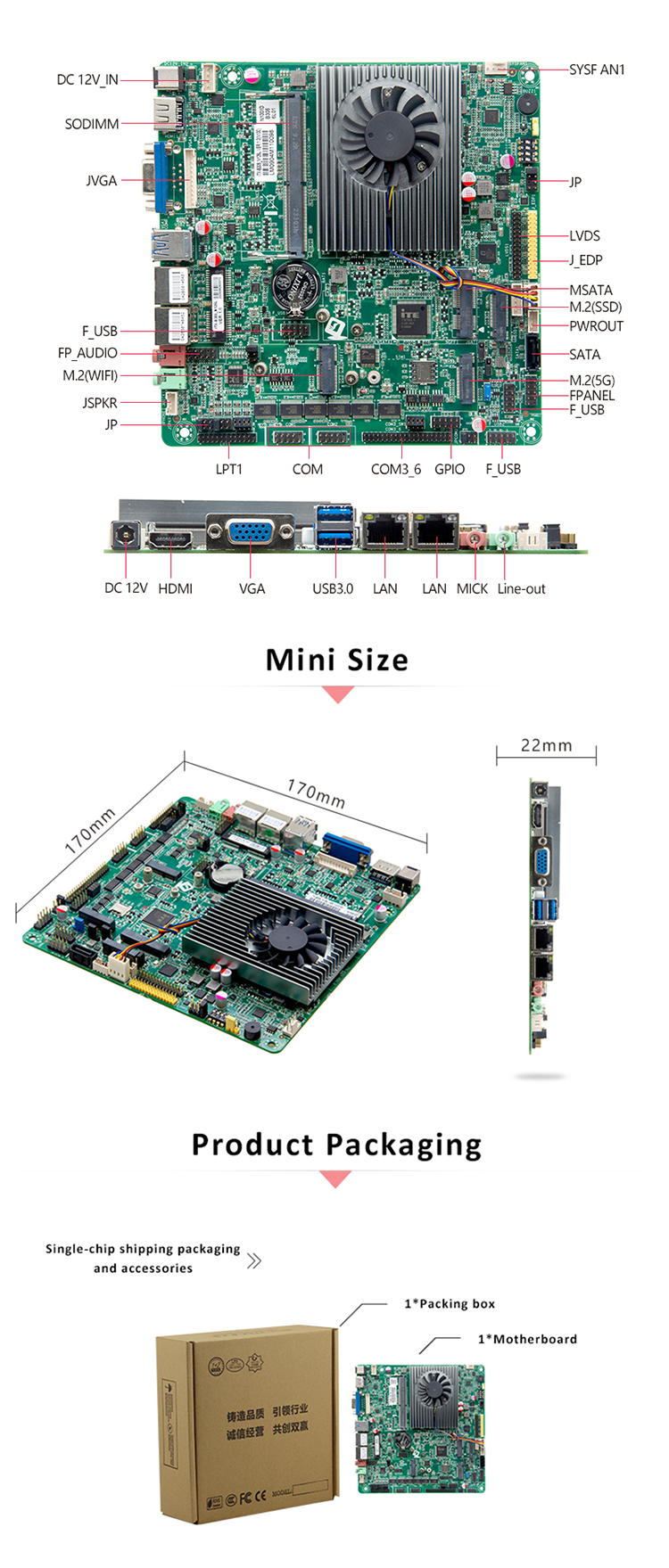

Rear I/O interface: 1x12V DC power input port
1x VGA
1x HDMI2.0
2x USB3.0
2x RJ45 Gigabit network interface
1x Line out interface (green),1x MIC interface (red)
Built in I/O interface:
1x DC power connector 1x 4pin (12V input/output power connector)
1x JVGA port 1x 12Pin, same signal as DB15
1x LVDS interface 2x 15pin, support dual channel 24bit
1x EDP interface (yellow), 2x15pin, and LVDS by jumping one of two
1x screen backlight power supply interface 1x 6pin
6x USB2.0 interface, 2x 5pin
6x RS232 serial interface,COM1/2 support 9pin live function,COM2/COM3 support RS485/422 function
1x hard drive power port 1x 4pin
1x front audio interface 2x 5pin
1x power amplifier interface 1x 4pin
1x LPT interface 2x 13pin
1x SIM card seat
1x Front panel function button and indicator port 2x 5pin
Fan Connector: Support fan-less heat dissipation, reserved 1x 4pin CPU intelligent fan port, 1x 4pin system fan port
GPIO: Support 4-way input output GPIO function
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V power supply
Operating system: Windows 10/Windows 11/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm x 170mm
