Product Description
Model No.: R280H V1.0(B320)
Chassis:
Material/structure: 1U standard case, high-quality galvanized steel plate
Color: Sub silver black
Size（LWH）: L430 x 280 x 45MM
Installation: 1U standard rack

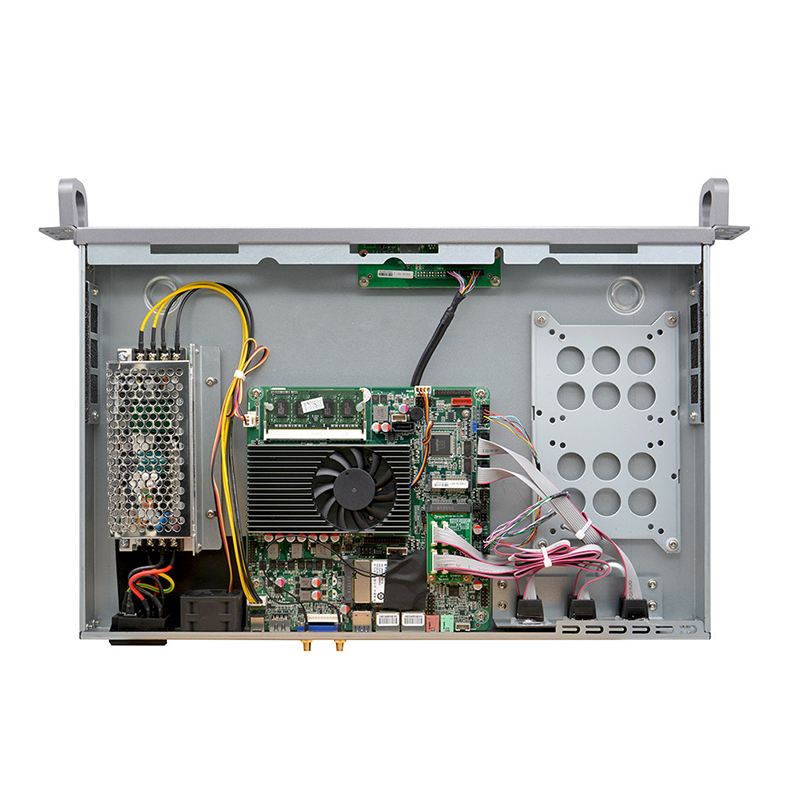

Motherboard:
CPU: Integrated Intel®i5-3210M/2.5GHz dual-core quad-thread processor, TDP 18W
Chip: Intel® HM77 high speed chipsets
Display: Integrated Intel® HD Graphics4000
Memory: 1x SODDR3 memory, support signal channel DDR3 1600/1333 ram, is up to 8GB

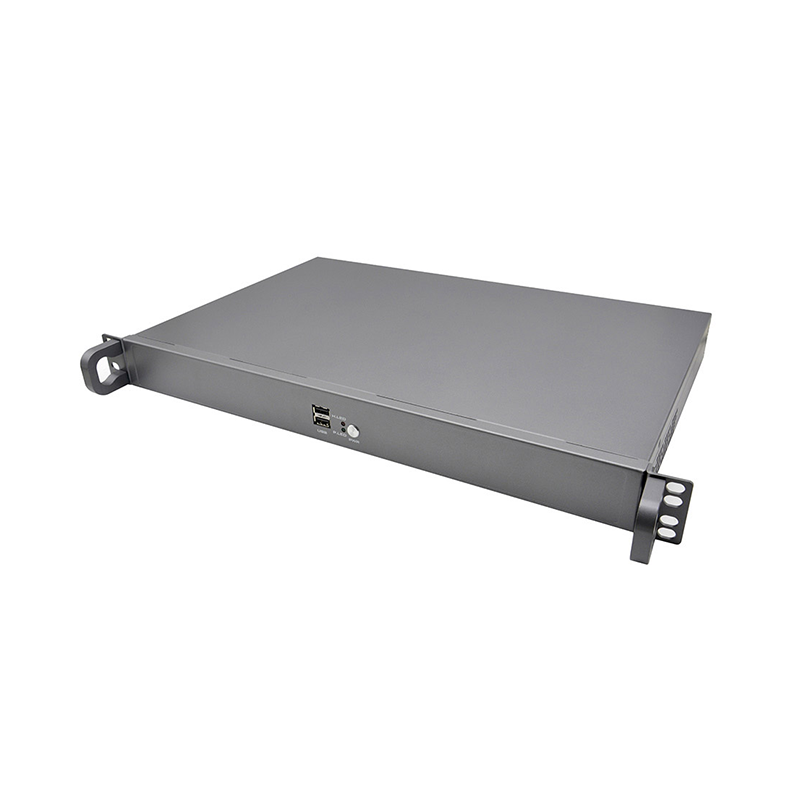

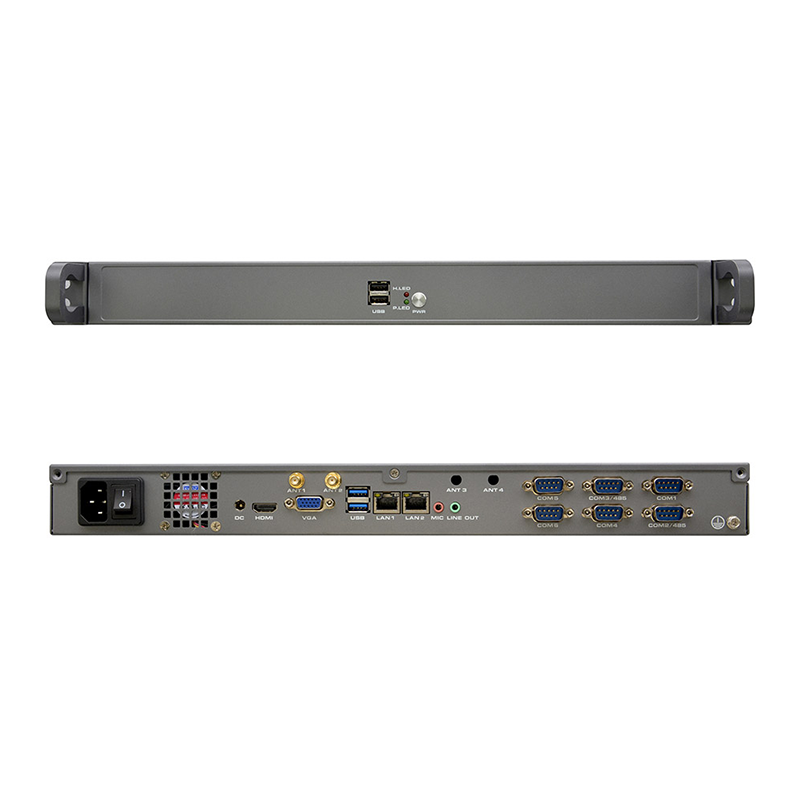

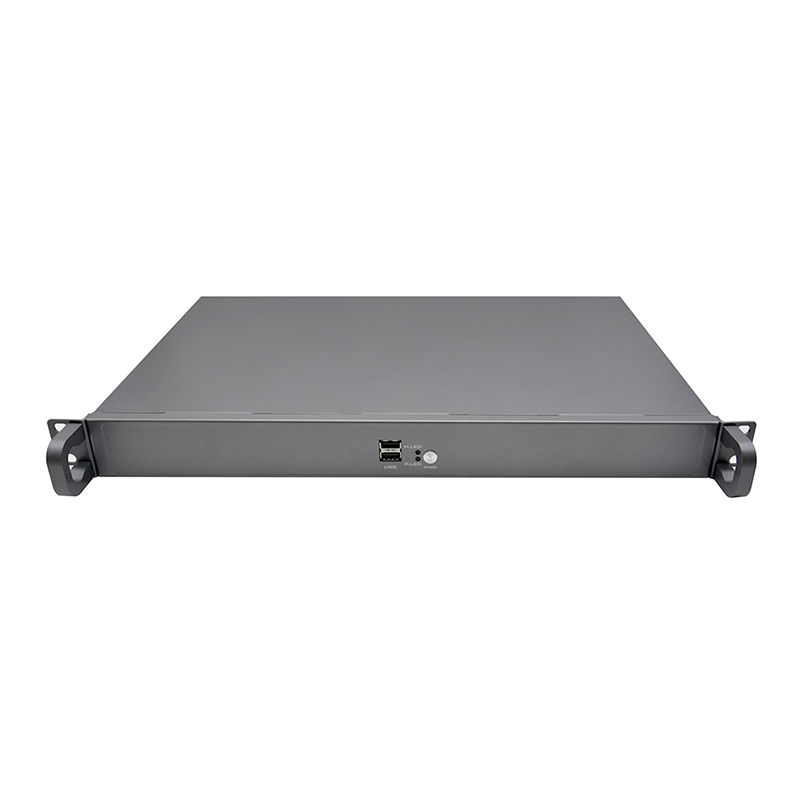

Front panel connector:
POWER: 1x Power switch
LED: 1x hard disk indicator, 1x power indicator
USB: 2x USB2.0

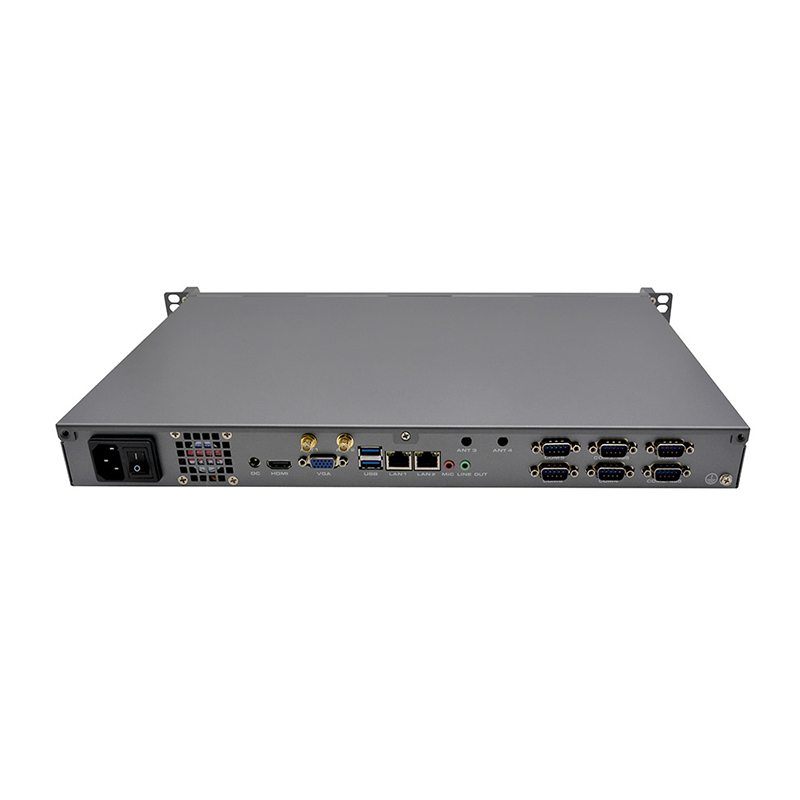

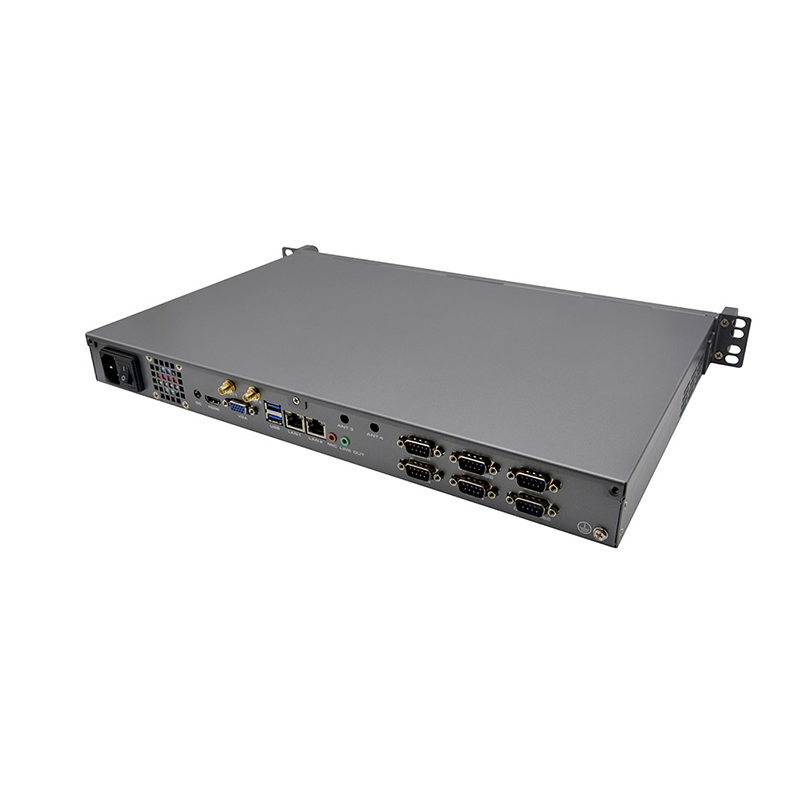

Rear panel connector:
Display interface : 1x VGA, 1x HDMI
LAN: 2x RTL8111H Gigabit network card, supports network wake-on and PXE function
COM: 6x RS232 DB9 COM ( COM1/COM2 supports the 9th pin charged function, COM2/COM3 support RS232/422/485)
USB: 2x USB3.0
Audio: 1x Line out, 1x MIC
Power interface: 1x power supply interface
Storage:
SATA: 1x SATA2.0, the transfer rate is up to 3Gbps
MSATA: 1x MSATA, the transfer rate is up to 6Gbps
Expansion:
Mini PCIE: 1x Mini-PCIE slot，support WIFI/3G/4G module
M.2: N/A
Power Supply:
Microsoft Windows: Window 7
Linux: Ubuntu
Watch Dog: Support hardware reset function (level 256, 0~255 seconds)
Power Supply:
Power supply type: open power supply
Voltage input: AC 110-220V
power output: AC TO DC，12V/5A/60W
Environment:
working temperature: -10℃～50℃
Storage temperature: -20℃～70℃
Relative humidity: 5%-95%(Relative humidity, non condensing)
Working Vibration: 0.5g rms/5-500HZ/random/operating
