Key Advantages:
✔ Unmatched performance - Supports up to Intel® i9-9900K processors
✔ Hybrid 10G networking - 6×2.5GbE + 2/4×SFP+ (fiber/copper) ports
✔ Military-grade security - Optional Bypass + dedicated TPM module
✔ All-flash storage - SATA+mSATA+M.2 triple storage support
✔ Professional expansion - PCIe x8 slot + dual M.2 (WiFi/5G) slots
✔ Enterprise management - OOB port + security dongle interface
✔ Carrier-grade reliability - Industrial PSU + WDT design
Typical Applications:
◼ Enterprise 10G firewall/NGFW
◼ Data center perimeter security
◼ High-end VPN gateway
◼ Deep packet inspection
◼ Financial-grade security systems
Product Description

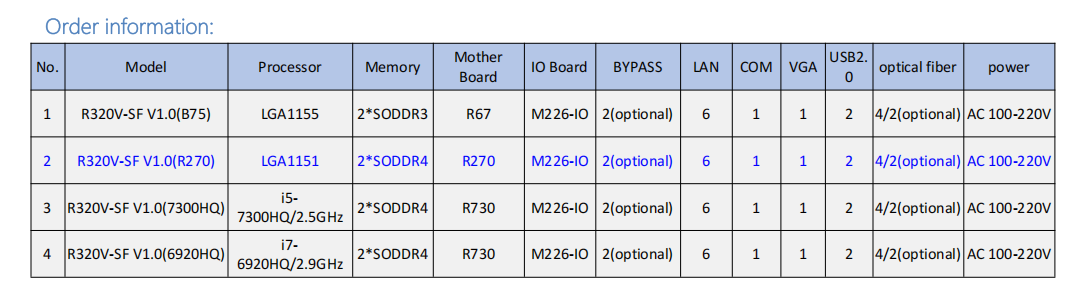

Model No.: R320V-SF V1.0(R270)
Chassis:
Material/structure: 1U standard case, high-quality galvanized steel plate
Color: Iron grey

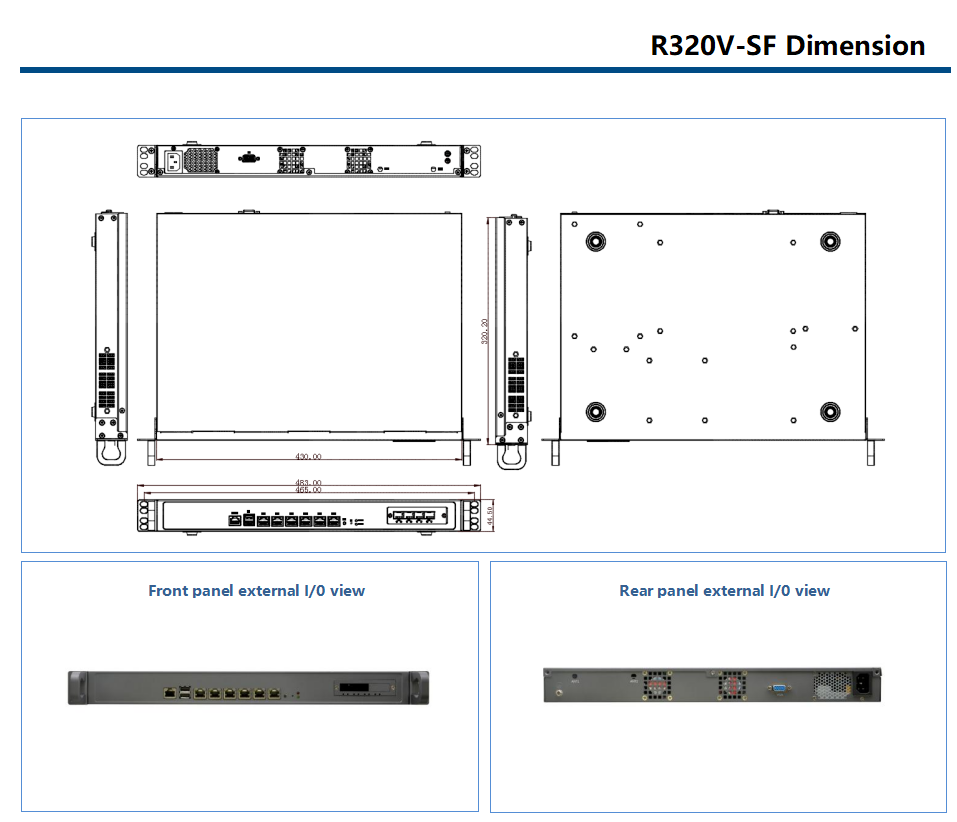

Size（LWH）: 430MM x 320MM x 44.5MM
Weight: 4.15KG
Installation: 1U standard rack

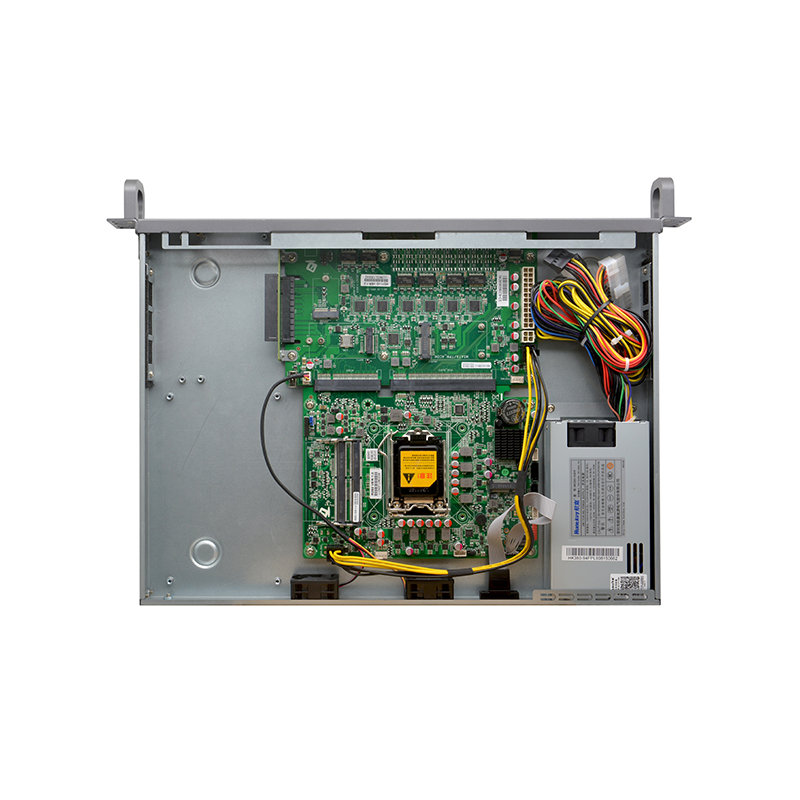

Motherboard:
CPU: Support Intel®LGA1151 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7series cpu
Chipset: Intel Q250/Q270 high speed chipsets
Display: Integrated Intel®HD Graphics
Memory: 2*SODDR4 SODIMM memory slot,support 2400MHz memory, up to 64GB

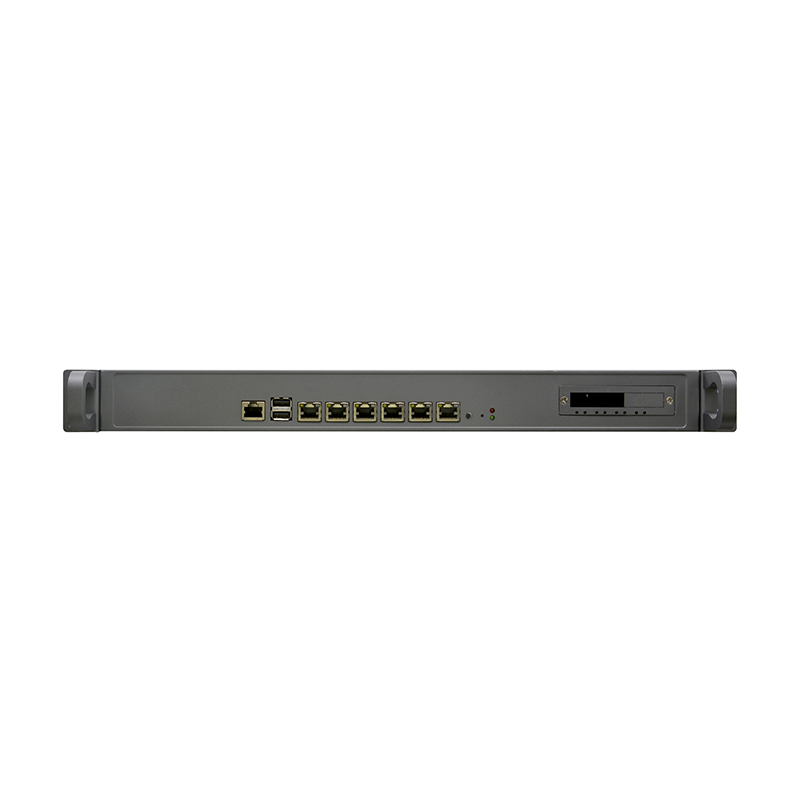

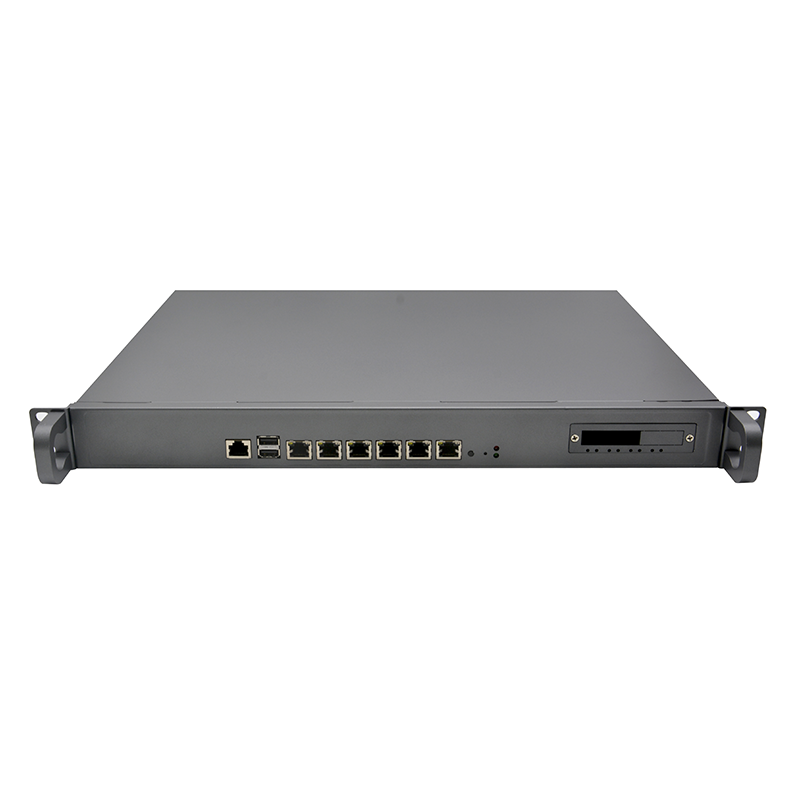

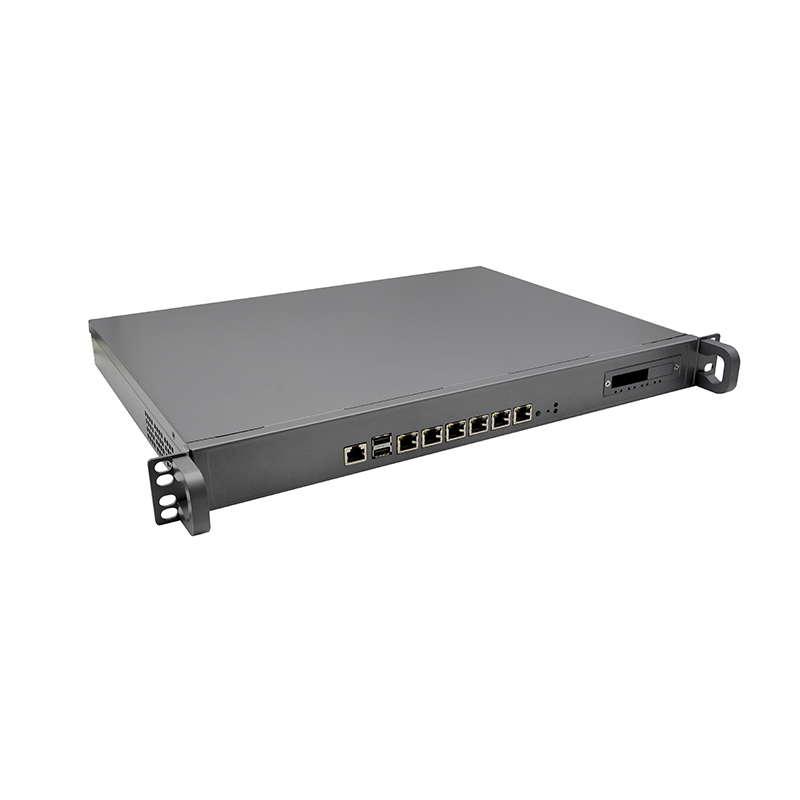

Front panel connector:
POWER :1x Power switch，1x Restart switch
USB: 2x USB2.0
LAN: 6x Intel I226 2.5G Gigabit electrical port, supporting network wake up /PXE(LAN1-4 supports BYPASS, not installed by default)
SFP: Support 4 or 2 fiber card（expansion）
COM: 1x RJ45COM
LED: 1x hard disk indicator，1x power supply indicator

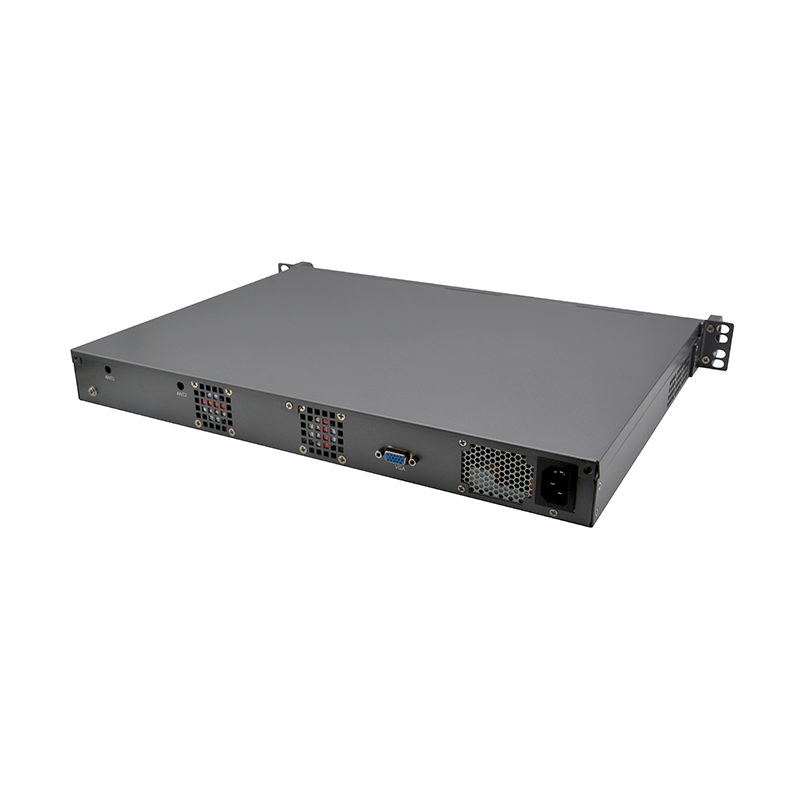

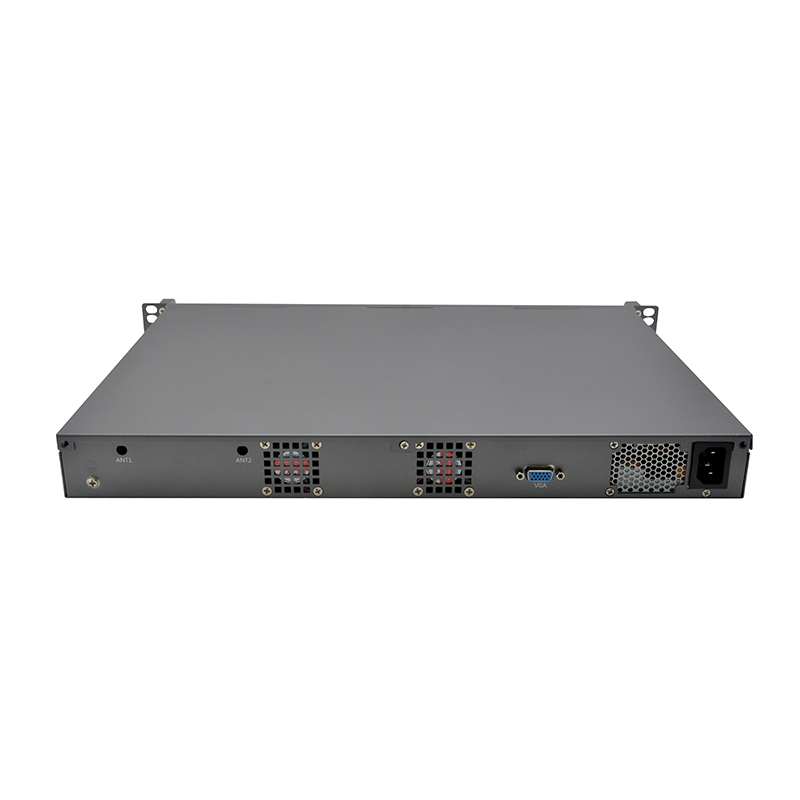

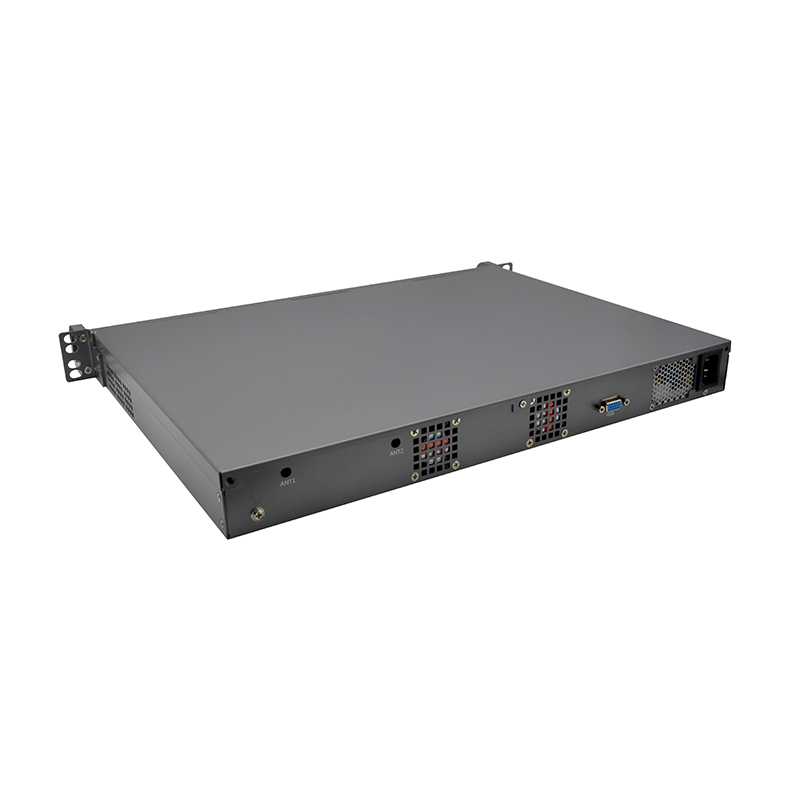

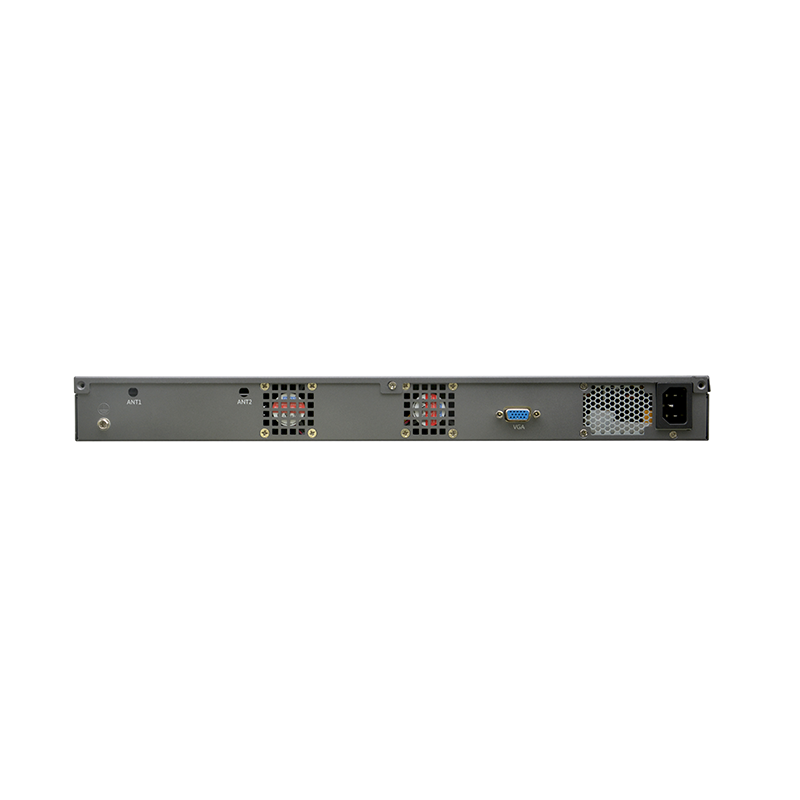

Rear panel connector:
Display interface: 1x VGA
Power interface: 1x AC power interface
Storage:
SATA: 1x 3.5’’ HDD slot or 1x 2.5’’ HDD slot
MSATA: 1x MSATA，the transfer rate is up to 6Gbps
Expansion:
PCIE x8: 1x PCIE X8 slot,can expand Gigabit/10 Gigabit Fiber Card
M.2: 1x M.2 Key-E slot，support WiFi module
1x M.2/5G，Key-B，2242/2252，supports 5G (choose one with built-in USB2.0)
MINIPCIE: 1x MINIPCIE slot,Supports MSATA(Optional TPM-4COM, supports 4 strings, requires a BIOS that supports TPM-4COM)
USB: 1x USB2.0 ,dongle can be connected(M.2 5G alternative)
OS: Windows: Windows 7 / 10
Linux: Ubuntu
Power Supply:
Power type: Built-in ATX/1U power supply
Voltage input: AC 110-220V
Power output: Standard 250W
Environment:
Operating temperature: -10℃～50℃
Storage temperature: -20℃～70℃
Relative humidity: 5%-95%(Relative humidity, non condensing)
Work vibration: 0.5g rms/5-500HZ/random/operating
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
