Product Description
Model No.: ITX-M41V VER:1.1(J4125)
Processor: Integrated Intel®Celeron J4125 2.0GHz Quad core Quad thread processor,TDP 10W
Compatible Intel® Gemini Lake all series of CPU
Chipset: SOC
Memory: 1x SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB
Graphics: Integrated Intel® UHD Graphics 600,1* VGA
Network: 4x Intel I225V Gigabit network card, support wake-up / PXE function
Storage:
1x SATA 2.5-inch notebook hard disk, can directly install the hard disk, the transmission speed can reach 3Gbps
1x Standard 7PIN SATA hard disk interface (choose one with 2.5-inch hard disk)
1x MSATA slot, support Intel protocol SSD solid state drive, transmission speed up to 3Gbps
Expansion slots: 1x Mini-PCIE slot, support WIFI, 4G module, the default is USB signal
Note: Mini-PCIE slot and LAN4 share the PCIE channel, and the user can choose one of the two

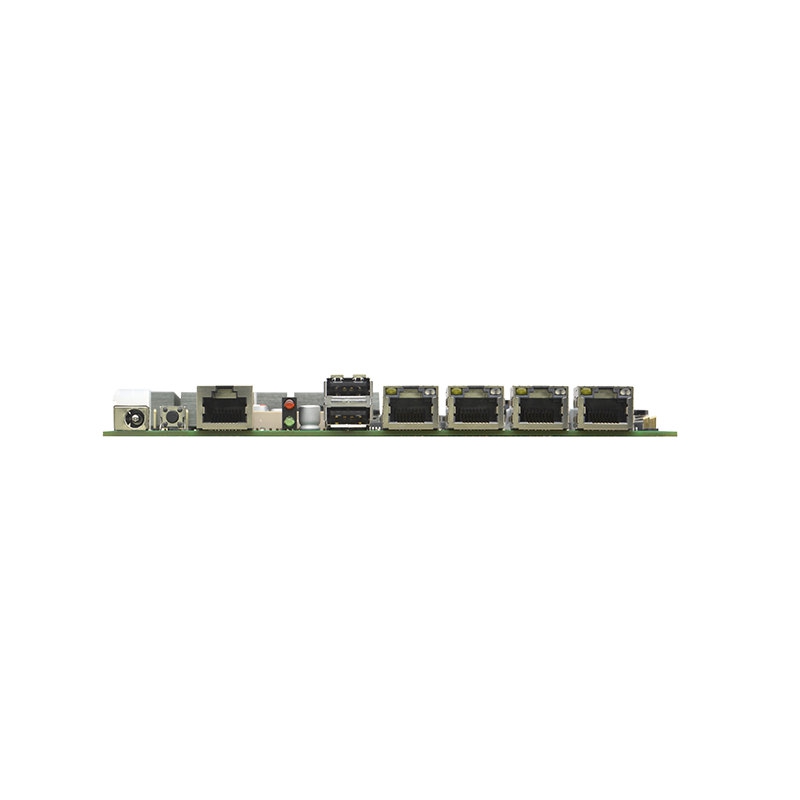

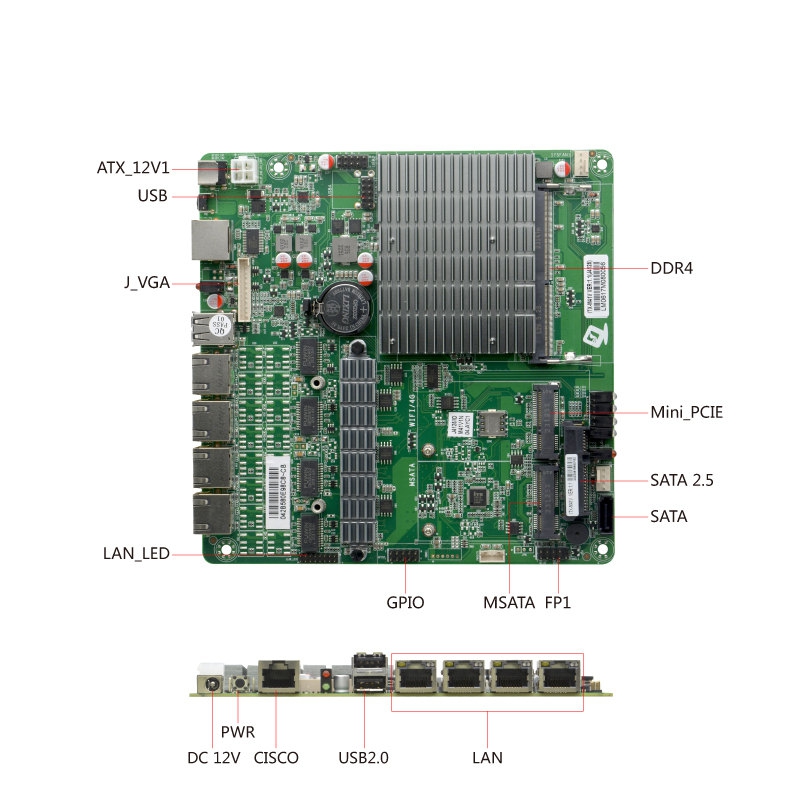

Rear I/O interface:
1x 12V DC Power input interface
4x RJ-45 Gigabit network interface
1x CISCO Standard RJ-45 serial port
2x USB 2.0
1x Power switch
2x HDD indicator，2x Power Indicator
4x Network light，4x Network data transmission indicator
Built in I/O interface:
1x 4pin ATX Power interface (can be used as 12V input and output power interface)
4x USB 2.0, 2x 5Pin
1x JVGA, 1x 12Pin
1x Network light, 2x 8Pin
1x Front panel switch button and indicator light interface, 2x 5Pin
1x HDD power supply interface, 1x 4pin
1x SIM card slot
Fan connector: Fanless heat dissipation design, reserved 1x 4pin CPU fan connector, 1x 4pin system fan connector
GPIO: Support 4-way input and output GPIO
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10/Linux
Power type: DC 12V
Working Temp.: -10℃～60℃
Storage Temp:. -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)

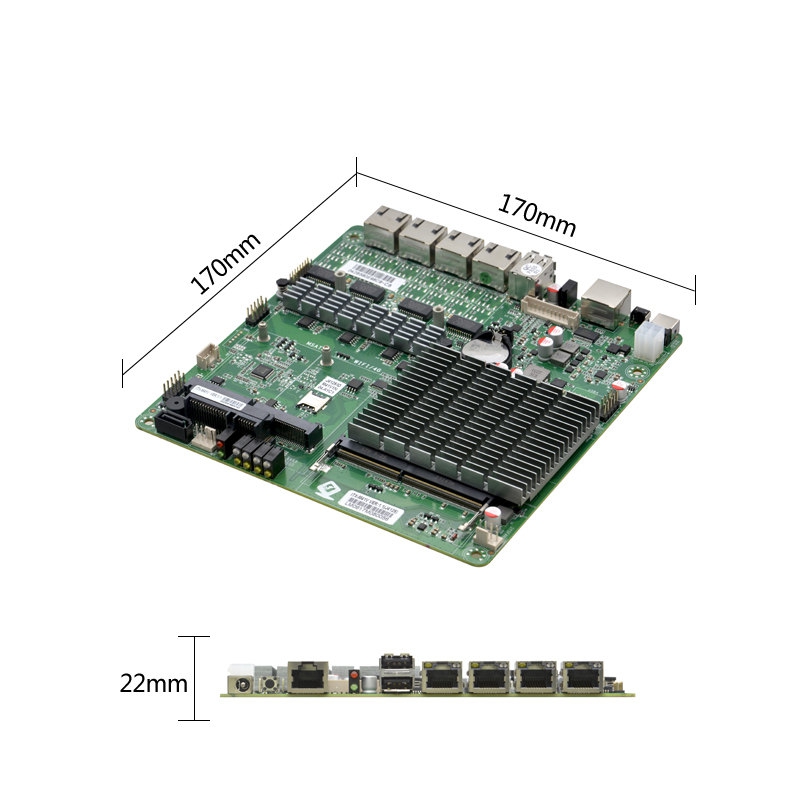

Dimension: 170mm x 170mm
