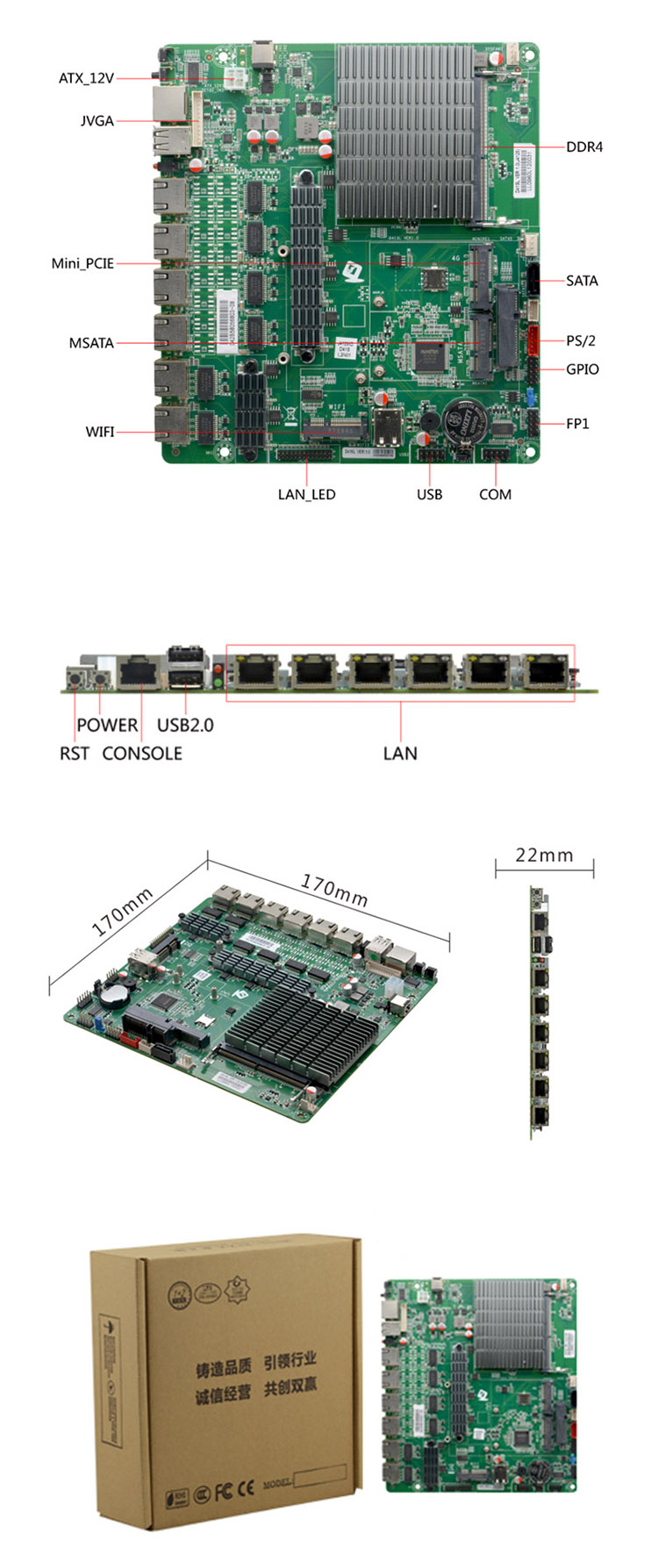

Product Description
Model No.: D41SL VER:1.0
Processor: Integrated Intel®Celeron J4125 2.0GHz Quad core Quad thread processor ,TDP 10W
Chipset: SOC
Memory: 1x SODIMM, supports single channel 2400MHz DDR4 memory, is up to 8GB
Display: Integrated Intel® HD Graphics，supply 1*VGA display output
Ethernet: 6x Intel KTI226V Gigabit Ethernet,supports Wake on LAN/PXE function
Storage:
1x SATA3.0 2.5-inch notebook hard disk slot, hard disk can be installed directly
1x 7pin SATA3.0 HDD slot，the transfer rate is up to 6Gbps (2.5-inch hard disk slot is optional, and the default is 2.5-inch)
1x MSATA slot, supports Intel protocol SSD, the transfer rate is up to 6Gbps
Expansion Slot:
1x Mini-PCIE2 , supports WIF module
1x Mini-PCIE1, supports 4G module

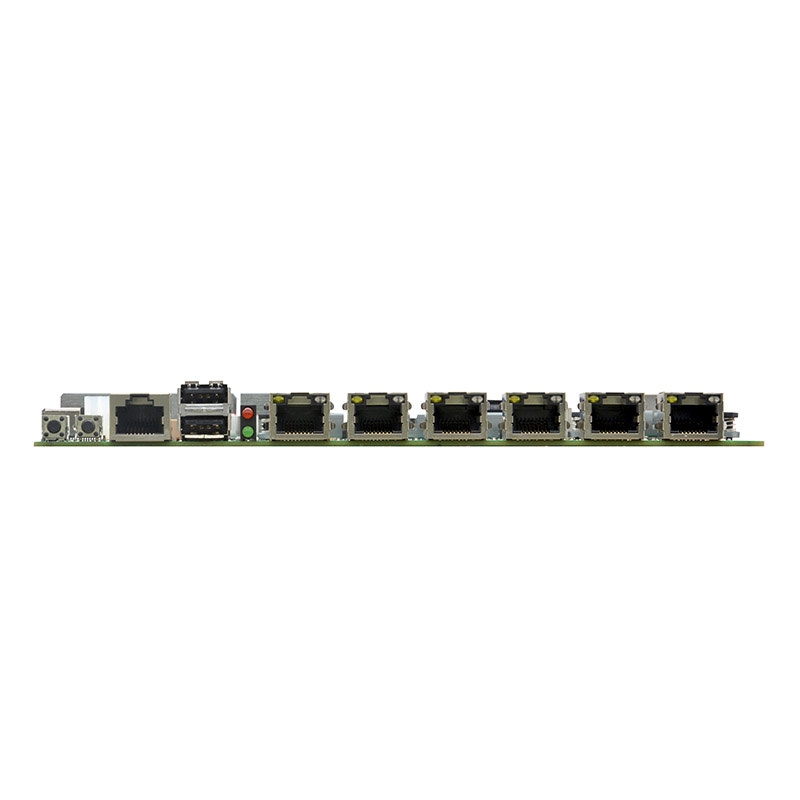

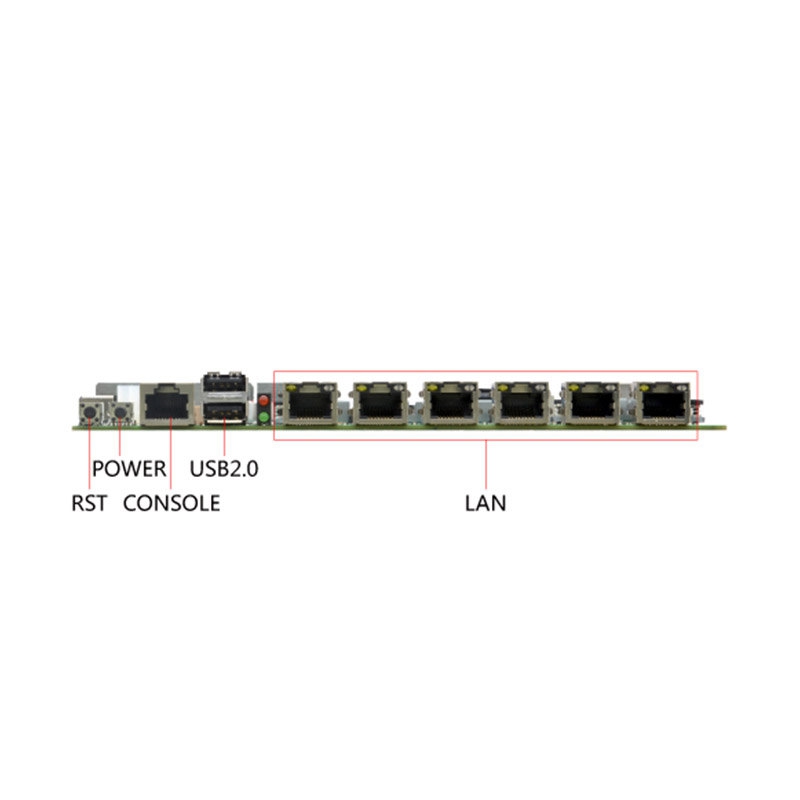

Rear I/O interface:
1x CISCO standard RS232 serial interface
2x USB 2.0
6x RJ-45 Gigabit Network Interface
1x Power switch，1x Reset switch
1x Power Indicator（Green）/ HDD indicator（Red）

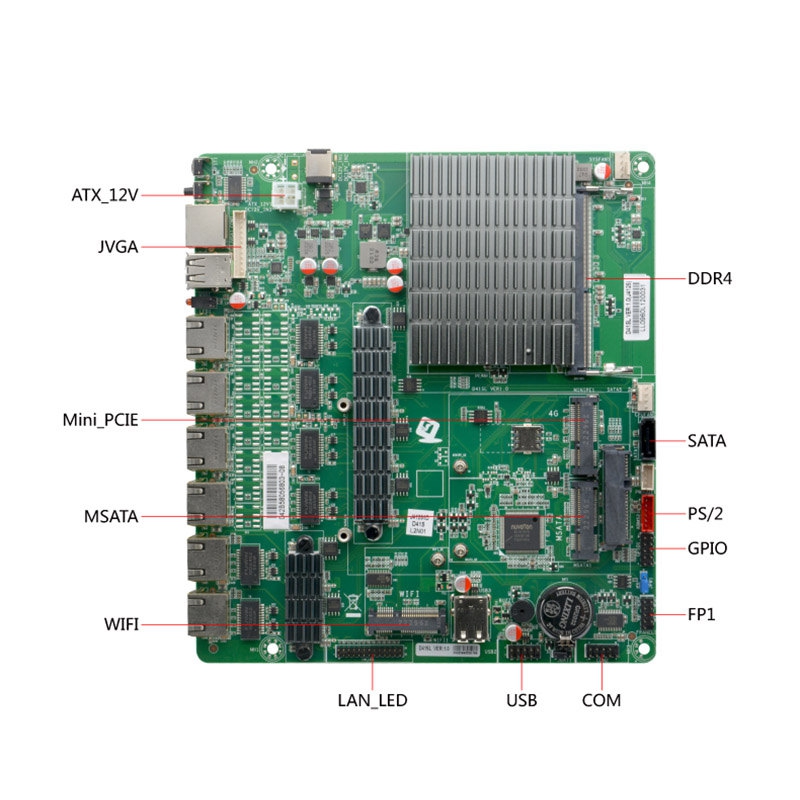

Built in I/O interface:
1x JVGA, 1x 12pin
1x Network Indicator interface, 2x 13pin
1x RS232, 2x 5pin
2x USB2.0, 2x 5pin
2x USB2.0 (standard )
1x HDD power supply interface, 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
1x PS/2 keyboard and mouse interface, 1x 6pin
1x DC_12V
1x 4pin ATX power input interface, supports 12V power input output
Fan Connector: 1x 4pin CPU smart fan connector, 1x 4pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V
OS: Window 10/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)
Dimension: 200mm x 180mm
