Key Firewall Features:
●Bypass-ready networking: 4× Gigabit Ethernet ports (RTL82583V/82574L chipsets, Bypass optional)
●Enterprise management: Cisco-compatible RJ45 console port
●Memory capacity: 1× DDR3L SO-DIMM (up to 8GB at 1600/1333MHz)
●Storage options:
2× SATA2.0
1× mSATA SSD
1× mini-PCIe (for WiFi/3G/4G) + SIM slot
●Industrial connectivity:
6× USB2.0
PS/2 interface for legacy peripherals
●Dual power inputs: 12V DC jack + ATX 4-pin connector
●Fanless operation for silent deployment
Optimized for:
Hardware firewall appliances
Network intrusion detection systems
VPN server gateways
Industrial network security

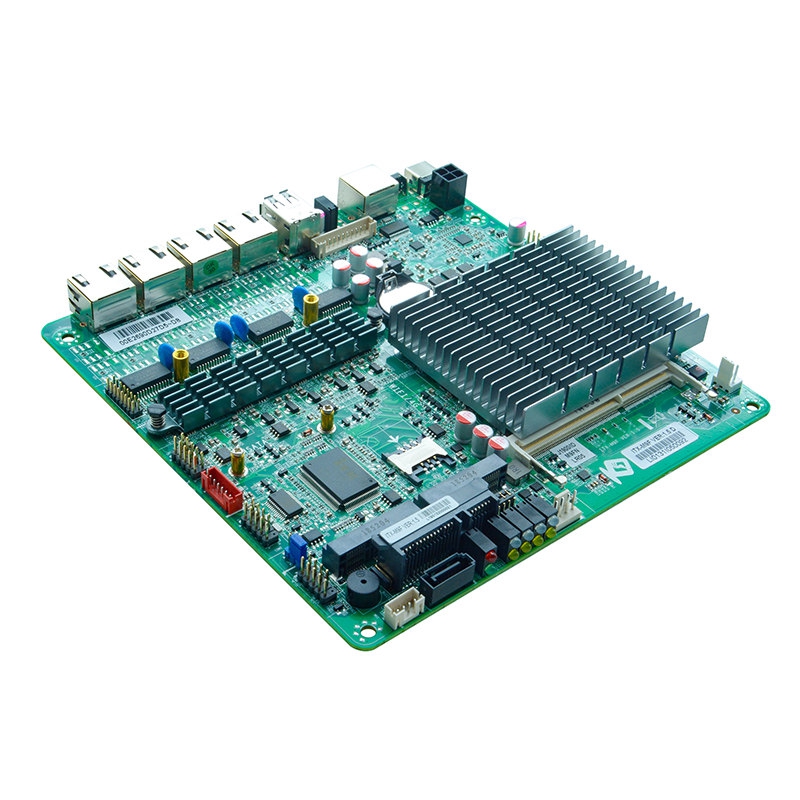

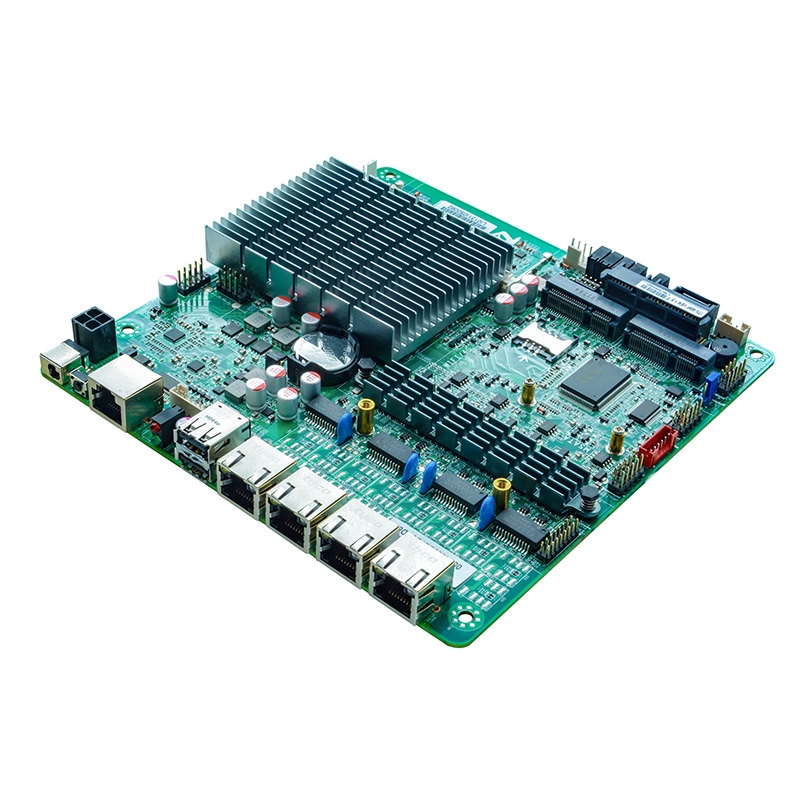

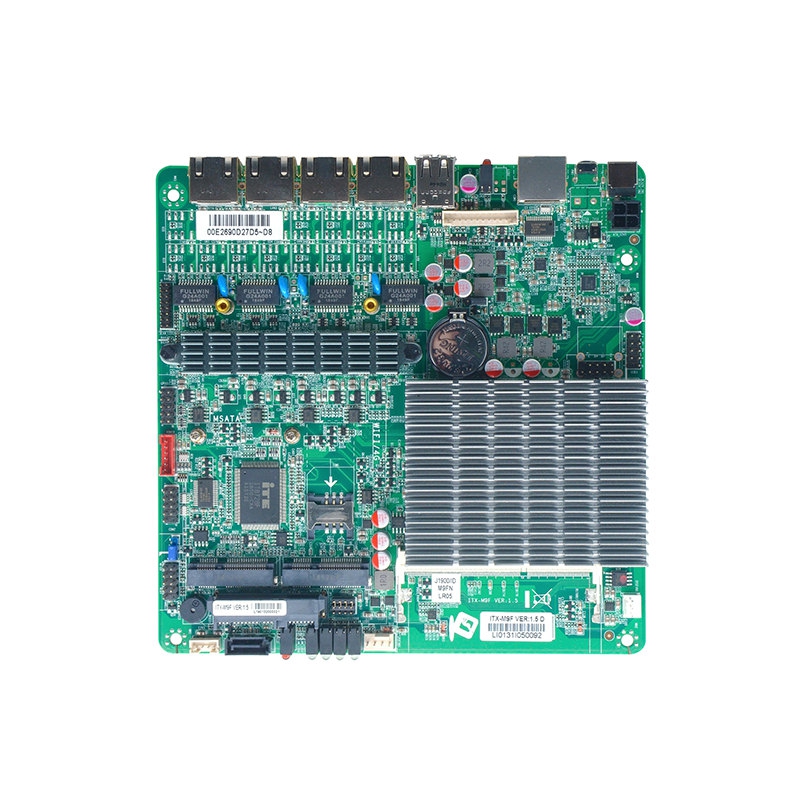

Product Description
Model NO.: ITX-M9F VER:1.5
CPU: Integrated Intel® Celeron J1900/2.00GHz quad core processor; TDP 10W
Chipset: Intel® Bay trail SOC Platform
Memory: 1x DDR3L socket,Support 1.35V 1333/1600MHz memory, up to 8GB
Graphics: Integrated Intel® HD graphics; 1*VGA for display
LAN: 4x 82583V Intel 10/100/1000Mbps Ethernet,Support Wake-on-LAN/PXE (82574L and Bypass optional)
Storage: 1x SATA2.0 ; 1x 2.5” notebook hard disk connector
1x SSD MSATA2.0
Expansion slots: 1* Mini-PCIE slot ,Support WIFI/3G/4G modems

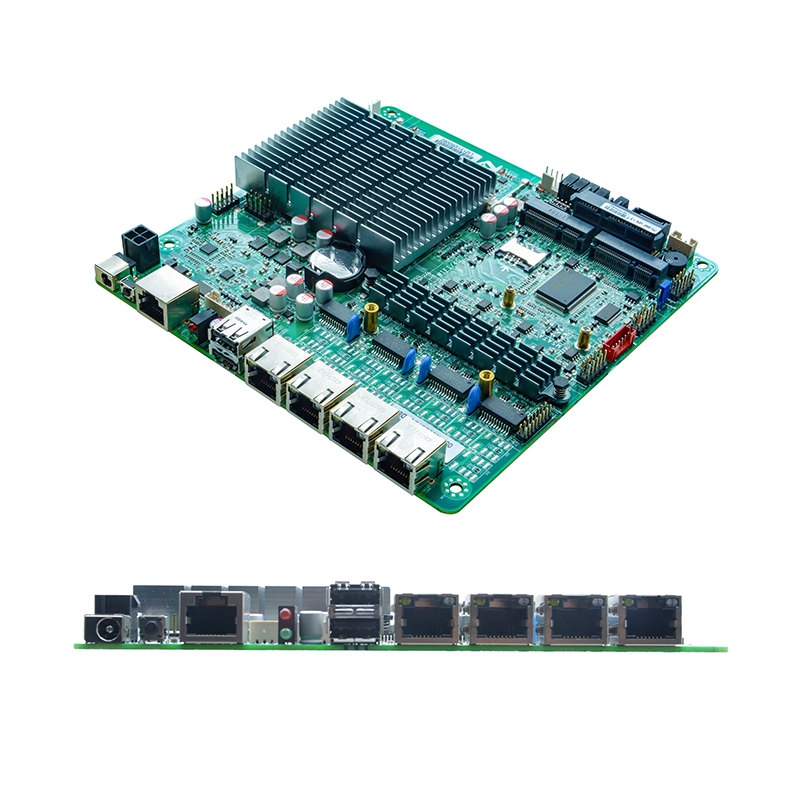

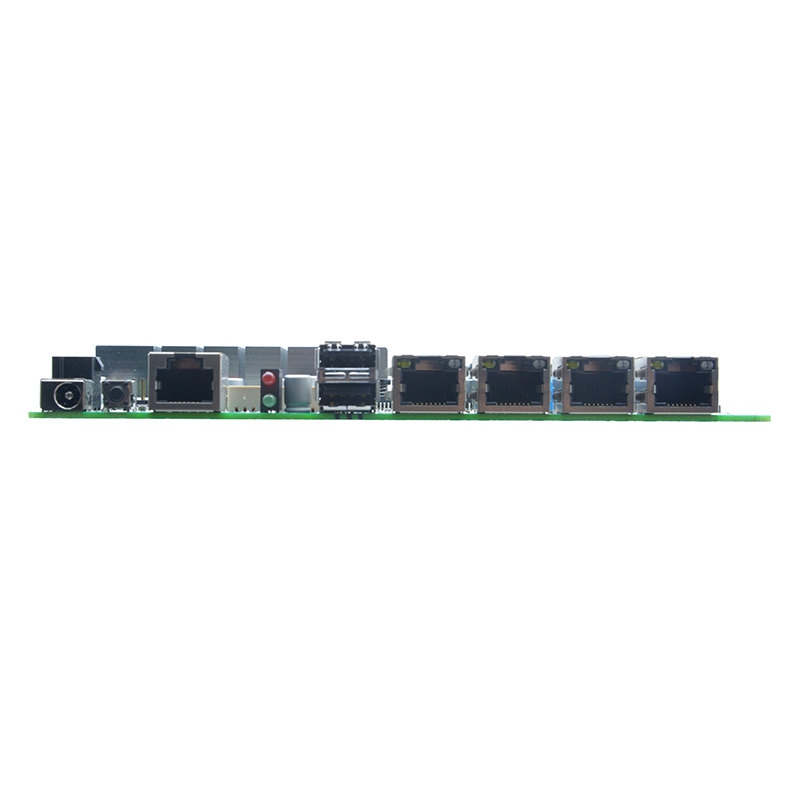

Rear I/O:
2x USB2.0
4x RJ-45
1x RJ45-DB9 COM（ CISCO standard definition）
2x LED Signal indicator (indicating power and hard drive light)
4x Lan_LED
1x Power Switch
1x DC_Jack (12V input)
Internal I/O:
1x JVGA1(2x 5pin) Connection monitor with VGA adapter
1x COM（2x 5pin）
1x LAN_LED 2x 8pin
4x USB2.0(2x 5pin）
1x PS/2(1x 6Pin)
1x SIM Card socket
1x PWROUT for HDD
1x FP1(2x 5pin Front panel buttons and LED connected)
1x ATX_4P (+12V Input and output power interface)
Fan interface: Fanless design. (Provide 1x CPUFAN 4pin;1x SYSFAN 3pin )
GPIO: Support 4 input and output GPIO
BIOS: AMI 64MB Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Input: DC_12V
Operating Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Humidity: 5%-95% (relative humidity; non-condensing)
Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
