6 Lan 2 Bypass J4125 firewall motherboard

Model No.: D41SL_B VER:1.0
♦Based on Intel Gemini Lake SOC platform
♦Integrated Intel Celeron J4125 2.0GHz Quad core processor
♦Integrated Intel HD Graphics 600 ; 1*VGA for Display
♦1*DDR4 2400MHz SO-DIMM Socket, up to 8GB memory.
♦2*SATA3.0 / 1*mSATA SSD / 2*mini-pcie(Wifi/3G/4G) / 1* SIM slot
♦6*RJ45- Intel I226V 2.5G Ethernet ports   ( with 2*Bypass )
♦6*USB2.0 / 2*Serial port (RS232) / 1*PS2
♦Provide: 1* DC_Jack 12V Input  ; 1*ATX 4pin 12V input  (fanless)
  • Description
    Overview
    Enterprise Firewall Motherboard Model D41SL_B VER:1.0

    This industrial-grade firewall motherboard is engineered with the Intel Gemini Lake SOC platform, powered by the Intel Celeron J4125 Quad-Core processor (2.0GHz, burst up to 2.7GHz) and Intel UHD Graphics 600, delivering mission-critical performance for next-generation network security applications.

    Key Firewall Advantages:
    ●Hardware-level reliability: 6× Intel I226V 2.5GbE ports with dual Bypass protection
    ●Enterprise processing:
    DDR4 2400MHz SO-DIMM (up to 8GB)
    Intel® Burst Technology 2.0
    ●Redundant wireless: 2× mini-PCIe (WiFi/3G/4G) + SIM slot
    ●High-availability storage:
    2× SATA3.0
    1× mSATA SSD
    ●Industrial management:
    6× USB2.0
    2× RS232 serial ports
    PS/2 interface
    ●Dual power inputs: 12V DC + ATX 4-pin
    ●Fanless rugged design with Watchdog

    Certified for:
    Military-grade firewall systems
    24/7 UTM appliances
    Carrier-class VPN concentrators
    Critical infrastructure protection

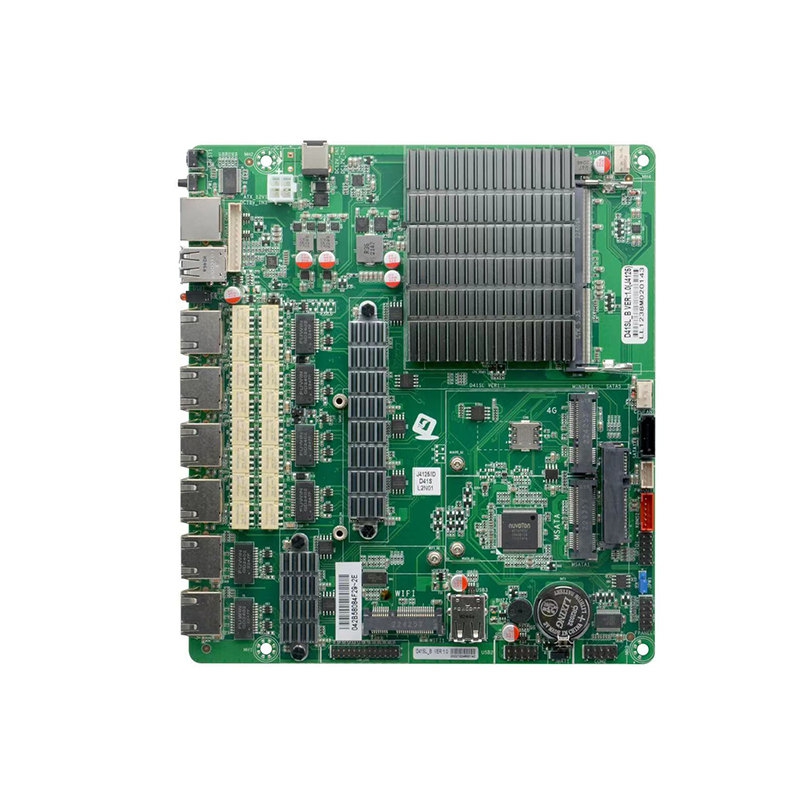

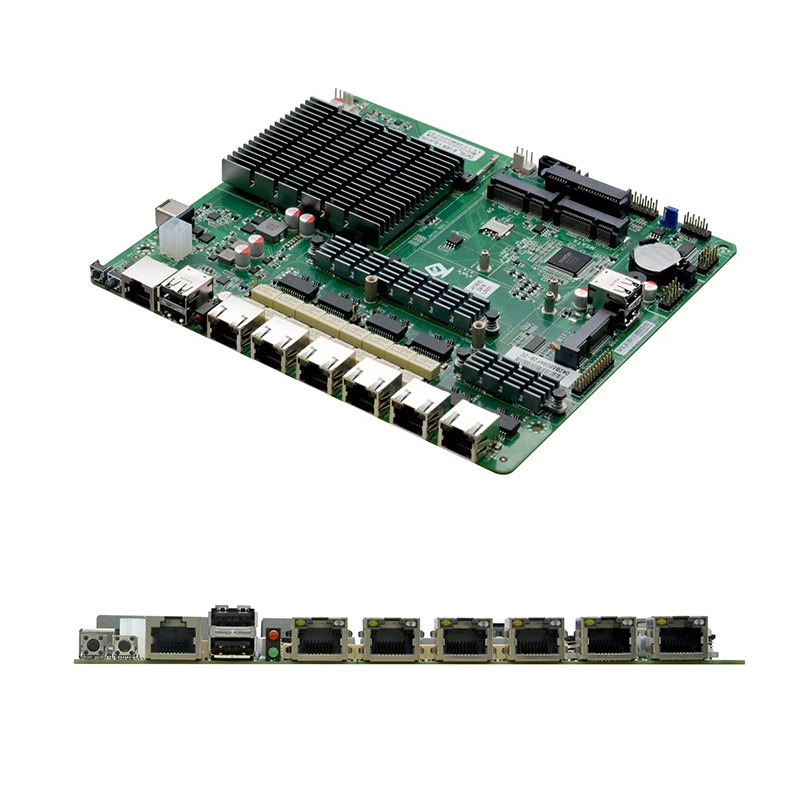

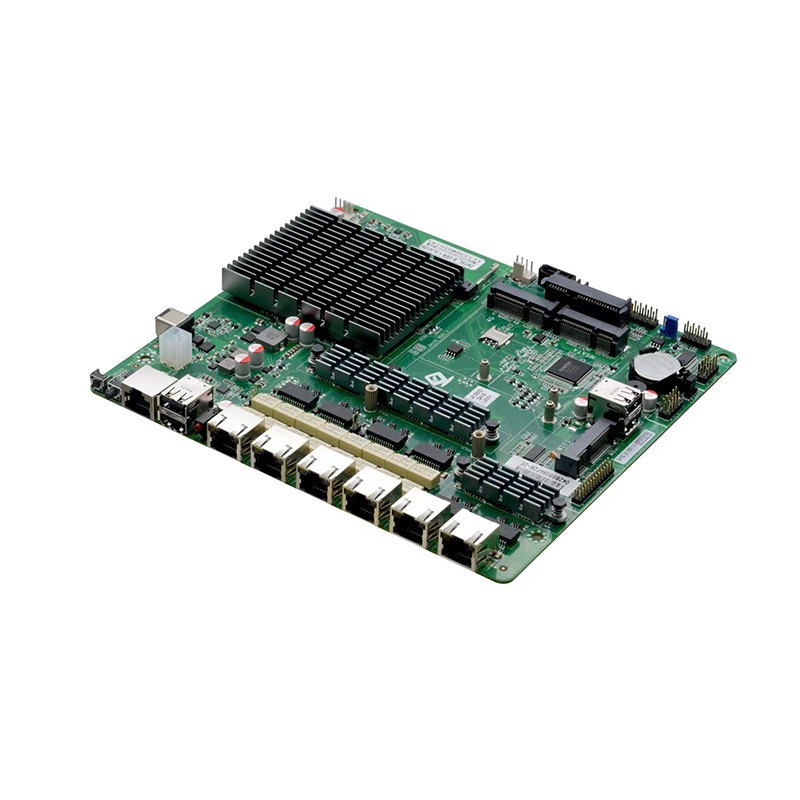

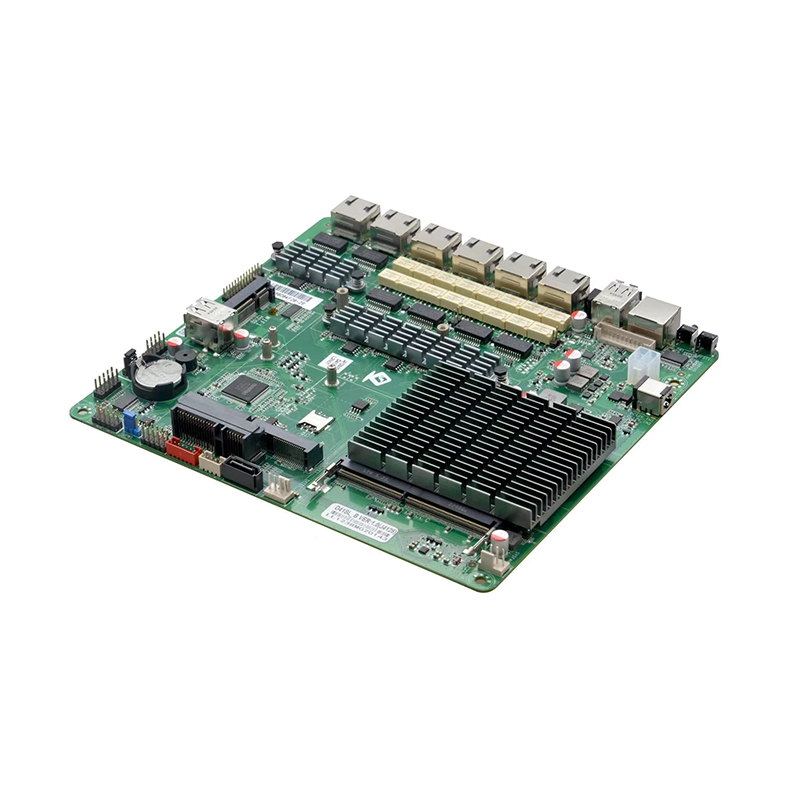

    Detail Display


    Product Description
    Model No.: D41SL_B VER:1.0
    Processor: Integrated Intel®Celeron J4125 2.0GHz Quad core Quad thread processor ,TDP 10W
    Chipset: SOC
    Memory: 1x SODIMM, supports single channel 2400MHz DDR4 memory, is up to 8GB
    Display: Integrated Intel® HD Graphics,supply 1x VGA display output
    Ethernet: 6x Intel KTI226V Gigabit Ethernet,supports Wake on LAN/PXE function ,Support 2 sets of BYPASS functions
    Storage:
    1x SATA3.0 2.5-inch notebook hard disk slot, hard disk can be installed directly
    1x 7pin SATA3.0 HDD slot,the transfer rate is up to 6Gbps ,choose one of the 2.5-inch hard drive slots, the default is 2.5-inch
    1x MSATA slot, supports Intel protocol SSD, the transfer rate is up to 3Gbps
    Expansion Slot:
    1x Mini-PCIE2 , supports WIF module
    1x Mini-PCIE1, supports 4G module
    Note: WIFI and LAN6 are two choices, the default is LAN6

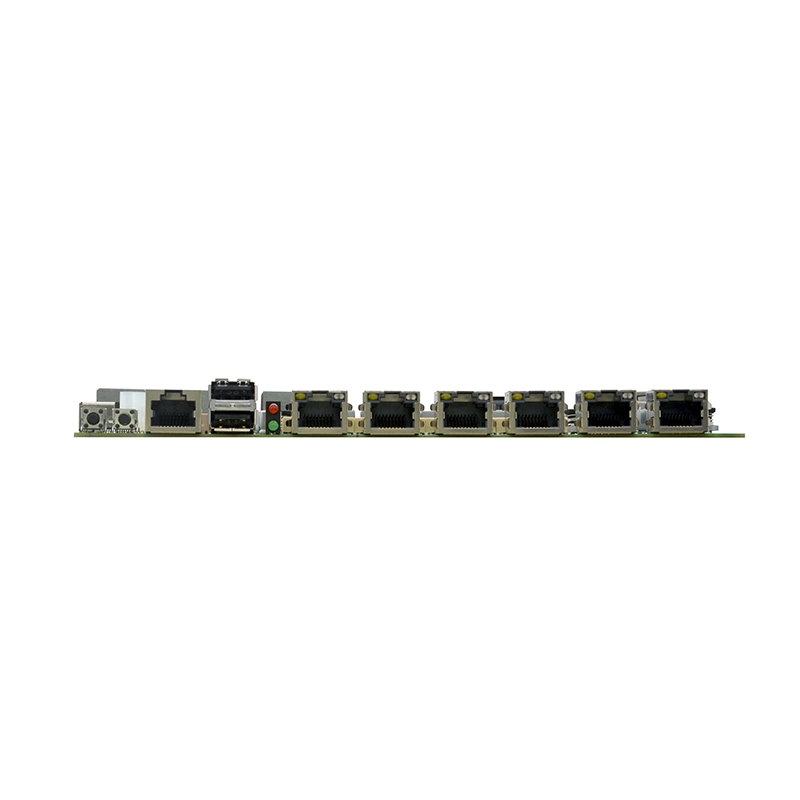

    Rear I/O interface:
    1x CISCO standard RS232 serial interface
    2x USB 2.0
    6x RJ-45 Gigabit Network Interface
    1x Power switch,1x Reset switch
    1x Power Indicator(Green)/ HDD indicator(Red)
    Built in I/O interface:
    1x JVGA, 1x12pin
    1x Network Indicator interface, 2x 13pin
    1x RS232, 2x 5pin
    2x USB2.0, 2x 5pin
    2x USB2.0 (standard )
    1x HDD power supply interface, 1x 4pin
    1x Front panel function button and indicator light interface, 2x 5pin
    1x PS/2 keyboard and mouse interface, 1x 6pin
    1x DC_12V
    1x 4pin ATX power input interface, supports 12V power input output
    Fan Connector: 1x 4pin CPU smart fan connector, 1x 4pin system fan connector
    GPIO: Support 4-way input output GPIO function
    BIOS: 64Mb Flash ROM
    Watchdog: Support hardware reset function (L256, 0~255 seconds)
    Power Type: DC 12V
    OS: Window 10/Linux
    Working temperature: -10℃~60℃
    Storage temperature: -20℃~70℃
    Working Humidity: 5%-95% ( relative humidity, non-condensing)
    Dimension: 200mm x 180mm
