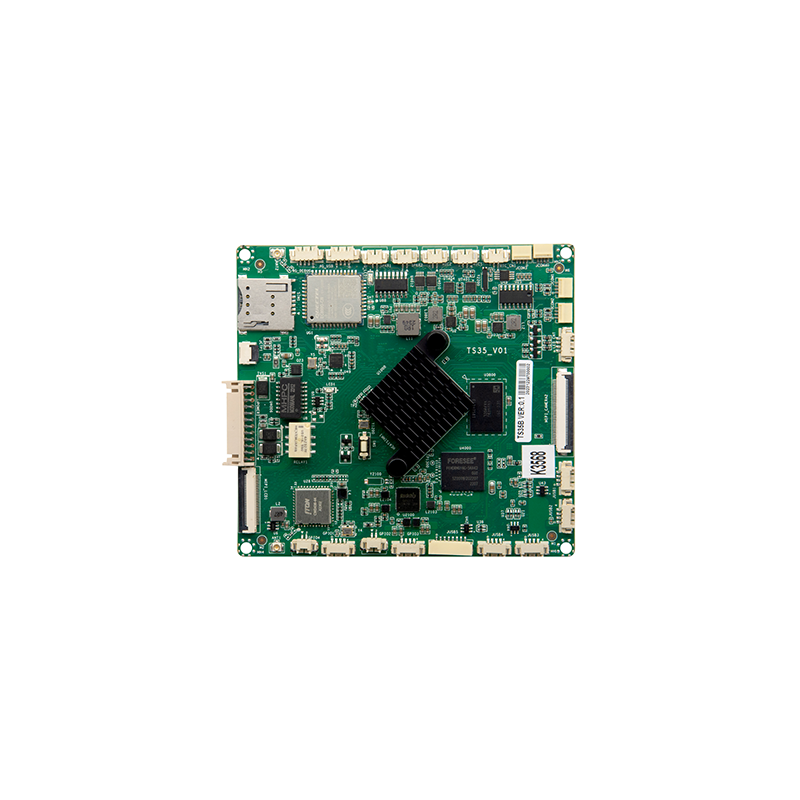

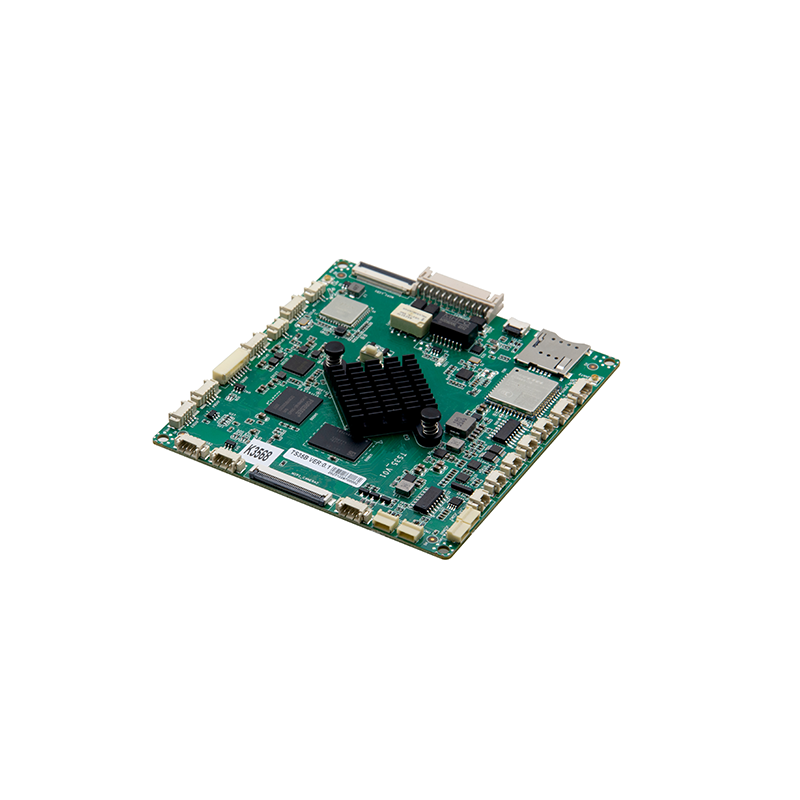

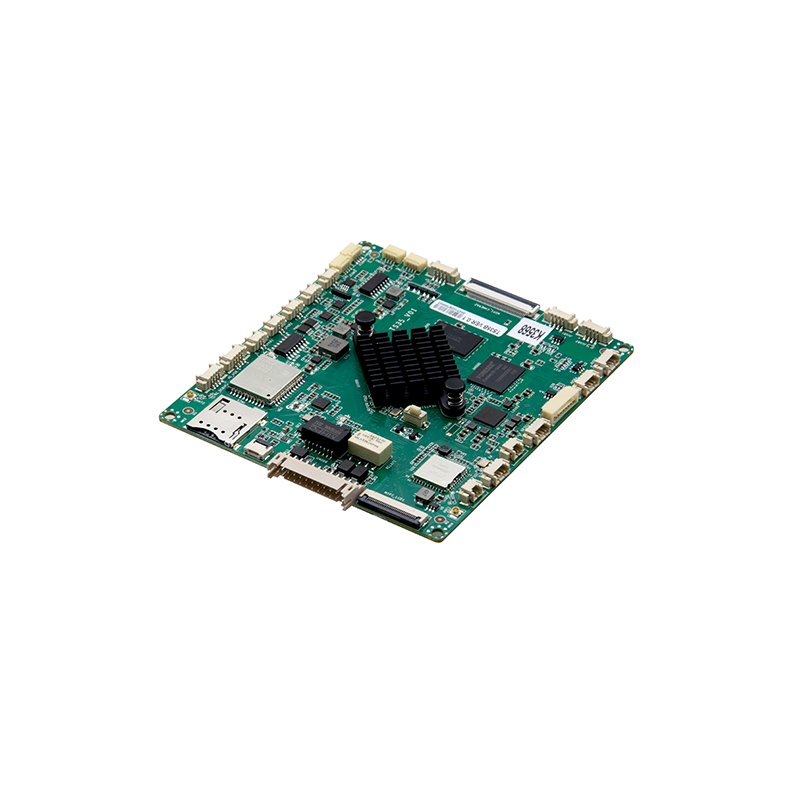

Product Description
Model No.: TS35B VER:1.0
Processor: CPU Rockchip RK3568B2 quad-core Cortex-A55 2.0GHz Processor
Chipset: Based on RK3568B2 SOC,NPU：Up to 1.0TOPS
Memory: Onboard LPDDR4 2G memory(4G/8G optional）
Display: C, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
1x MIPI output interface
Playback mode: supports multiple playback modes such as loop, timing, and insert
Ethernet: 1x 10M/100M/1000M adaptive Ethernet
WIFI、BT: 1x Built-in WIFI/BT
Storage: 1x eMMC memory chip, 16G（32G/64G/128G optional）
Audio: Supports left and right channel output, built-in dual 8R/5W amplifiers
Expansion Slot: N/A
I/O interface:
1x MIPI OUT interface, 2k@60 8bit, 31pin MIPI definition
1x TP touch screen socket
1x 2MIPI Camera, 40Pin mipi camera (monocular MIPI camera), supports 2053+2093 MIPI camera Sensor
1x Support relay interface/button/Wiegand interface/485 interface/HOST (OTG) interface/network interface/power interface
2x Speaker interface
2x MIC interface
4x UART interface, supports 4 channels by default, UART1 VCC_5V (optional 3.3V), UART2 VCC_5V (optional 3.3V), UART3 VCC_5V (optional 3.3V) compatible with DEBUG, UART4 VCC_5V (optional 3.3V) compatible with 232 to connect NFC, QR code and other peripherals
5x USB interface
1x Connect to the fill light interface, VCC is 12V0.5A, the indicator light flashes: green if recognition is successful, red if recognition fails, dark white light
1x WIFI/BT antenna base
1x External 2pin battery socket, RTC clock battery (no power loss for 7 days), timer power supply after shutdown
The 4G module is built-in to the board. The specific model will be confirmed by the supply chain after comparing the price. The reference model provided by the customer: 4G module model--EC800G-CN
1x 4G module card use (micro-SIM small card), place the card holder on the back of the board
1x Onboard LED
1x D-BUG 3pin
1x KEY button interface, 16pin, FPC specification
Power Type: DC 12V single power input
OS: Android 11
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)

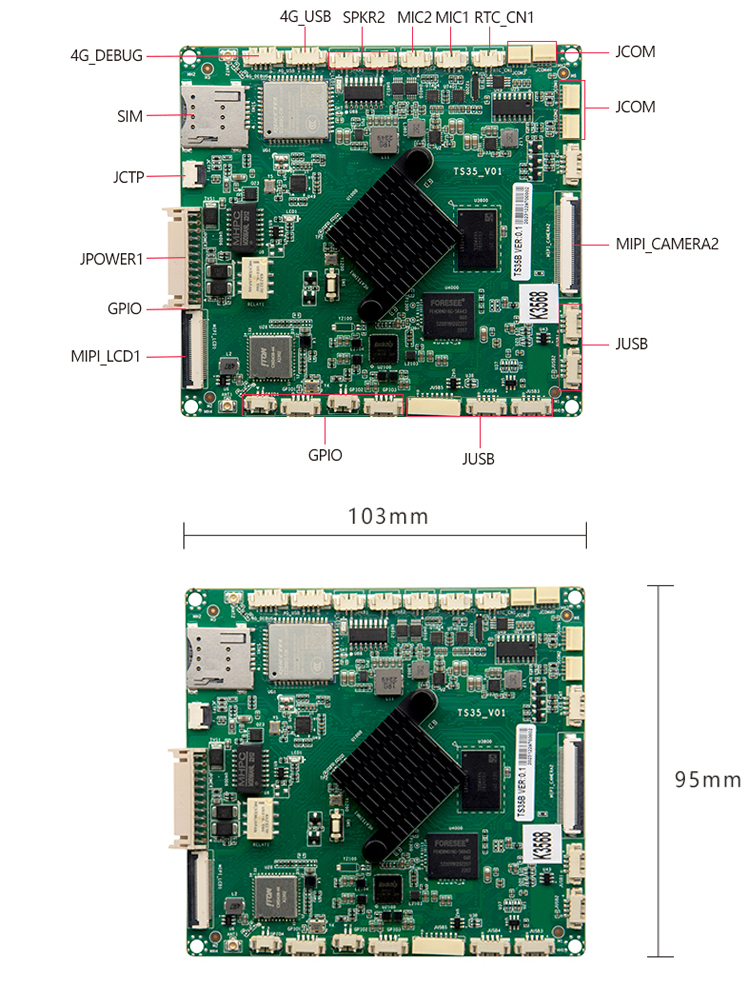

Dimension: 103 x 95 x 1.6mm, screw hole diameter 3.1mm
PCB: 8 layer board
Order Information:
| No. |
Model
|
Processor
|
Frequency
|
Memory
|
MIPI
|
HDMI
|
LVDS
|
eMMC
|
WIFI
|
LAN
|
USB
|
CAN
|
UART
|
Power
|
| 1 |
TS35B
|
RK3568B2
|
2.0G
|
2G
|
1 |
/ |
/ |
16G
|
1 |
1*1000M
|
5 |
1 |
4 |
DC12V
|
