Product Description
W671DM industrial atx motherboard main application:commercial display,industrial automation,transportation industry,medical. etc.

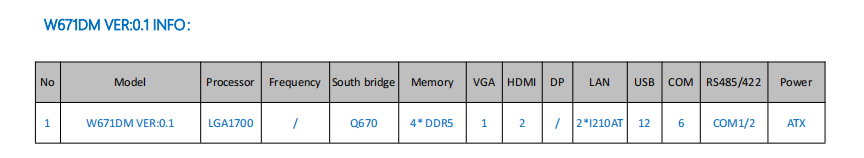

Product model: W671DM VER:0.1
Chipset: Intel® Q670
RAM: 4x DDR5 DIMM memory slots, support dual-channel up to 4800MHz memory, up to 128GB
Display:
Industrial atx motherboard integrated Intel®HD Graphics, support DirectX12.1, OpenGL4.5, support 4K display
1x VGA , support the highest resolution of 1920X1200@60Hz
2x HDMI1.4 , support the highest resolution of 4096x2160 @24Hz
Storage:
8x SATA3.0 hard disk interface, the transfer speed up to 6Gbps, support RAID 0,1,5,10
1x M.2 slot, support M.2 Key M 2280 NVME PCIE X4 SSD
Audio: Onboard ALC897 7.1+2 vocal channels high fidelity audio controller,supports MIC/Line-out and Line-in
Expansion slot :
1x PCIE5.0 X16
3x PCIE X4 (PCIE2/PCIE4 is 4.0, PCIE5 is 3.0)
1x PCIE X1
2x PCI
1x M.2 slot，support M.2 Key B 2242/2252 4G/5G module
Rear I/O interfaces:
1x PS/2 interface (expandable keyboard and mouse)
1x DB15 VGA
1x HDMI1.4
2x DB9 RS232 serial port, supports the 9th pin charged function, support RS485/422
2x USB2.0
4x USB3.2, Gen 2x1 interface (10Gbps)
2x RJ-45
1x Three-layer audio interface, support Line-out, MICK, Line-in
Inner I/O interfaces:
2x USB2.0, 2x 5pin
1x Vertical USB2.0 interface
1x TYPE-E USB3.0
2x USB3.0, 2x 10pin
1x Front panel audio interface (2*5pin)
1x Front panel function button and indicator interface (2*5pin)
1x 24pin ATX power socket, 2x 8pin ATX power socket
1x PS/2 keyboard and mouse interface, 1x 6pin
1x JVGA interface, 1x 12pin (the same signal as DB15)
1x JHDMI, 2x 8pin
1x TPM, 2x 6pin
4x RS232, 2x 5pin
1x SIM
1x LPT, 2x 13pin
Fan interfaces: 1x 4pin CPU fan connector; 4x 4pin system fan connector
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power type: Powered by ATX 24Pin and 8pin power supply
Operating temperature: 0℃～60℃
Storage temperature: -20℃~70℃
Working humidity: Relative humidity 5%-95%, no condensation
Size:305mm x 245mm
