Product Description
Model No.: ITX-B430_I526L VER:1.5(4300U)
Processor: Supports Intel®Haswell-U I5-4300U/1.9GHz Dual core Quad thread, TDP 15W
Compatible with Intel Celeoron,Pentium,Core®I3/I5/I7 Haswell/Broadwell-U processor
Chipset: based on Intel®Haswell-U/Broadwell-U SOC platform
Memory: 1x SODIMM slot, supports 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Display:
Integrated Intel® HD Graphics 4400
1x VGA, 1x HDMI, 1x LVDS (supports dual channels 24BIT),1x EDP (choose LVDS or EDP)
Support independent display, dual display mode, extended mode
Ethernet: 2x RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage:
1x SATA3.0 2.5’’ Laptop hard drive
1x 7pin SATA3.0，the transfer rate is up to 6Gbps
Audio:
Onboard ALC262 6 channel high fidelity audio controller, supports MIC and Line-out and power amplifier
Suggest power amplifier 2Ω5W horn
Expansion Slot:
1x Mini-PCIE, supports WIFI/3G module
1x MSATA slot, supports Intel protocol SSD ,the transfer rate is up to 6Gbps
Note: If MINIPE1 need to support 3G module,need to adjust the relevant hardware settings, and it will cause F_USB2 to only support 1 USB

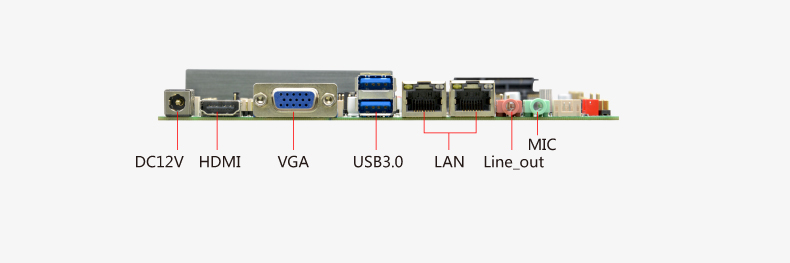

Rear I/O interface:
1x 12V DC JACK power input interface
1x HDMI
1x VGA
2x USB 3.0
1x RJ-45 Gigabit Network Interface
1x Line out (Green)
1x MIC (Red)

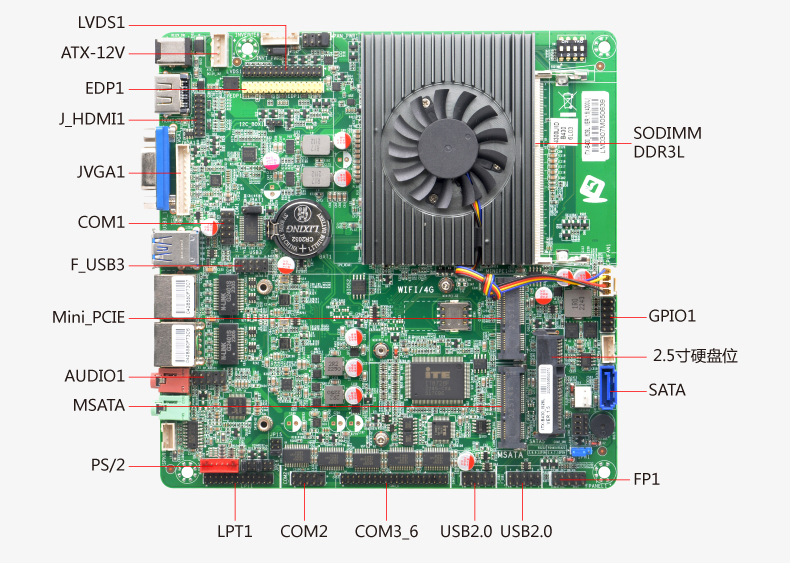

Built in I/O interface :
1x JVGA1, 1x 12Pin (Same signal as DB15）
1x J_HDMI, 2x 8pin(the same signal as the backplane IO interface HDMI)
1x Supports dual channels 24bit(dual 8), LVDS 2x 15pin
1x LVDS Backlight power supply interface, 1x 6pin
1x EDP, 2x 15pin (Yellow) （EDP and LVDS interfaces are self-adaptive and choose one)
1x Front audio interface, 2x 5pin
1x Front power amplifier interface, 1x 4Pin
4x USB 2.0, 2x 5Pin
6x RS232 COM, 2x 5pin , COM1/COM2 supports the 9th pin charged,COM2 supports RS485/422
1x LPT, 2x 13pin
1x PS/2 keyboard and mouse interface, 1x 6Pin
1x Hard disk power supply interface, 1x 4pin
1x SIM
1x Front panel function button and indicator light interface, 2x 5pin
1x 4pin ATX
Fan Connector: 1x 4pin CPU smart fan connector, 1x 3pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 7/Windows 10/Linux
Power Type: DC_12V single power input
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm x 170mm
