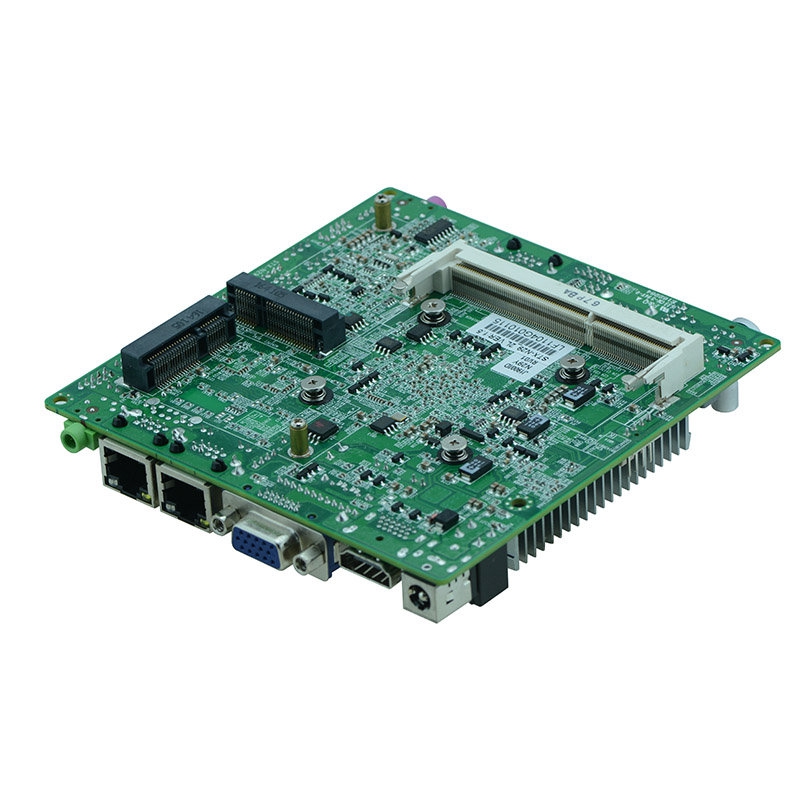

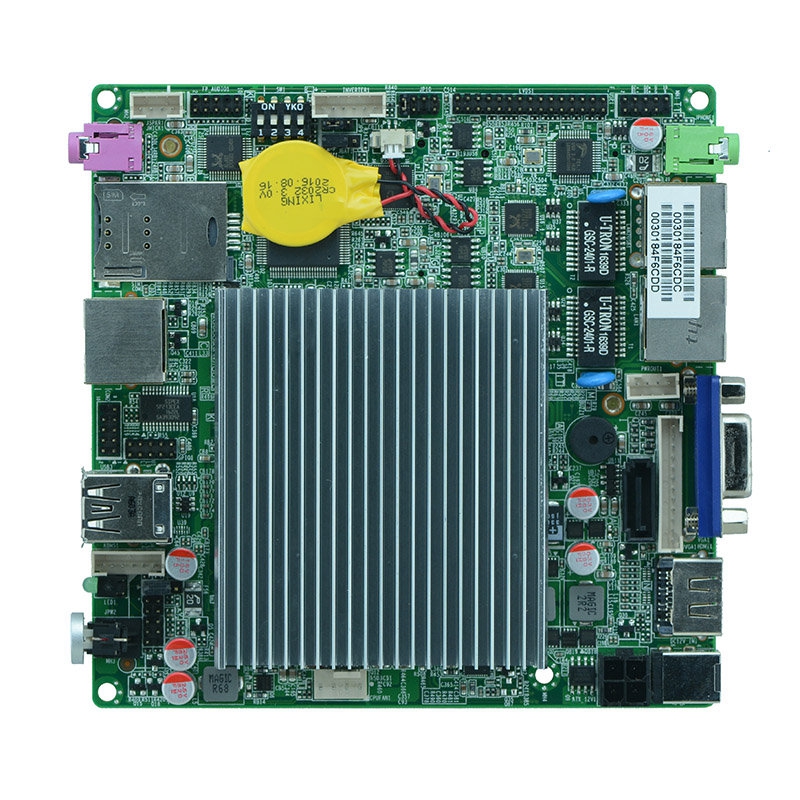

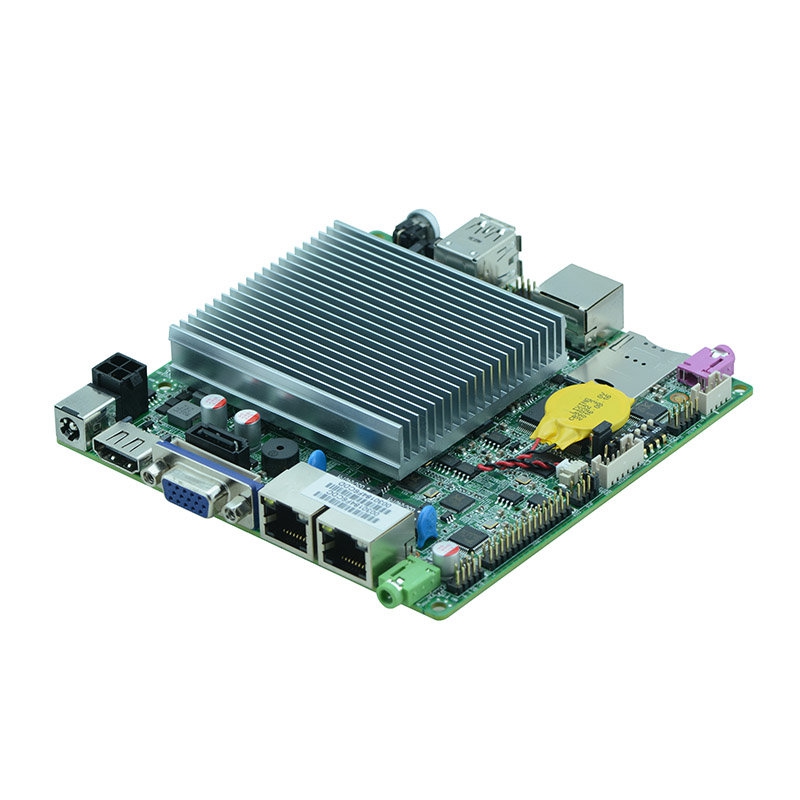

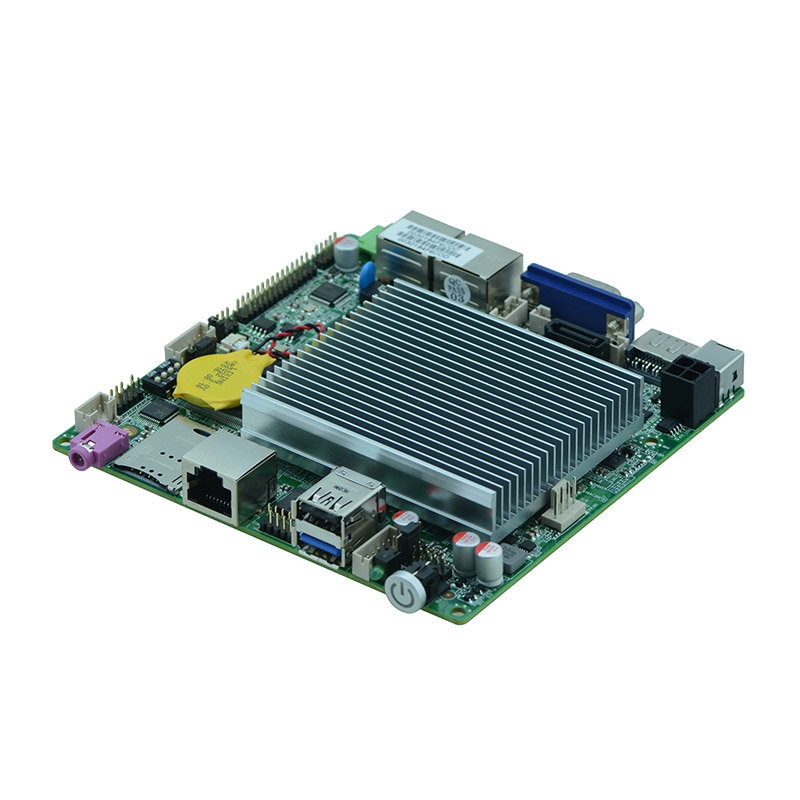

Overview
The STX-N29_2L is a Nano-ITX industrial motherboard based on Intel Bay Trail platform, featuring Quad-core J1900 CPU (2.0GHz) with Intel HD Graphics, supporting triple display (VGA+HDMI+LVDS, 1080P).
Key Specifications:
●1×DDR3 SO-DIMM slot (up to 8GB RAM)
●Dual Gigabit LAN (RJ45), 3×USB2.0 + 1×USB3.0
●2×RS232, 1×PS2 keyboard/mouse port
●Storage: SATA2.0 + mSATA SSD, optional mini-PCIE (WiFi/3G/4G)
●Industrial features: GPIO, watchdog timer, audio amplifier
●Fanless design, 12V DC power input

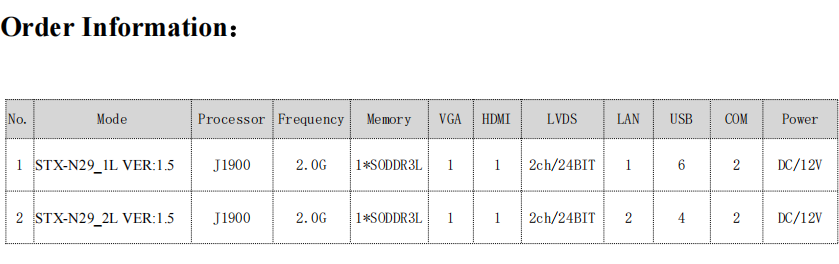

Product Description
Model No.: STX-N29_2L VER:1.5
Processor: Integrated Intel®J1900/2.00GHz quad core processor,TDP 10W
Chipset: Intel® Bay trail SOC
Memory: 1x SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Display: Integrated Intel®HD Graphics
Provide 1x VGA,1x HDMI,1x LVDS port(Support dual channel 24BIT)
Support VGA;HDMI;LVDS dual independent display
Network: 2x RTL8111F Gigabit Ethernet, support Wake On LAN/PXE
Storage: 1x SATA HDD port
Audio: Onboard ALC662 6 channel high fidelity audio controller, support MIC/Line-out.
Power amplifier.
Amplifier suggest to use 2Ω5W trumpet
Expansion: 1x Mini-PCIE slot, support WIFI/3G module
1x MSATA slot, support SSD/WIFI,SSD transmission rate up to 3Gbps

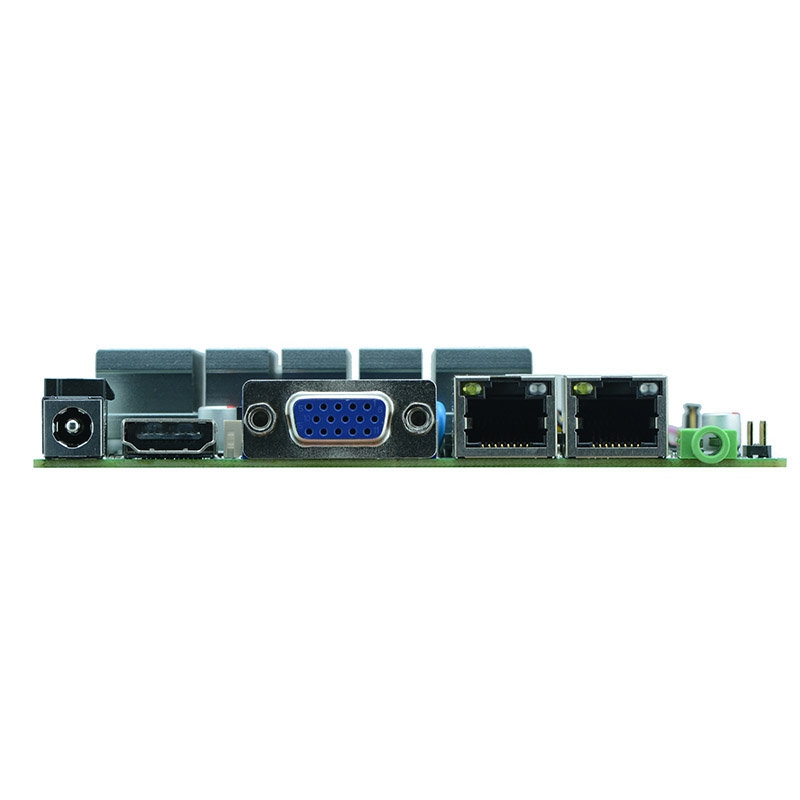

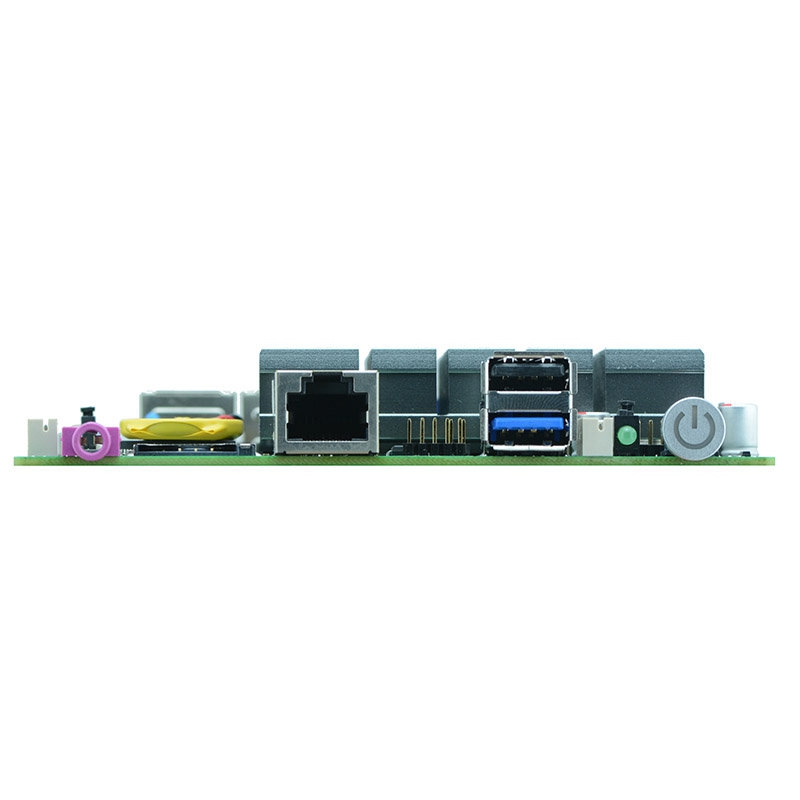

Rear I/O:
1x USB2.0,1x USB3.0
1x HDMI
1x VGA
2x RJ-45 LAN port
1x Line out（green）,1x MIC（purple）
1x RJ-45 COM port
1x Switch button
1x HDD LED
1x 12V DC_JACK input

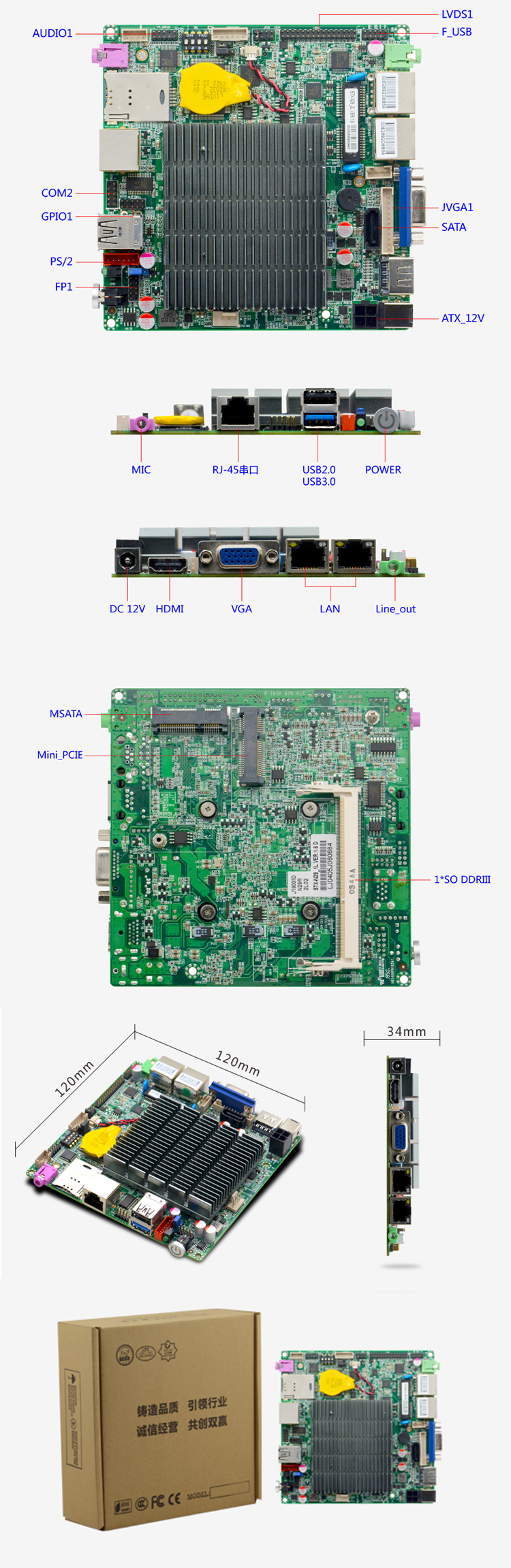

Built-in I/O:
1x LVDS port(2*15pin),support dual channel 24BIT LCD display
1x LVDS backlight port （1*6pin）
1x JVGA1 port (1*12pin) same signal with DB15
1x RS232 port
2x USB2.0 port (2*5pin）
1x PS/2 MS/KB port(1*6Pin)
1x Front panel audio port (2*5pin）
1x SIM socket
1x HDD power supply port
1x Front panel function button and LED indicator port (2*5pin)
1x 4pin ATX 12V input output connector
1x Power amplifier port（1*4pin)
Fan Connector: 1x CPU fan connector 4pin
GPIO: Support 4 way input output GPIO
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC_12V power adaptor
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95% relative humidity, non-condensing
Dimension: 120mm x 120mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
