Overview
The STX-T41_1L is a Nano-ITX industrial motherboard based on Intel Gemini Lake platform, featuring Quad-core Celeron J4125 CPU (2.0GHz, burst up to 2.7GHz) with Intel UHD Graphics 600, supporting triple display (VGA+HDMI+LVDS).
Key Specifications:
●1×DDR4 SO-DIMM slot (2400MHz, up to 8GB RAM)
●Gigabit LAN (RJ45), 4×USB2.0 + 2×USB3.0
●2×RS232, 1×PS2 keyboard/mouse port
●Storage: SATA3.0 + mSATA SSD, optional mini-PCIE (WiFi/3G/4G)
●Industrial features: GPIO, watchdog timer

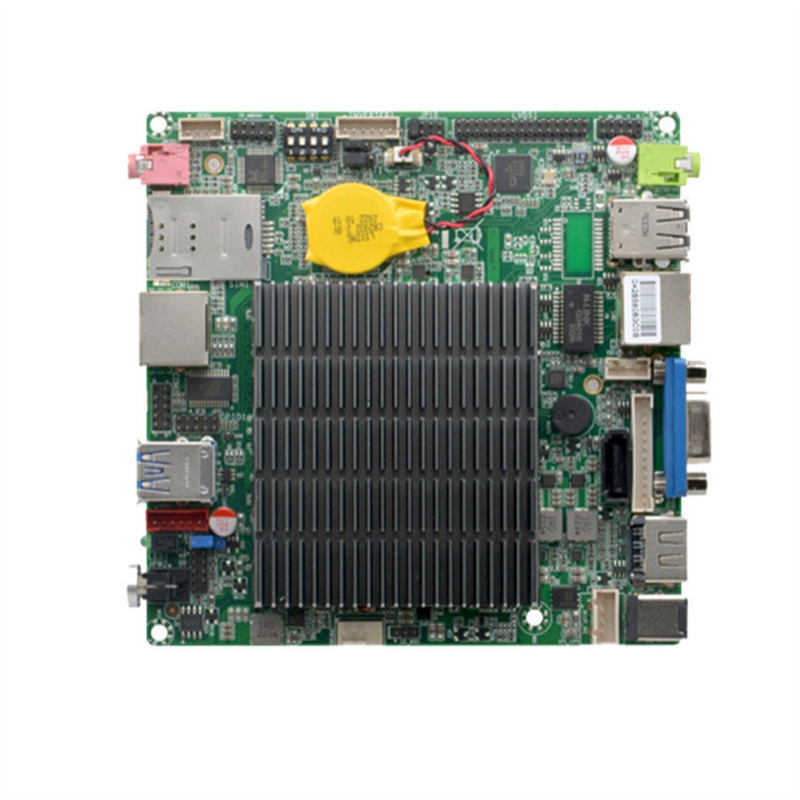

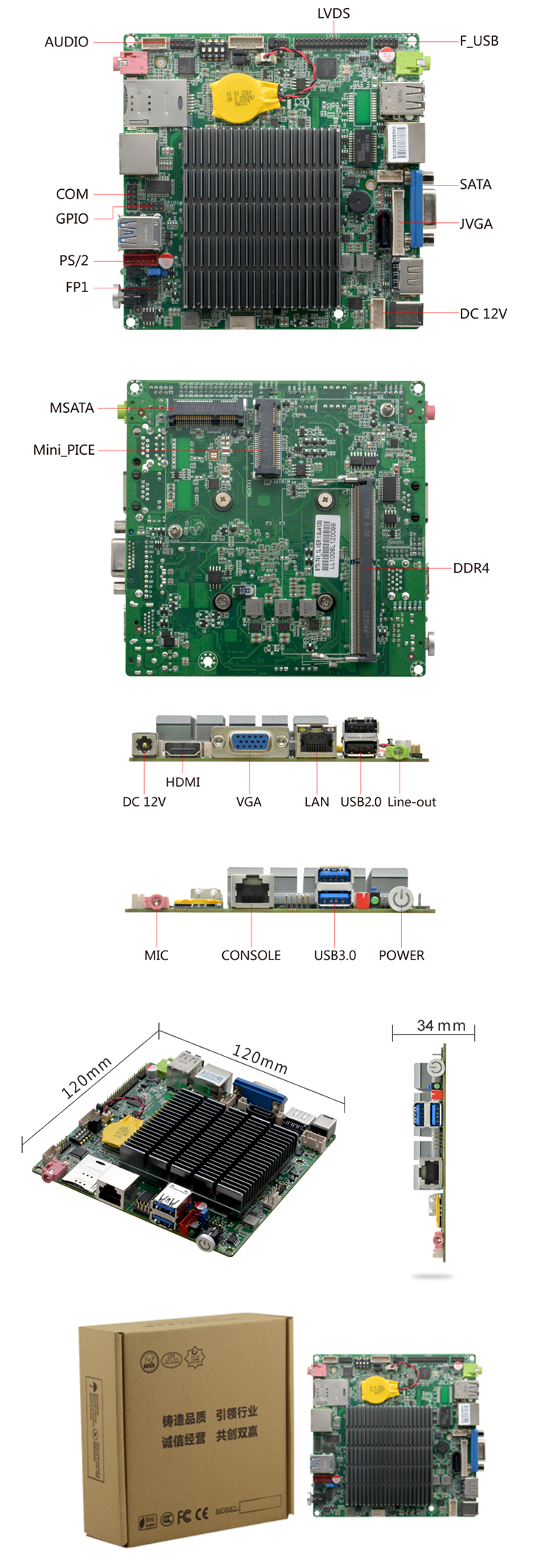

Detail Display
Product Description

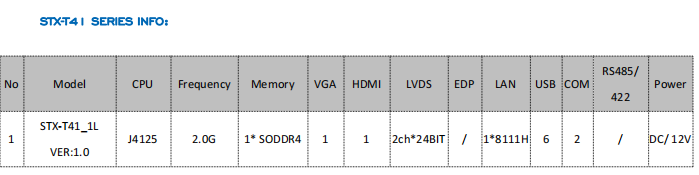

Model No.: STX-T41_1L VER:1.0
Processor: Integrated Intel®Celeron J4125 2.0GHz Quad core Quad thread processor ; TDP 10W
Compatible with Intel® Gemini Lake all series CPU
Chipset: SOC
Memory: 1x SODIMM slot ,support single channel 2400MHz DDR4 memory, up to 8GB
Display: Intel® UHD Graphics 600
1x VGA,1x HDMI,1x LVDS
Ethernet: 1x RTL8111H Gigabit Ethernet, support Wake_on_LAN/PXE function
Storage: 1x 7pin SATA3.0，the transfer rate up to 6Gbps

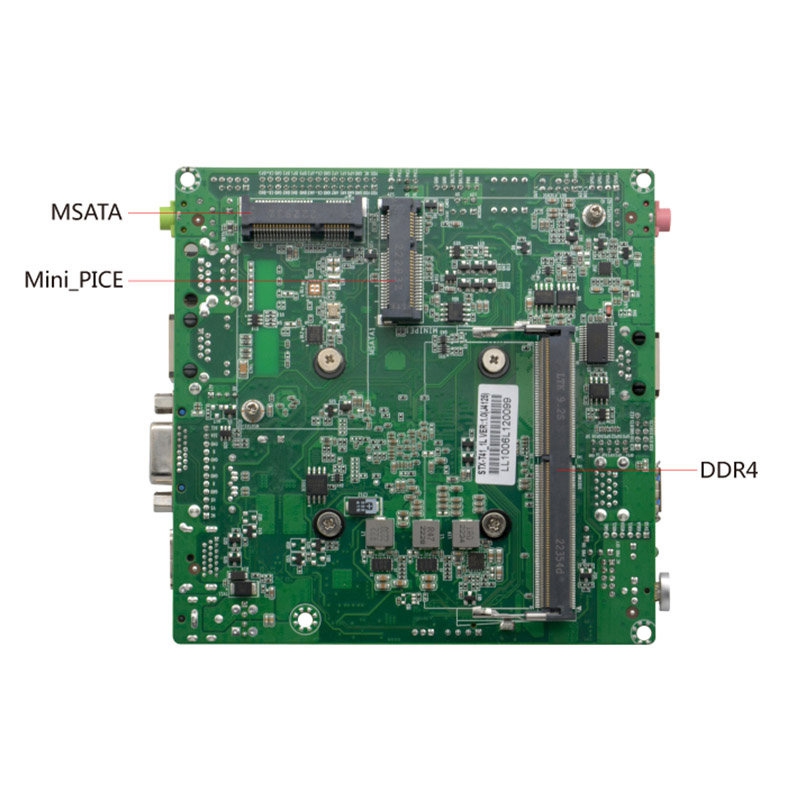

1x MSATA slot，the transfer rate up to 6Gbps
Audio: Onboard ALC897 6-channel high fidelity audio controller, support Mic_in / Line_out & Power amplifier
The 4 Ω 3W horn for power amplifier recommended
Expansion Slot: 1x Mini-PCIE slot，support WIF/4G/GPS moudle

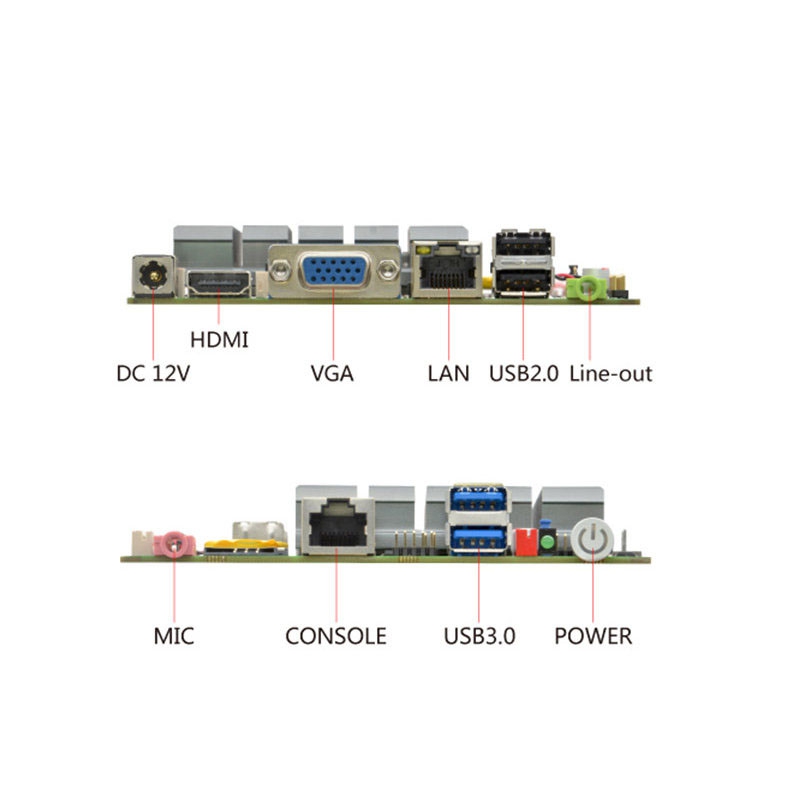

Backplane I / O interface:
1x Power Switch
1x VGA
1x HDMI1.4
2x USB3.0 ; 2x USB2.0
1x RJ-45 Gigabit Network Interface
1x RJ-45 COM (CISCO standard)
1x SIM slot
1x Line-out ; 1*Mic_in
1x DC_Jack (DC_12V input)
Built in I / O interface:
1x 4pin DC power interface ,support DC_12V input/output
1x JVGA1, 1x 12pin，Same signal as DB15
1x LVDS，2x 15pin，supports dual channels 24BIT
1x Screen backlight power supply interface, 1x 6pin
2x USB2.0, 2x 5pin
1x RS232 serial port (2*5pin）
1x Hard disk power supply interface,1x 4pin
1x Front audio interface ,2x 5pin
1x Power amplifier interface, 1x 4pin
1x PS/2 KB/MS Connector(1*6Pin)
1x Front panel function button and indicator light interface, 2x 5pin
Fan interface: Fanless cooling ,reserve 1x 4Pin CPU intelligent fan interface
GPIO: Support 4-way input and output GPIO
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0 ~ 255 seconds)
OS: Windows 10/Linux
Power Type: DC_12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95%(Relative humidity, non condensing)

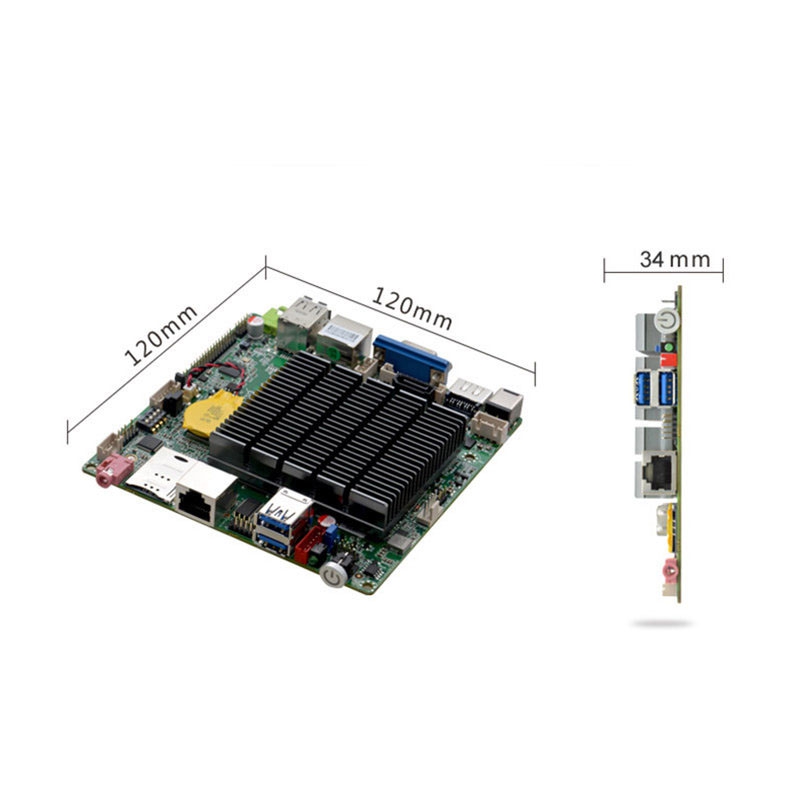

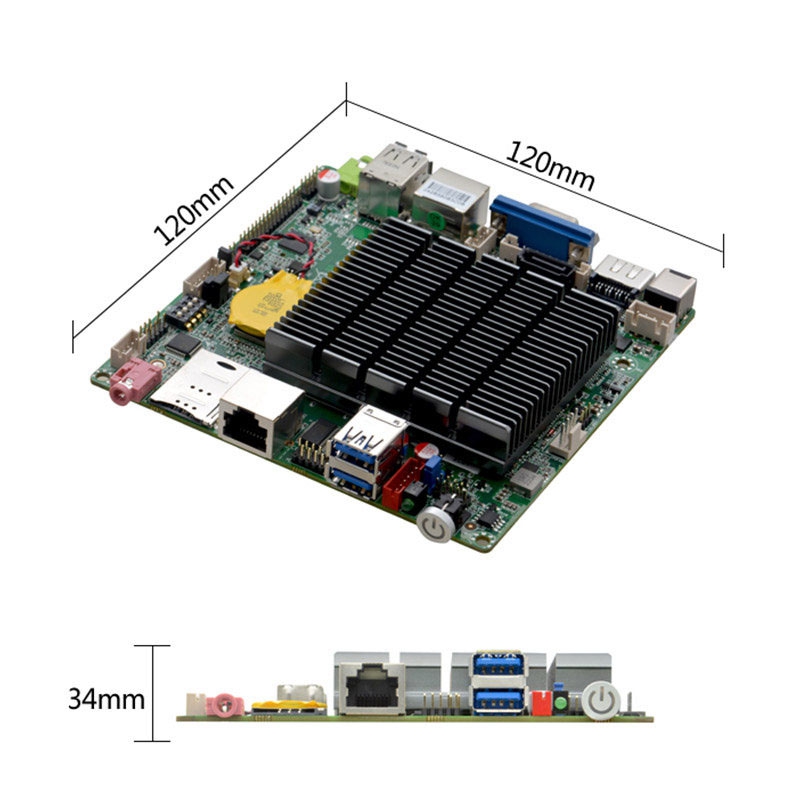

Dimension: 120mm x 120mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
