Overview
Key Features:
●Intel Celeron J4125 quad-core CPU @ 2.0GHz, fanless design for silent operation
●1×DDR4 SO-DIMM slot, supporting up to 8GB RAM
●Dual Gigabit Ethernet (2×RJ45), 4×USB (2×USB2.0 + 2×USB3.0), 2×RS232, extensive I/O options
●1×SATA3.0 + 1×mSATA SSD + 1×mini-PCIe (WiFi/3G/4G support), flexible storage & connectivity
●GPIO & Watchdog Timer, optimized for industrial control
●12V DC input, fanless design for reliability

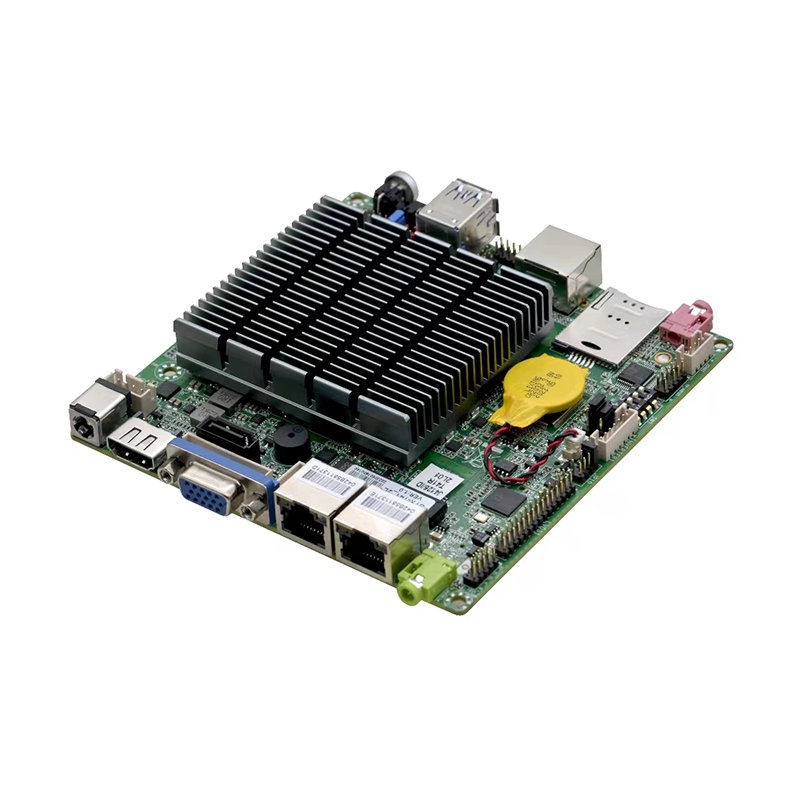

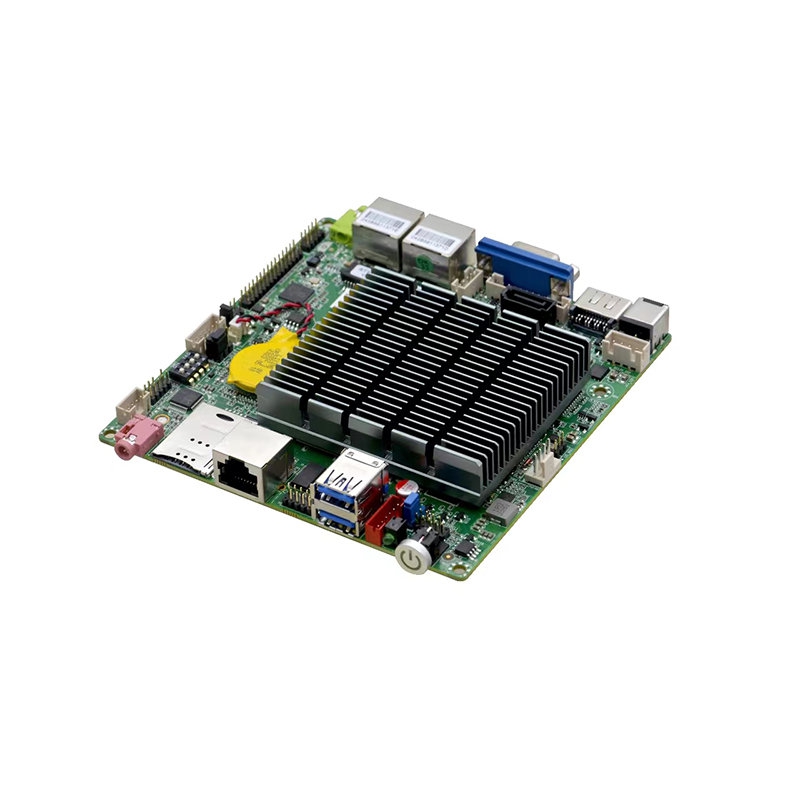

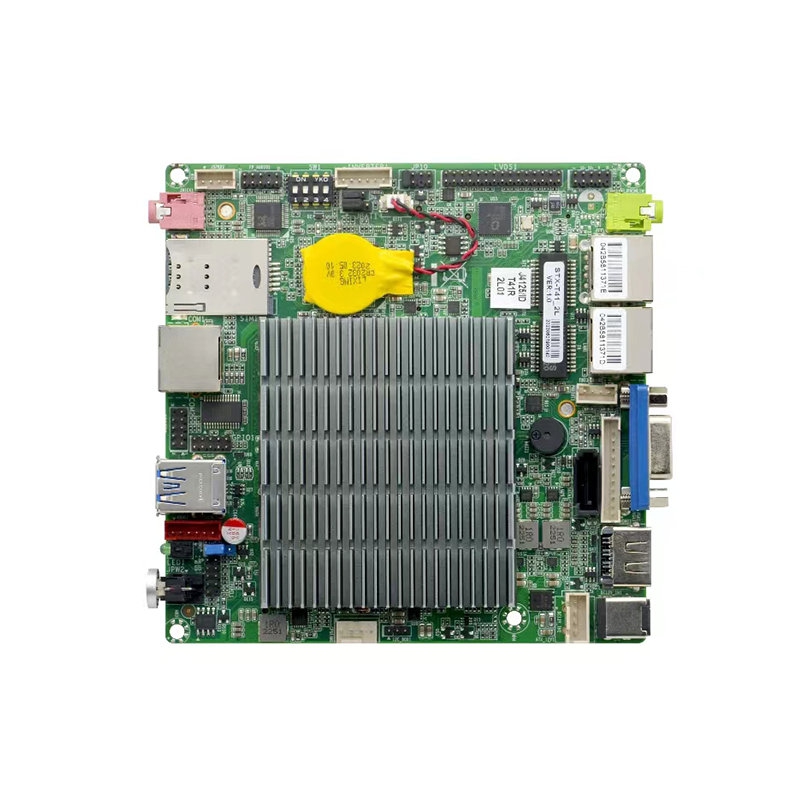

With a compact form factor (120×120mm), this Nano-ITX industrial motherboard is designed for space-constrained embedded systems, including industrial PCs, kiosks, and IoT gateways.
Product Description

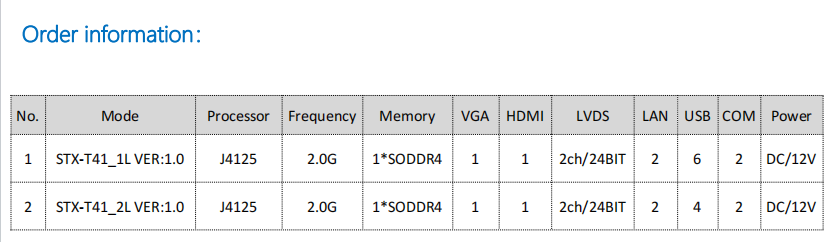

Model No.: STX-T41_2L VER:1.0 (J4125)
CPU: Integrated Intel®Celeron J4125 2.0GHz quad core quad thread processor,TDP 10W
Compatible with the full range of Intel® Gemini Lake CPUs, allowing customers to choose flexibly
Chipset: SOC

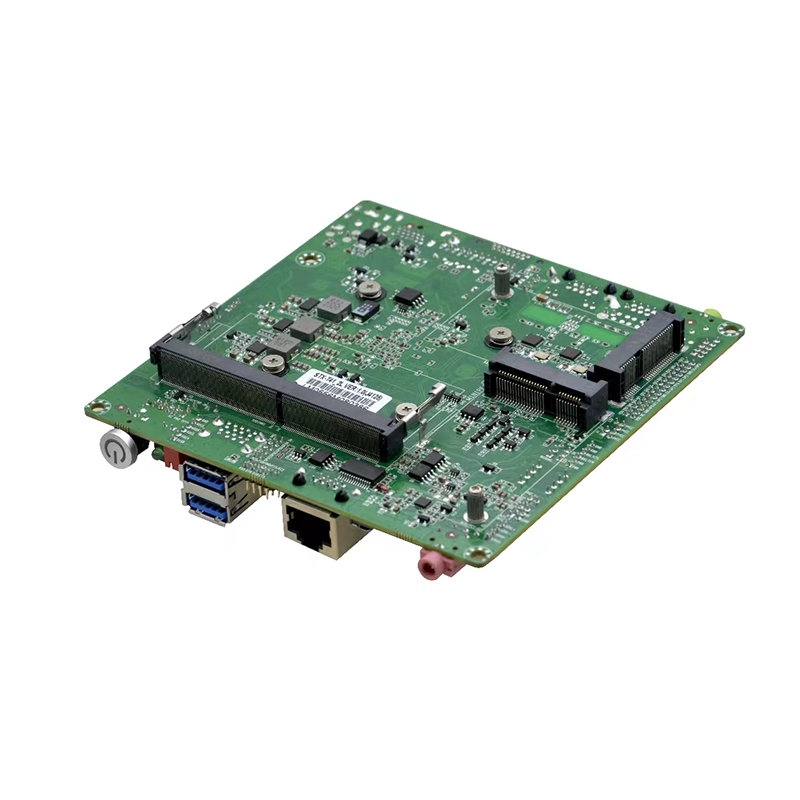

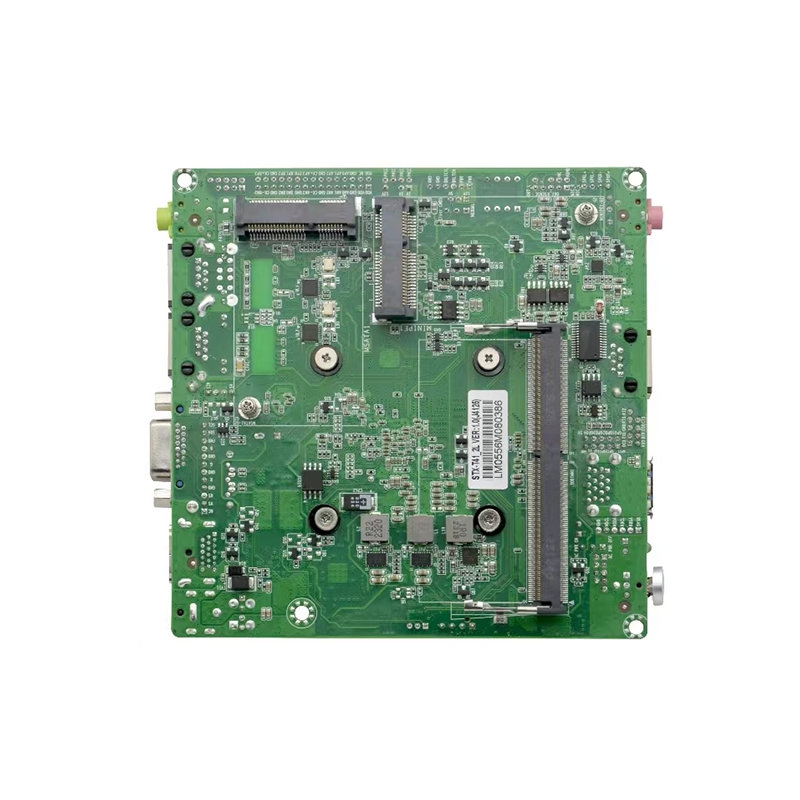

Memory: 1x SODIMM slot, support single channel 2400MHz DDR4 memory, is up to 8GB
Graphics: Integrated Intel® UHD Graphics 600
1x VGA,1x HDMI,1x LVDS interface(support dual channels 24BIT)
Support VGA+HDMI、VGA+LVDS、HDMI+LVDS Synchronous/asynchronous display
Ethernet: 2x RTL8111H Gigabit Ethernet, support wake on LAN/PXE
Storage: 1x 7pin SATA3.0
1x MSATA slot, support SSD, transmission speed up to 6Gbps
Audio: Onboard ALC897 6 channel high fidelity audio controller, support MIC/Line-out.amplifier
Advise 4Ω3W horn
Expansion Slots: 1x Mini-PCIE slot, support WIFI/4G module

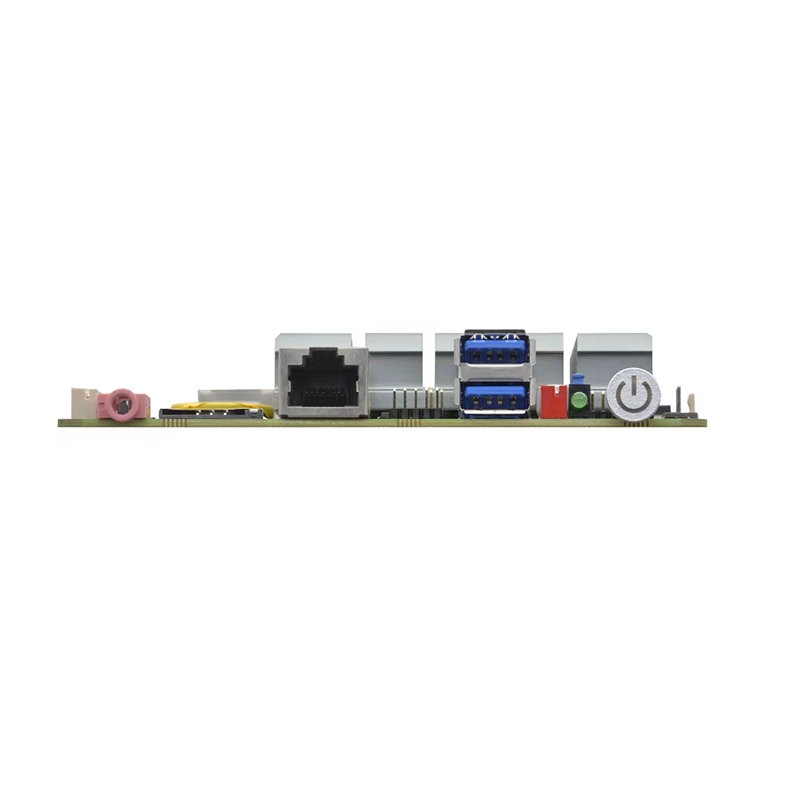

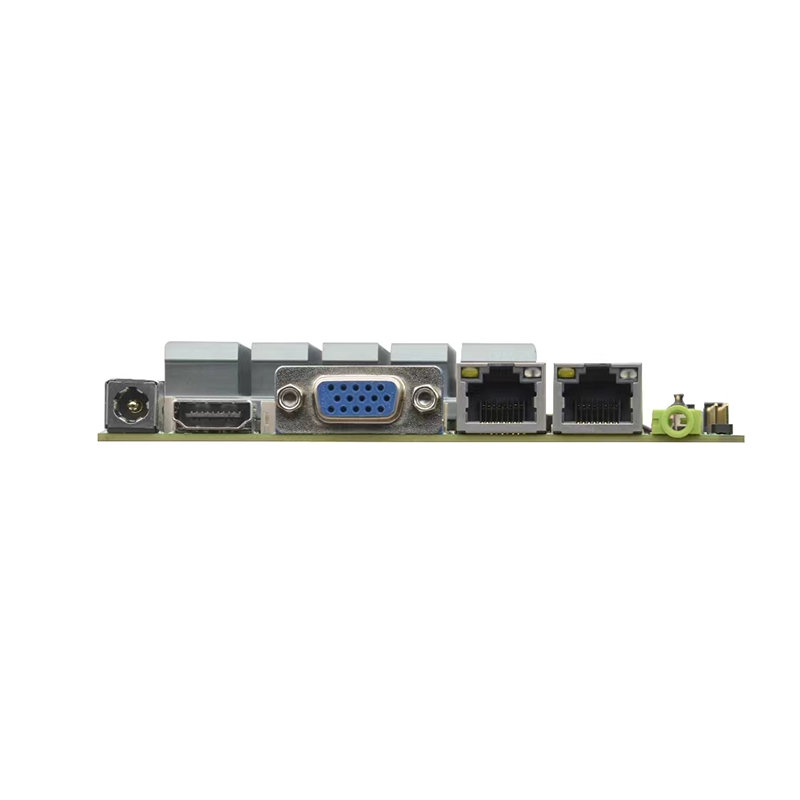

Backplane I/O interface:
2x USB3.0
1x HDMI
1x VGA
1x RJ-45 Gigabit Ethernet connector
1x Line out（Green）,1x MIC（Purple）
1x RJ-45
1x Power button
1x 12V DC power interface
1x SIM card slot
Built-in I/O interface:
1x LVDS, 2x15pin, support dual channels 24BIT LCD display
1x LVDS Backlight interface, 1x 6pin
1x JVGA1, 1x12pin (Same signal as DB15)
1x RS232, 2x 5pin
2x USB2.0, 2x 5pin
1x PS/2, 1x 6Pin
1x Front panel audio interface, 2x 5pin
1x Hard drive power supply interface, 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
1x 4pin DC power interface，support 12V power input output
1x Power amplifier interface, 1x 4pin
FAN interface: Fanless cooling, reserve 1x 4pin CPU FAN interface
GPIO: Support 4 way input and output GPIO
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10 / Linux
Power Input: DC_12V single power supply
Operating Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Humidity: 5%-95% (relative humidity; non-condensing)
Dimension: 120mm x 120mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
