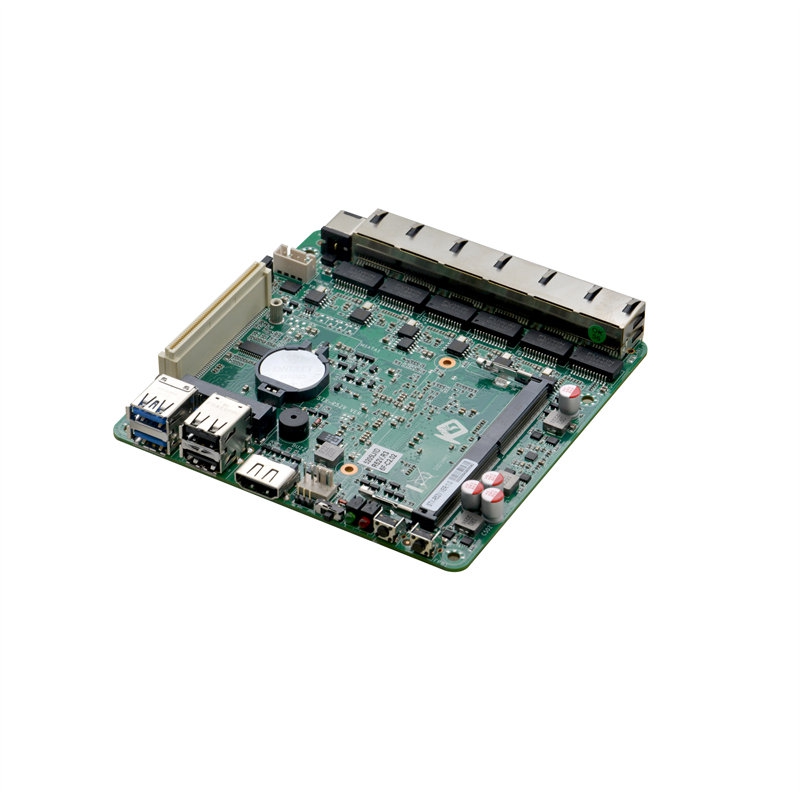

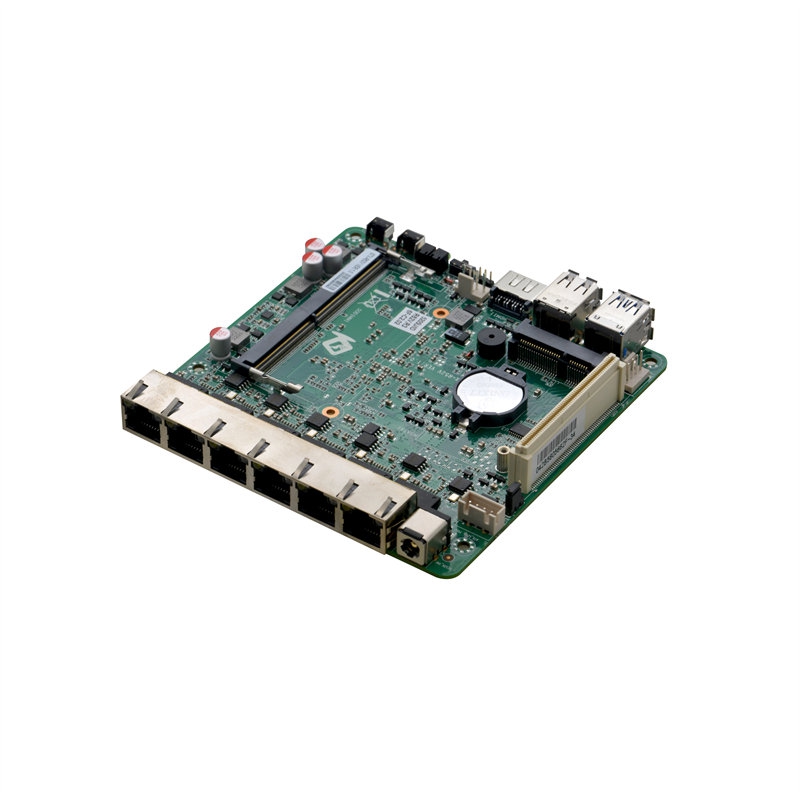

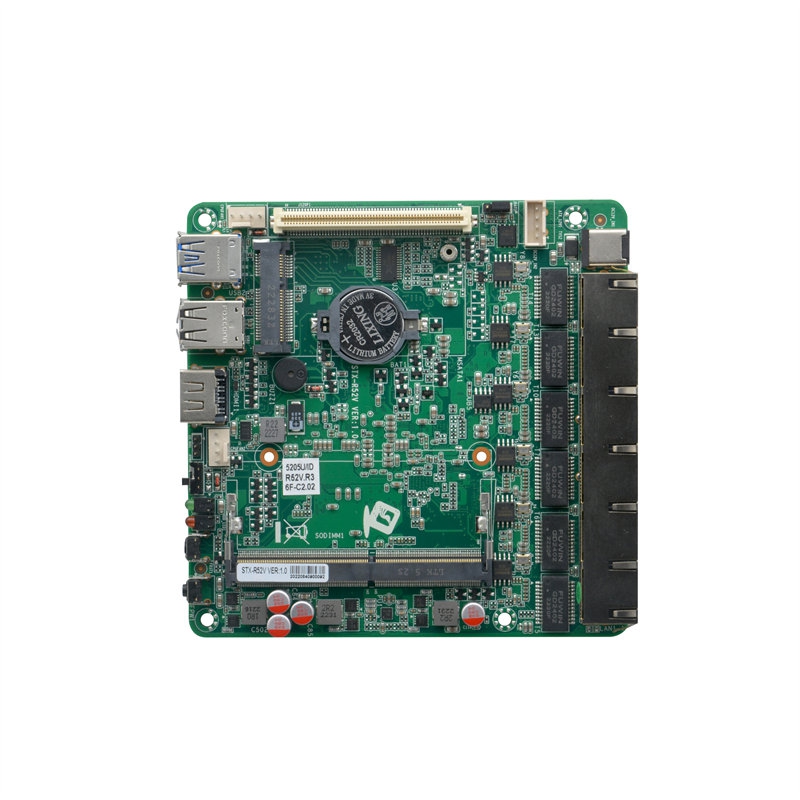

Engineered for high-performance networking applications, this Nano ITX motherboard leverages the Intel Comet Lake-U SOC platform with an Intel 10th Gen Celeron 5205U (1.90GHz Dual-Core) processor and Intel UHD Graphics, delivering efficient computing in a compact form factor.
Key Features:
●Ultra-compact Nano ITX design (120×120mm) with fanless operation, optimized for space-constrained deployments.
●Advanced networking: 6× Intel I225 2.5G Gigabit Ethernet ports with Wake-on-LAN and PXE support.
●Expandable memory & storage: 1× DDR4 SO-DIMM (up to 32GB) and 1× mSATA SSD slot.
●Rich expansion: 120-pin connector for additional COM, SATA, USB, PCIe, and DDI interfaces.
●Industrial durability: Watchdog Timer and 12V DC input for reliable 24/7 operation.

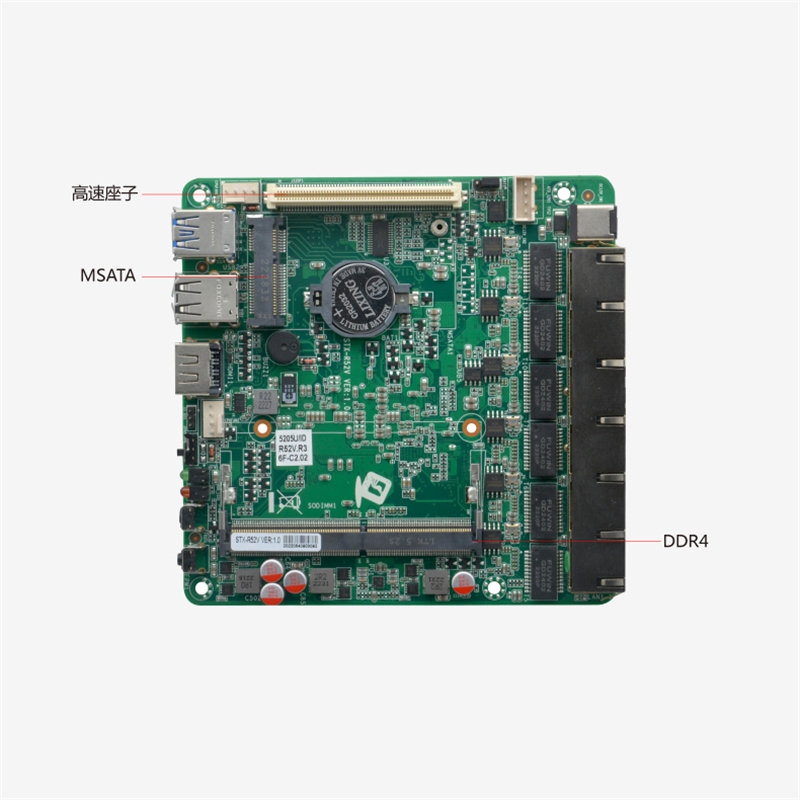

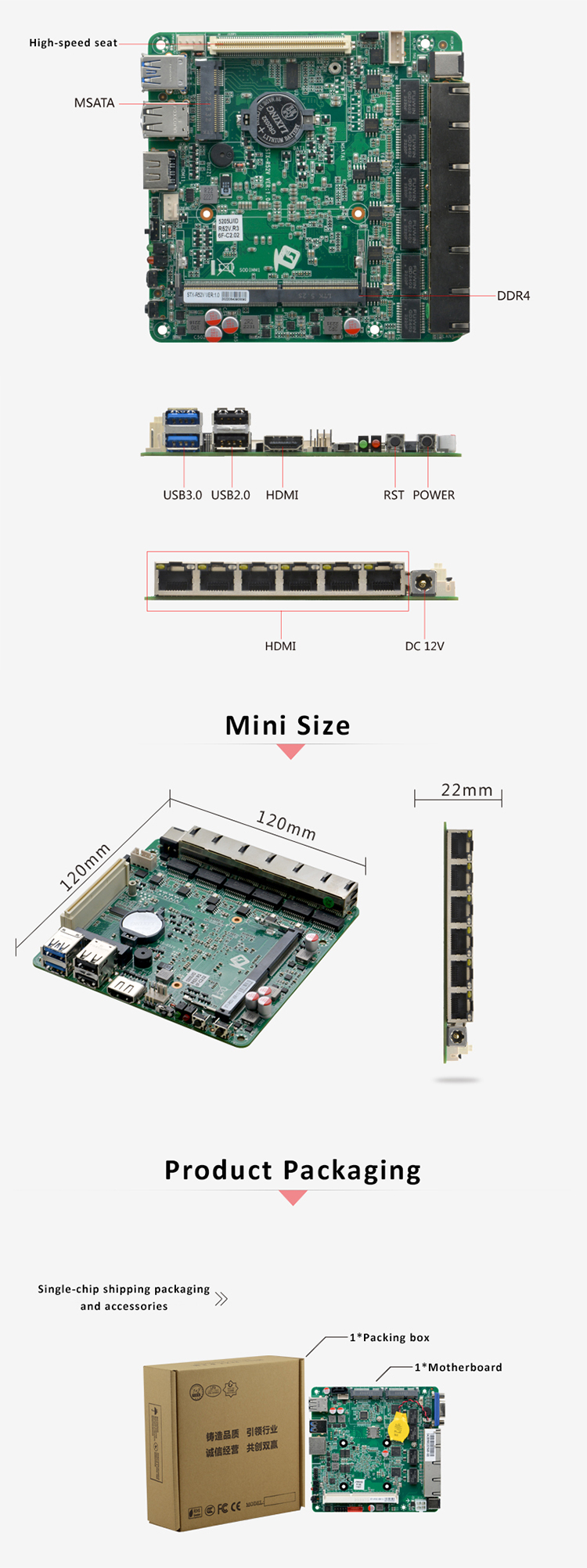

Detail Display
Product Description

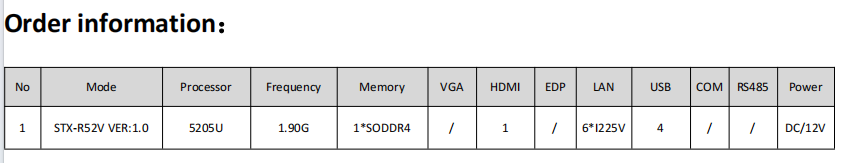

Model No.: STX-R52V VER:1.0
Processor: Integrated Intel® 10th Celeron 5205U 1.90GHz Dual core Dual thread processor,TDP 15W
Compatible with Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low power consumption processor
Chipset: SOC
Memory: 1x DDR4 SODIMM slot, supports dual channels 2400MHz memory,up to 32GB
Display: Integrated Intel® UHD Graphics, supports DirectX 12 OpenGL 4.5, supports 4K
1x HDMI1.4, the maximum resolution supported is：4096X2304@24Hz
Ethernet: 6x Intel I225 2.5G Gigabit Ethernet,supports Wake on LAN/PXE function
Storage: 1x MSATA slot，supports Intel protocol SSD,the transfer rate is up to 6Gbps
Audio: N/A
Expansion Slot: 1x 120pin high speed terminal，including 2x COM,1x SATA,3x USB2.0,2x PCIE,1x DDI etc.

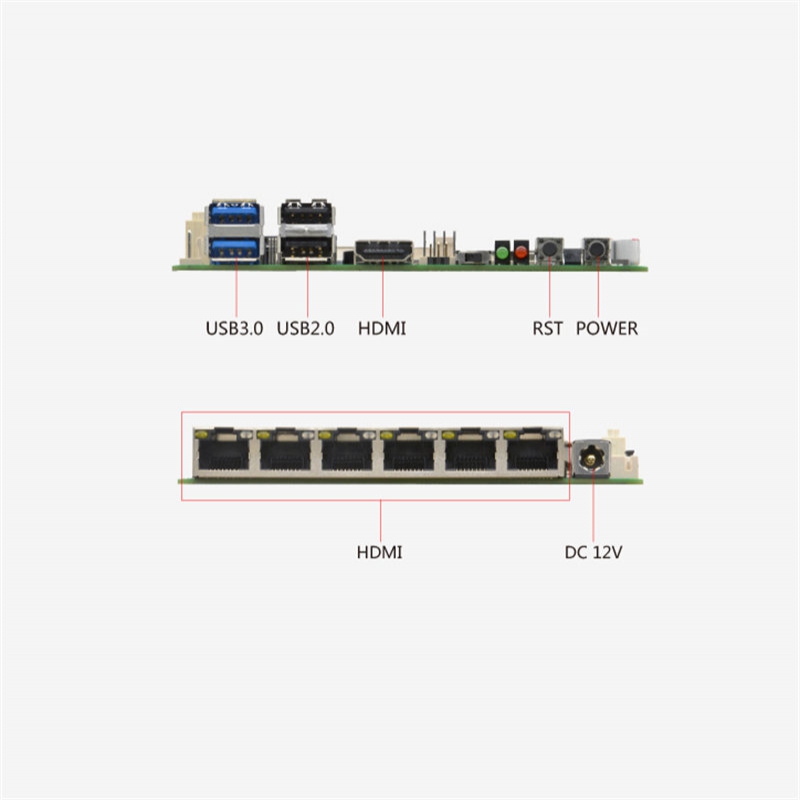

Rear I/O interface: 6x RJ45 Gigabit Network Interface
1x DC12V power input interface

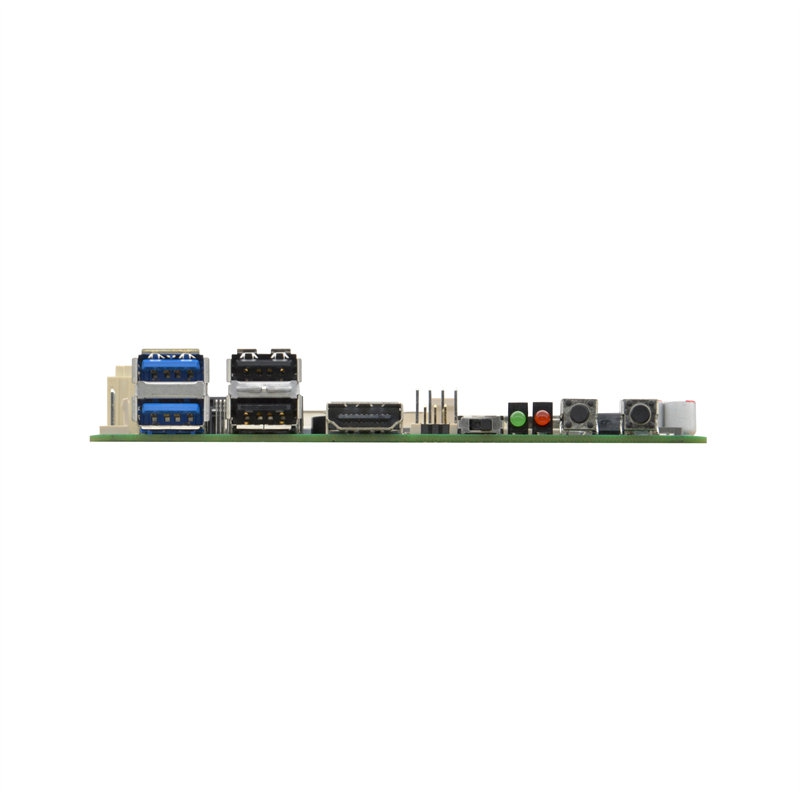

Built in I / O interface:
2x USB3.0,2x USB2.0
1x HDMI
1x Power-on control switch
1x Power Indicator，1x HDD indicator
1x power switch，1x Reset switch
1x DC_Jack 12V power input output, 1x 4pin
Fan Connector: 2x 4pin CPU smart fan connector
GPIO: N/A
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10 / Linux
Power Type: DC 12V single power input
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)

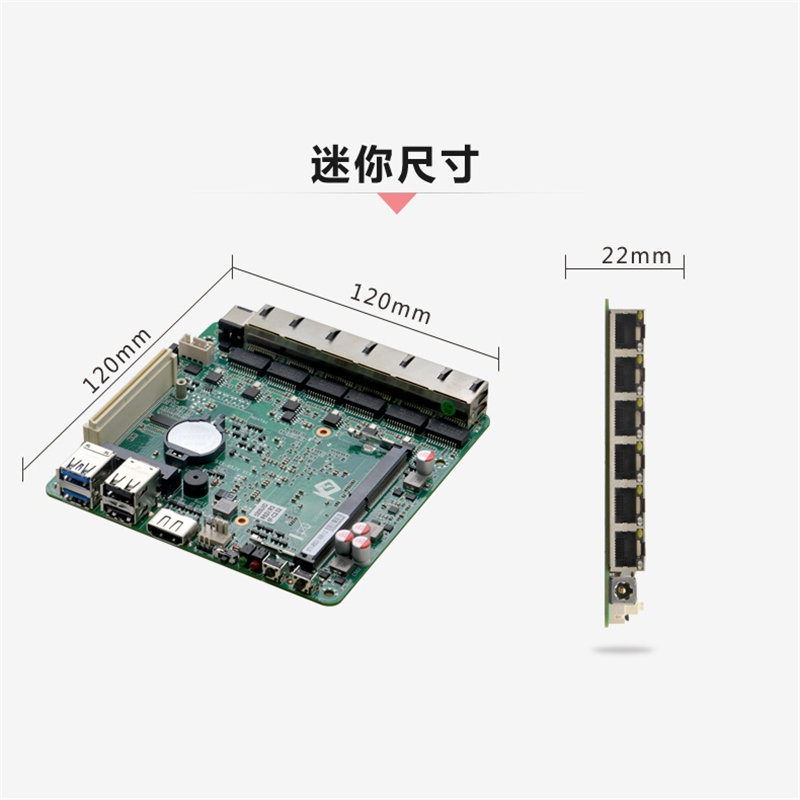

Dimension: 120mm x 120mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

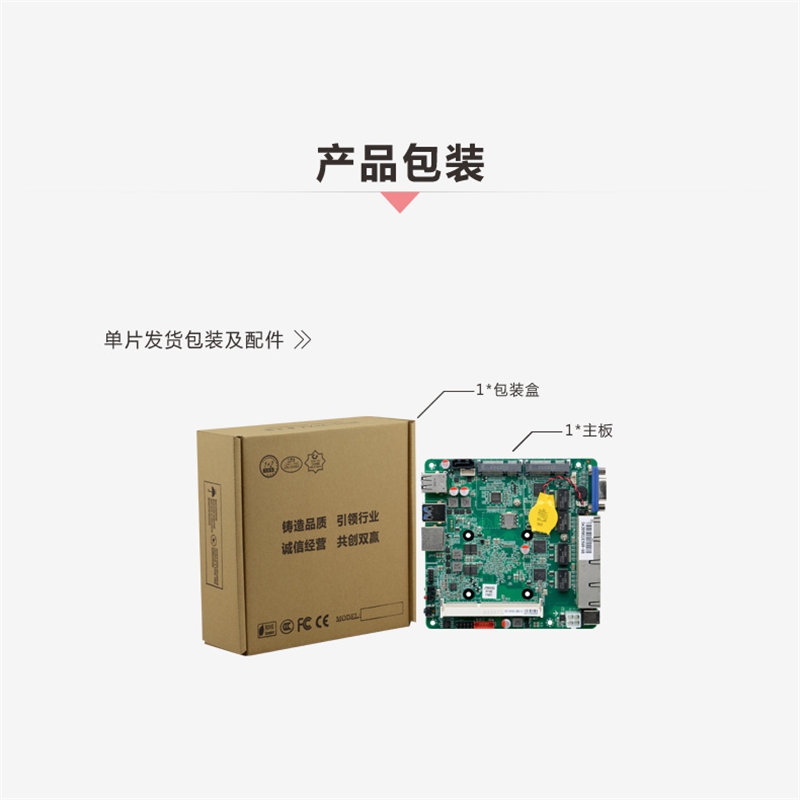

Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
