Overview

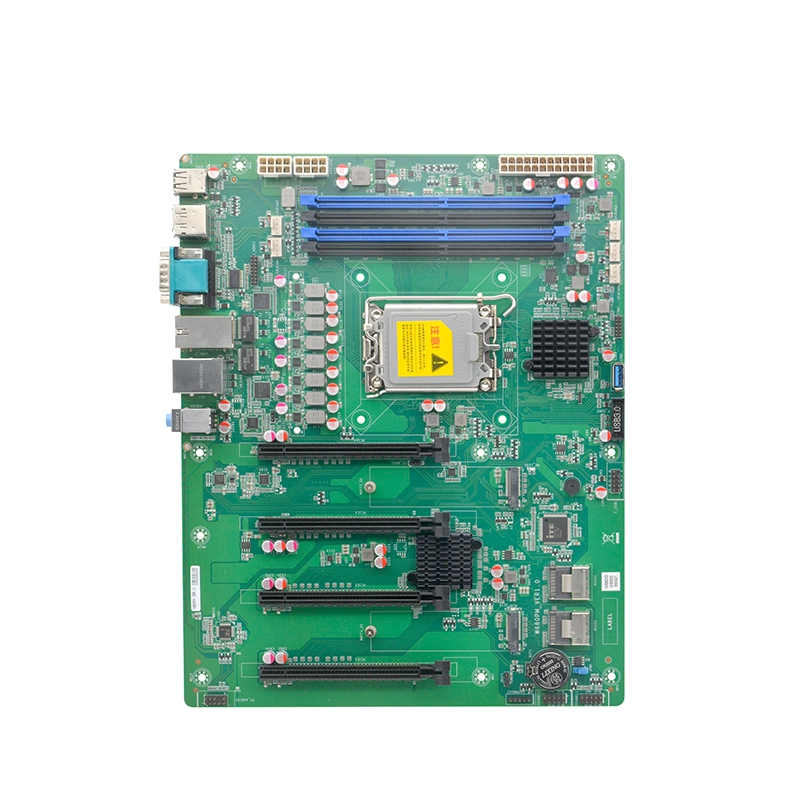

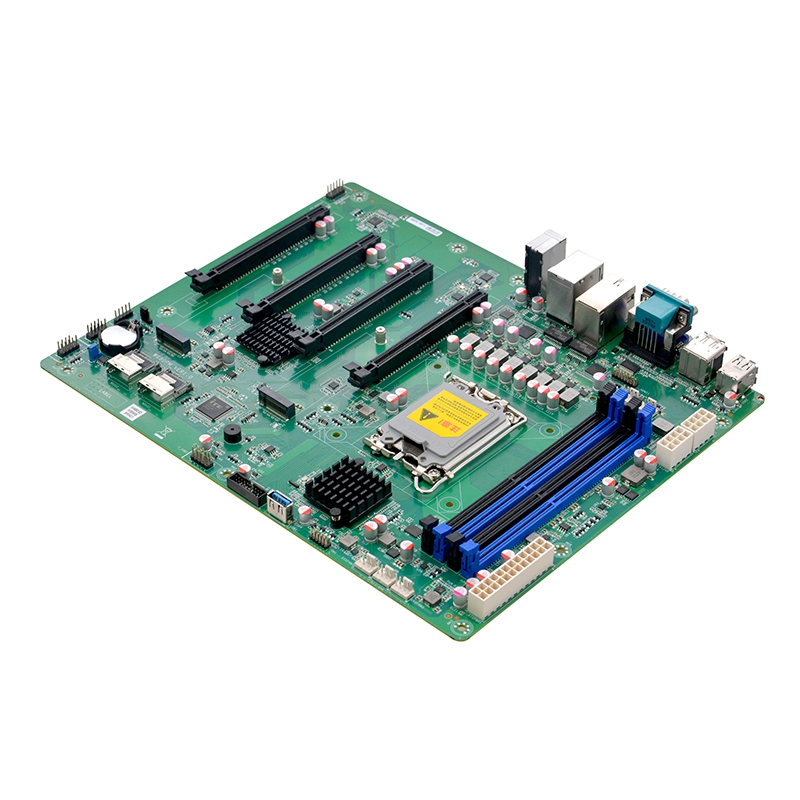

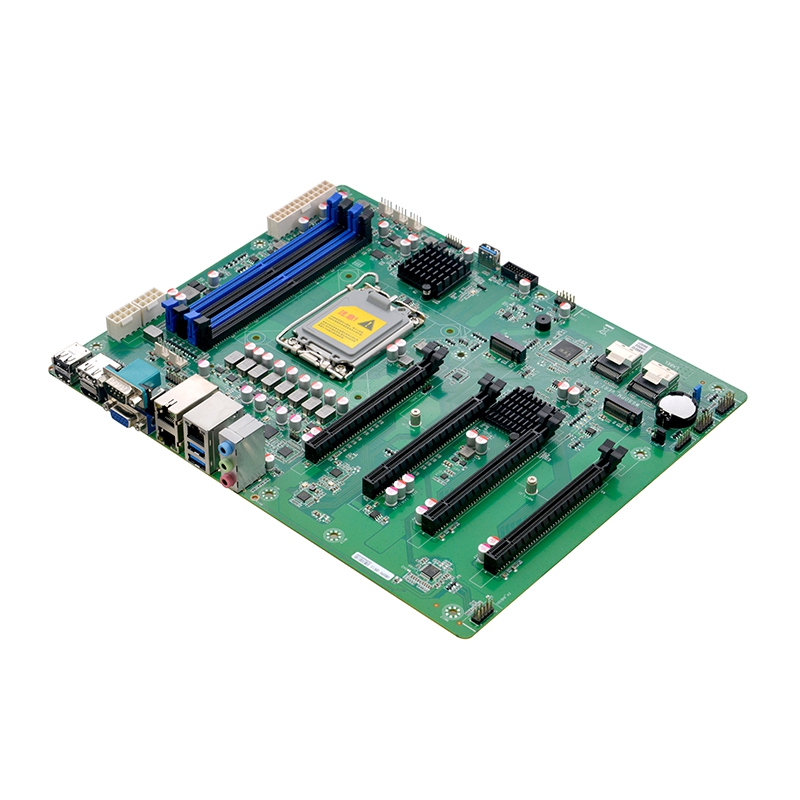

The W680PM VER:1.0 industrial ATX motherboard, based on the Intel W680 Express chipset, strongly supports multiple 12th/13th Gen processors via the LGA1700 interface, with a maximum TDP of 125W, ensuring stable operation in industrial scenarios. Integrated with Intel HD Graphics and equipped with DP, HDMI, and VGA interfaces, it meets various display requirements. With 4 DDR4 3200MHz memory slots, it supports up to 128GB of ECC memory, enabling efficient and reliable data processing.
This industrial ATX motherboard features 3 RJ45 Gigabit Ethernet ports supporting Vpro, 9 USB interfaces, and 1 DB9 COM(RS232) interface. In terms of storage, it has 2 MSAS (supporting 8 SATA3.0) and 2 M.2 NVMe PCIE X4 SSD interfaces, offering excellent expandability. The 4 PCIE3.0 x16 (x8 signal) interfaces and TPM module further enhance its functionality and security. With 1 ATX 24PIN and 2 ATX 8pin inputs, it ensures stable power supply, making it an ideal choice for industrial applications such as industrial automation, intelligent warehousing, and remote monitoring.
Product Description
Product No.: W680PM VER:1.0
Processor: Support LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 / Xeon CPU
Note:Support 125W CPU
Chipset: Intel® W680
RAM: 4x DDR4 DIMM memory slots, support dual-channels up to 3200MHz memory, up to 128GB, support ECC memory
Display: Integrated Intel®HD Graphics, support DirectX12.1,OpenGL4.5, support 4K display
1x VGA
1x HDMI1.4, support the highest resolution of 4096x2160 @24Hz
1x DP, support the highest resolution of 4096x2160 @60Hz
Ethernet: 2x I210AT Gigabit Ethernet chip, supports Wake on LAN/PXE function
1x I219LM Gigabit Ethernet chip, supports Wake on LAN/PXE function, support PRO function
Storage: 2x MSAS hard disk interface,Each MSAS supports 4*7pin SATA, total supporting 8x 7pin SATA, transmission speed up to 6Gbps
2x M.2 slot, support M.2 Key M 2280 NVME PCIE X4 standard SSD
Audio: Onboard ALC897 7.1+2 vocal channels high fidelity audio controller,supports MIC/Line-out and Line-in
Expansion slot: 4* PCIE3.0 X16 (actually X8 signal)

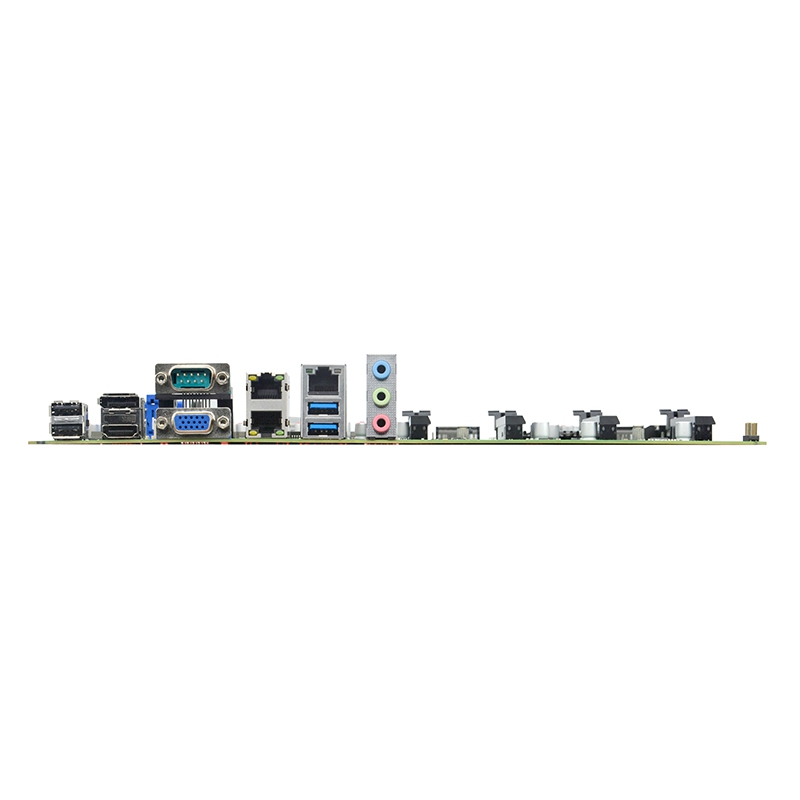

Rear I/O interfaces:
2x USB2.0
1x DP
1x HDMI1.4
1x VGA
1x DB9 COM
3x RJ45 Gigabit Ethernet interface
2x USB3.0
1x Three-layer audio interface, support Line-out, MICK, Line-in
Inner I/O interfaces:
1x USB3.0 (Vertical)
2x USB2.0, 2*5pin
2x USB3.0, 2*10pin
1x Front panel audio interface, 2x 5pin
1x TPM1, 2*6pin
1x 24pin ATX power socket
2x 8pin ATX power socket
2x Front panel function button and indicator interface, 2x 5pin
Fan interfaces: 2x 4pin CPU CPU fan connector; 3*4pin system fan connector
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power type: Powered by ATX 24Pin and 8pin power supply
Operating temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working humidity: Relative humidity 5%-95%, no condensation
Size: 305mm x 245mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
