This high-connectivity Thin ITX motherboard features Intel‘s 3rd Gen Core™ i5-3210M processor (2C/4T, 2.5GHz) with HM76 chipset in a compact Thin ITX form factor (170×170mm), delivering exceptional display flexibility and legacy interface support.
Key Features:
✔ Performance Core: Intel i5-3210M with HD Graphics 4000
✔ Advanced Multi-Display: VGA + dual HDMI + dual eDP/LVDS (quad independent outputs)
✔ Memory: Single DDR3 1600MHz (max 8GB)
✔ Industrial I/O:
1×GbE + 10×USB (4×USB3.0)
6×COM + PS/2 + LPT
✔ Storage & Expansion:
2×SATA 2.0 + 1×mSATA
1×mini-PCIe (WiFi/4G)
✔ Rugged Design:
GPIO + Watchdog + 4Ω/3W audio
✔ Dual Power: 12V DC or ATX 4-pin

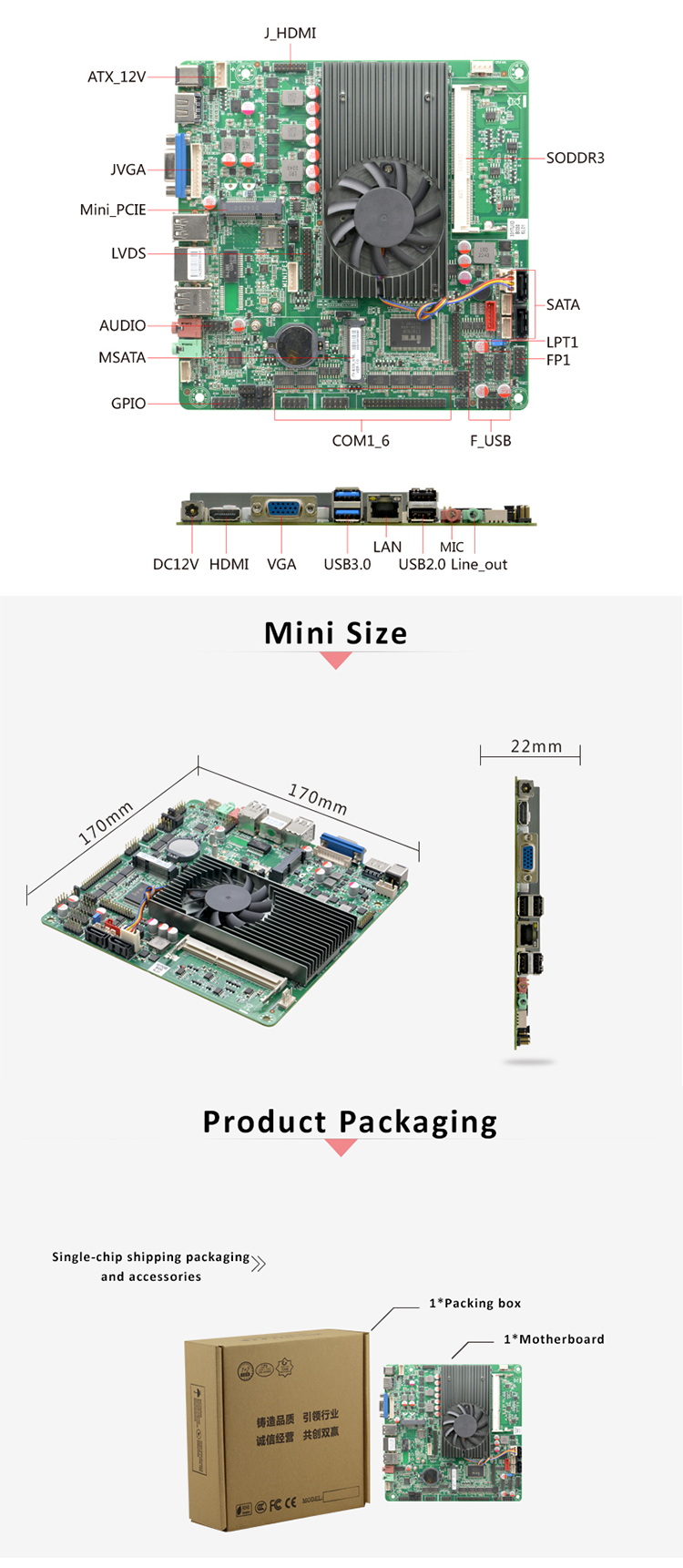

Detail Display
Product Description
Model No.: ITX-B330_I516L VER:1.0
Processor: Integrated 3rd Gen Intel Core i5-3210M 2.50GHz 2 cores 4 threads processor TDP: 18W
Compatible with Intel® Sandy/Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 processors
Chipset: Intel HM76 Express Chipset
Memory: 1x DDR3 1600/1333MHz, single channel SODIMM memory slot, up to 8GB
Display: Integrated Intel HD Graphics 4000
1x VGA ; 2x HDMI1.4 ; 1x LVDS (2ch/24bit) ( EDP optional )
Ethernet: 1x RJ45 Gigabit Ethernet port (RTL8111H), support Wake_on_LAN/PXE function
Storage: 2x 7pin SATA2.0，the transfer rate up to 3Gbps
1x MSATA slot，the transfer rate up to 6Gbps
Audio: Onboard ALC262 6 channel high fidelity audio controller, support Mic_in / Line_out & Power amplifier
The 4Ω 3W horn for power amplifier recommended
Expansion Slot: 1x Mini-PCIE slot，support WIF/3G/4G moudle
Rear I/O:
1x VGA
1x HDMI1.4
2x USB3.0 ; 2x USB2.0
1x RJ45 GbE LAN
1x Line-out ; 1x Mic_in
1x DC_Jack (DC_12V input)
Inner I / O:
1x JVGA1, 1x 12pin，Same signal as DB15
1x JHDMI, 2x 8pin
1x LVDS， 2x 15pin，support 2 channels 24BIT
1x Screen backlight power supply interface, 1x 6pin
6x USB2.0, 2x 5pin
6x RS232 serial ports (pin header）COM1/2 provide power on the 9th pin, COM2/3 support RS485/422
2x Hard disk power supply interface, 1x 4pin
1x PS/2 KB&MS Connector , 1x 6Pin
1x LPT Connector , 2x 13Pin
1x Front panel function button and indicator light interface, 2x 5pin
1x Front audio interface, 2x 5pin
1x Power amplifier interface, 1x 4pin
1x 4pin ATX power slot (support DC_12V input/output)
1x SIM card slot
Fan interface: 1x 4Pin smart system fan interface ; 1x 4Pin CPU intelligent fan interface
GPIO: Support 4-way input and output GPIO
BIOS: AMI 32Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0 ~ 255 seconds)
OS: Windows / Linux
Power Type: DC_12V
Working temp.: -10℃～60℃
Storage temp.: -20℃～70℃
Working humidity: 5%-95%(Relative humidity, non condensing)
Dimension: 170mm x 170mm

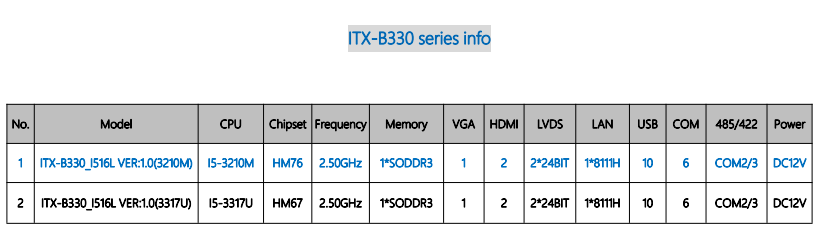

--order.png)
