Key Features:
✔ Efficient Processing: Intel i5-6300U with Intel® HD Graphics 520
✔ 4K Multi-Display: VGA + HDMI + LVDS (triple independent outputs)
✔ Memory Support: Dual-channel DDR3L 1600MHz (max 16GB)
✔ Industrial I/O:
Dual GbE ports + 8×USB
6×COM (RS232/485/422) + PS/2 legacy port
✔ Storage & Expansion:
2×SATA3.0 + 1×mSATA
1×mini-PCIe (WiFi/3G/4G modules)
✔ Rugged Design:
GPIO + Watchdog Timer
4Ω/3W audio amplifier
✔ Dual Power Input: 12V DC jack or ATX 4-pin
Product Description

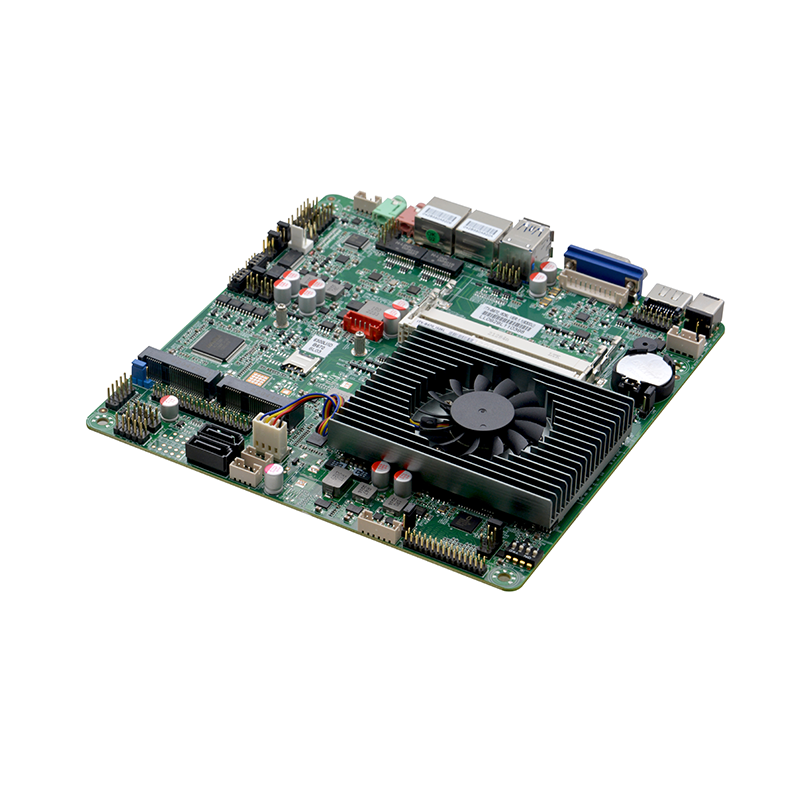

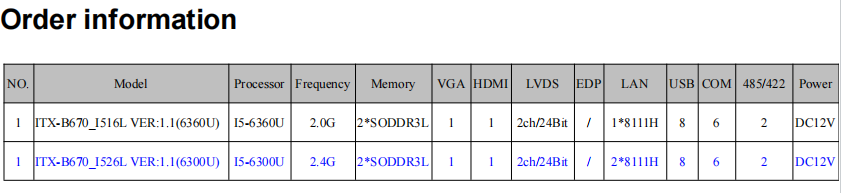

Model No.: ITX-B670_I526L VER:1.1（6300U）
Processor: Integrated Intel®I5-6300U 2.4GHz dual-core processor,TDP 15W
Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors
Chipset: SOC
RAM: 2x DDR3L SODIMM memory slot, support 1600MHz memory,up to 16GB
Display:
Integrated Intel® Iris® Graphics550,support DirectX 12, OpenGL 4.5,support 4K
1x VGA interface, the highest resolution supported is:1920X1200@60Hz
1x HDMI1.4 interface, the highest resolution supported is:4096X2304@24Hz
1x support dual channel 24bit LVDS interface
Ethernet: 2x 8111H Gigabit network card, support Wake on LAN, PXE function
Storage:
2x SATA3.0 hard disk interface, the transmission speed can reach 6Gbps
1x MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps
Audio:
Integrated ALC662 6-channel high-fidelity audio controller,support MIC、Line_out、 power amplifier
Support power amplifier 4Ω3W speaker
Expansion slot: 1* Mini-PCIEslot,support WIFI/4G module

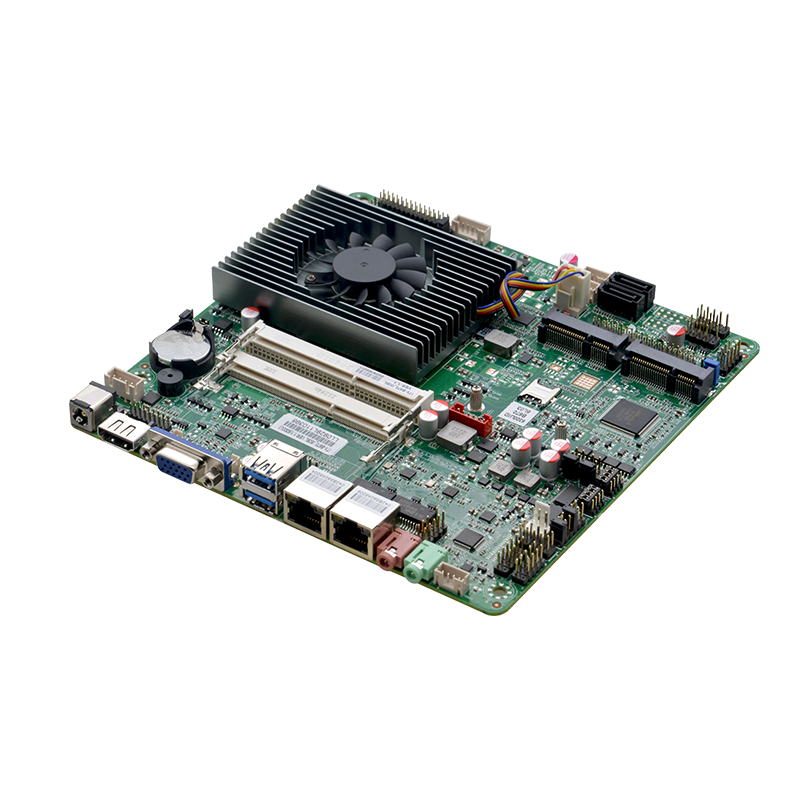

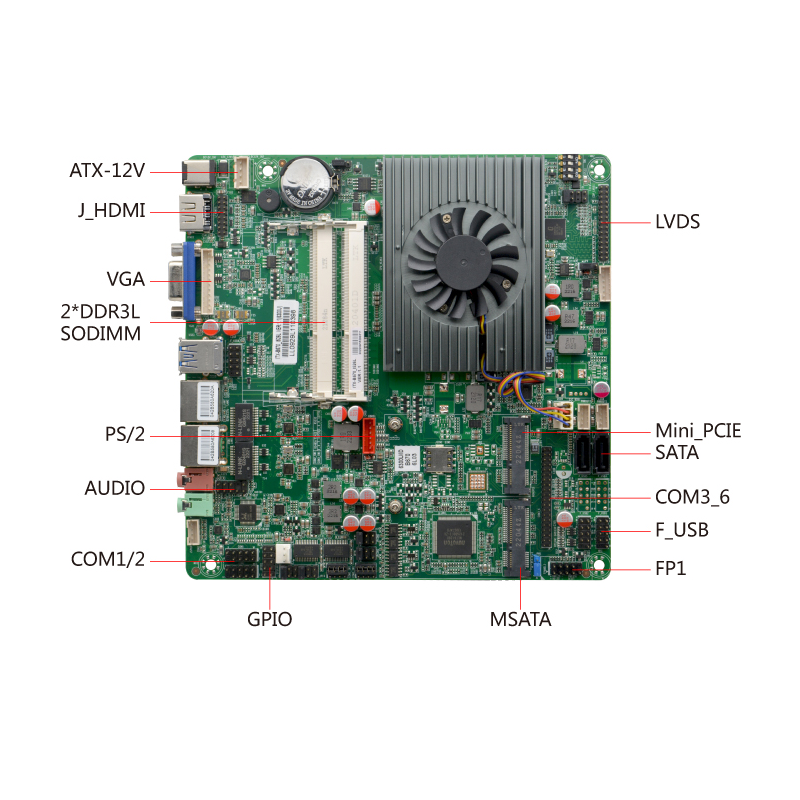

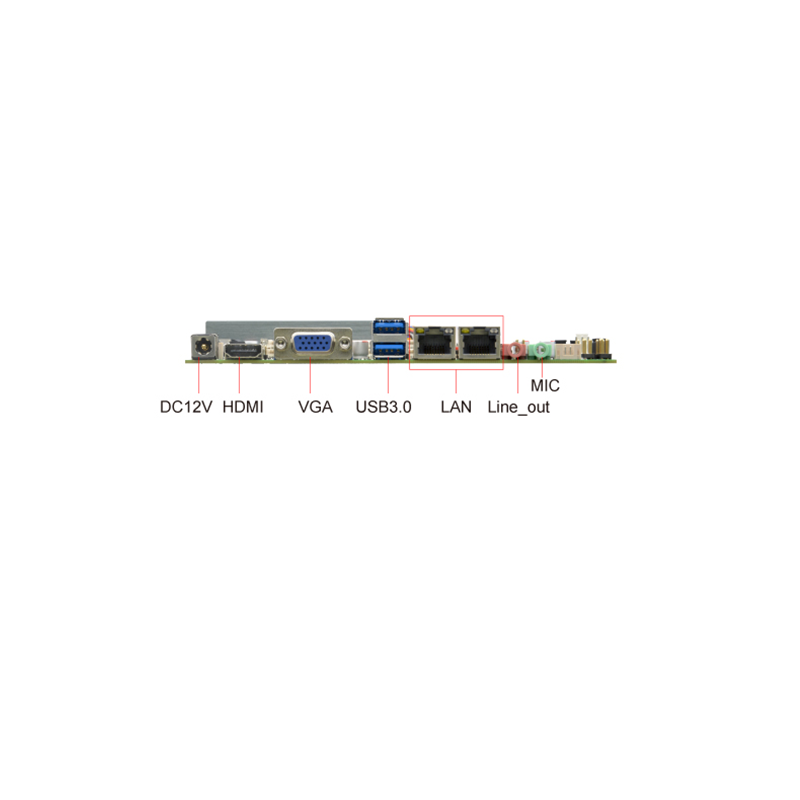

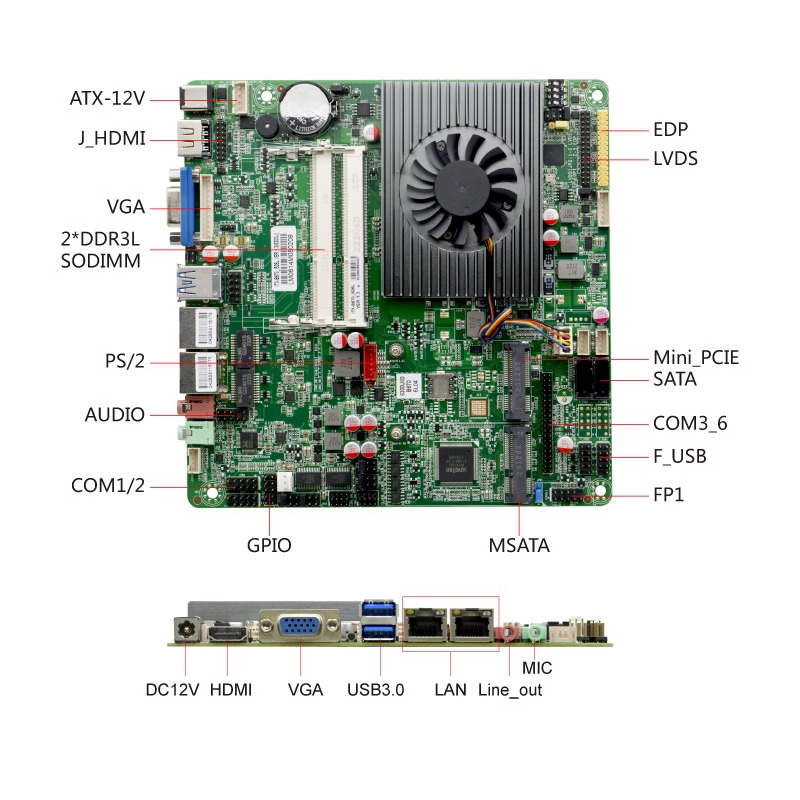

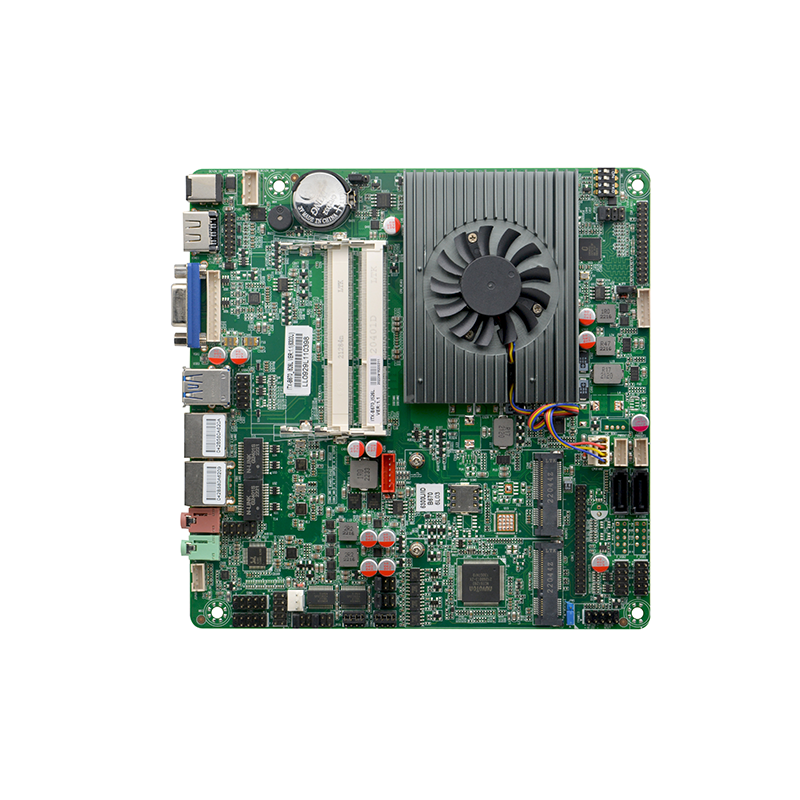

Backplane I/O interface:
2x USB3.0 interface
1x HDMI interface
1x DB15 VGA interface
1x RJ45 Gigabit network interface
1x Line-out(green)，1*MIC(red)
1x DC12V power supply, support 12V power input and output
Built-in I/O interface:
1x JVGA1 interface 1x 12pin(same signal with DB15)
1x JHDMI interface 2x 8pin(same signal as HDMI interface)
1x LVDS interface 2x 15pin,support dual channel 24bit
1x LVDS backlight power supply interface 1x 6pin
6x RS232 serial interface, COM2/4 supports RS485/422 function
6x USB2.0 interface 2x 5pin
1x Front audio interface 2x 5pin
1x Front panel switch button and indicator light interface 2x 5Pin
2x Hard disk power supply interface1x 4pin
1x power amplifier interface 1x 4pin
1x PS/2 keyboard and mouse interface
1x 4pin DC power interface (can be used as 12V input and output power interface)
1x SIM card slot
Fan interface: 1x 4pin CPU smart fan interface, 1x 3pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Power type: Powered by DC 12V power supply
Operating system: Windows 7 , Windows 8 , Windows 10 , Linux
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, non-condensing

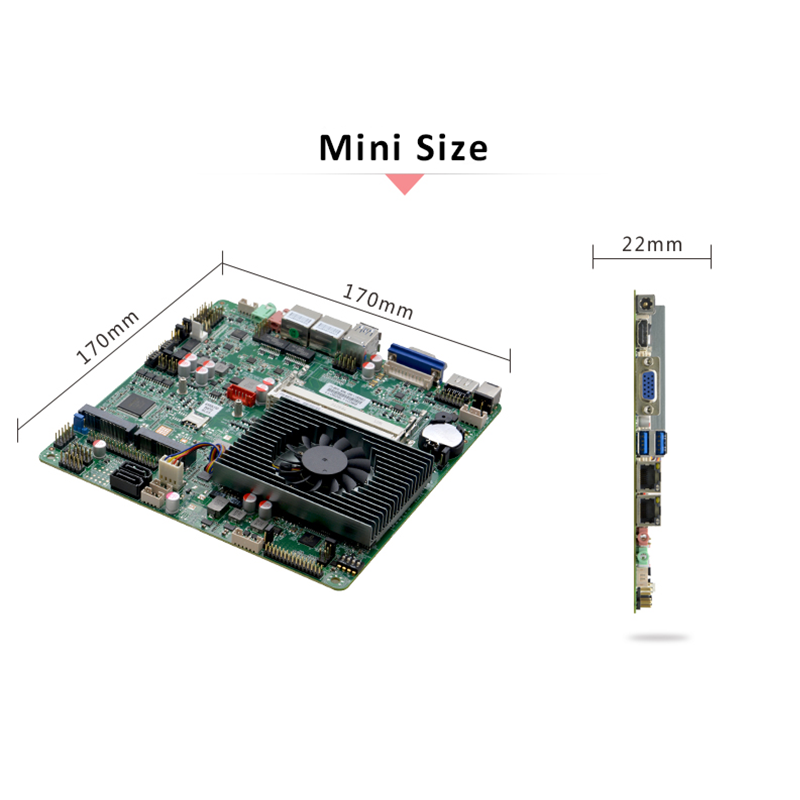

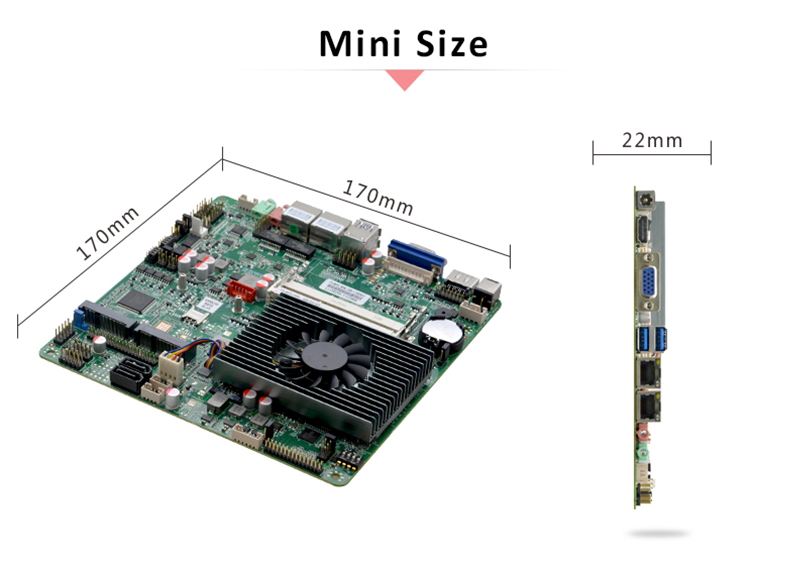

Dimension: 170mm x 170mm
