AMD V1605B 2 Lan DDR4 Industrial Mini ITX Motherboard

♦Model No.:FP-10

♦Adopt AMD Express chipset

♦Integrated AMD V1605B Quad-Core processor

♦4*DP1.4 (DP1/LVDS/eDP Optional) for display

♦2*DDR4 SO-DIMM socket,up to 32GB

♦2*RJ45 Gigabit Eth / 10*USB / 6*COM(RS232) / 1*PS2 / 1*LPT / TPM2.0(optional)

♦1*M.2 for 4G/2280 SSD / 1*SATA3.0 / 1*PCIe 1X / 1*PCIe 4X

♦Support GPIO; Realtek HD (Line-out, Mic-in)

♦Provide:1*DC_ 12V ;Support Windows/ Linux O/S etc.

Description

Overview
The FP-10 is a high-performance AMD Industrial Motherboard engineered for demanding industrial applications and embedded solutions. This AMD Embedded Motherboard is built on the advanced AMD Express chipset and features an integrated AMD V1605B Quad-Core processor, delivering robust computational power and excellent energy efficiency.

Designed as a highly flexible custom AMD Industrial Mainboard, it boasts a rich set of I/O options, including 4x DisplayPorts, 10x USB ports, 6x COM ports, dual Gigabit Ethernet, as well as legacy PS/2 and LPT interfaces, ensuring seamless connectivity with a wide range of industrial equipment. Its expansion capabilities are equally impressive, with 2x DDR4 SO-DIMM sockets, M.2 slots for 4G modules or SSDs, a SATA 3.0 interface, and both PCIe x1 and PCIe x4 slots, offering ample room for customization as a true AMD Industrial Mainboard. Furthermore, it supports GPIO, Realtek HD Audio, an optional TPM 2.0 security module, and is compatible with both Windows and Linux operating systems, making this AMD Embedded Motherboard a reliable and versatile core for any rugged environment.

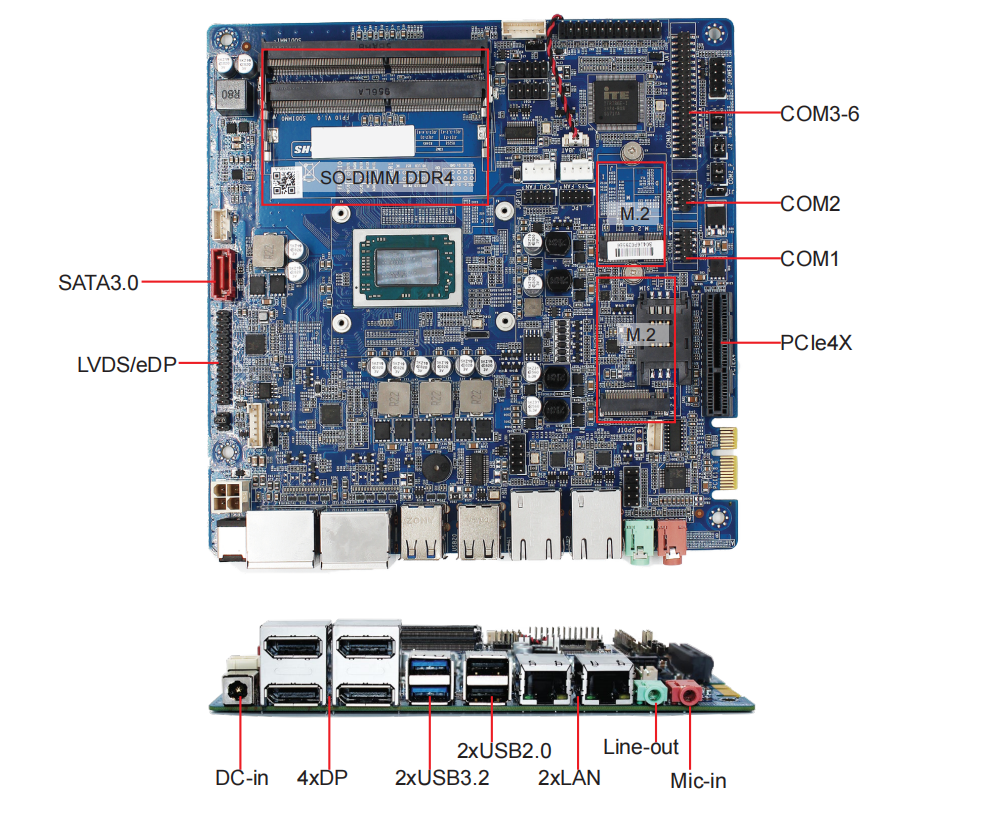

Detail Display

Product Description

Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

Packing & Delivery

We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.

Company Profile

FAQ

Q1.Do you accept OEM / ODM order?

A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.

Q2:What payment method do you accept?

A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.

Q3:How long is the warranty of your products?

A3:We offer 2 years warranty for all of our products.

Q4:How many days will samples be finished? And how about the mass production?

A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.

Q5:If we come to China,can you arrange the visiting to your factory?

A5:We warmly welcome and look forward to your visiting to our factory at any time.
