Overview
Key Features:
✔ Energy-Efficient Quad-Core: Intel J3455 with HD Graphics 500
✔ Multi-Display Support: VGA + HDMI + LVDS (triple independent outputs)
✔ Memory: Single DDR3L 1866MHz (max 8GB)
✔ Industrial I/O:
1×GbE + 10×USB (4×USB3.0)
2×COM (RS232/485/422) + SIM + LPT + PS/2
✔ Storage & Expansion:
1×SATA2.0 + 1×mSATA
1×mini-PCIe (WiFi/3G/4G)
✔ Rugged Design:
GPIO + Watchdog + 2Ω/5W audio
Fanless dual 12V DC input

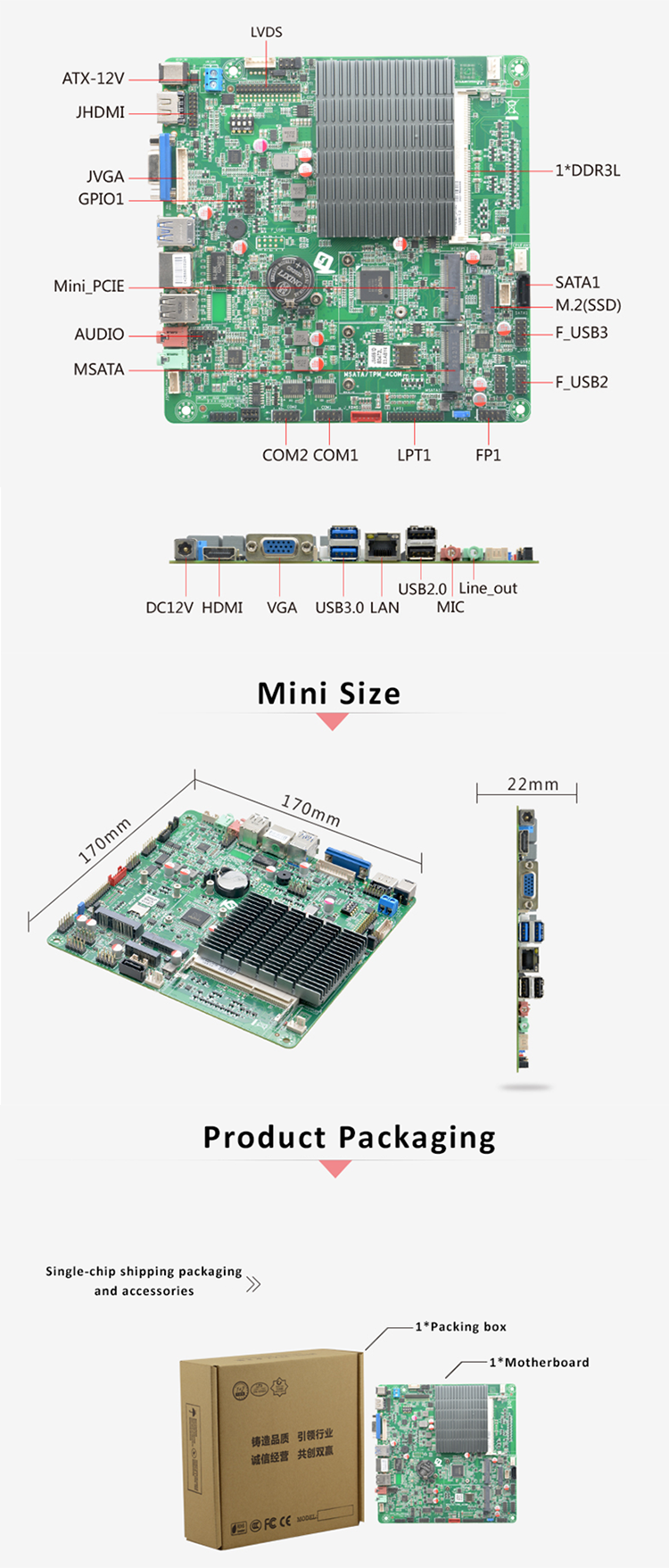

Detial Display
%20thin%20itx%20motherboard%20specification.png)
Product Description
Model No.: ITX-B347_J112L VER:1.2
Processor: Integrated Intel Celeron J3455 1.50GHz 4 cores 4 threads processor (TDP: 10W)
Compatible with Apollo Lake Celeron/Pentium processors
Chipset: SOC
Memory: 1x DDR3L 1.35V 1600/1866MHz SO-DIMM memory slot, up to 8GB
Display: Integrated Intel HD Graphics 500 ,supports DirectX, OpenGL
1x VGA ; 1x HDMI1.4 ; 1x LVDS (2ch/24bit)
Ethernet: 1x RJ45 Gigabit Ethernet ports(RTL8111H), support Wake_on_LAN/PXE function
Storage: 1x 7pin SATA3.0，the transfer rate up to 6Gbps
1x MSATA slot，the transfer rate up to 6Gbps
1x M.2 slot, support M.2 2280 NVME PCIE x1 SSD
Audio: Onboard ALC892 7.1+2 channel high fidelity audio controller, support Mic_in / Line_out & Power amplifier
The 4Ω 3W horn for power amplifier recommended
Expansion Slot: 1x Mini-PCIE slot，support WIFI/3G/4G moudle
Rear I/O:
1x VGA (DB15)
1x HDMI1.4
2x USB3.0 ; 2x USB2.0
1x RJ45 GbE LAN
1x Line-out ; 1x Mic_in
1x DC_Jack (DC_12V input)
Inner I / O:
1x JVGA1, 1x 12pin，Same signal as DB15
1x JHDMI, 2x 8pin，Same signal as HDMI1.4
1x LVDS， 2x 15pin，support 2 channels 24BIT
1x Screen backlight power supply interface, 1x 6pin
1x Screen brightness adjustment interface, 1x 4pin
6x USB2.0, 2x 5pin
2x RS232 serial ports (pin header）COM1/2 provide power on the 9th pin, COM2 support RS485/422
1x Hard disk power supply interface, 1x 4pin
1x LPT, 2x 13Pin
1x PS/2 k&M, 1x 6Pin
1x Front panel function button and indicator light interface, 2x 5pin
1x Front audio interface, 2x 5pin
1x Power amplifier interface, 1x 4pin
1x 4pin power slot (support DC_12V input/output)
1x SIM card slot
Fan interface: 1x 4Pin smart system fan interface ; 1x 4Pin CPU intelligent fan interface
GPIO: Support 4-way input and output GPIO
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0 ~ 255 seconds)
OS: Windows / Linux
Power Type: DC_12V
Working temp.: -10℃～60℃
Storage temp.: -20℃～70℃
Working humidity: 5%-95%(Relative humidity, non condensing)
Dimension: 170mm x 170mm

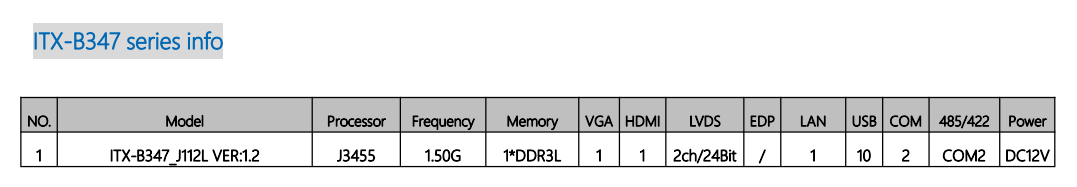

--order.png)
