Product Description
Model No.: Z370SL_8L VER:1.0
Processor: Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor .Note:Support 125W CPU
Chipset: Using Intel Z370 high-speed chipset,
Memory: 4x DDR4 UDIMM memory slot,supports up to 2666MHz DDR4 memory, up to 128GB,
Display: Integrated Intel® HD Graphics graphics controller, supports DirectX12, OpenGL4.4, and 4K display
1x VGA interface, supports the highest resolution 1920X1200@60Hz
1x HDMI1.4 interface, supporting the highest resolution 4096X2160 @24Hz
Network: 8x Intel® I210AT Gigabit network card, supports network wake-up and PXE functions,
1x Intel® I219LM Gigabit network card, supports wake-on-LAN, PXE/VPRO functions
Storage: 4x SATA 3.0 hard disk interface, SATA interface transmission speed up to 6Gbps, supports RAID 0,1,5,10
1x M.2 slot, supports M.2 Key M 2242/2280 PCIE x4/SATA adaptive standard SSD
Audio: N/A
Expansion slots:
1x M.2 slot, supports M.2 Key B 2242/2252 4G/5G module
1x M.2 slot, supports M.2 Key E 2230 WIFI module
2x PCIE X8 gold fingers,

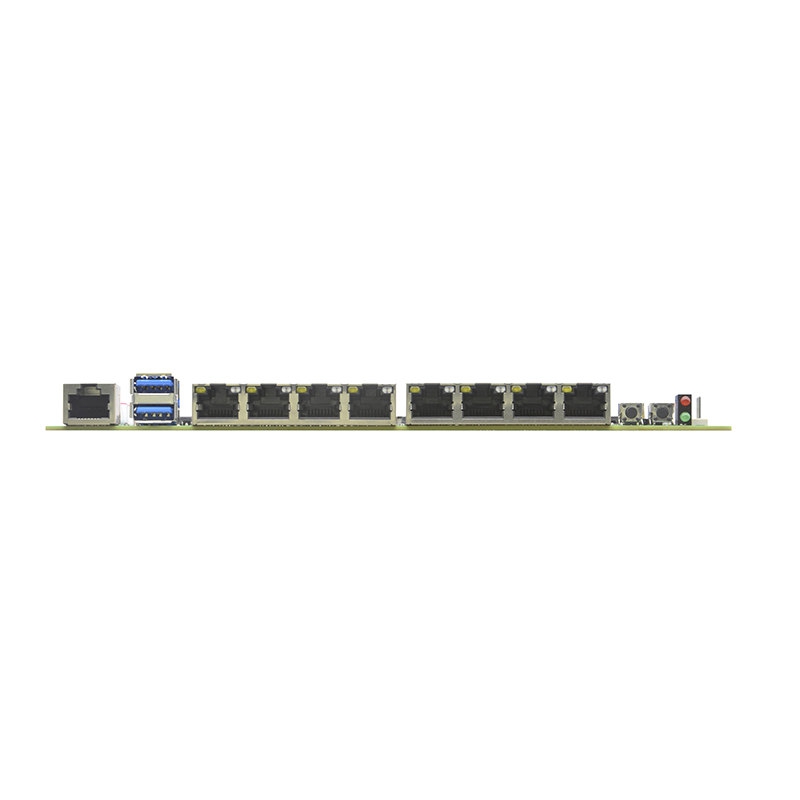

Rear I/O interface:
1x RJ45 serial port
2xUSB3.0 interface
8x RJ45 Gigabit network interface
1x power switch, 1x reset switch
1x power indicator light, 1x hard disk indicator light
Built in I/O interface:
1x JVGA interface 1x12pin
1x JHDMI interface 2x 8pin,
1x RS232 serial port，2x 5pin
1x Network pin header 2x 6pin
2x USB 2.0 interface 2x 5Pin
1x Vertical USB2.0 interface
1x PS/2 keyboard and mouse interface 1x 6pin
1x Front panel function button and indicator light interface 2x 5pin
1x FPC interface, 30pin, including 1 PCIE, 1 PLC/ESPI bus, HD bus (reserved, optional)
1x SIM card slot
1x 24pin ATX power input interface
1x 8pin ATX power input interface
Fan connector: 1x 4pin CPU smart fan interface, 3x 4pin system smart fan interface
BIOS: 64Mb Flash ROM
OS: Windows 10/Windows 11/Linux
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Power type: ATX power input
Working Temp.: 0℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 220mm x 280mm
