Overview
Key Firewall Features:
●Advanced networking: 6× Intel I226V 2.5GbE ports for high-bandwidth security processing
●Extreme processing power:
Supports up to 64GB DDR4 2666MHz (2× SODIMM)
Compatible with 8th/9th Gen Intel Core i9 processors
●Professional expansion:
1× PCIe x8 + 1× PCIe x4 slots for security accelerators
2× M.2 slots (5G/WiFi 6) + 1× Mini-PCIe + SIM slot
●High-speed storage:
2× SATA3.0
1× mSATA SSD
●Management interfaces:
7× USB ports (including USB3.1)
2× COM ports
GPIO control
●ATX power input with Watchdog Timer protection
Optimized for:
Enterprise Next-Generation Firewalls (NGFW)
Advanced Threat Protection systems
Multi-gigabit VPN concentrators

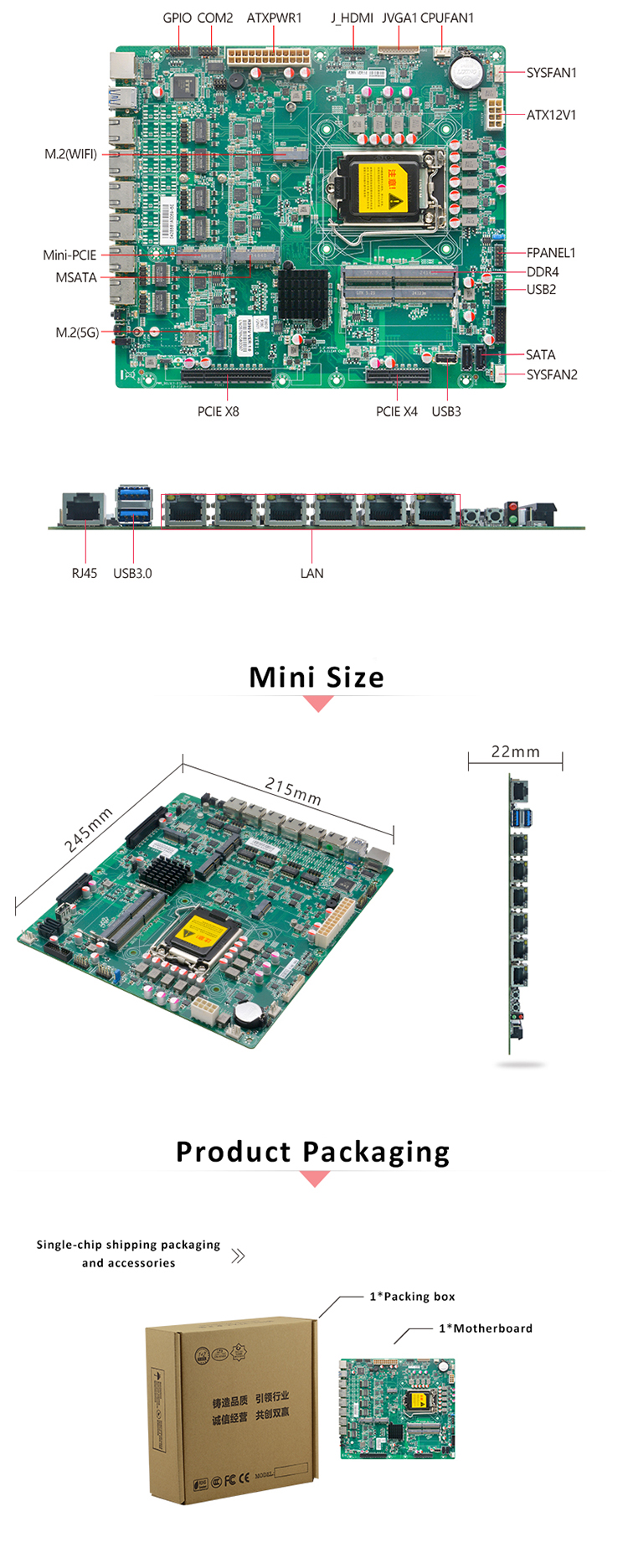

Detail Display
Product Description

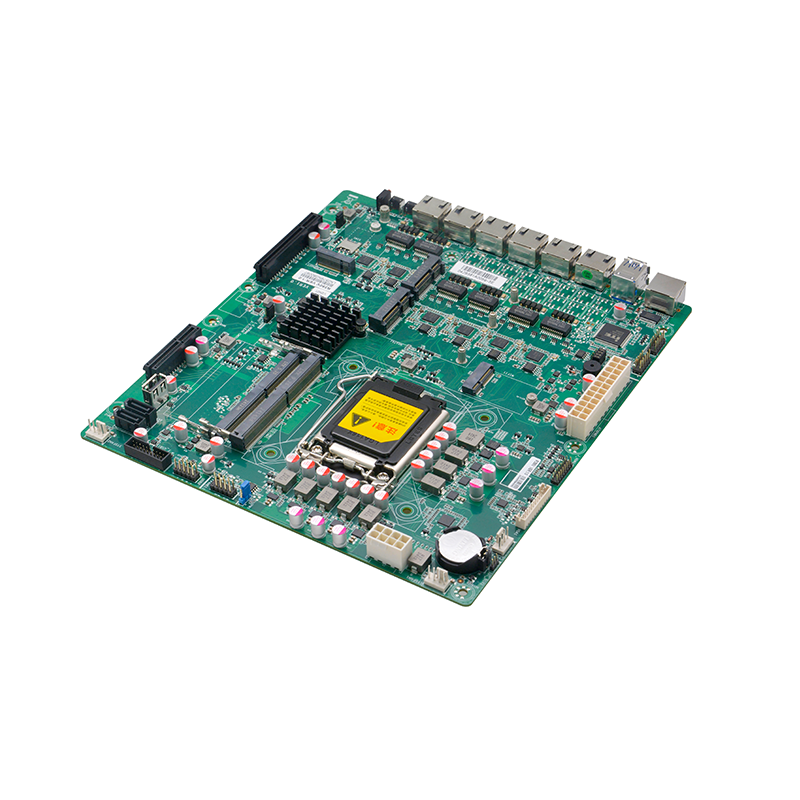

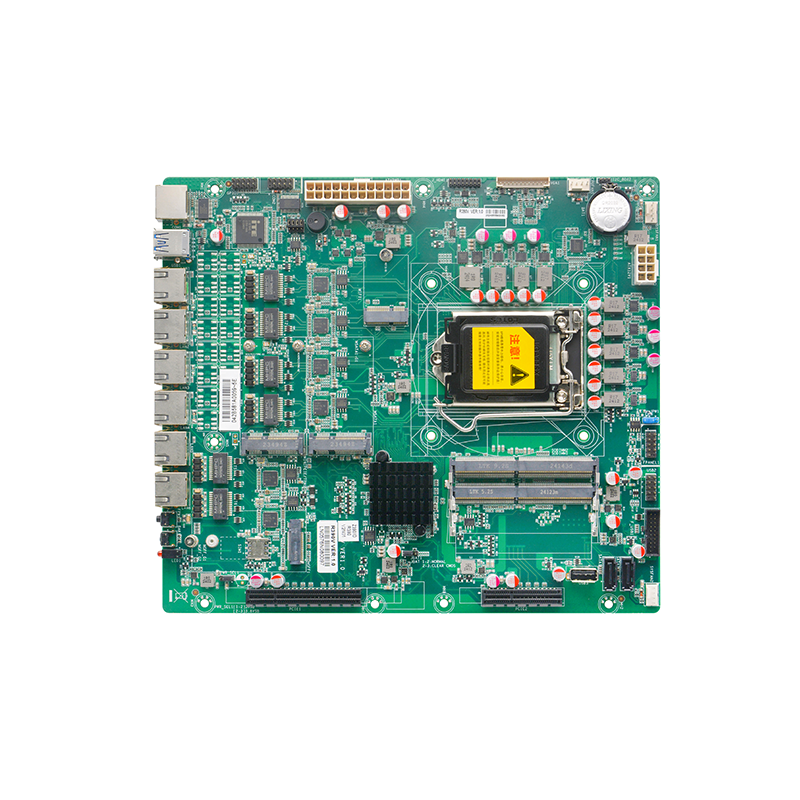

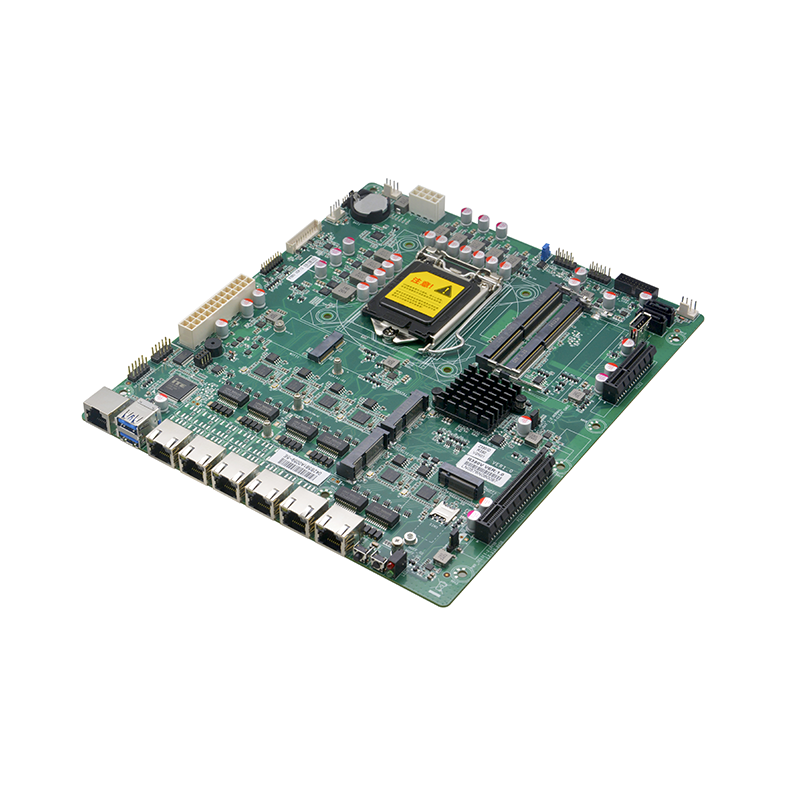

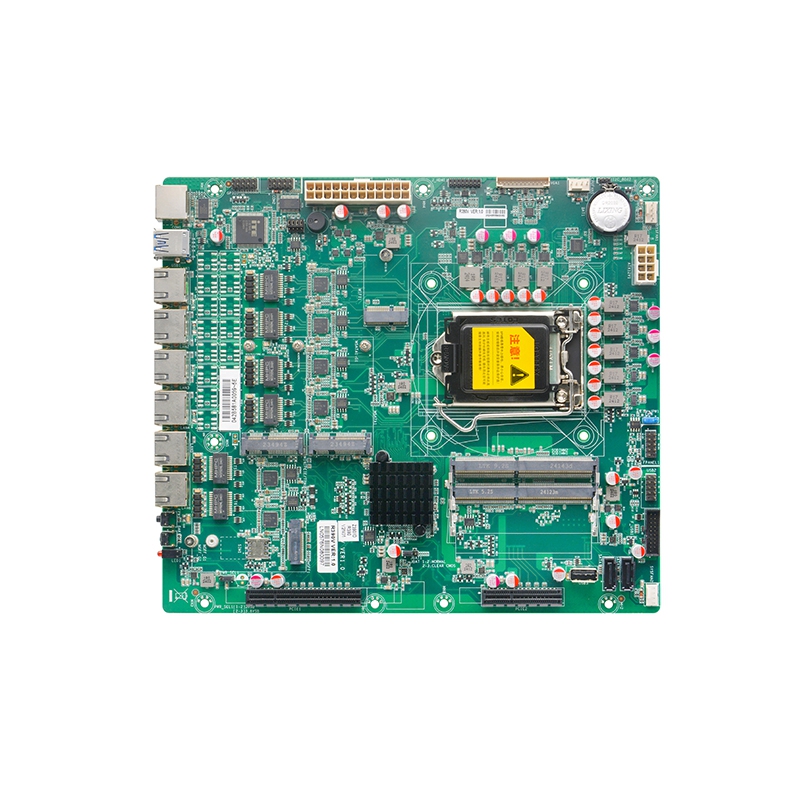

Model No.: R390V VER:1.0(LGA1151)
Processor: Support Intel®LGA1151 8th/9th Celeron/Pentium/Corei3/i5/i7/i9 processor
Chipset: Intel®Z390 Express Chipset
Memory: 2x DDR4 SODIMM slot, supports 2666MHz memory, up to 64GB
Graphics:
Intel®HD Graphics
1x HDMI, 1x VGA
Network: 6x Intel I226V Gigabit network card, support network wake-up、PXE function
Note: It can support 2 sets of BYPASS functions, which is not supported by default
Storage:
2x SATA3.0 , transmission rate up to 6Gbps
1x MSATA3.0 slot, supports Intel protocol SSD solid state drive, transmission speed up to 6Gbps
Audio: N/A
Expansion slots:
1x Mini-PCIE slot, supports WIFI /TPM-4COM module (Note: TPM-COM module requires BIOS modification)
1x M.2 slot,support M.2 Key B 2242/2252 5G module
1x PCIE X4 slot
1x PCIE X8 slot
1x M.2 slot,support M.2 Key E 2230 WIFI module

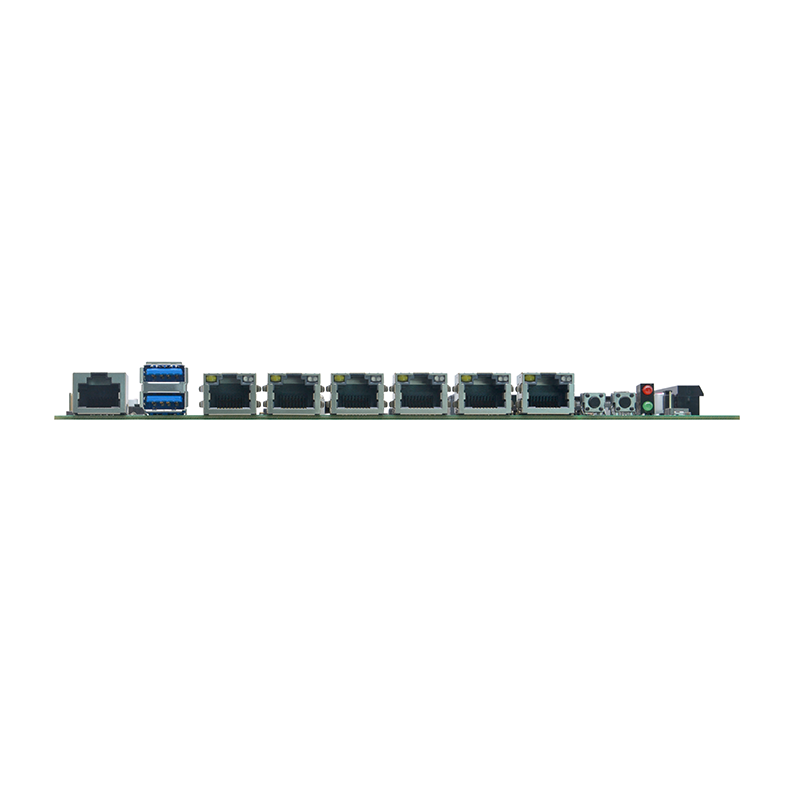

Rear I/O interface:
1x RJ45 serial port
2x USB3.0
6x RJ45 Gigabit network interface
1x power switch, 1x one-key restore
1x double-layer LED light, (upper red and lower green, upper hard disk light, lower power light)
Built in I/O interface:
1x JVGA1, 1*12pin
1x JHDMI, 2*8pin
2x USB2.0, 2*5pin
2x USB3.0, 2*10pin
1x Single-layer USB2.0 interface
1x GPIO pin header (four in and four out)
1x Front panel switch button and indicator light interface 2*5Pin
1x 24pin ATX power interface
1x 2*4pin ATX power interface
1x SIM card slot
1x RS232 serial port 2*5pin, COM2 supports RS485
Fan interface: 1x 4pin CPU smart fan interface, 2x 4pin system fan interface
Power input: Powered by ATX power supply
BIOS: 128Mb Flash ROM
GPIO: Supports 4 input and 4 output GPIO interfaces
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10 ,/Linux
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 245mm x 215mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
