This robust firewall motherboard is built on the Intel HM77 Express chipset, featuring the Intel® Core i5-3210M Dual-Core processor (2.5GHz, up to 3.1GHz Turbo) with Intel HD Graphics 4000, delivering reliable performance for enterprise network security applications.
Key Firewall Features:
●High-speed networking: 6× Intel I226V 2.5GbE ports for superior packet processing
●Enterprise-grade processing:
Supports up to 8GB DDR3 1600MHz
Intel® Hyper-Threading technology
●Security expansion:
1× PCIe x8 slot for hardware accelerators
1× Mini-PCIe (supports WiFi/4G/TPM modules)
●Storage options:
1× SATA3.0
1× mSATA SSD
●Management interfaces:
5× USB ports
2× COM ports
GPIO control
●Industrial reliability:
Watchdog Timer
12V DC power input
Optimized for:
Enterprise firewall appliances
Network intrusion prevention systems
VPN gateways

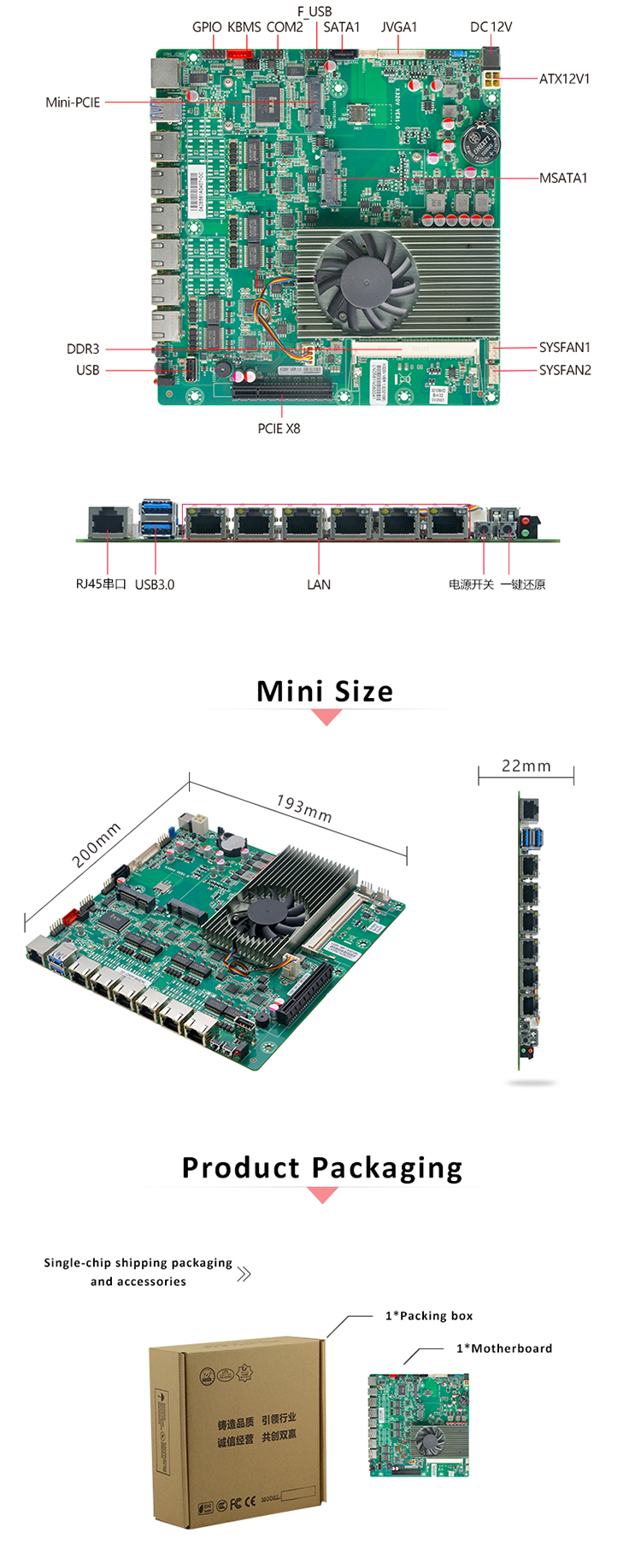

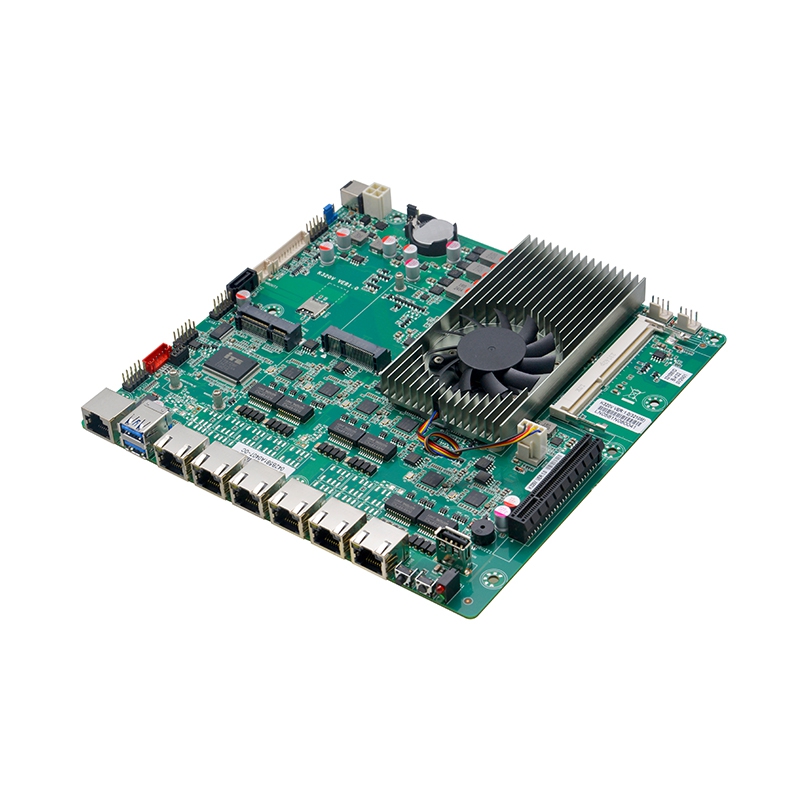

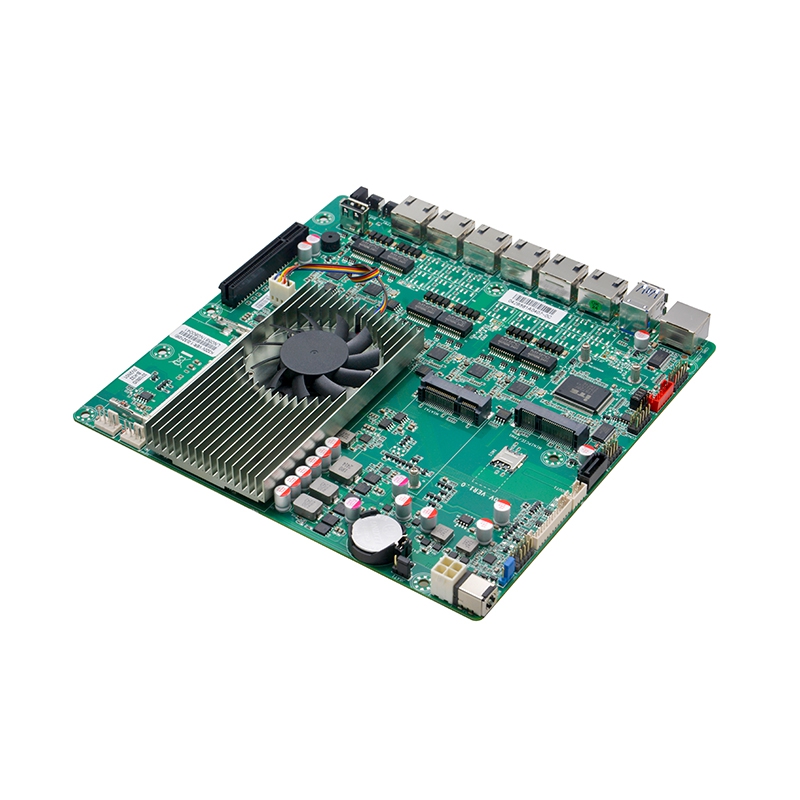

Detail Display
Product Description
Model No.: K320V VER:1.0 (i5-3210M)
Processor:
Integrated Intel®Core I5-3210M /2.5GHz dual-core quad-thread processor,TDP:18W
Compatible with Intel® Sandy /Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 low power processor
Chipset: Intel® HM77 Express Chipset
Memory: 1x SODIMM slot, supports single channel 1600/1333MHz DDR3 memory, up to 8GB
Graphics: Intel® HD Graphics4000
1x VGA
Network: 6x Intel I226V Gigabit network card, support network wake-up function
Storage:
1x SATA3.0 , transmission rate up to 6Gbps
1x MSATA slot, supports Intel protocol SSD solid state drive, transmission speed up to 6Gbps
Audio: N/A
Expansion slots:
1x Mini-PCIE slot, supports WIFI /4G/TPM-4COM module, BIOS needs to be modified for TPM-4COM function
1x PCIE X8 slot

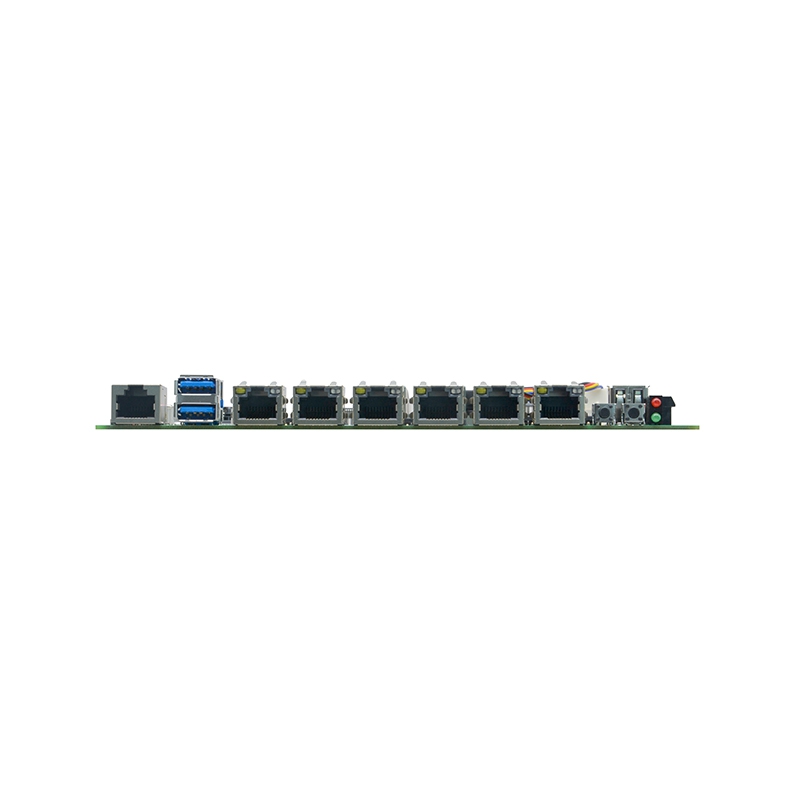

Rear I/O interface:
1x RJ45 serial port
2x USB3.0
6x RJ45 Gigabit network interface
1x power switch, 1x one-key restore
2x RJ-45 Gigabit network interface
1x double-layer LED light, (upper red and lower green, upper hard disk light, lower power light)
Built in I/O interface:
1x JVGA1 interface 1*12pin
1x RS232 serial interface 2*5pin, supports RS485
1x Single-layer vertical USB2.0 interface,
2x USB2.0 interface 2*5pin
1x PS/2 keyboard and mouse interface (red) 1*6Pin
1x Front panel switch button and indicator interface 2*5Pin
1x Hard disk power supply interface 1*4pin
1x DC12V power interface, supports 12V power input (side)
1x 4pin ATX power interface (can be used as 12V input power interface)
1x SIM card slot
Fan interface: 1x 4pin CPU smart fan interface, 2x 4pin system fan interface
Power input: DC 12V
BIOS: 128Mb Flash ROM
GPIO: Supports 4 input and 4 output GPIO interfaces
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows XP/Windows 7/Windows 10/Linux
Working Temp.: -20℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 200mm x 193mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
