Product Description

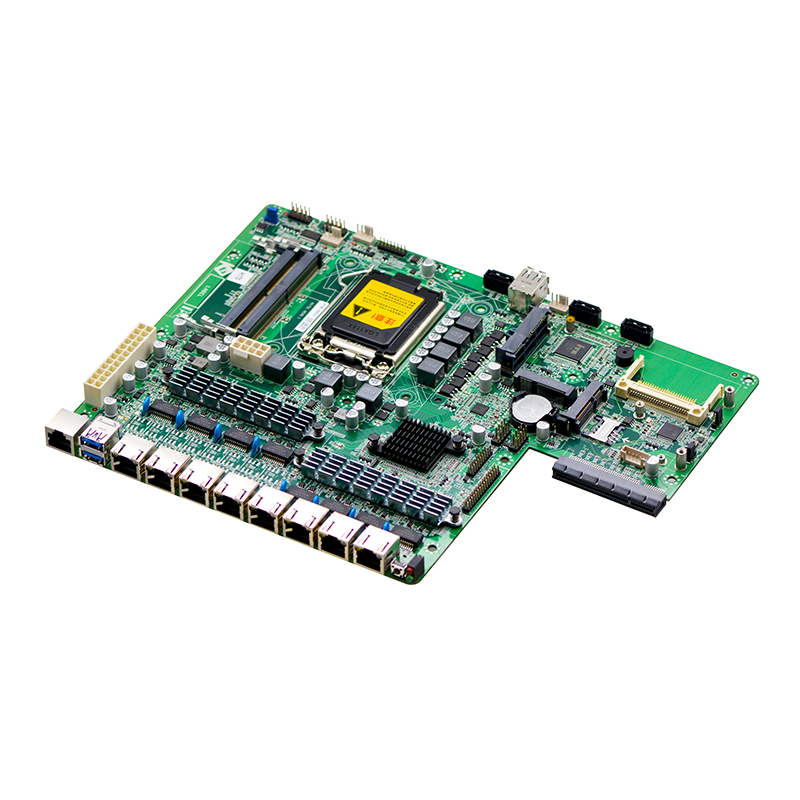

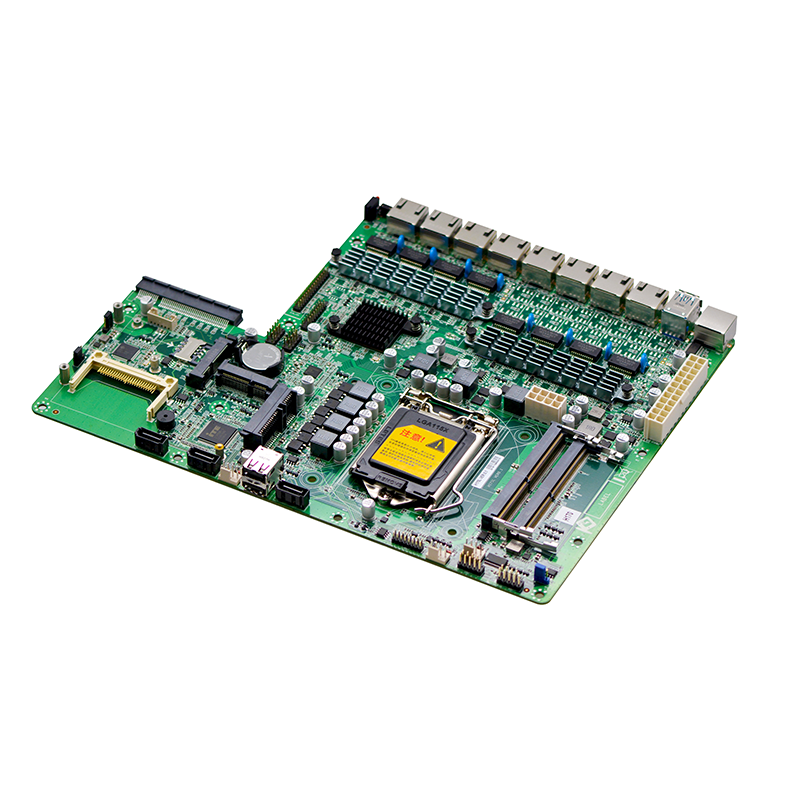

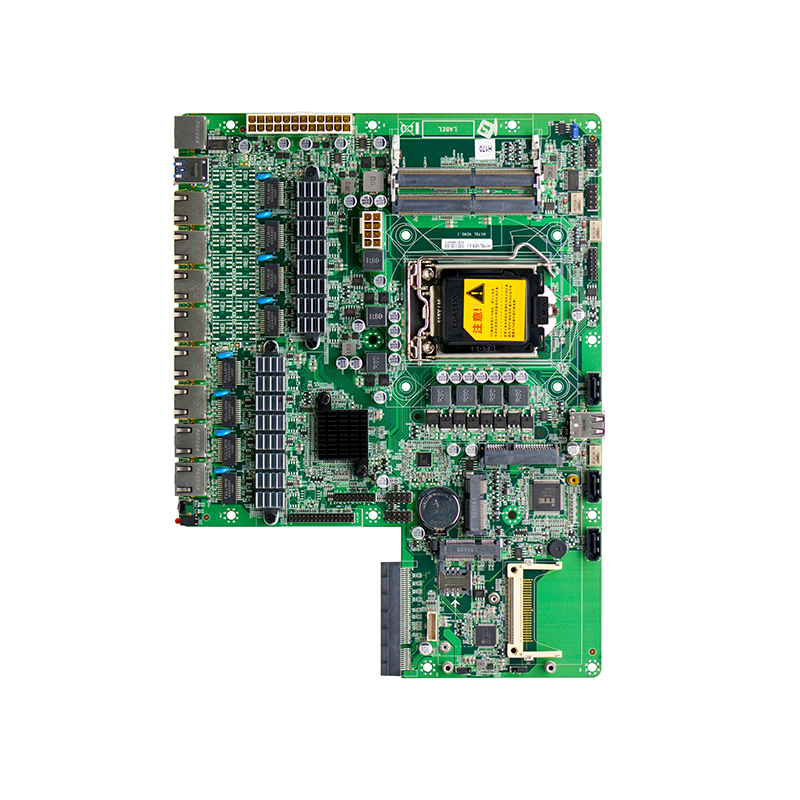

Model No.: H17SL VER:1.0(LGA1151)
Processor: Support LGA1151 socket 6th/7th/8th/9th Intel®celeron/Pentium Core™ i3/i5/i7 processor
Note: Only supports 4 cores at 95W, 6 cores and 8 cores only support 35W
Chipset: Adopts Intel® H170 high-speed chipset, compatible with Z170 chipset
Memory: 2x DDR4 SODIMM slot, supports 2400MHz memory, up to 32GB
Graphics:
Intel®HD Graphics
1x HDMI
Network: 8x Intel WGI211ATI210AT Gigabit network card, support network wake-up、PXE function
Storage:
1x SATA 2.5-inch laptop hard drive slot, can directly install hard drives, transmission speed up to 6Gbps
1x MSATA slot, supports Intel protocol SSD solid state drives, transmission speed up to 6Gbps
3x SATA3.0 hard drive interface, transmission rate up to 6Gbps
1x CF card slot
Note: When using, choose between CF card slot and MSATA
Audio: N/A
Expansion slots:
1x Mini-PCIE slot, supports WIFI / 4G module
1x 8X PCIE expansion slot, expandable optical port or electrical port

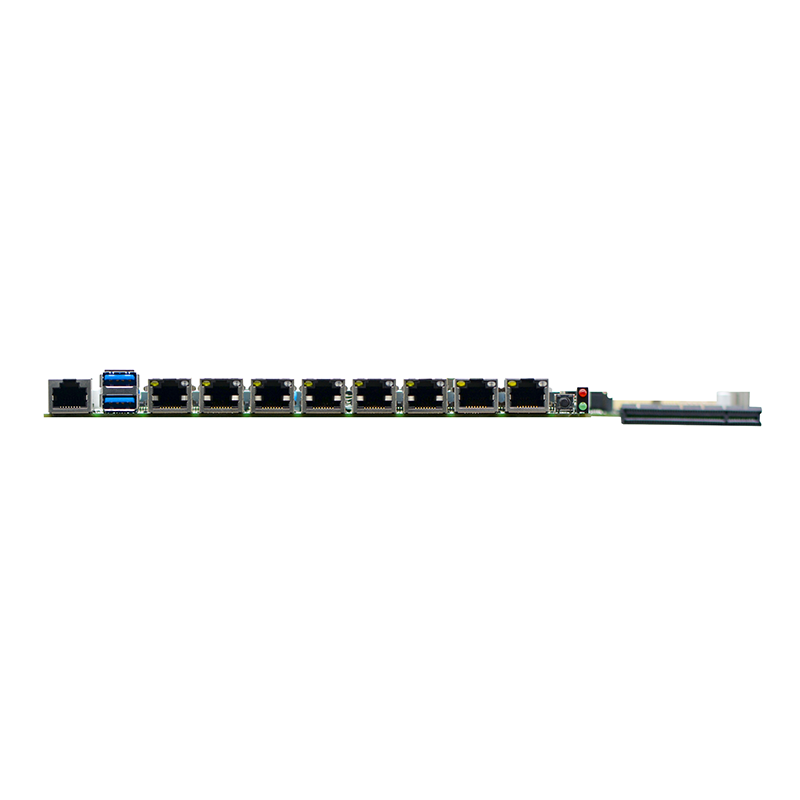

Rear I/O interface:
8x RJ45 Gigabit network interface
2x USB3.0; 2xUSB2.0
1x CISCO standard defined serial port
1x Touch button, switch reset or one of two, default is reset
1x Power/hard disk indicator
Built in I/O interface:
1x JHDMI, 2*8pin
1x RS232 serial port, 2*5Pin
2x USB2.0, 2*5pin
2x USB3.0, 2*10pin
1x Single-layer USB2.0 interface
1x GPIO pin header (four in and four out)
1x Front panel switch button and indicator light interface 2*5Pin
1x 24pin ATX power interface
1x 2*4pin ATX power interface
1x SIM card slot
Fan interface: 1x 4pin CPU smart fan interface, 2x 4pin system fan interface
Power input: Powered by ATX power supply
BIOS: AMI 64Mb Flash ROM
GPIO: N/A
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)

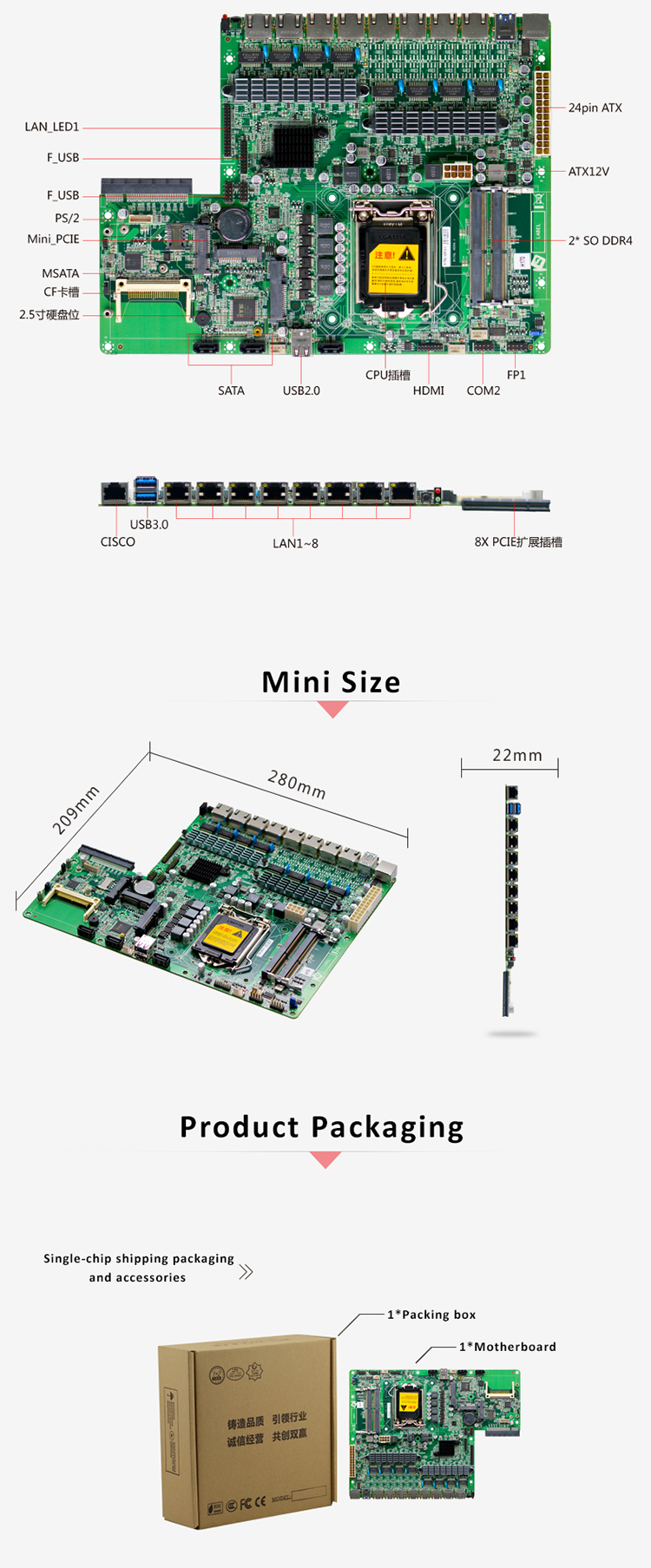

Dimension: 280mm x 209mm
