Product Description

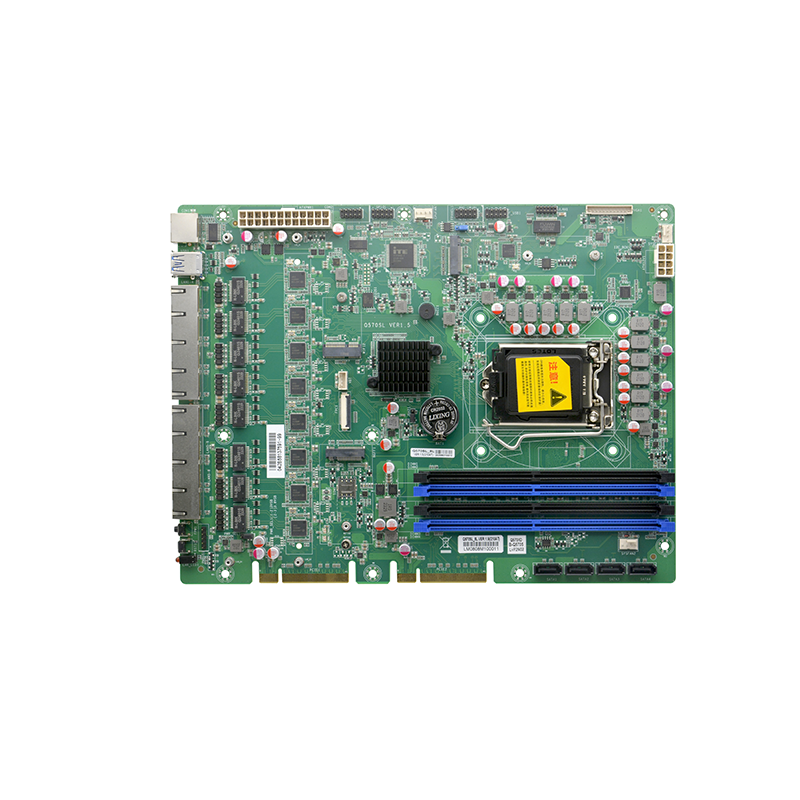

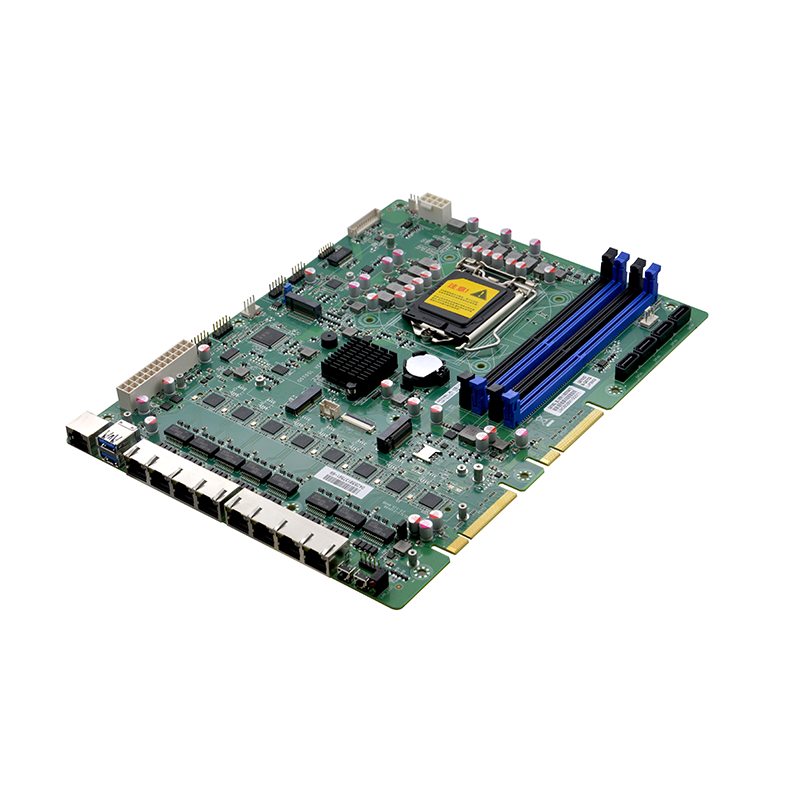

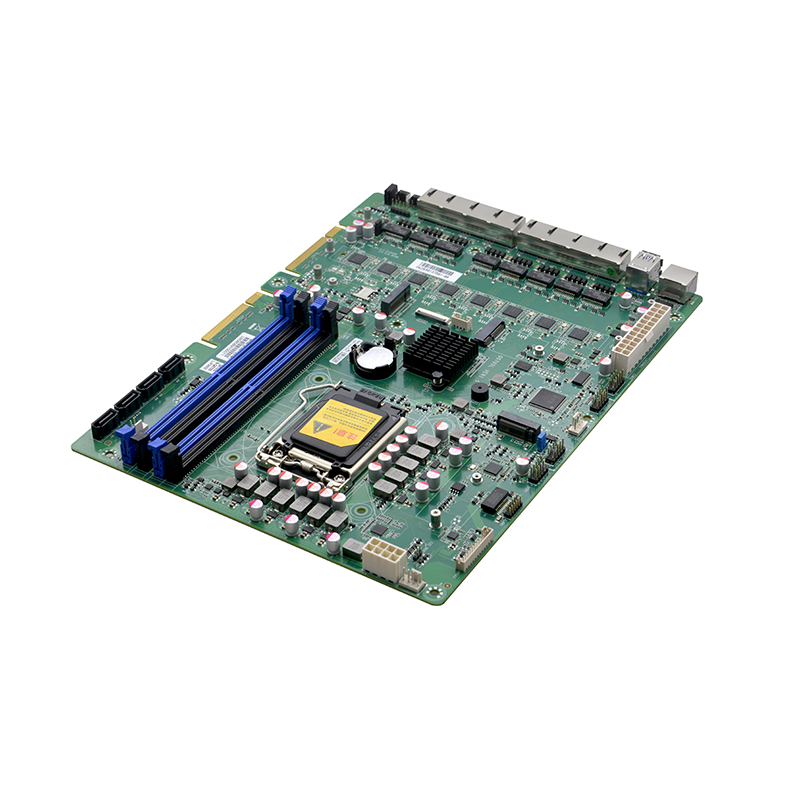

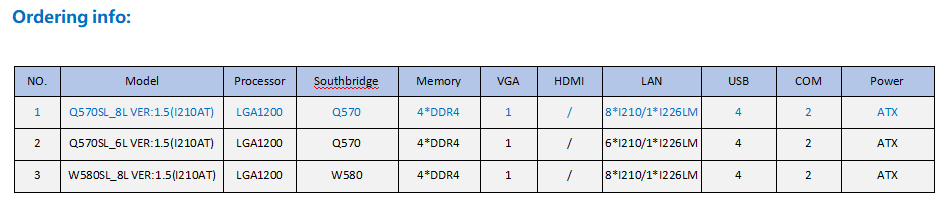

Model No.: Q570SL_8L VER:1.5(LGA1200)
Processor:
Support LGA1200 socket 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note: support 10/11th generation 125W CPU
Chipset: Intel Q570 Express Chipset
Memory: 4x DDR4 DIMM slot, supports 3200MHz memory, up to 128GB
Graphics:
Intel® HD Graphics,support DirectX12,OpenGL4.4
1x VGA; Max: 1920X1200@60Hz
Network: 8x Intel® WGI210AT Gigabit network card, support network wake-up、PXE function
1*Intel®KTI226LM Gigabit network card, support network wake-up、PXE / Vpro function
Storage:
4x SATA3.0 hard drive interface, transmission rate up to 6Gbps, support RAID 0,1,5,10
1x M.2 slot; support M.2 Key M 2280 PCIE x4/SATA adaptive standard SSD
Audio: N/A
Expansion slots:
1x M.2 slot, support M.2 Key B 2242/2252 4G/5G module
1x M.2 slot, support M.2 Key E 2230 WIFI module
2x PCIE X8 Gold Finger

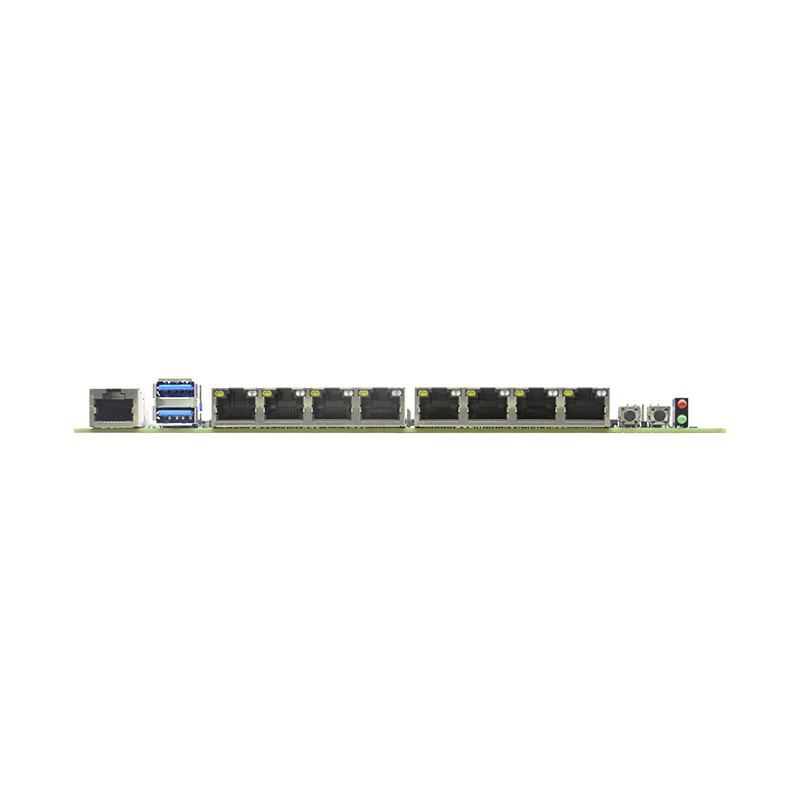

Rear I/O interface:
1x RJ45 serial port
8x RJ45 Gigabit network interface
2x USB3.0
1x power switch, 1x reset switch
1x power indicator light, 1x hard disk indicator light
Built in I/O interface:
1x JVGA, 1*12pin
1x RS232 serial port, 2*5Pin
2x USB2.0, 2*5pin
1x TPM interface, 2*6pin (reserved, optional)
1x Front panel switch button and indicator light interface 2*5Pin
1x FPC interface, 30pin, including 1 PCIE, 1 PLC/ESPI bus, HD bus
1x SIM card slot
1x 24pin ATX power interface
1x 8pin ATX power interface
Fan interface: 1x 4pin CPU smart fan interface, 2x 4pin system fan interface
Power input: Powered by ATX power supply
BIOS: 64Mb Flash ROM
OS: Windows 10/Windows 11/Linux
GPIO: N/A
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Working Temp.: 0℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)

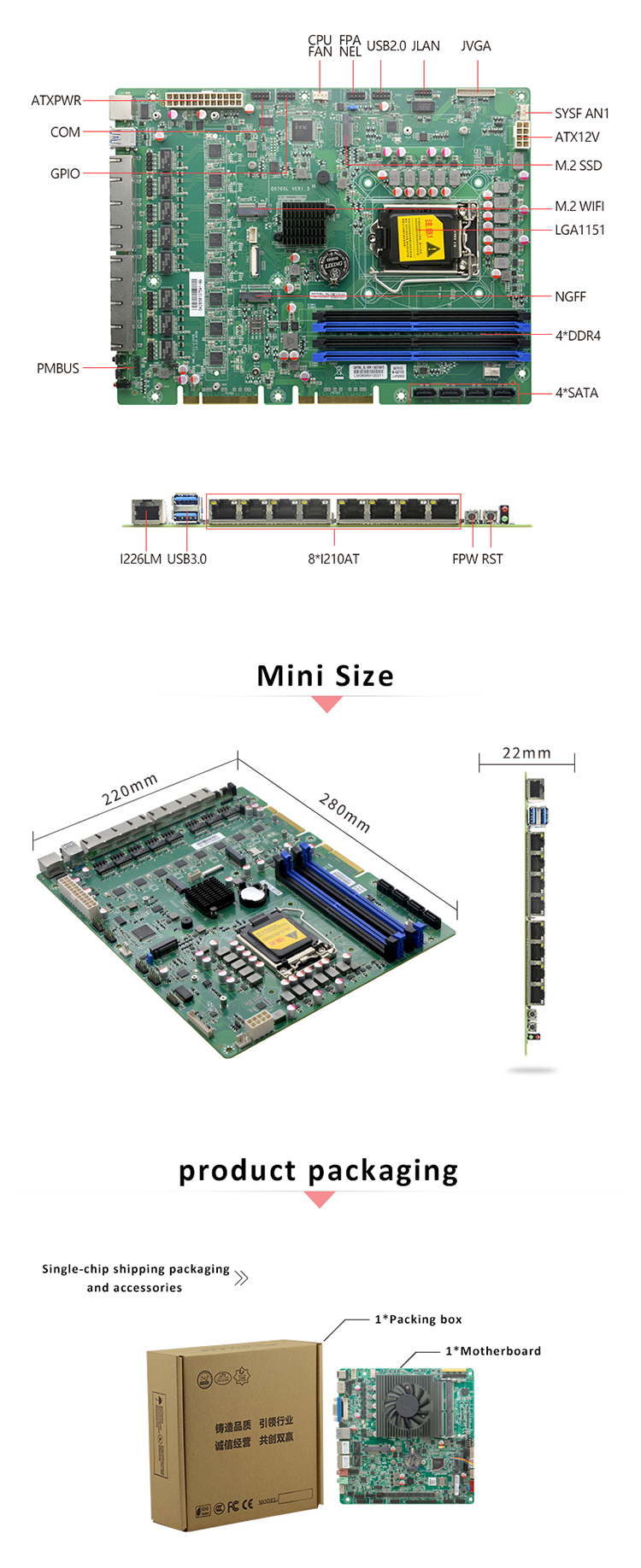

Dimension: 220mm x 280mm
