Product Description

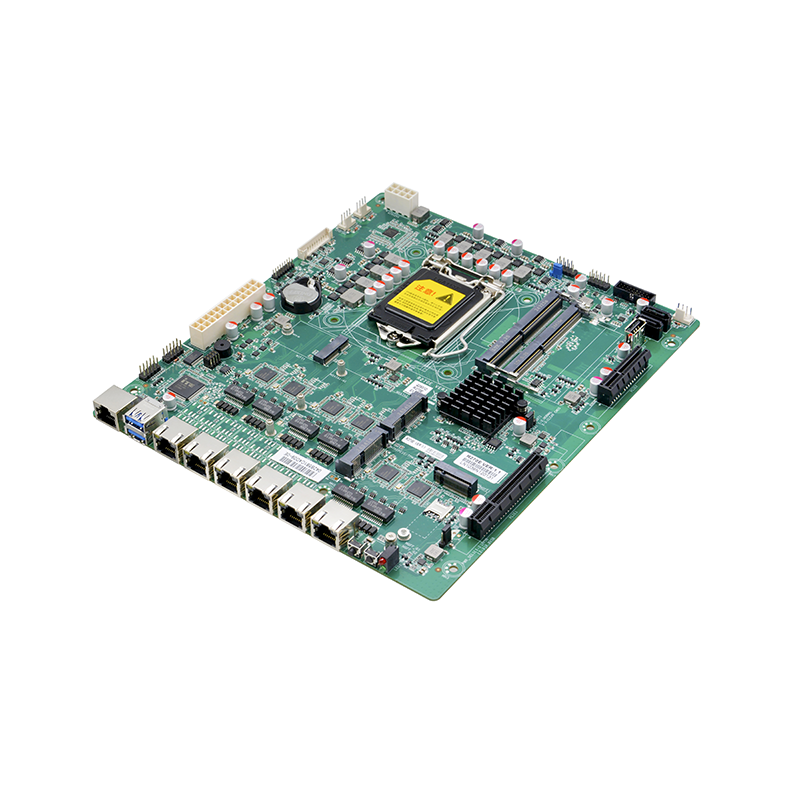

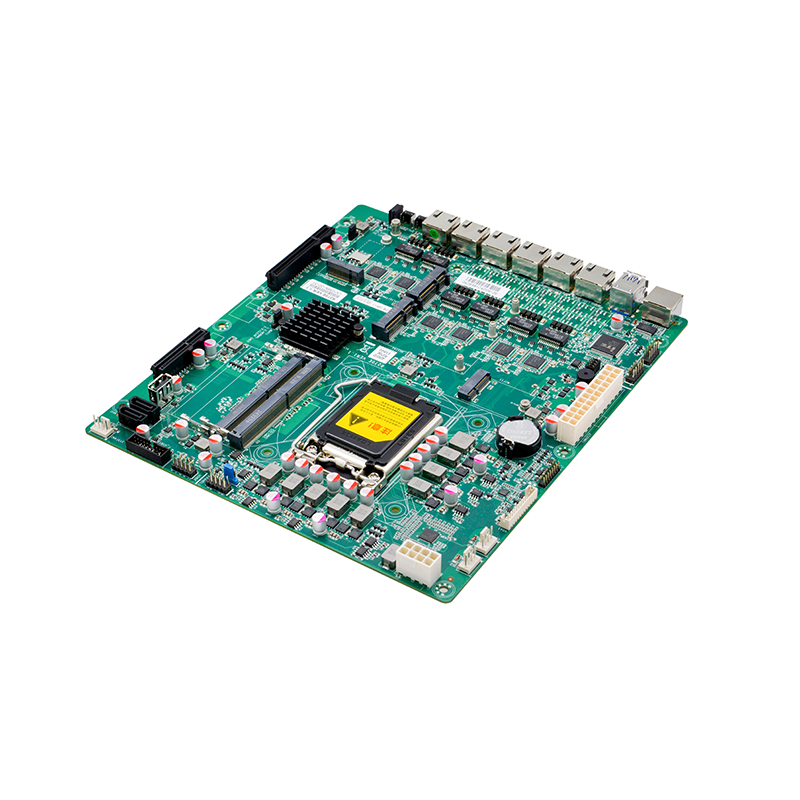

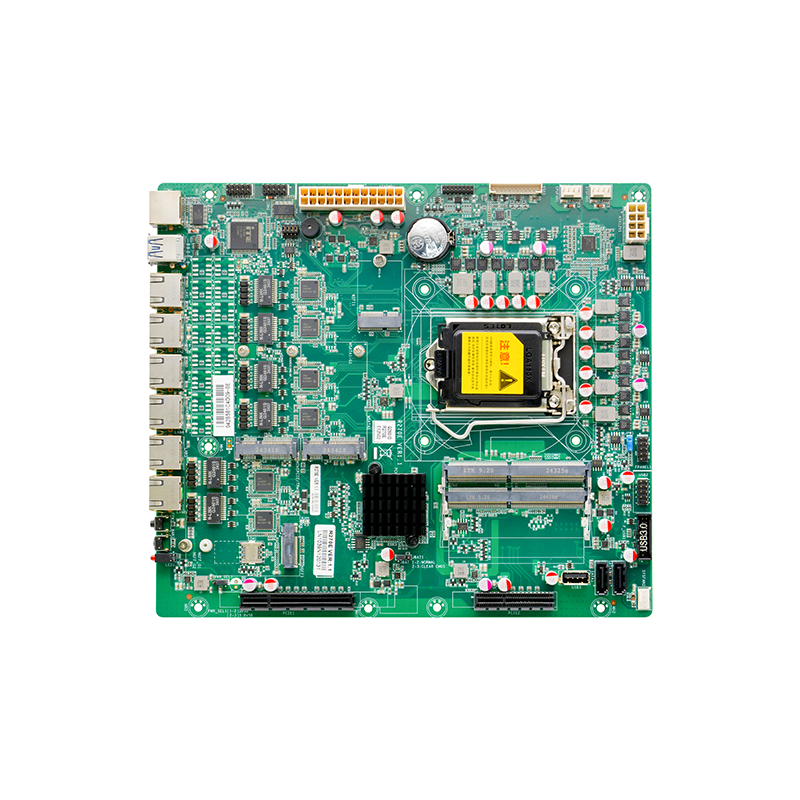

Model No.: R270E VER:1.1(LGA1151)
Processor: Support Intel®LGA1151 6th/7th/8th/9th Celeron/Pentium/Corei3/i5/i7/i9 processor
Chipset: Intel®Q250 Express Chipset
Memory: 2x DDR4 SODIMM slot, supports 2133MHz memory, up to 64GB
Graphics:
Intel®HD Graphics
1x HDMI, 1x VGA
Network:
6x Intel I210AT Gigabit network card, support network wake-up、PXE function
Note: It can support 2 sets of BYPASS functions, which is not supported by default
Storage:
2x SATA3.0 , transmission rate up to 6Gbps
1x MSATA slot, supports Intel protocol SSD solid state drive, transmission speed up to 6Gbps
Audio: N/A
Expansion slots:
1x Mini-PCIE slot, supports WIFI /TPM-4COM module
1x M.2 slot,support M.2 Key B 2242/2252 5G module
1x PCIE X4 slot
1x PCIE X8 slot
1x M.2 slot,support M.2 Key E 2230 WIFI module

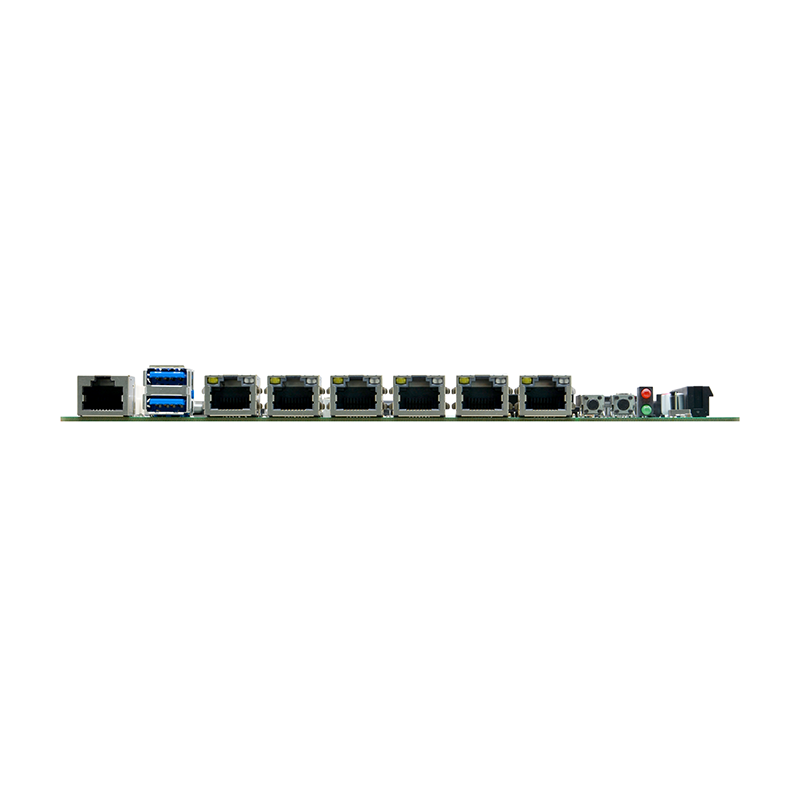

Rear I/O interface:
1x RJ45 serial port
2x USB3.0
6x RJ45 Gigabit network interface
1x power switch, 1x one-key restore
1x double-layer LED light, (upper red and lower green, upper hard disk light, lower power light)

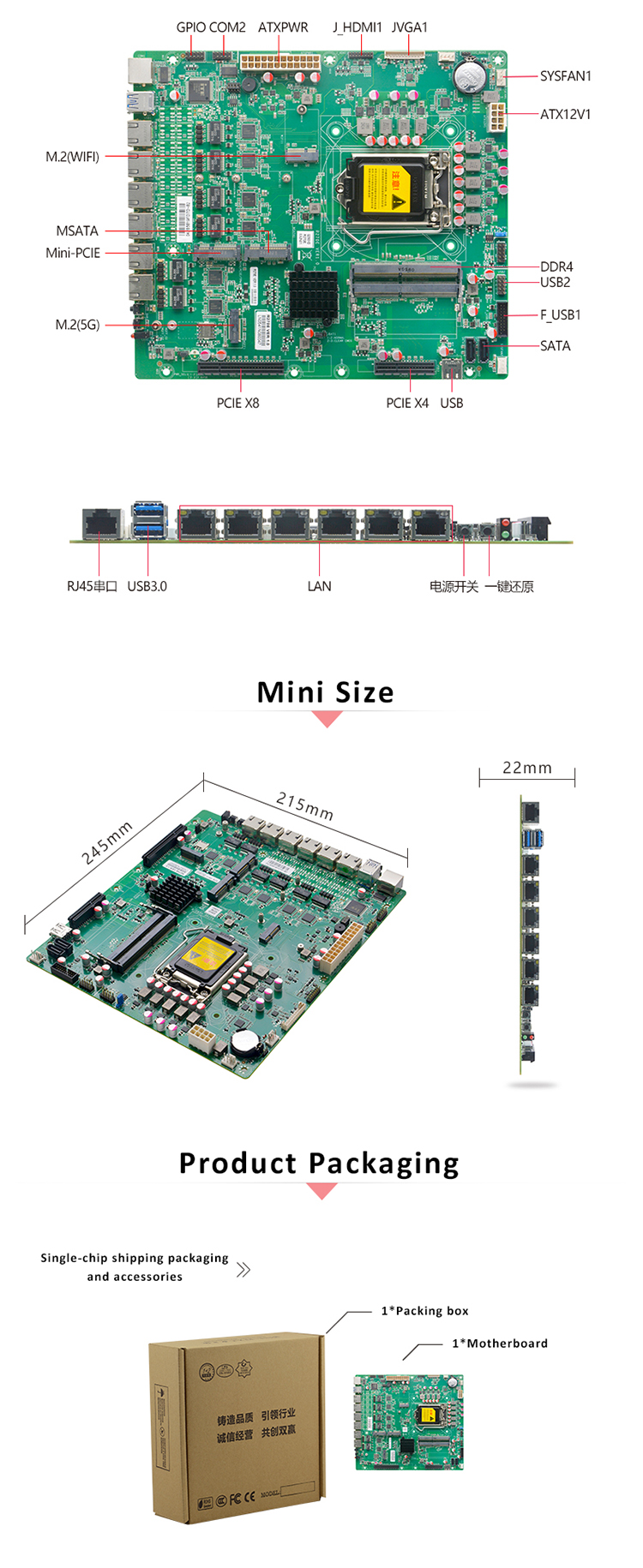

Built in I/O interface:
1x JVGA1, 1*12pin
1x JHDMI, 2*8pin
2x USB2.0, 2*5pin
2x USB3.0, 2*10pin
1x Single-layer USB2.0 interface
1x GPIO pin header (four in and four out)
1x Front panel switch button and indicator light interface 2*5Pin
1x 24pin ATX power interface
1x 2*4pin ATX power interface
1x SIM card slot
1x RS232 serial port 2*5pin, supports RS485
Fan interface: 1x 4pin CPU smart fan interface, 2x 4pin system fan interface
Power input: Powered by ATX power supply
BIOS: 128Mb Flash ROM
GPIO: Supports 4 input and 4 output GPIO interfaces
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10 ,/Linux
Working Temp.: -10℃～60℃
Storage Temp. :-20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 245mm x 215mm
