Overview

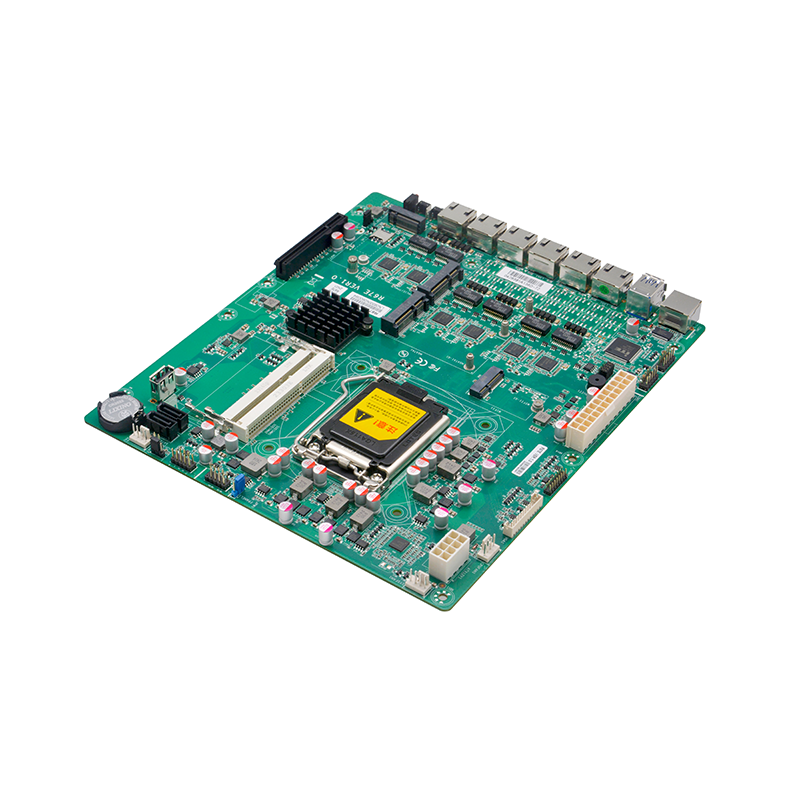

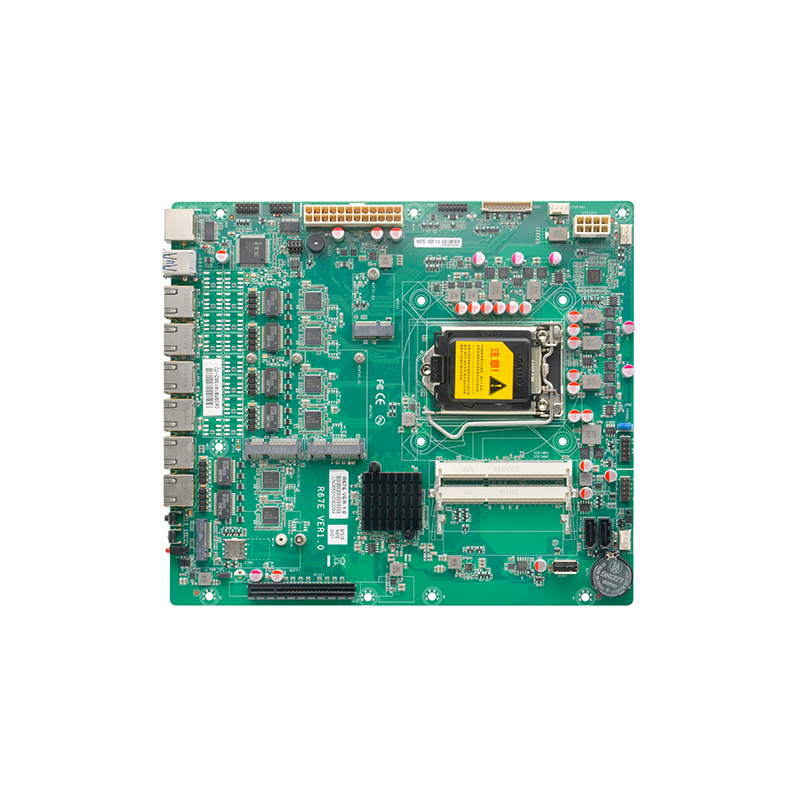

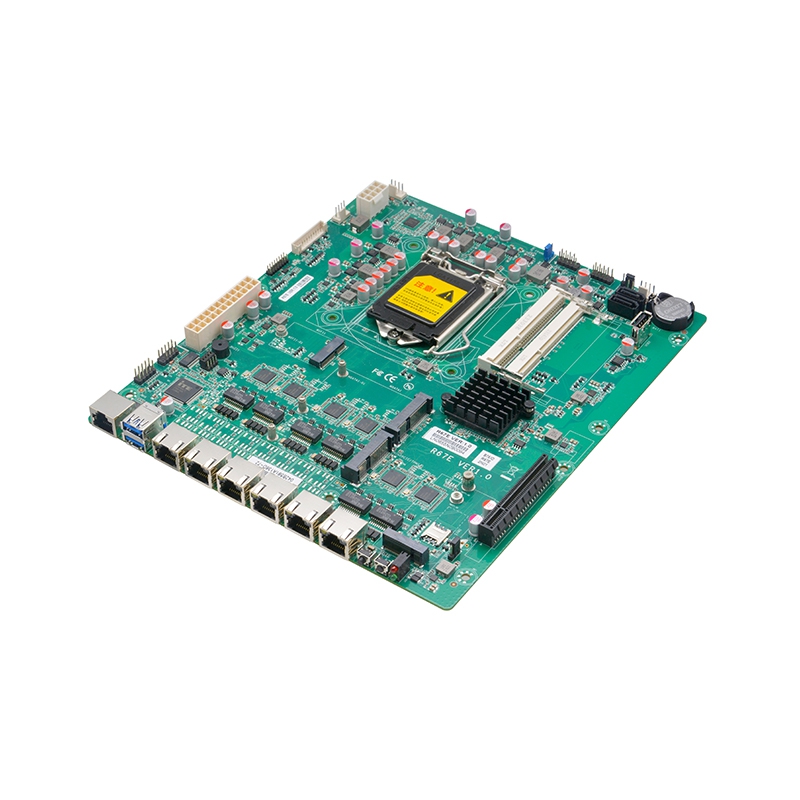

This rugged firewall motherboard is engineered with the Intel B75 Express chipset and LGA1155 socket, supporting 2nd/3rd Gen Intel® Core™ processors, delivering reliable performance for cost-sensitive network security deployments.
Key Firewall Features:
●High-density networking: 6× Intel I210AT Gigabit Ethernet ports (industrial-grade controllers)
●Enterprise-class processing:
Supports up to 32GB DDR3 (2× SODIMM at 1600MHz)
Compatible with Core i7-3770 processors
●Security expansion:
1× PCIe x8 slot for hardware accelerators
2× M.2 (WiFi 5/5G) + 1× Mini-PCIe
●Legacy storage support:
2× SATA2.0
1× mSATA 3.0
●Management interfaces:
4× USB ports
2× COM ports
GPIO control
●ATX power input with industrial Watchdog protection
Optimized for:
Industrial Next-Generation Firewalls (NGFW)
Legacy security system upgrades
VPN concentrators
Network traffic inspection

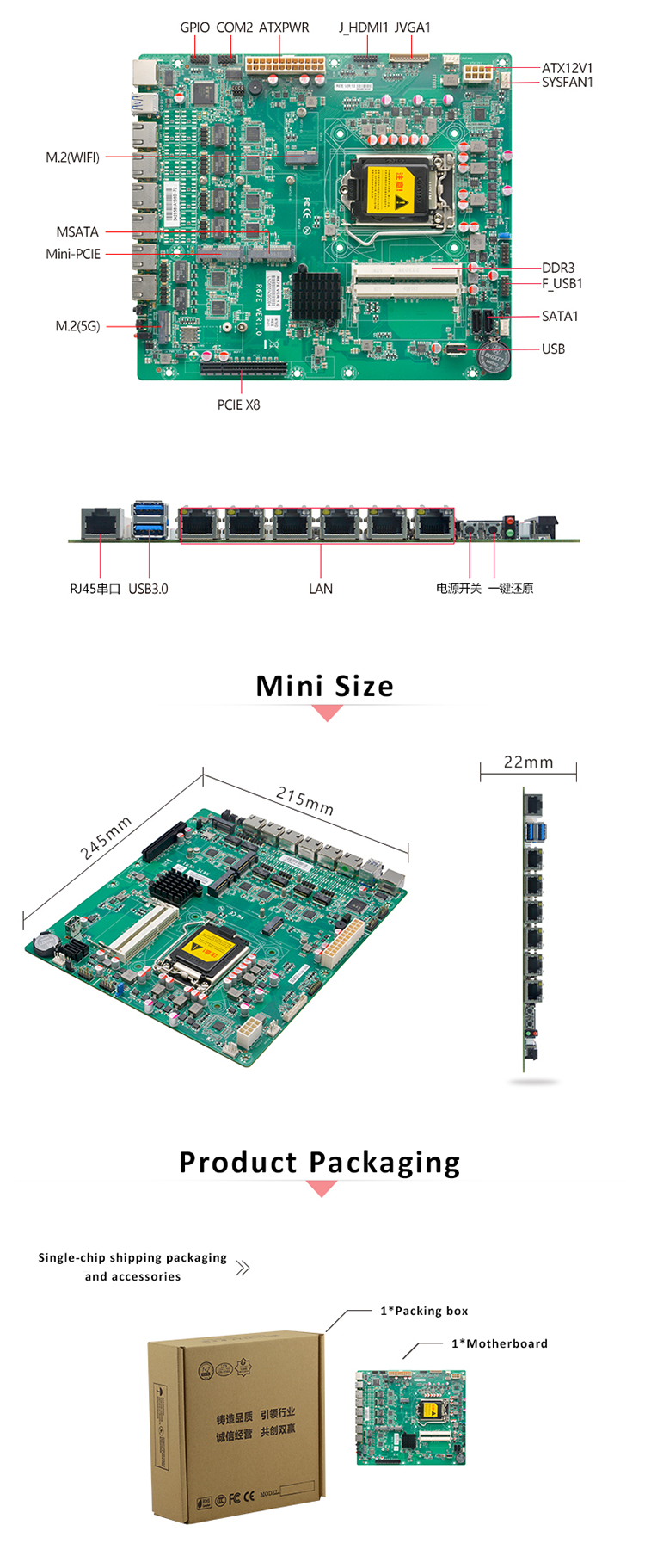

Detail Display
Product Description
Model No.: R67E VER:1.0(LGA1155)
Processor: Support LGA1155 2th/3th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
Chipset: Intel B75 Express Chipset
Memory: 2x DDR3 SODIMM slot, supports dual channel 1600/1333/1066MHz memory, up to 32GB
Graphics:
Intel®HD Graphics
1x HDMI, 1x VGA
Network: 6x Intel I210AT Gigabit network card, support network wake-up、PXE function
Storage:
2x SATA2.0 , transmission rate up to 3Gbps
1x MSATA3.0 slot, supports Intel protocol SSD solid state drive, transmission speed up to 6Gbps
Audio: N/A
Expansion slots:
1x Mini-PCIE slot, supports WIFI /TPM-4COM module, BIOS needs to be modified for TPM-4COM function
1x M.2 slot,support M.2 Key B 2242/2252 5G module
1x M.2 slot,support M.2 Key E 2230 WIFI module
1x PCIE X8 slot

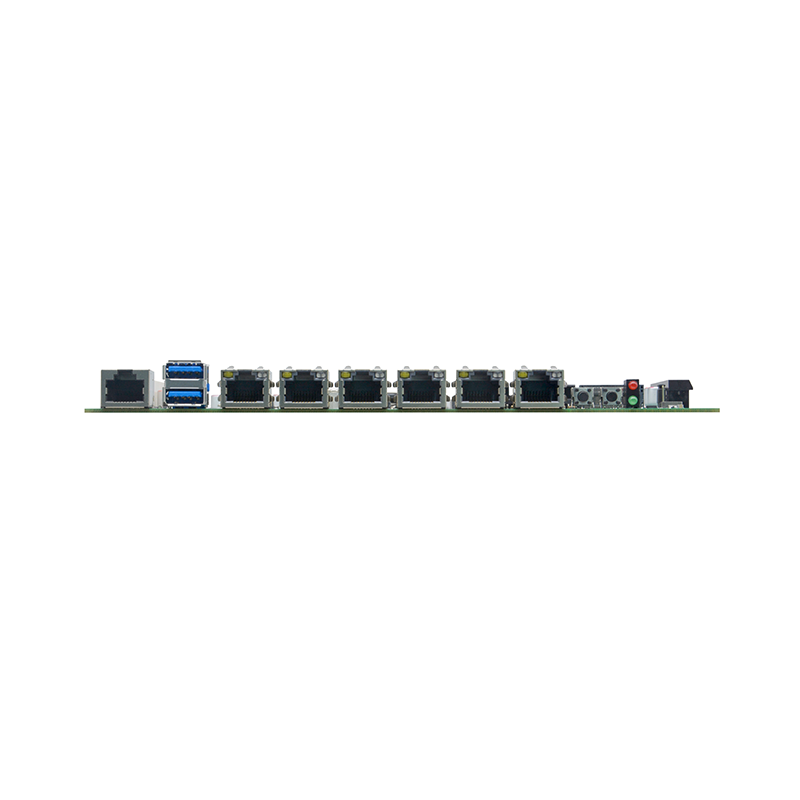

Rear I/O interface:
1x RJ45 serial port (co-aligned with the built-in serial port pin header)
2x USB3.0
6x RJ45 Gigabit network interface
1x power switch, 1x one-key restore
1x double-layer LED light, (upper red and lower green, upper hard disk light, lower power light)
Built in I/O interface:
1x JVGA1, 1*12pin
1x JHDMI, 2*8pin
2x USB2.0, 2*5pin
1x Vertical USB2.0 interface
1x RS232 serial port 2*5pin, support RS485
1x GPIO pin header (four in and four out)
1x Front panel switch button and indicator light interface 2*5Pin
1x 24pin ATX power interface
1x 2*4pin ATX power interface
1x SIM card slot
Fan interface: 1x 4pin CPU smart fan interface, 2x 4pin system fan interface
Power input: Powered by ATX power supply
BIOS: 128Mb Flash ROM
GPIO: Supports 4 input and 4 output GPIO interfaces
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 7/Windows 10/Linux
Working Temp.: -10℃～60℃
Storage Temp.:-20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 245mm x 215mm
