Key Firewall Features:
●Enhanced processing:
1× DDR4 2400MHz SO-DIMM (up to 16GB)
Intel® Turbo Boost Technology
●Dual wireless connectivity:
1× M.2 (5G modules) + SIM slot
1× mini-PCIe (WiFi)
●High-speed storage:
1× SATA3.0
1× mSATA SSD
●Enterprise management:
6× USB ports
2× RS232 (1× Console port)
PS/2 interface
●Dual power inputs: 12V DC + ATX 4-pin
●Fanless rugged design with Watchdog
Certified for:
Military-grade firewall systems
SD-WAN security appliances
5G network edge security

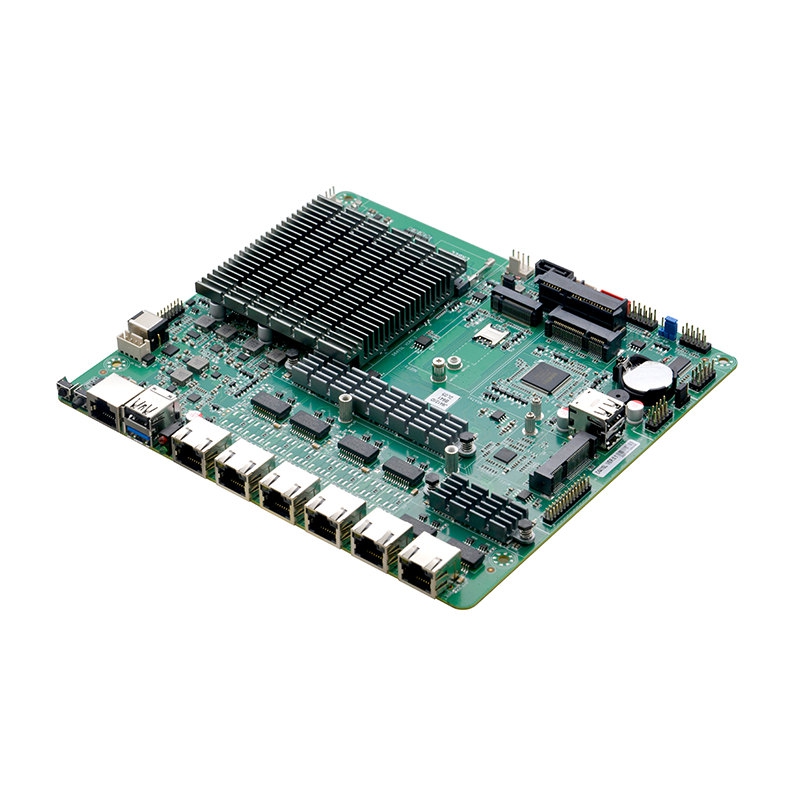

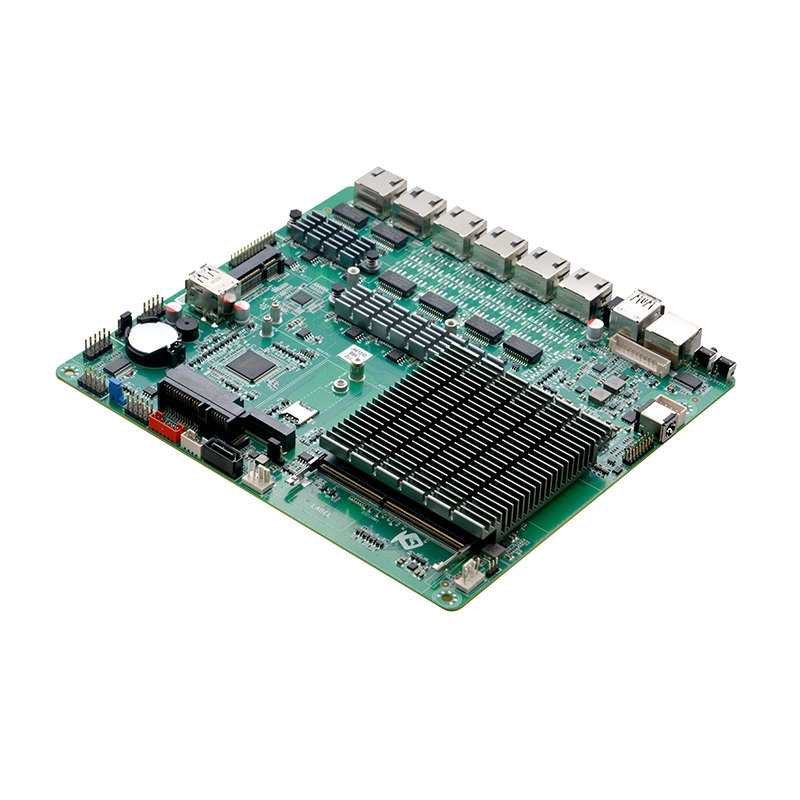

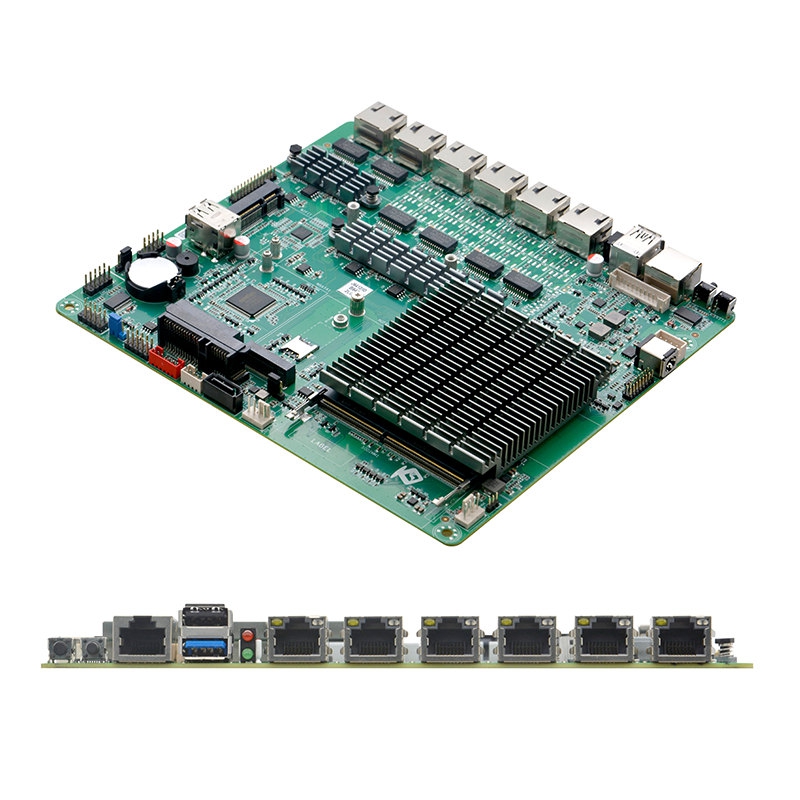

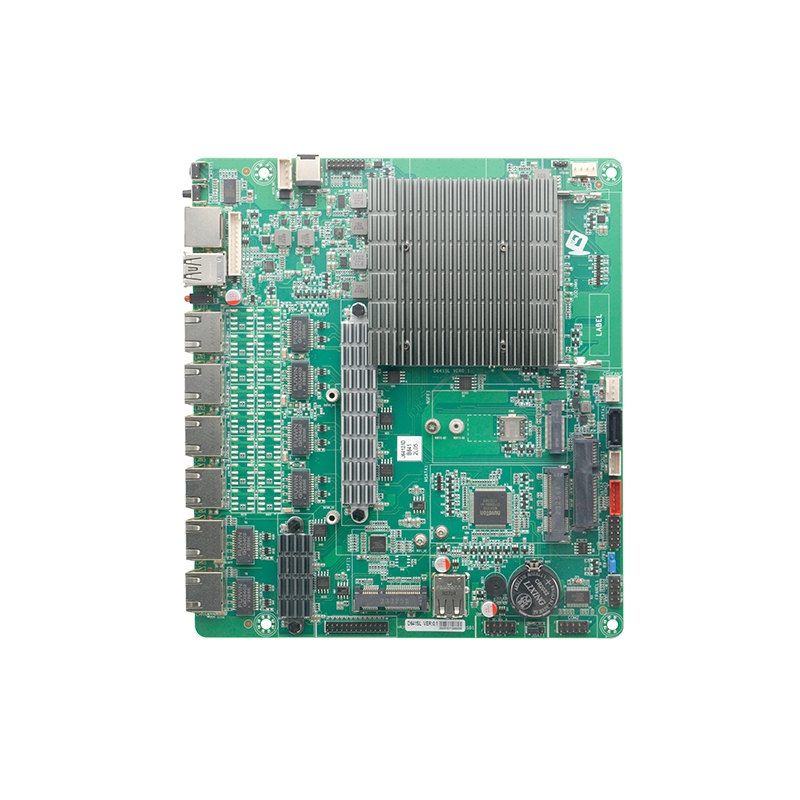

Detail Display
Product Description
Model No.: D641SL VER:0.1
Processor: Integrated Intel®Celeron J6412 2.0GHz Quad core Quad thread processor ,TDP 10W
Compatible with the full range of Intel® Elkhart Lake CPUs, allowing customers to choose flexibly
Chipset: SOC
Memory: 1x SODIMM slot,supports single channel 2400MHz DDR4 memory,up to 16GB
Display: Integrated Intel® UHD Graphics ,Provide 1*VGA, 1*HDMI display output
Ethernet: 6x Intel I226V Gigabit Ethernet,supports Wake on LAN/PXE function
Storage:
1x SATA3.0 2.5-inch notebook hard disk slot, hard disk can be installed directly
1x 7pin SATA3.0 HDD slot，the transfer rate is up to 6Gbps,Choose one of the 2.5-inch hard drive slots, the default is 2.5-inch
1x MSATA slot, support Intel protocol SSD, the transfer rate is up to 6Gbps
Expansion Slot:
1x Mini-PCIE slot ,supports WIF module
1x M.2 slot,supports M.2 2242/2252 4G/5G module

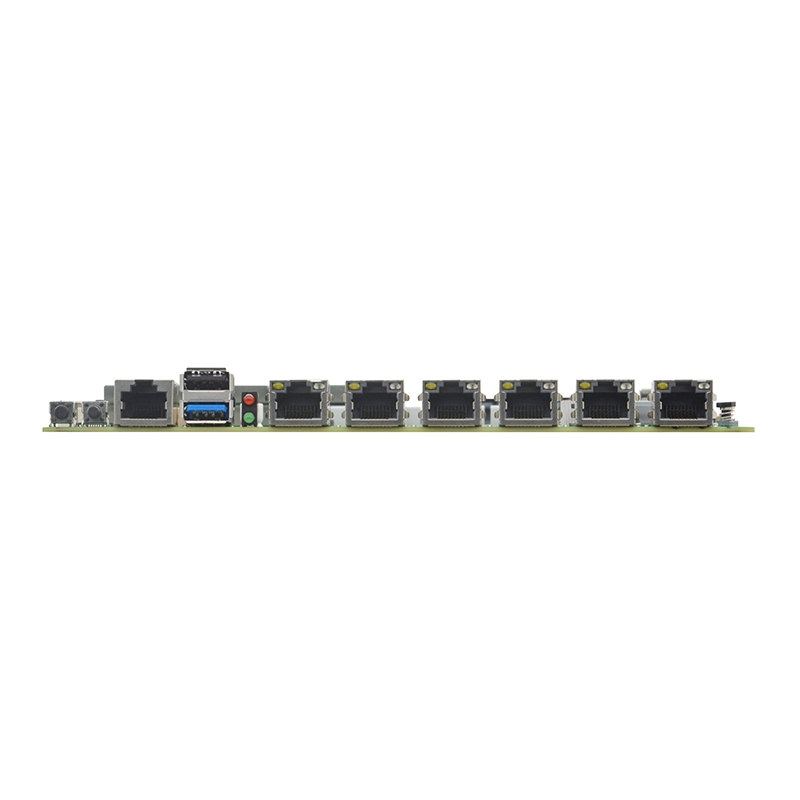

Rear I/O interface:
1x CISCO standard RS232 serial interface
2x USB 2.0 interface
6x RJ-45 Gigabit Network Interface
1x Power switch，1x Reset switch
1x Power Indicator（Green）/ HDD indicator（Red）
1x DC power interface, supports 12V power input and output (side)

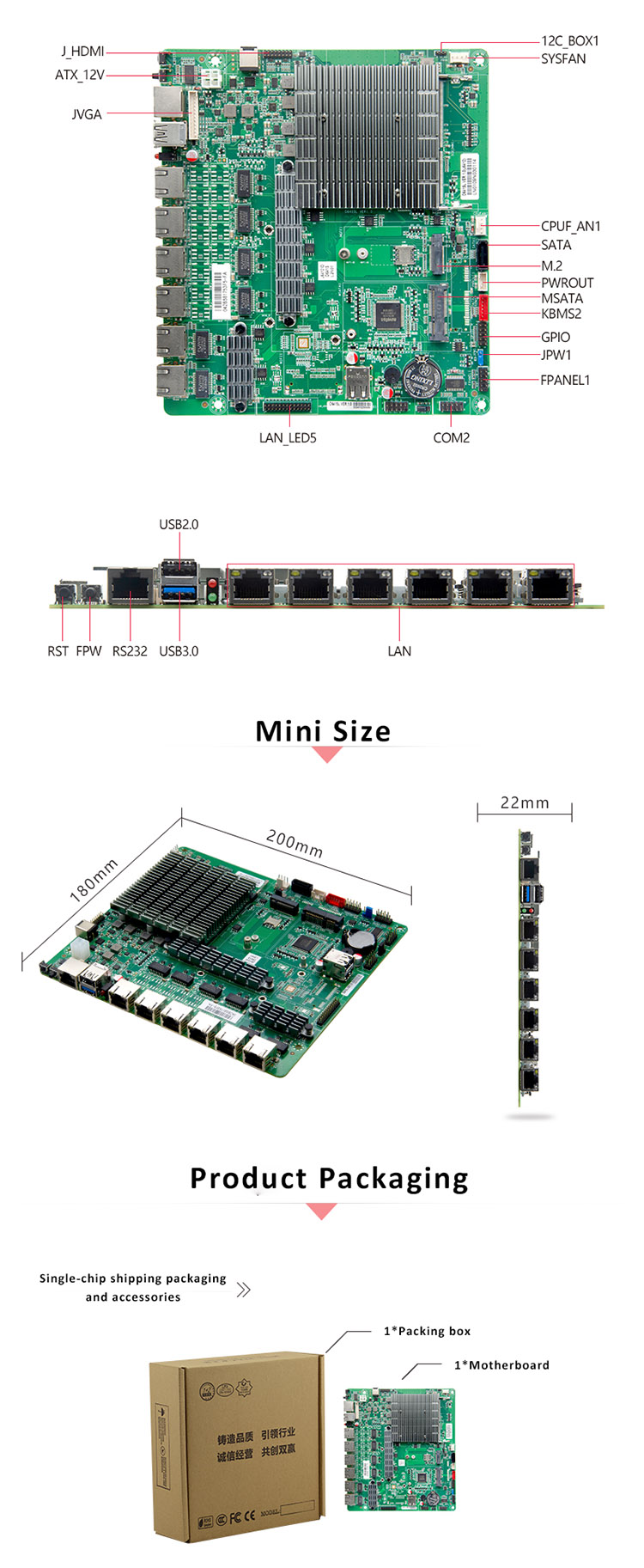

Built in I/O interface:
1x JVGA interface 1x12pin
1x JHDMI interface 2x 8pin
1x Network Indicator interface 2x13pin
1x RS232, 2x 5pin
2x USB2.0 interface 2x 5pin
2x standard USB2.0
1x HDD power supply interface 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
1x PS/2 keyboard and mouse interface, 1x 6pin
1x 4pin DC power input interface, supports 12V power input output
Fan Connector: 1x 4pin CPU smart fan connector, 1x 4pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V
OS: Window 10/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 200mm x 180mm
