Product Description

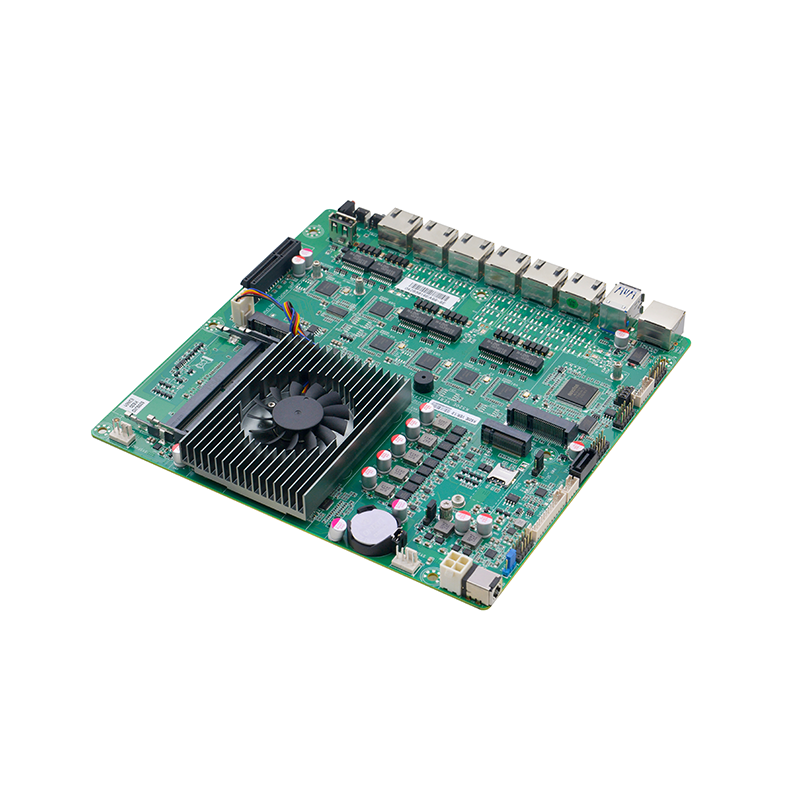

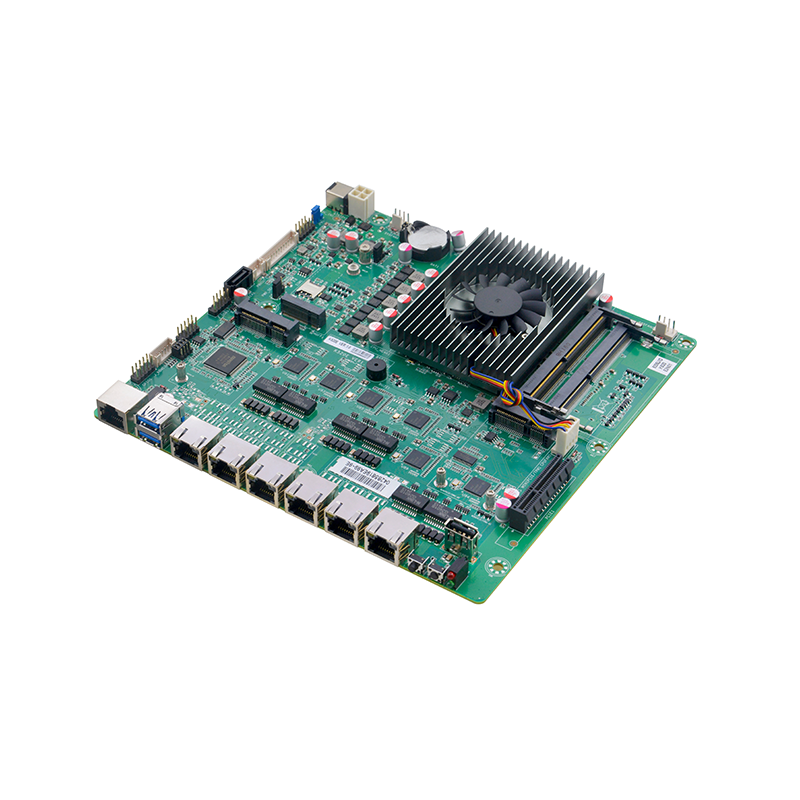

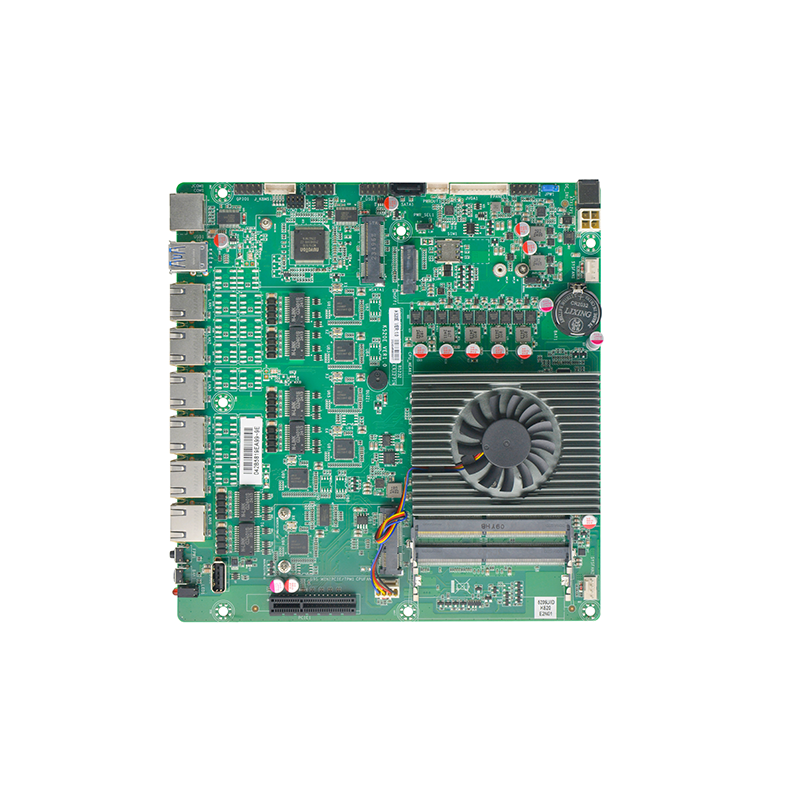

Model No.: K520E VER:1.0 (5205U)
Processor:
Integrated 10 gen Intel®Celeron 5205U 1.9GHz dual-core dual-thread processor,TDP:15W
Compatible with Intel® Comet Lake-U Celeron/Pentium/I3/I5/I7 low power processors Chipset SOC
Memory: 2x SODIMM slot, supports 2400MHz DDR4 memory, up to 64GB
Graphics:
Intel® UHD Graphics; support DirectX 12 OpenGL 4.5; support 4K
1x VGA, Max: 1920X1200@60Hz Network 6x Intel I210AT Gigabit network card, support network wake-up, PXE function
Storage:
1x SATA3.0 , transmission rate up to 6Gbps
1x MSATA slot, supports Intel protocol SSD solid state drive, transmission speed up to 6Gbps Audio N/A
Expansion slots:
1x Mini-PCIE slot, supports WIFI / TPM-4COM module, WIFI signal and PCIE X4 optional
1x M.2 slot, supports M.2 Key B 2242/2252 5G module 1x PCIE X4 slot, expandable fiber card
Note: MINI-PCIE slot‘s WIFI and PCIE X4 slots are optional, default is on PCIE X4 slot
MINI-PCIE slot can use TPM-4COM to expand 4 serial ports, need to change BOS, not supported by default

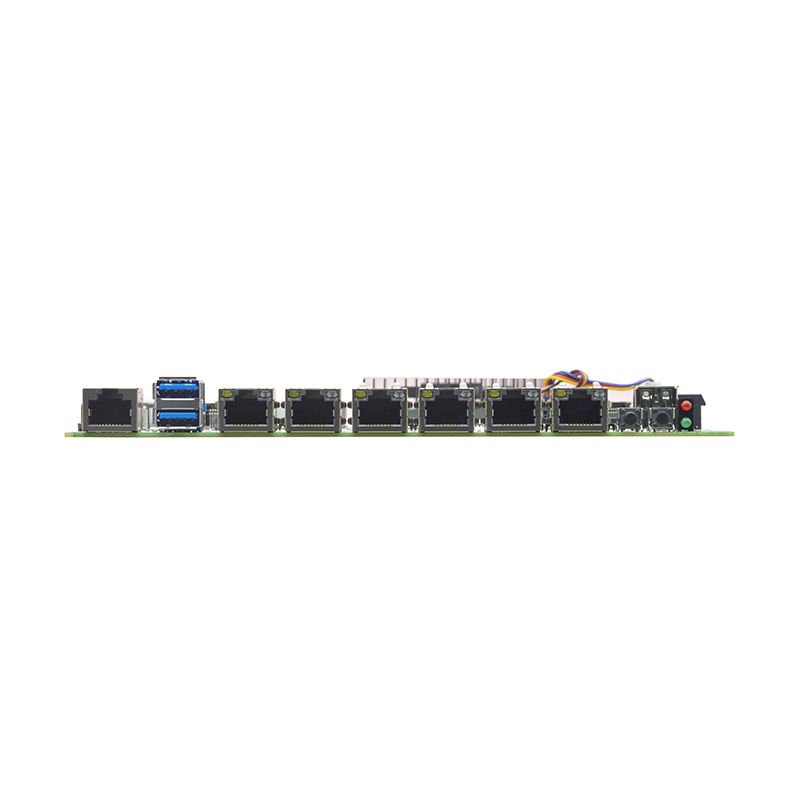

Rear I/O interface:
1x RJ45 serial port
2x USB3.0
6x RJ45 Gigabit network interface
1x power switch, 1x one-key restore
1x double-layer LED light, (upper red and lower green, upper hard disk light, lower power light)
Built in I/O interface:
1x JVGA1 interface 1*12pin
1x RS232 serial interface 2*5pin, COM2 supports RS485
1x Single-layer vertical USB2.0 interface 2x USB2.0 interface 2*5pin
1x PS/2 keyboard and mouse interface (red) 1*6Pin
1x GPIO pin header (four in and four out)
1x Front panel switch button and indicator interface 2*5Pin
1x Hard disk power supply interface 1*4pin
1x DC12V power interface, supports 12V power input (side)
1x 4pin ATX power interface (can be used as 12V input power interface)
1x SIM card slot
Fan interface: 1x 4pin CPU smart fan interface, 1x 4pin system fan interface Power input DC 12V
BIOS: 128Mb Flash ROM
GPIO: Supports 4 input and 4 output GPIO interfaces
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10/Linux Working Temp. -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)

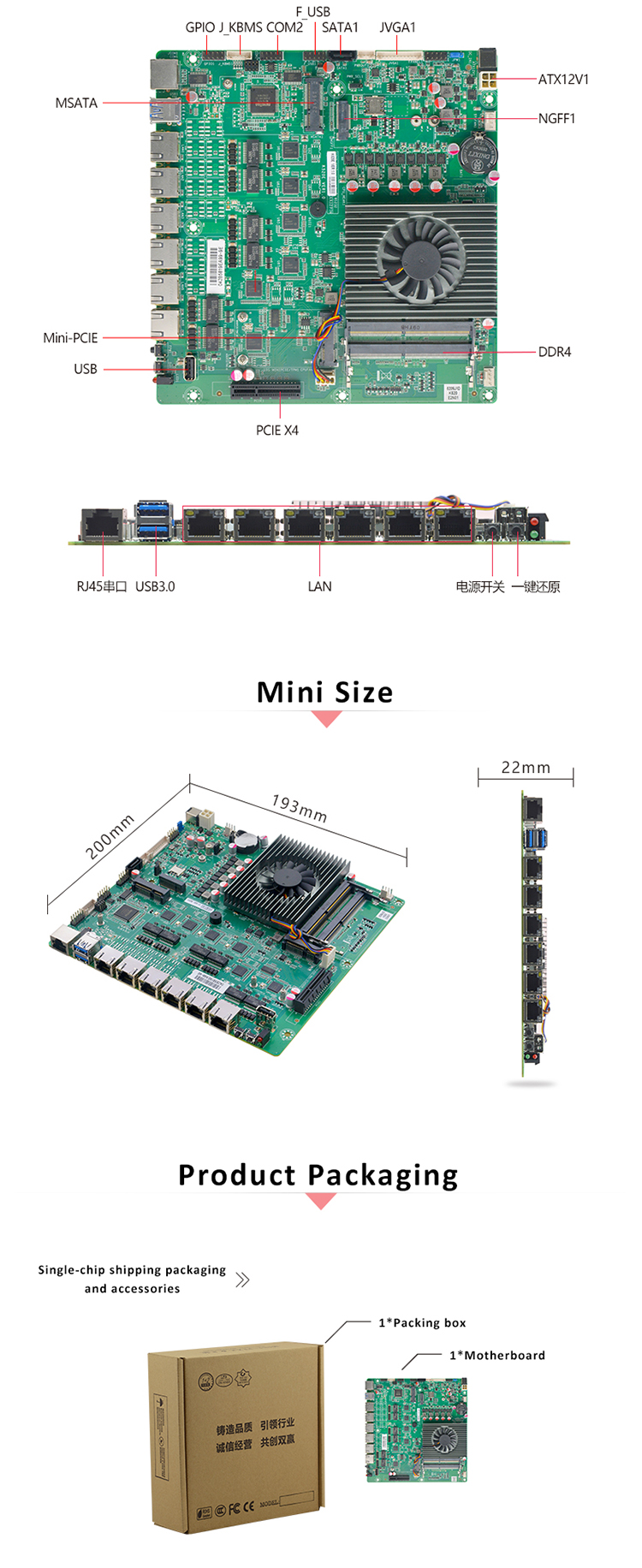

Dimension: 200mm x 193mm
