Product Description
Model No.: ITX-M41V VER:1.1(J4125)
Processor: Integrated Intel®Celeron J4125 2.0GHz Quad core Quad thread processor,TDP 10W
Compatible Intel® Gemini Lake all series of CPU
Chipset: SOC
Memory: 1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB
Graphics: Integrated Intel® UHD Graphics 600,1* VGA
Network: 4* Intel I225V Gigabit network card, support wake-up / PXE function
Storage:
1* SATA 2.5-inch notebook hard disk, can directly install the hard disk, the transmission speed can reach 3Gbps
1* Standard 7PIN SATA hard disk interface (choose one with 2.5-inch hard disk)
1* MSATA slot, support Intel protocol SSD solid state drive, transmission speed up to 3Gbps
Expansion slots:
1* Mini-PCIE slot, support WIFI, 4G module, the default is USB signal
Note: Mini-PCIE slot and LAN4 share the PCIE channel, and the user can choose one of the two

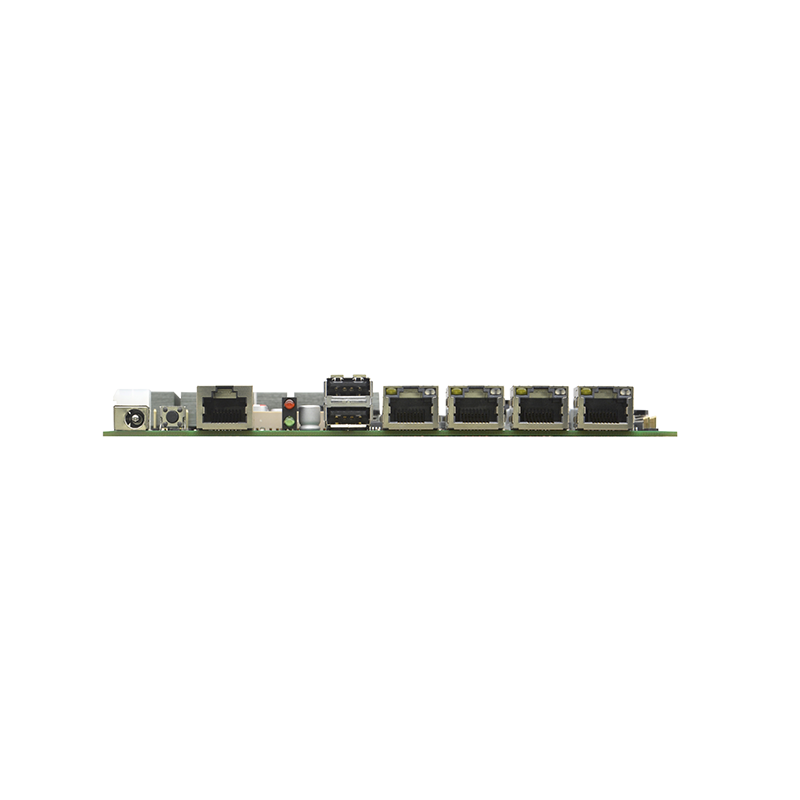

Rear I/O interface:
1* 12V DC Power input interface
4* RJ-45 Gigabit network interface
1* CISCO Standard RJ-45 serial port
2* USB 2.0
1* Power switch
2* HDD indicator，2* Power Indicator
4* Network light，4* Network data transmission indicator

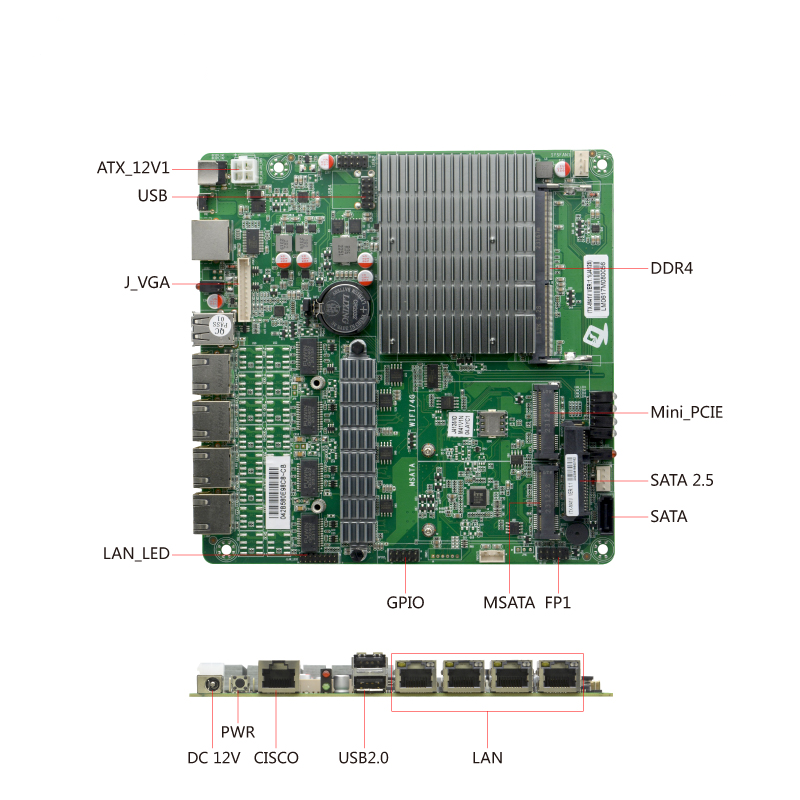

Built in I/O interface:
1* 4pin ATX Power interface (can be used as 12V input and output power interface)
4* USB 2.0, 2*5Pin
1* JVGA, 1*12Pin
1* Network light, 2*8Pin
1* Front panel switch button and indicator light interface, 2*5Pin
1* HDD power supply interface, 1*4pin
1* SIM card slot
Fan connector: Fanless heat dissipation design, reserved 1*4pin CPU fan connector, 1*4pin system fan connector
GPIO: Support 4-way input and output GPIO
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10/Linux
Power type: DC 12V
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)

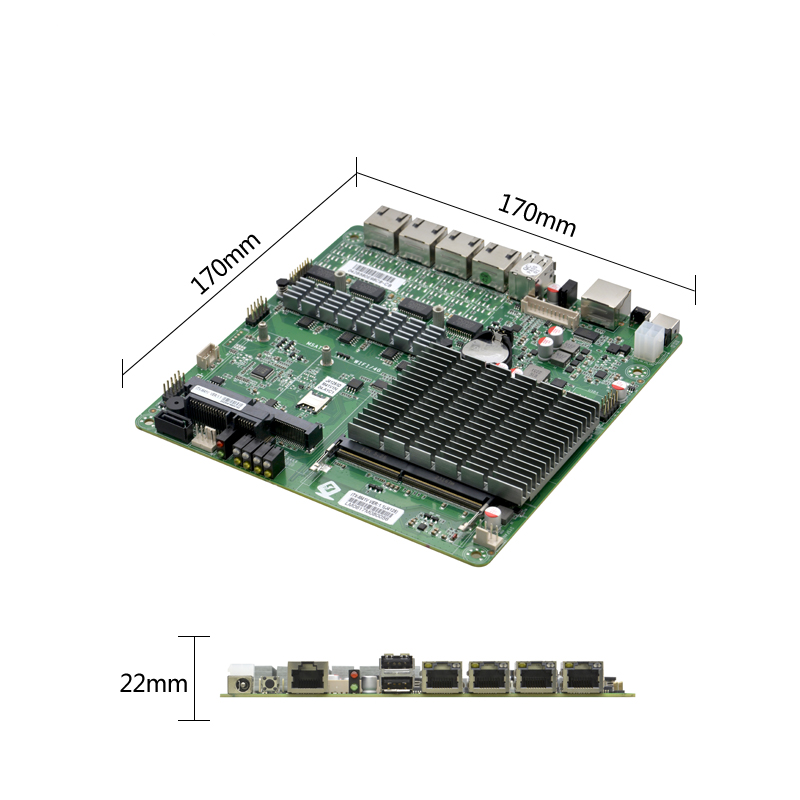

Dimension: 170mm x 170mm
