Overview
Key Features:
●Optimized for firewall systems with 4× Intel I211 Gigabit Ethernet ports
●Compact Mini-ITX form factor for space-efficient deployment
●Memory support: 1× DDR3L SO-DIMM (up to 8GB at 1600/1333MHz)
●Essential firewall connectivity:
6× USB ports
1× COM port for console management
●Storage options:
1× SATA
1× 7PIN SATA
1× mSATA SSD
1× Mini-PCIe (for WiFi/4G modules)
●Security and reliability:
Watchdog Timer
GPIO control
●Low-power operation: 12V DC input

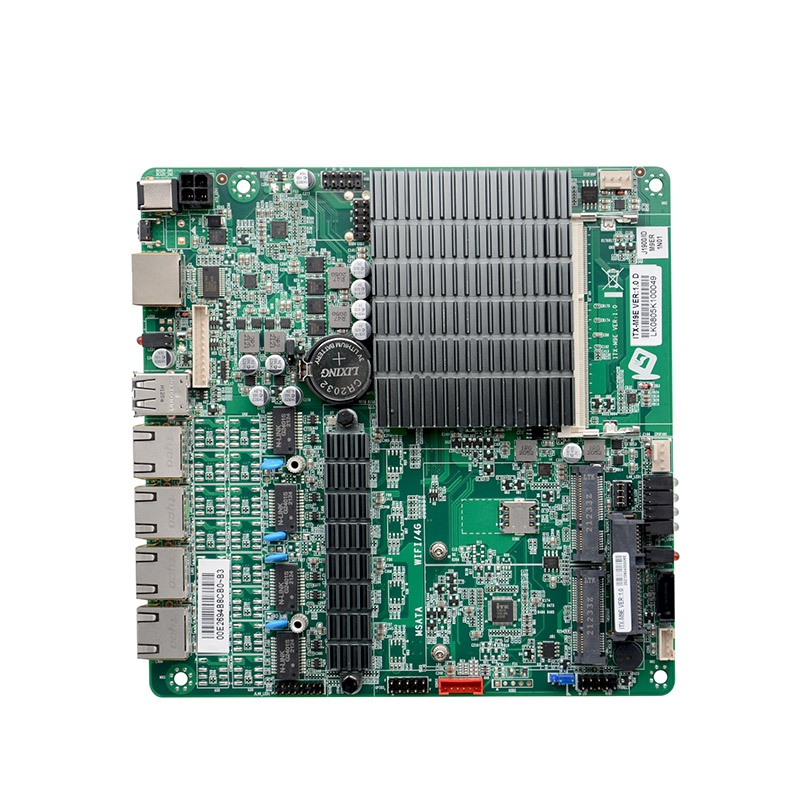

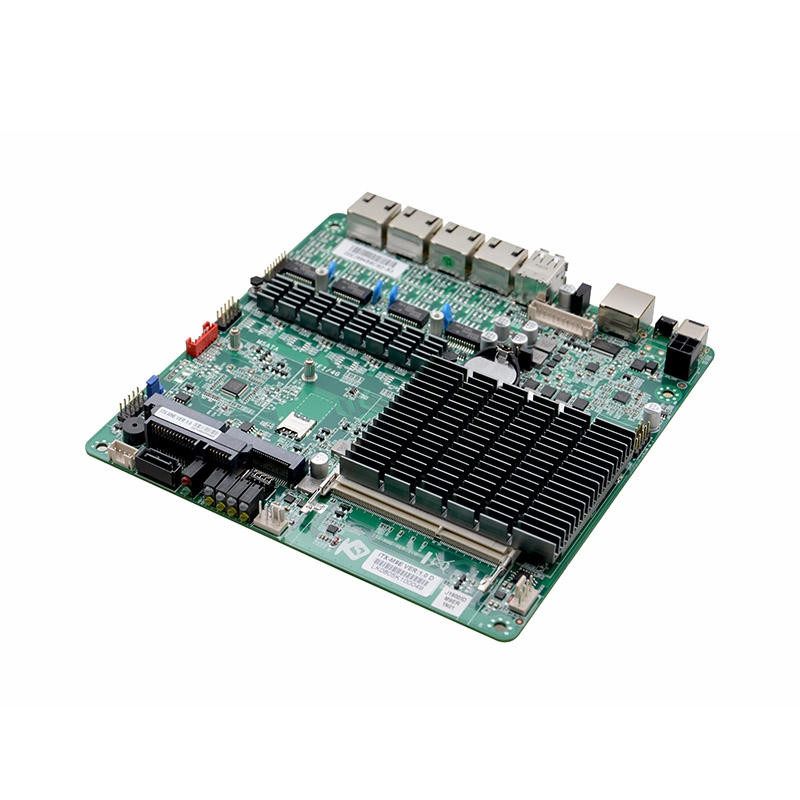

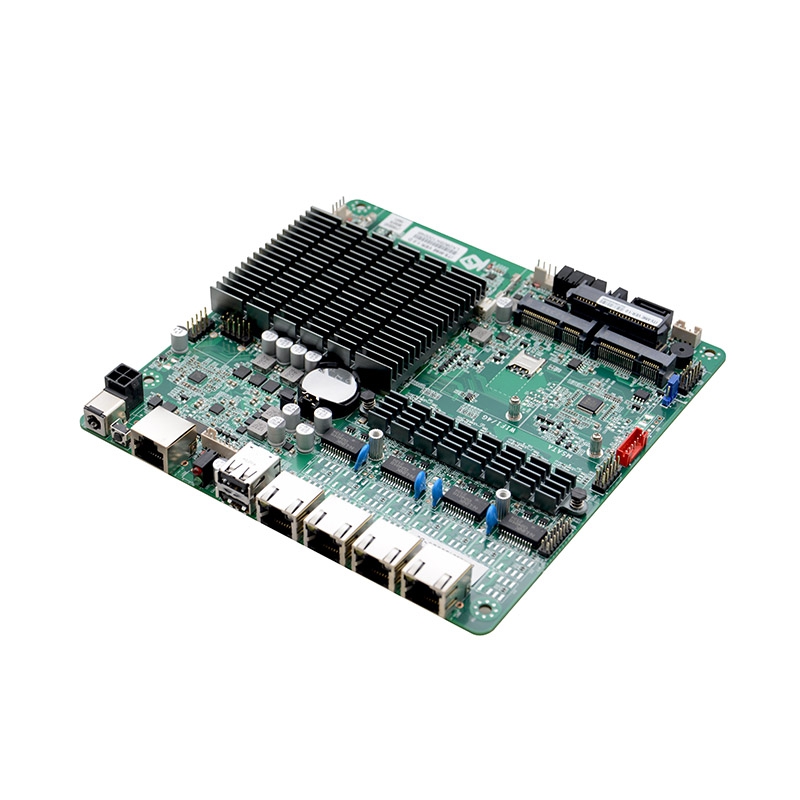

Detail Display
Product Description
Model No.: ITX-M9E VER:1.0 (J1900)
Processor: Integrated Intel® Celeron J1900/2.0GHz Quad core processor，TDP 10W
Chipset: Based on Intel® Bay trail SOC
Memory: 1* SODIMM, supports single channel 1600/1333MHz DDR3L/1.35V memory, is up to 8GB
Display: Integrated Intel®HD Graphics, 1* VGA display output
Ethernet: 4* Intel I211 Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage:
1* SATA 2.5 inch notebook hard disk slot , hard disk can be installed directly，the transfer rate is up to 3Gbps
1* Standard 7PIN SATA (and 2.5-inch hard disk is optional)
1* MSATA, supports Intel protocol SSD, the transfer rate is up to 3Gbps
Expansion Slot:
1* Mini-PCIE, supports WIFI and 4G module , default is USB signal
Note: Mini-PCIE slot and LAN4 share the PCIE channel, users can choose one of the two

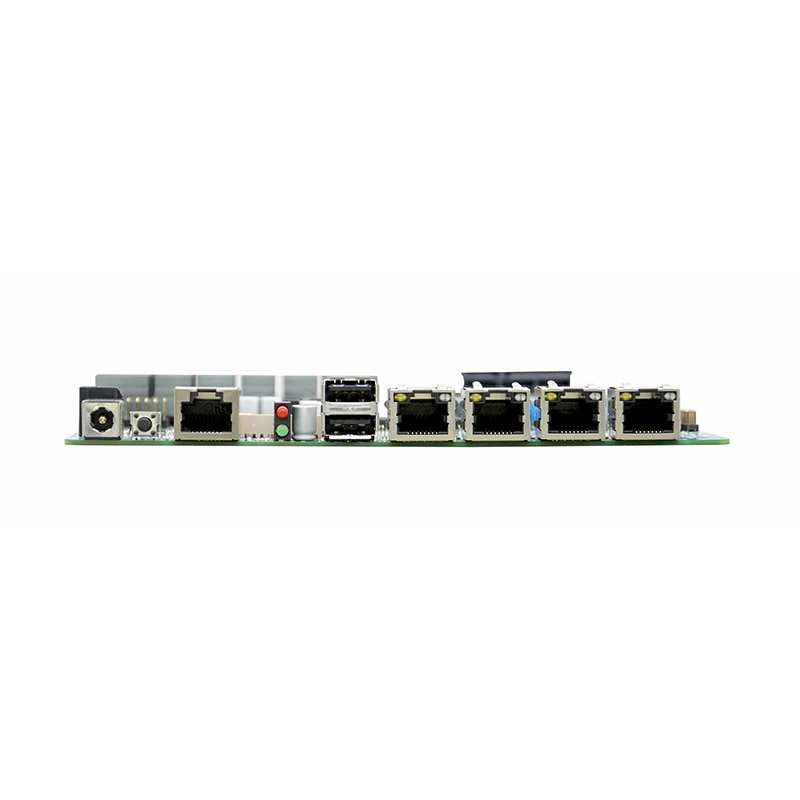

Rear I/O interface:
1* 12V DC power input interface
4* RJ-45 Gigabit Network Interface
1* CISCO standard RJ-45
2* USB 2.0
1* Power switch
2* HDD indicator，2* Power indicator
4* Network indicator，4* Network data transmission indicator

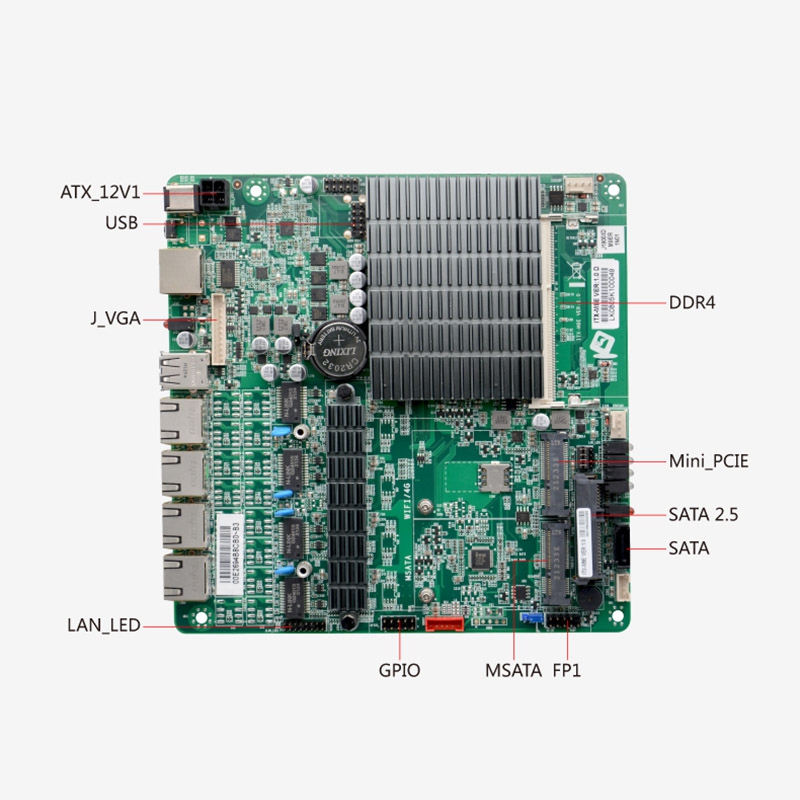

Built in I/O interface:
1* 4pin ATX power interface (Can be used as 12V input and output power interface)
4* USB 2.0, 2*5Pin
1* JVGA, 1*12Pin
1* Network indicator, 2*8Pin
1* PS/2 keyboard interface, 1*6Pin
1* Front panel switch button and indicator light interface, 2*5Pin
1* Hard disk power supply interface, 1*4pin
1* SIM card slot
Fan Connector: Fanless heat dissipation design, reserved 1*4pin CPU fan interface, 1*4pin system fan interface
GPIO: Support 4-way input output GPIO function
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 7/Windows 10/Linux
Power Type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

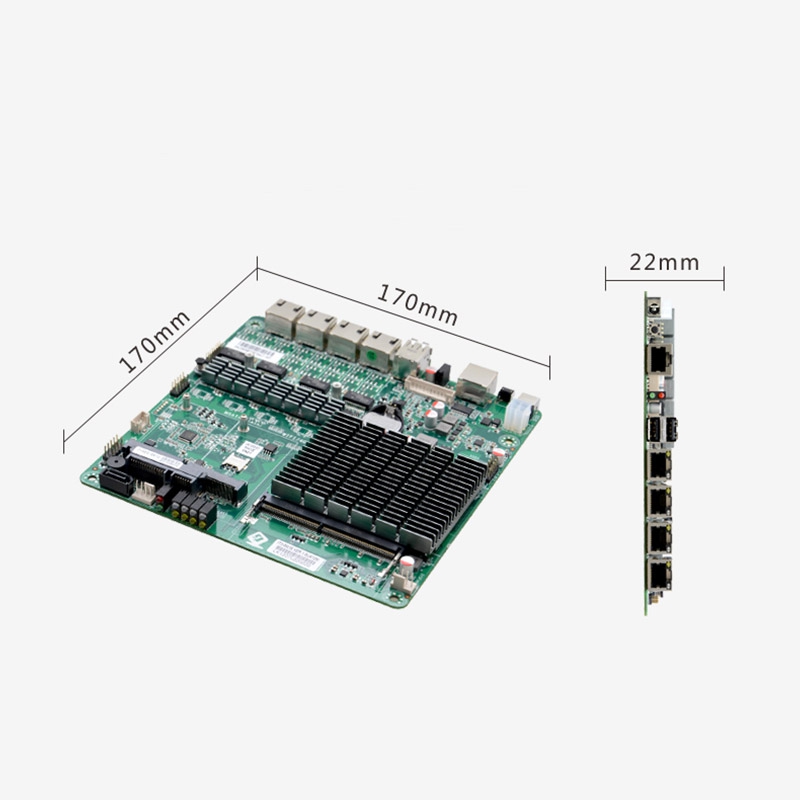

Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

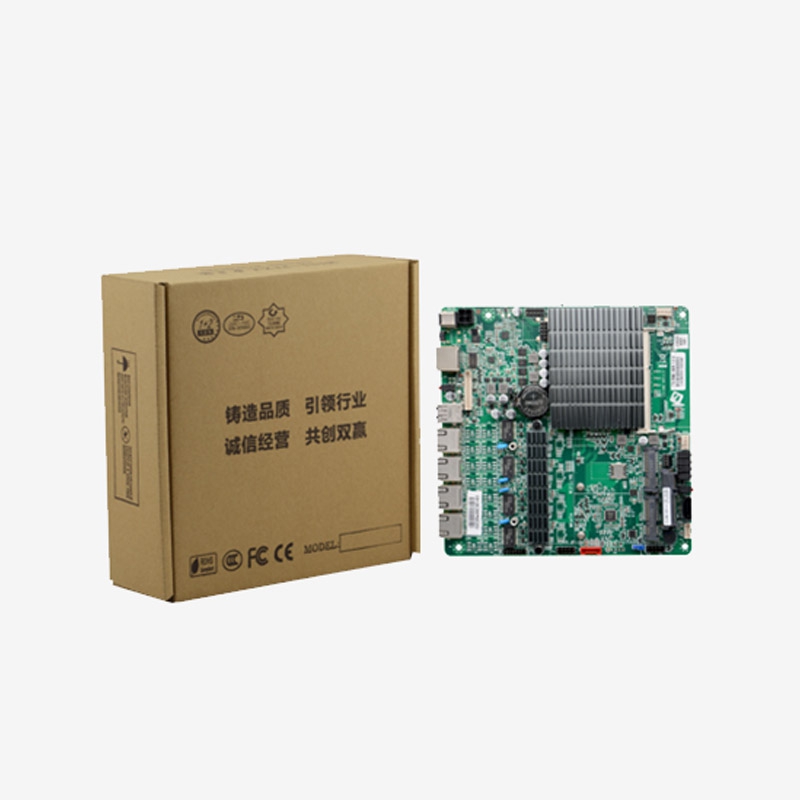

Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
