Key Features:
●Intel Celeron J1900 quad-core CPU @ 2.0GHz, balancing power efficiency and performance
●4×Intel WGI210AT Gigabit Ethernet ports for superior network throughput
●1×DDR3L SO-DIMM slot, supporting up to 8GB RAM
●1×SATA2.0 + 1×mSATA2.0 SSD for high-speed data storage
●1×mini-PCIe (WiFi/3G/4G support) + 1×SIM slot for flexible network expansion
●GPIO & Watchdog Timer to ensure system stability
●12V DC or ATX 4pin power input for various application scenarios
Product Description

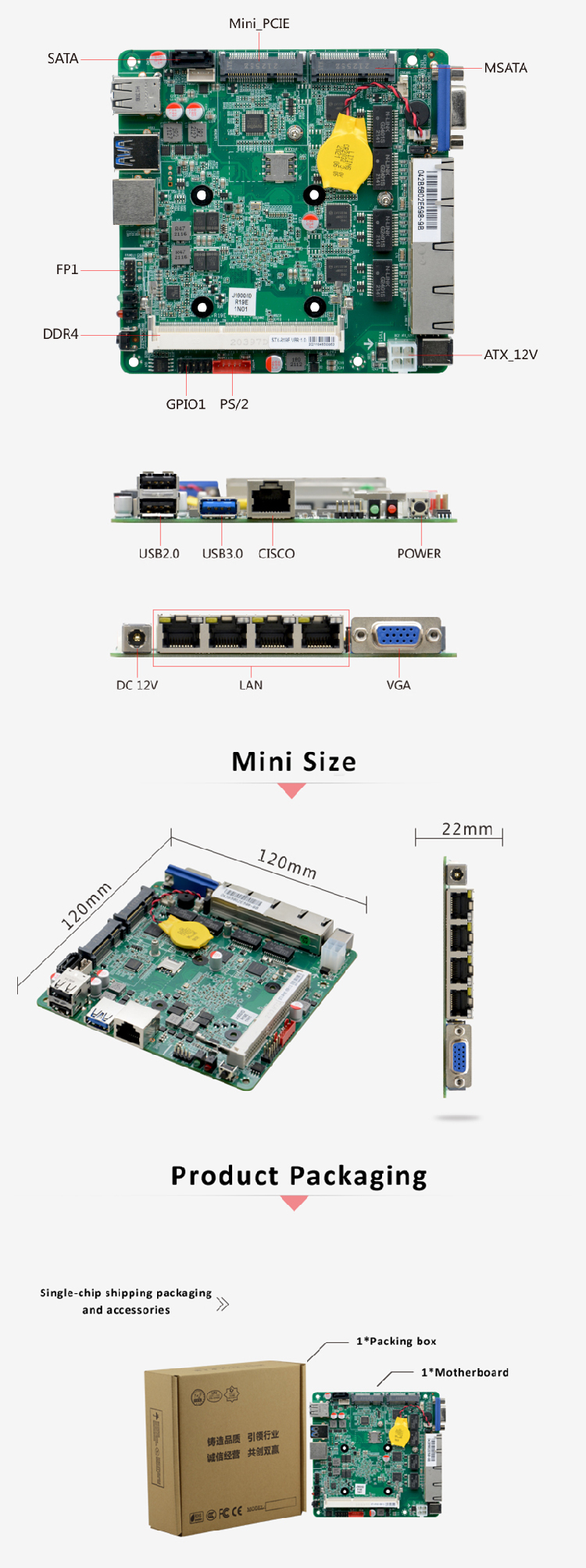

Model No.: STX-R19E VER:1.0
Processor: Integrated Intel® J1900/2.0GHz Quad core processor，TDP 10W
Chipset: Based on Intel® Bay trail SOC
Memory: 1x SO DDRIII slot, only supports 1600/1333MHz DDR3L/1.35V memory, is up to 8GB
Display: Integrated Intel®HD Graphics
1x VGA
Ethernet: 4x Intel WGI211A TGigabit Ethernet ,supports Wake on LAN/PXE function
Storage: 1x Standard SATA2.0, the transfer rate is up to 3Gbps
Audio: N/A
Expansion Slot: 1x MSATA slot, supports SSD, the transfer rate is up to 3Gbps
1x Mini-PCIE slot，supports 4G module

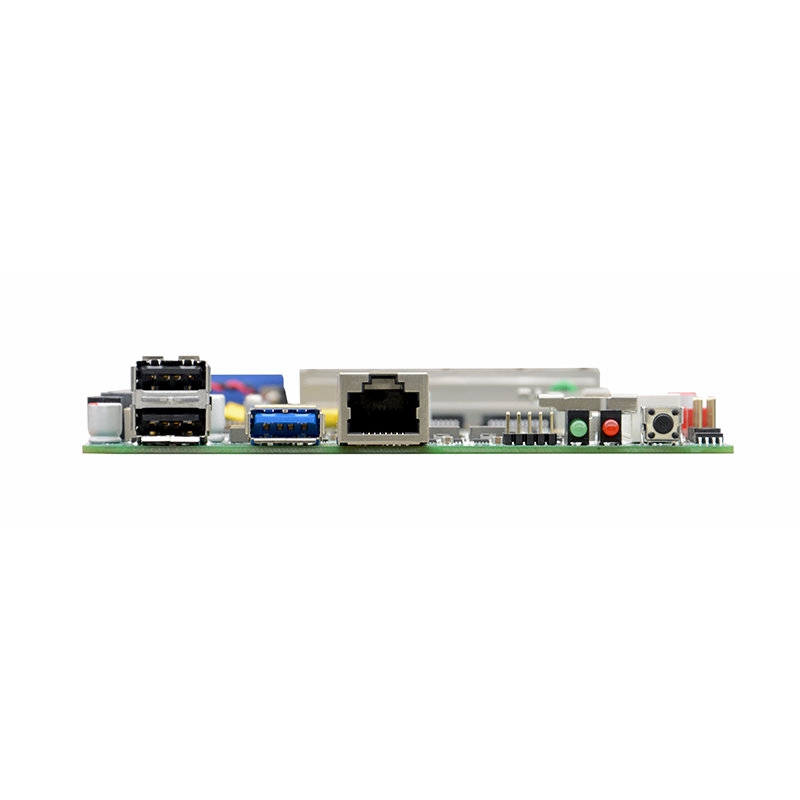

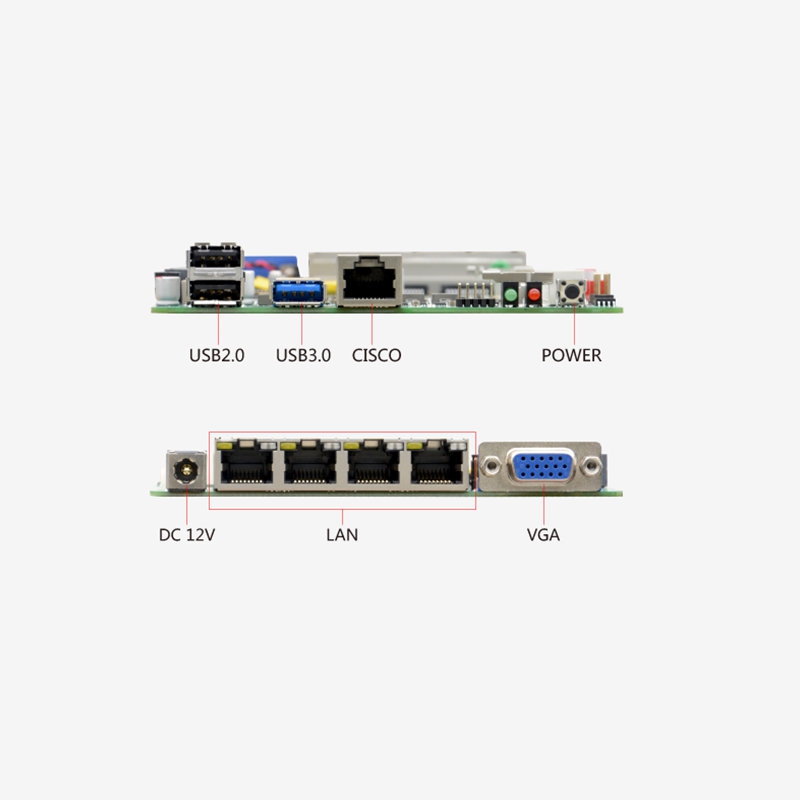

Front panel I/O interface:
1x CISCO Standard RS232 COM
2x USB 2.0
1x USB 3.0
1x Power indicator
1x HDD indicator
1x Power switch
Rear I/O interface:
4x RJ-45 Gigabit Network Interface
1x VGA
1x 12V DC power input interface
Built in I/O interface:
1x PS/2 keyboard and mouse interface, 1x 6Pin
1x Front panel function button and indicator light interface, 2x 5pin
1x HDD power supply interface, 4pin
1x 4pin ATX power interface, (Can be used as 12V input and output power interface)
Fan Connector: Fanless heat dissipation design, reserved 1x 3pin CPU smart fan interface
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 7/Windows 10/Linux
Power Type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

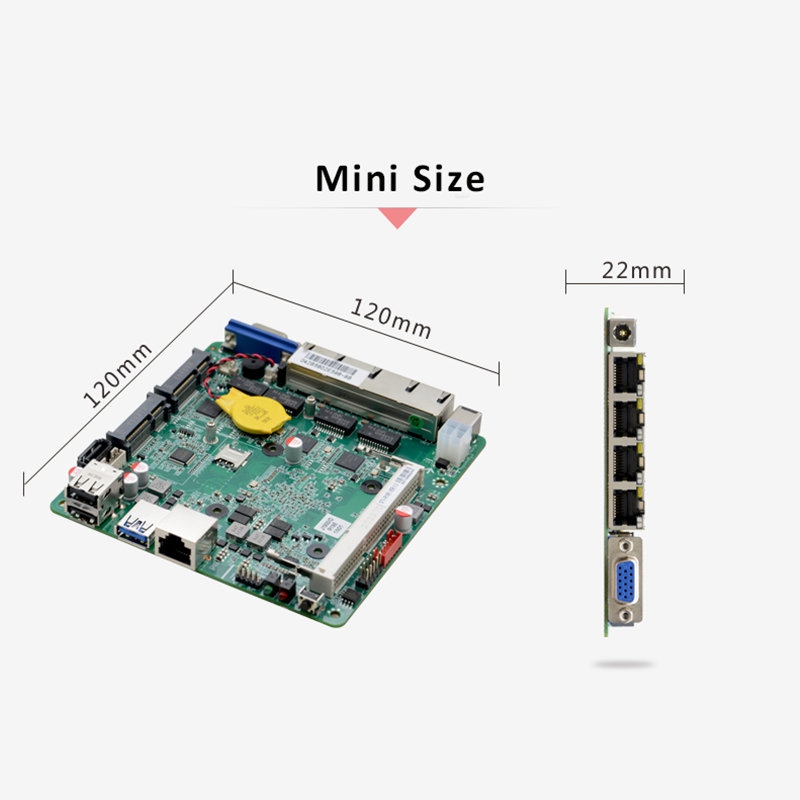

Dimension: 120mm x 120mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

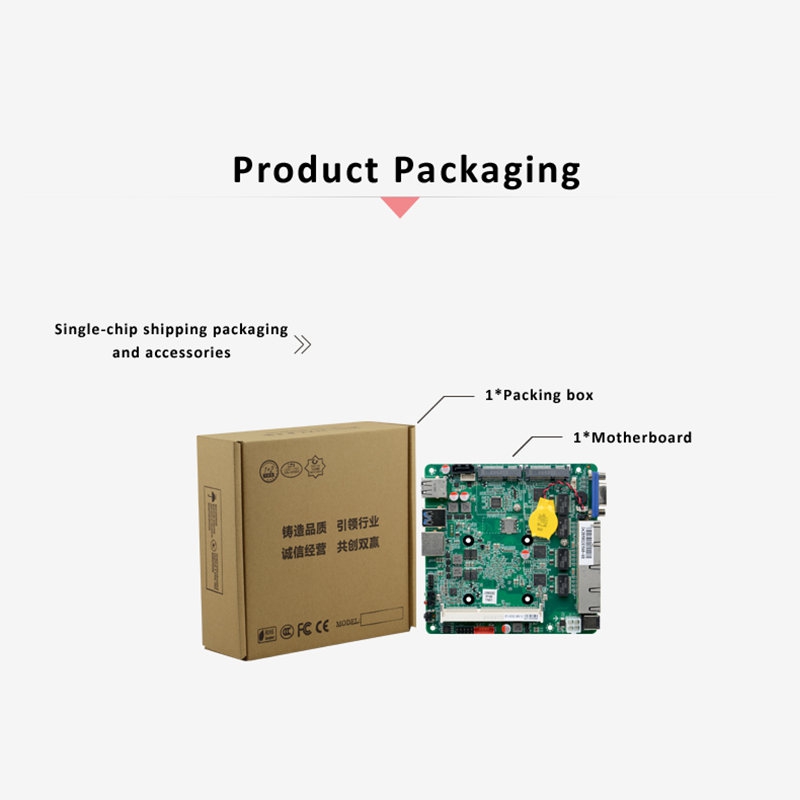

Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
