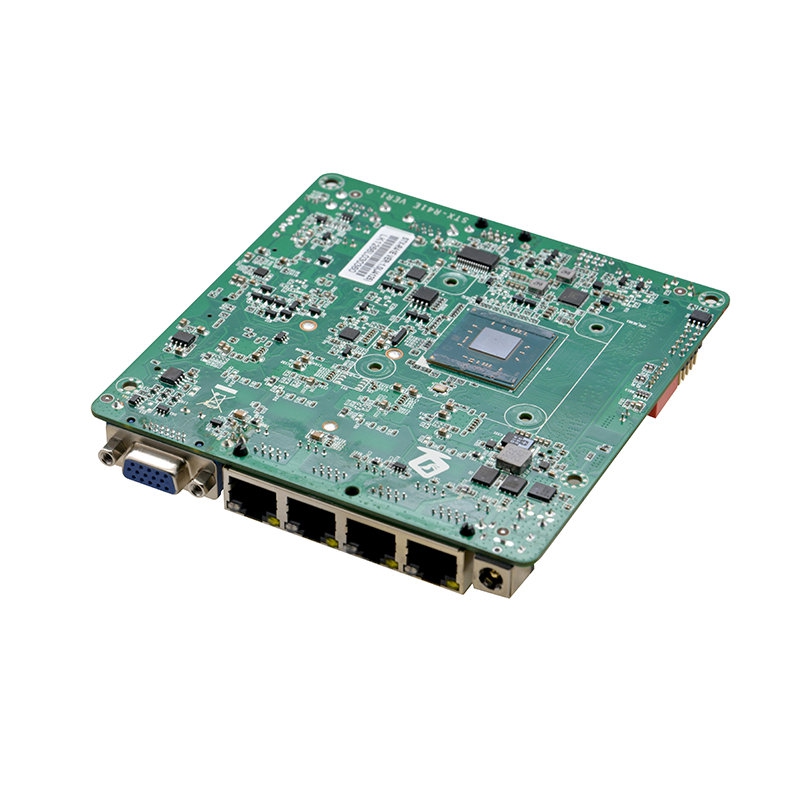

This high-performance firewall motherboard is built on the Intel Gemini Lake SOC platform, featuring the Intel Celeron J4125 Quad-Core processor (2.0GHz, burst up to 2.7GHz) with Intel UHD Graphics 600, delivering enterprise-grade security processing in a compact form factor.
Key Firewall Features:
●Enterprise networking: 4× Intel WGI210AT Gigabit Ethernet ports (industrial-grade chipsets)
●Cisco-compatible management: Standard RJ45 RS232 console port
●Memory capacity: 1× DDR4 2400MHz SO-DIMM (up to 8GB)
●Storage flexibility:
1× SATA2.0
1× mSATA 3.0 SSD
1× mini-PCIe (for WiFi/3G/4G) + SIM slot
●Dual power inputs: 12V DC jack + ATX 4-pin connector
●Security monitoring:
Watchdog Timer
GPIO control
Optimized for:
Next-Generation Firewalls (NGFW)
Unified Threat Management (UTM) systems
VPN concentrators

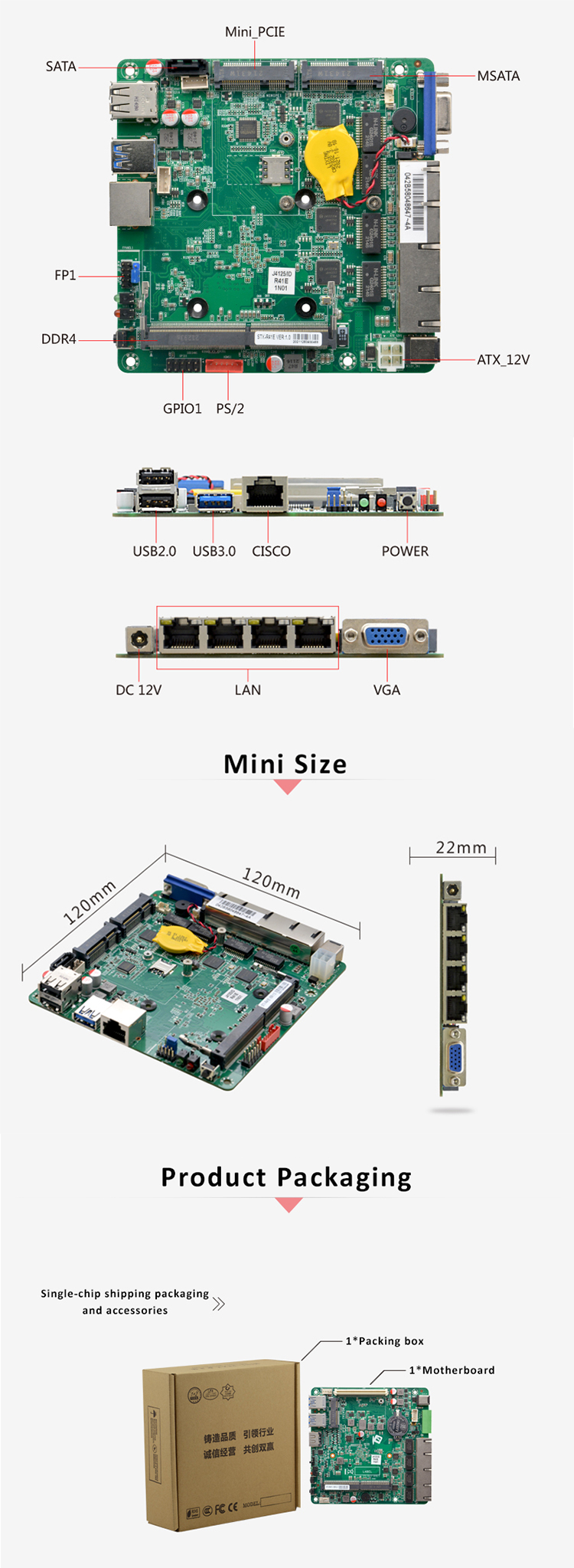

Detail Display
Product Description

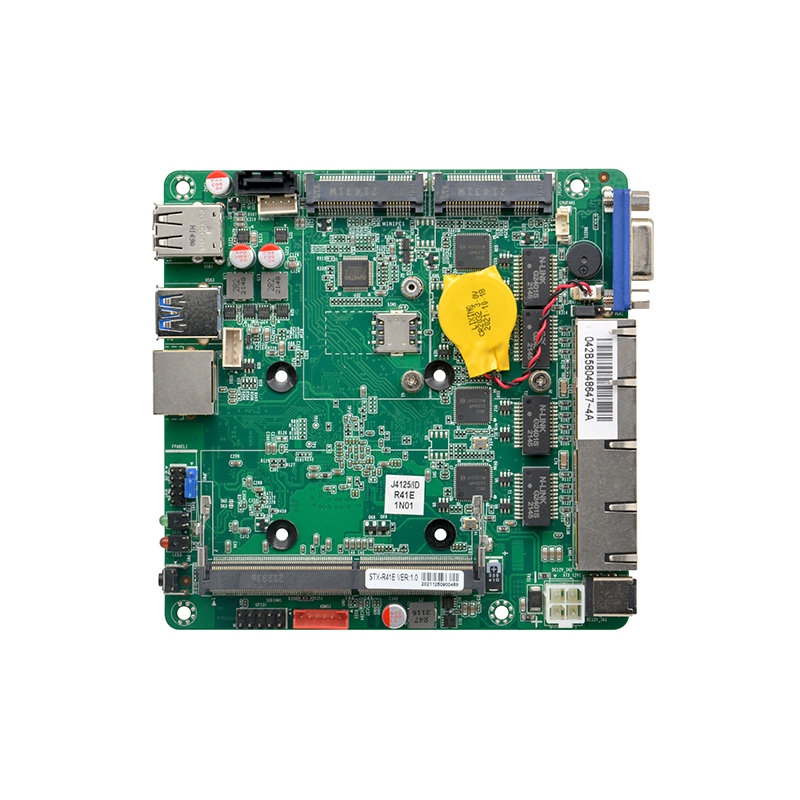

Model No.: STX-R41E VER:1.0
Processor: Integrated Intel®Celeron J4125 2.0GHz Quad core Quad thread processor, TDP 10W
Compatible with Intel® Gemini Lake all series CPU，customers can choose flexibly
Chipset: SOC
Memory: 1x SODIMM, supports single channel 2400MHz DDR4 memory, is up to 8GB
Display: Integrated Intel® UHD Graphics 600
1x VGA
Ethernet: 4x Intel WGI211AT Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage: 1x SATA2.0, the transfer rate is up to 6Gbps
Audio: N/A
Expansion Slot:
1x MSATA slot,supports SSD, the transfer rate is up to 6Gbps
1x Mini-PCIE slot，supports WIFI/4G module
Note: WIFI and LAN4 are optional, the default is LAN4

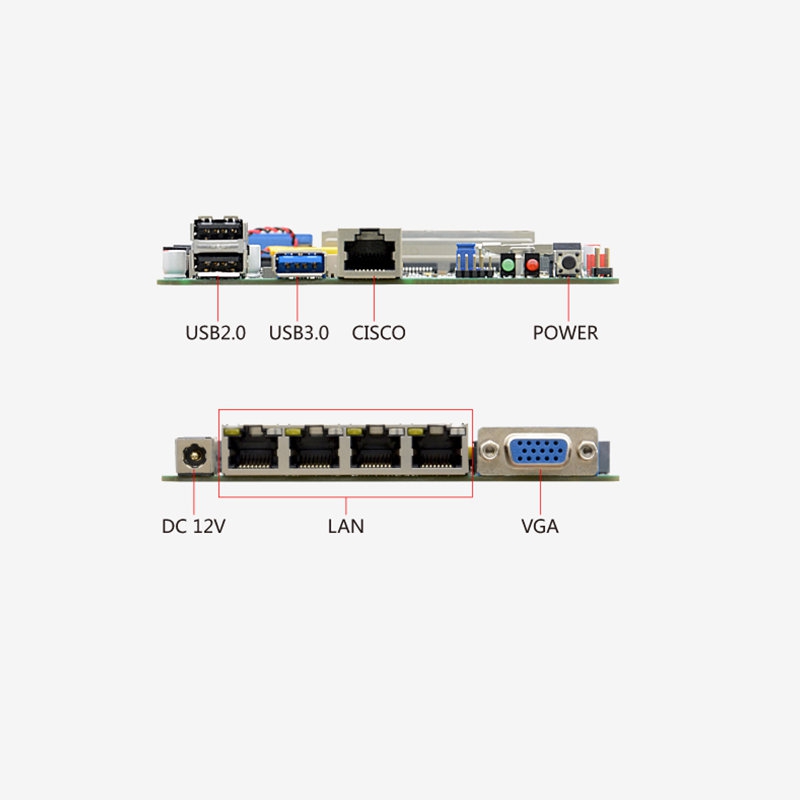

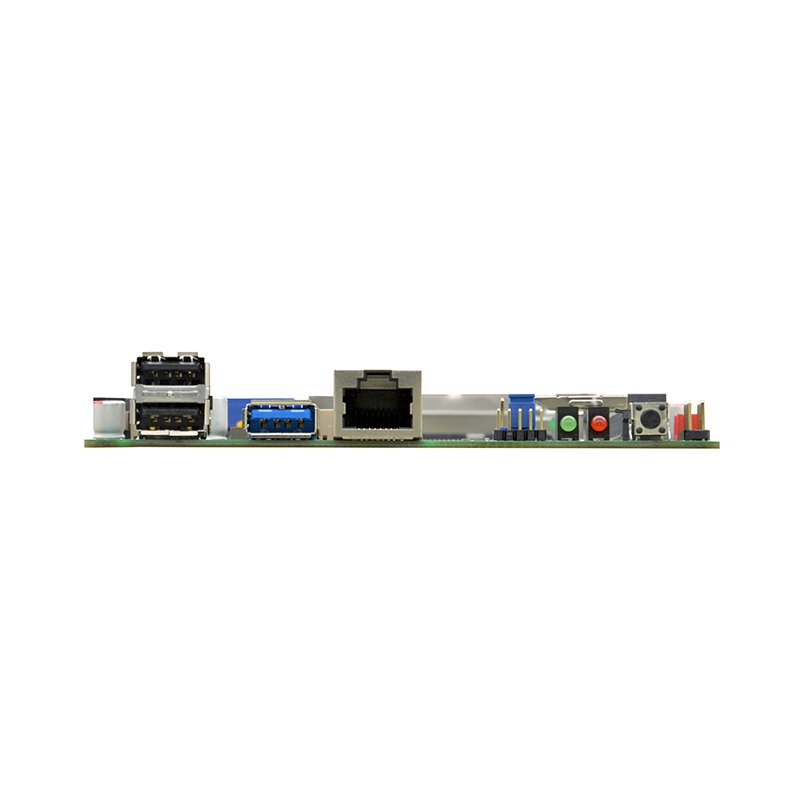

Front panel I/O interface:
1x CISCO Standard RS232 COM
2x USB 2.0
1x USB 3.0
1x Power indicator
1x HDD indicator
1x Power switch

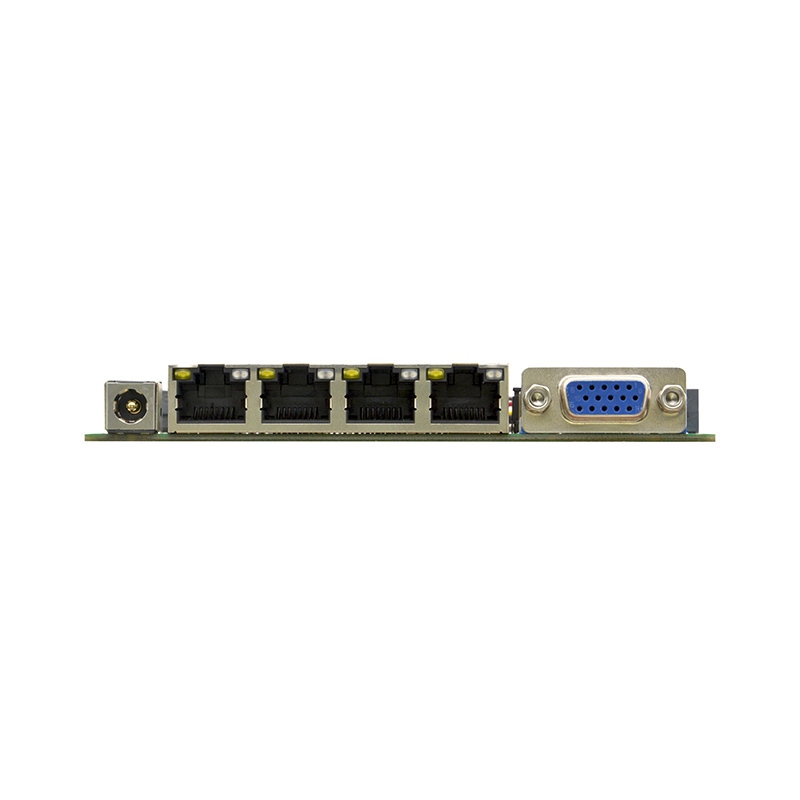

Backplane I/O interface:
4x RJ-45 Gigabit Network Interface
1x VGA
1x 12V DC power input interface

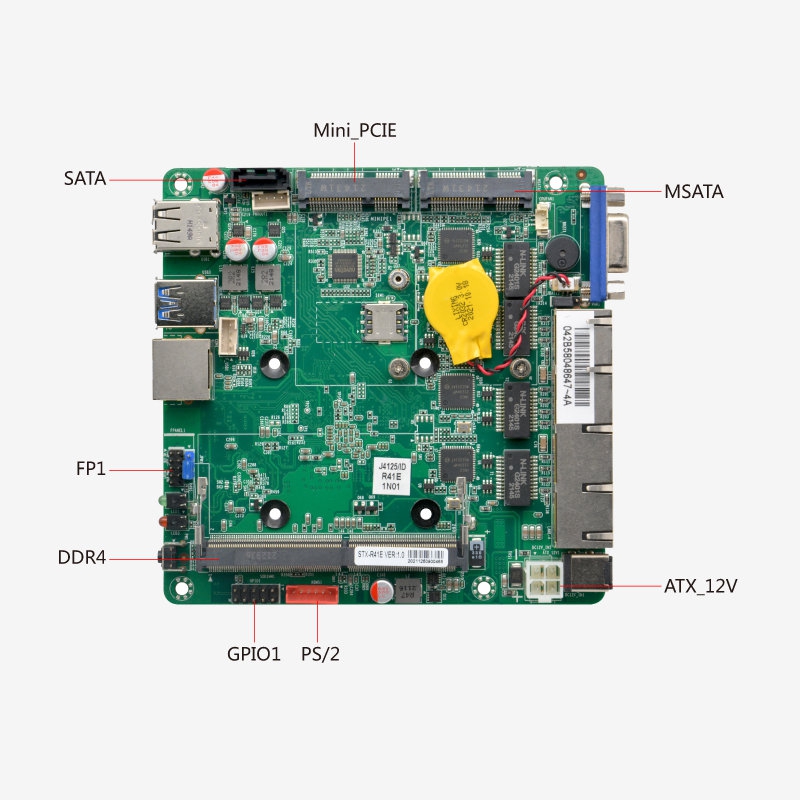

Built in I/O interface:
1x PS/2 keyboard and mouse interface, 1x 6Pin
1x USB2.0, 1*4pin
1x Front panel function button and indicator light interface, 2x 5pin
1x HDD power supply interface,1* 4pin
1x 4pin ATX power interface (Can be used as 12V input and output power interface)
Fan Connector: Fanless heat dissipation design, reserved 1*3pin CPU smart fan interface
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 7/Windows 10/Linux
Power Type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

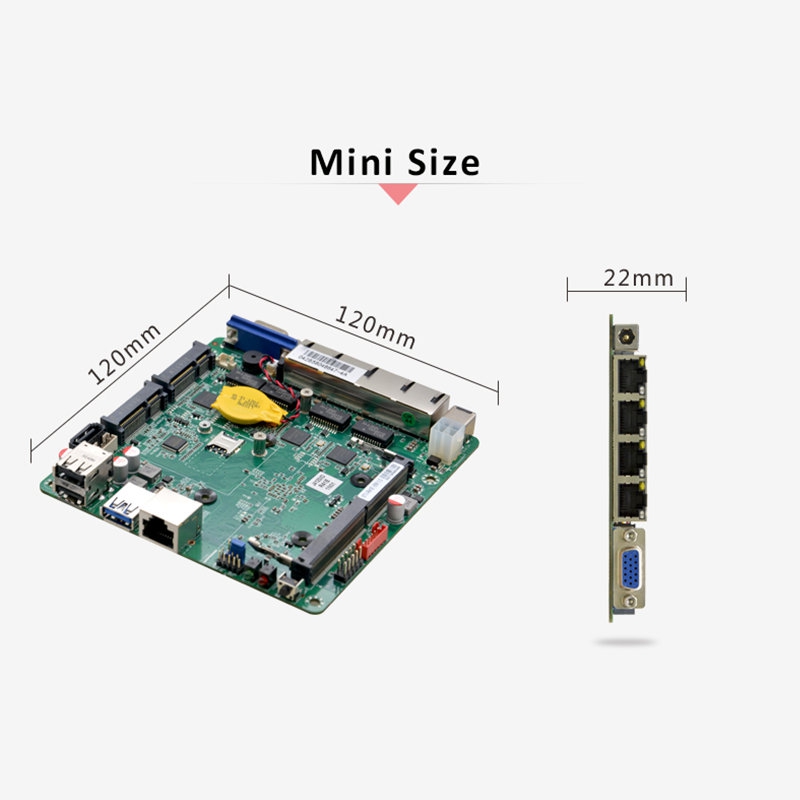

Dimension: 120mm x 120mm
