Product Description

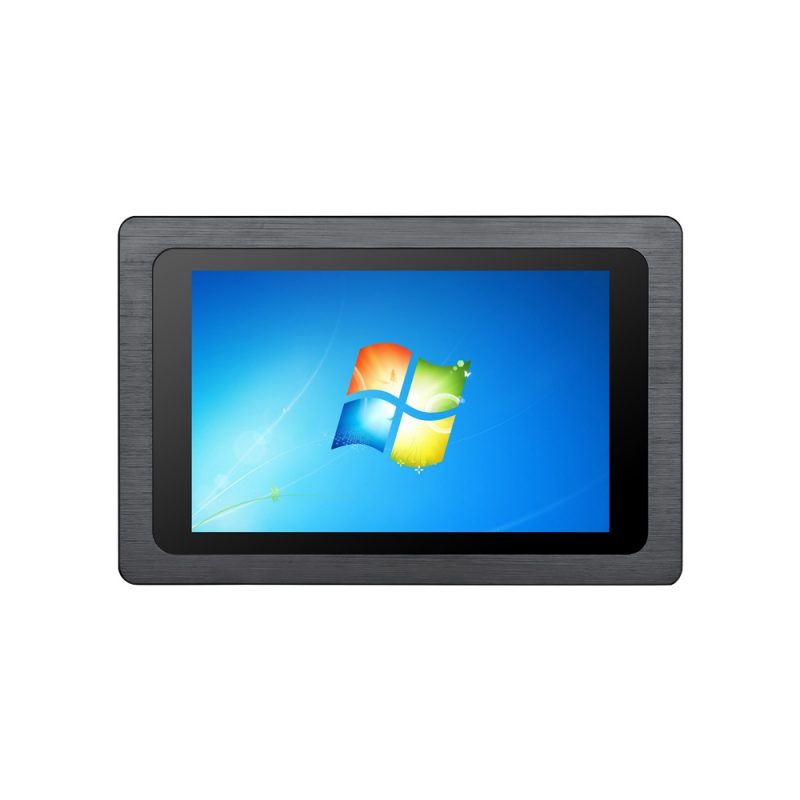

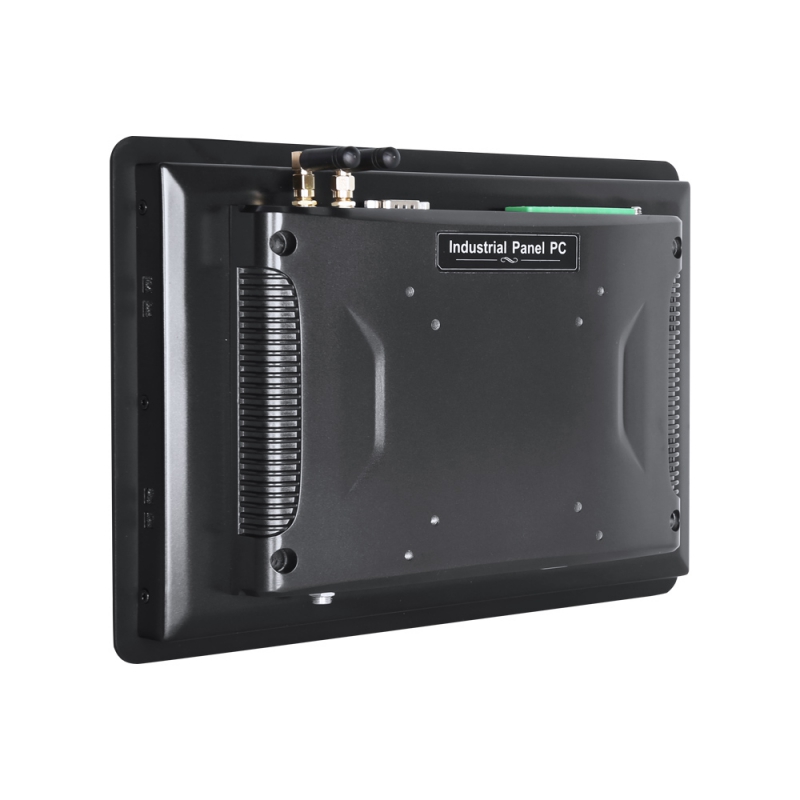

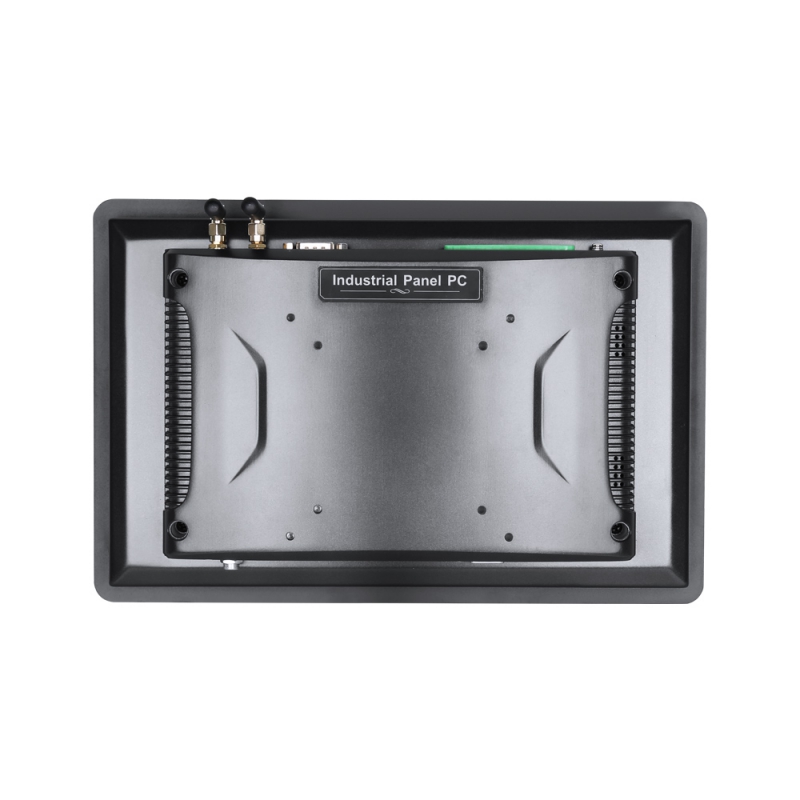

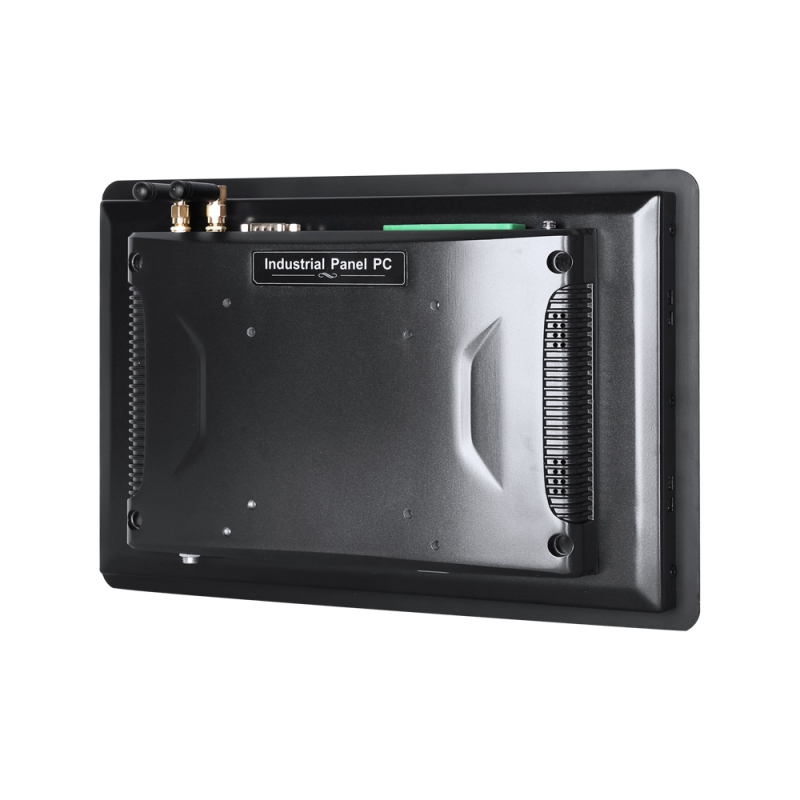

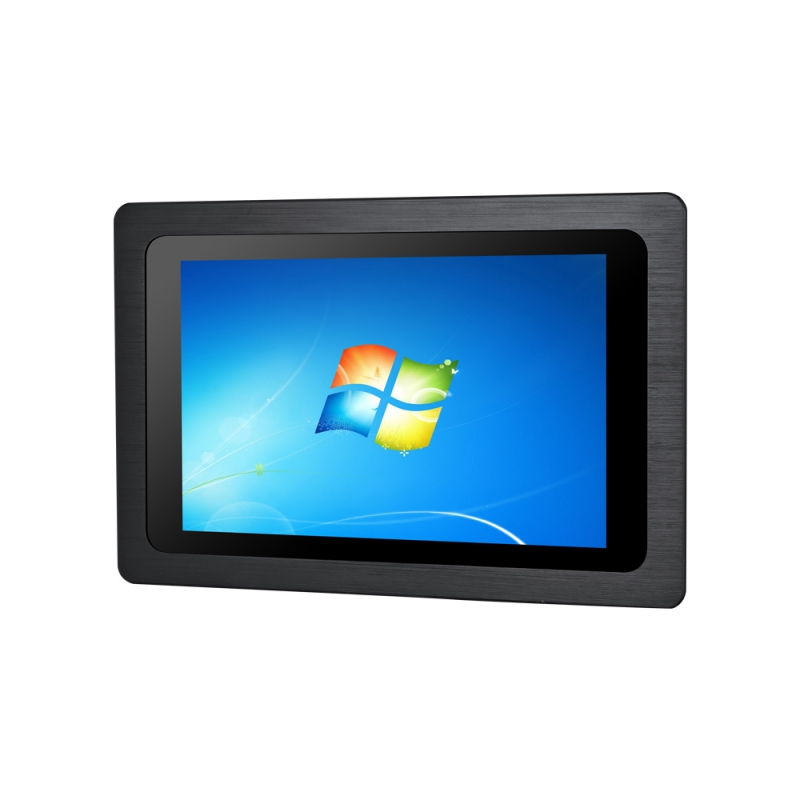

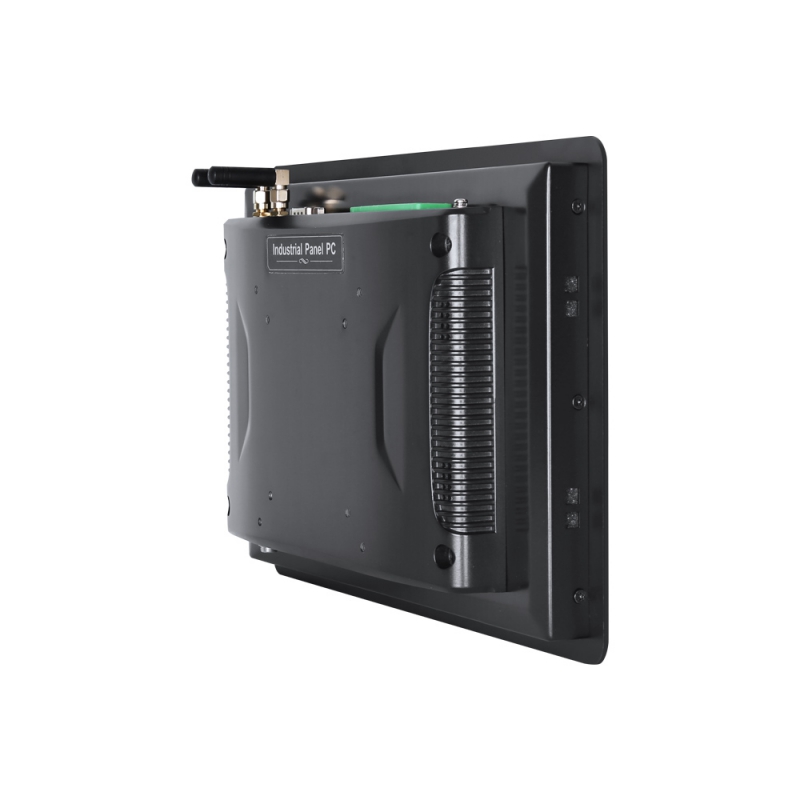

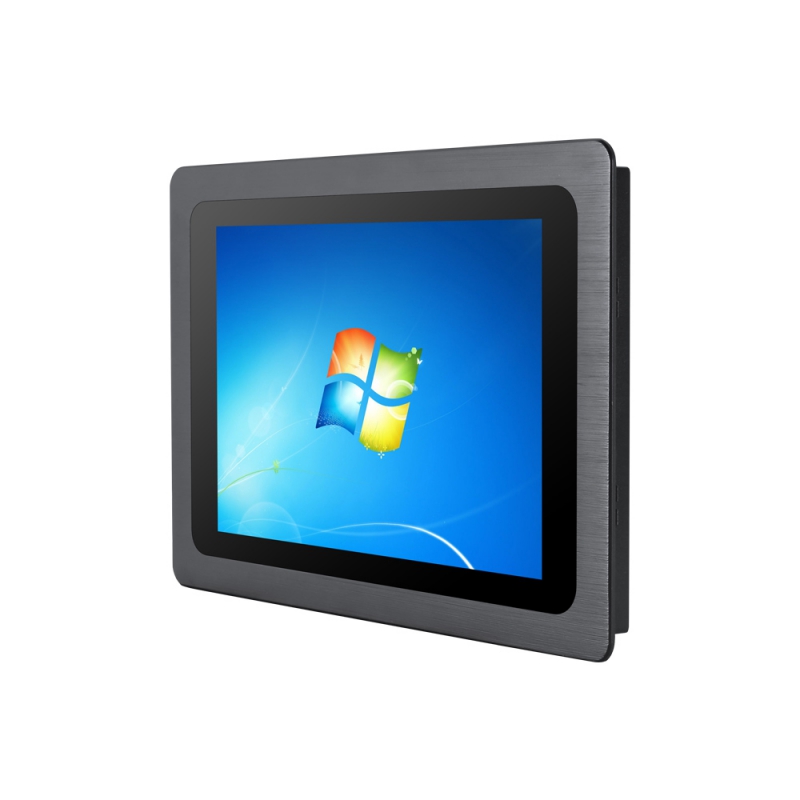

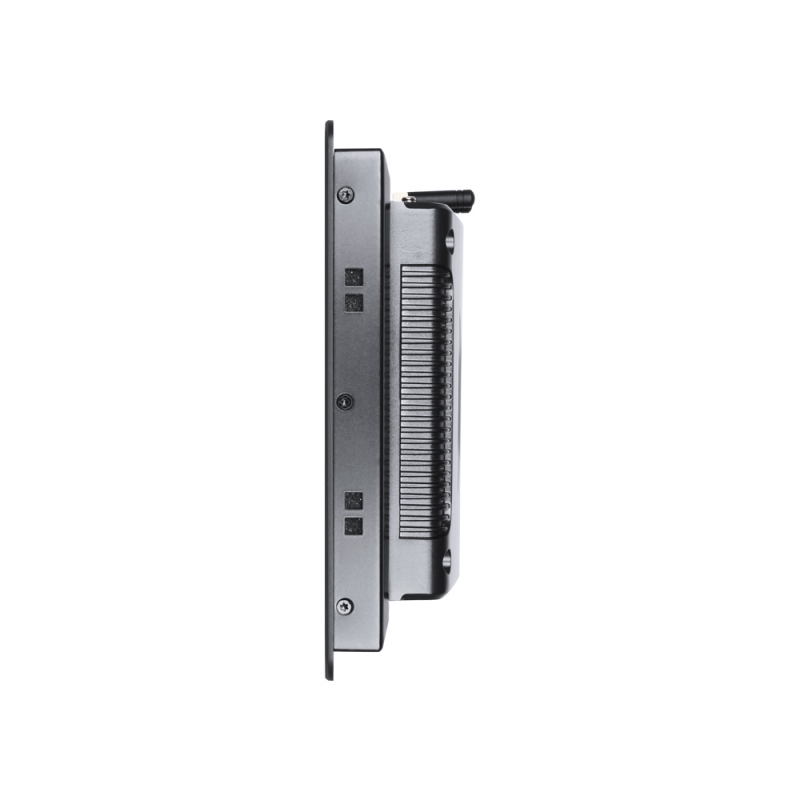

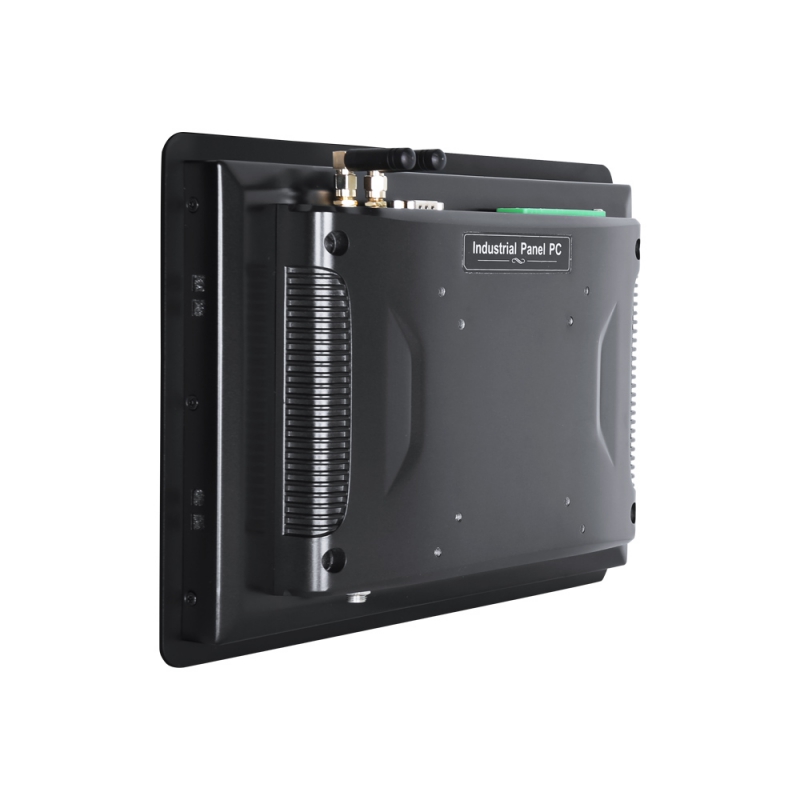

Full aluminum alloy panel structure with an IP65 waterproof front panel and an aluminum alloy rear cover equipped with heat dissipation holes. It is low power consumption.It is suitable for embedded installation applications and supports various external device connections, making it widely applicable in self-service terminals such as self-ser- vice vending machines, inquiry kiosks, parcel lockers, industrial, and medical self-service terminal fields.
Product Size: 10.1"
Non-touch: TPC101-W200-4125
Capacitive touch: TPC101-W210-4125
Resistive touch: TPC101-W220-4125
Screen Parameters:
LCD size: 10.1" TFT LCD
Resolution: 1280×800(16:10)
Viewing angle: 85/85/85/85 (L/R/U/D)
Color: 16.7M
Brightness: 300 cd/m²
Contrast ratio: 1000:1
Physical Characteristics:
Overall dimensions: W293.6X H193.6X D53.5MM
Size of opening: W276.5 X H176.5MM

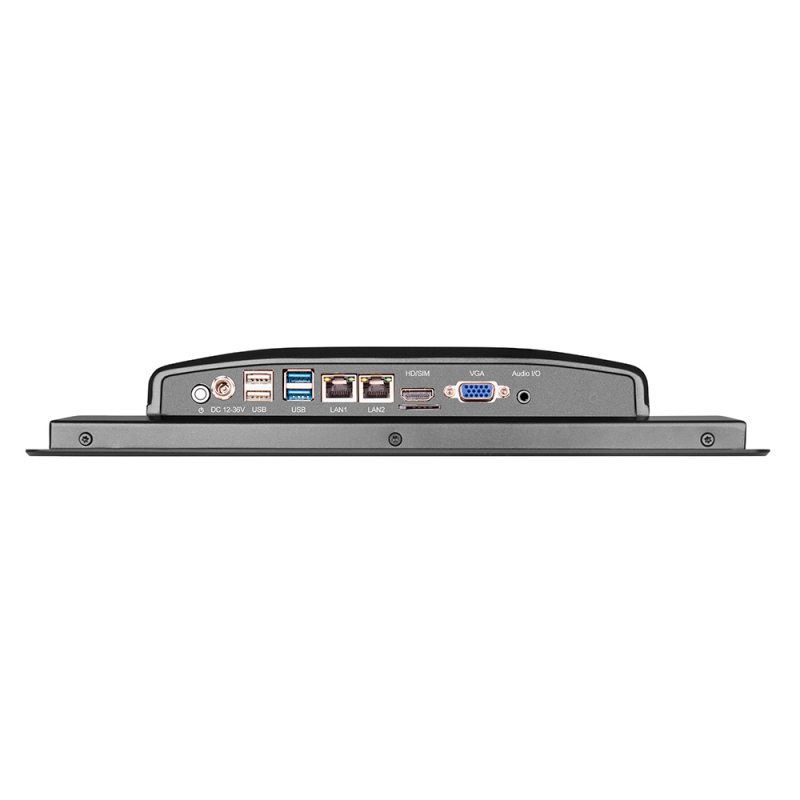

Interface Parameters:

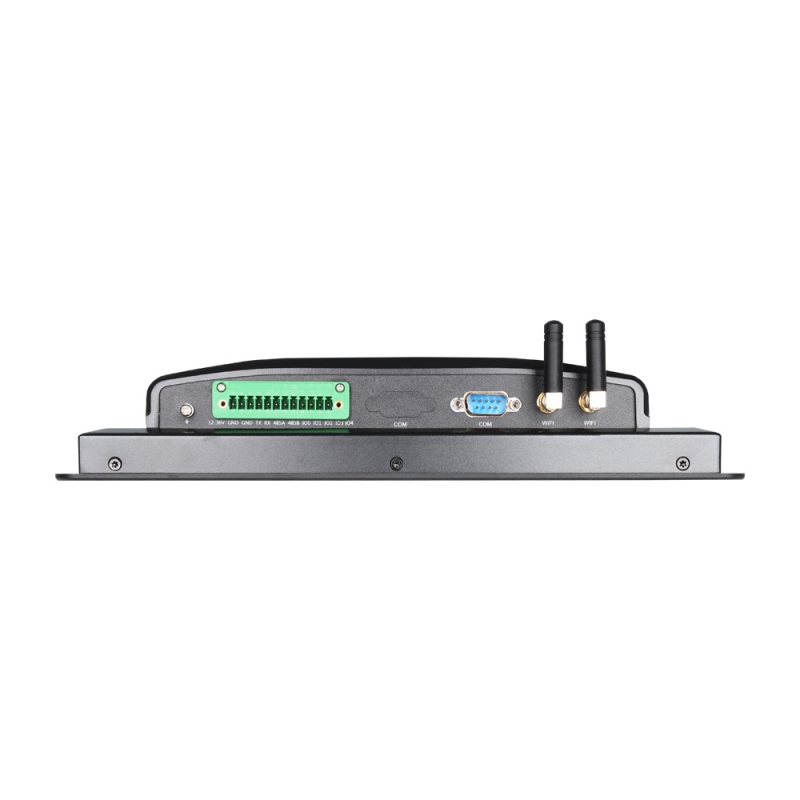

Power interface1: 1*12P Phoenix terminal (Power supply/RS232*1/RS485*1/GPIO*5)
Power interface2: 1*DC【5.5*2.5mm】, Supporting 12V-36V power input
USB: 2*USB2.0, 2*USB3.0
VGA: 1*VGA
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
Network interface: 2*1000M Ethernet interfaces
Audio interface: 1*Audio I/O, support audio input and output
COM: 1*RS232
WiFi antenna: 2*WiFi antenna
Grounding post: 1*Grounding post (GND)
Product Reliability Parameters:
Working temperature: -10°C~60°C
Storage temperature: -20°C~70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product certification: CCC/CE/FCC/EMC/CB/ROHS
Waterproof grade :The front panel reaches IP65 protection level
Power Parameters:
Power input: DC 12V~36V
Static power: 18W
Hardware Configuration:
CPU: Intel Celeron J4125 quad-core 2.0GHz CPU
Memory: 8GB (Supports up to 8GB)
Broad pressure: With wide voltage (12V~36V)
Storage: 128GB SSD (Optional:256GB/512GB SSD, 1T/2T HDD)
WiFi: Support 2.4GHz/ 5GHz dual-band Wifi
Integrated graphics: Intel UHD Graphics 600
Bluetooth: BT4.0(Optional)
Operating system: Win10/11/Ubuntu/Centos/Linux
