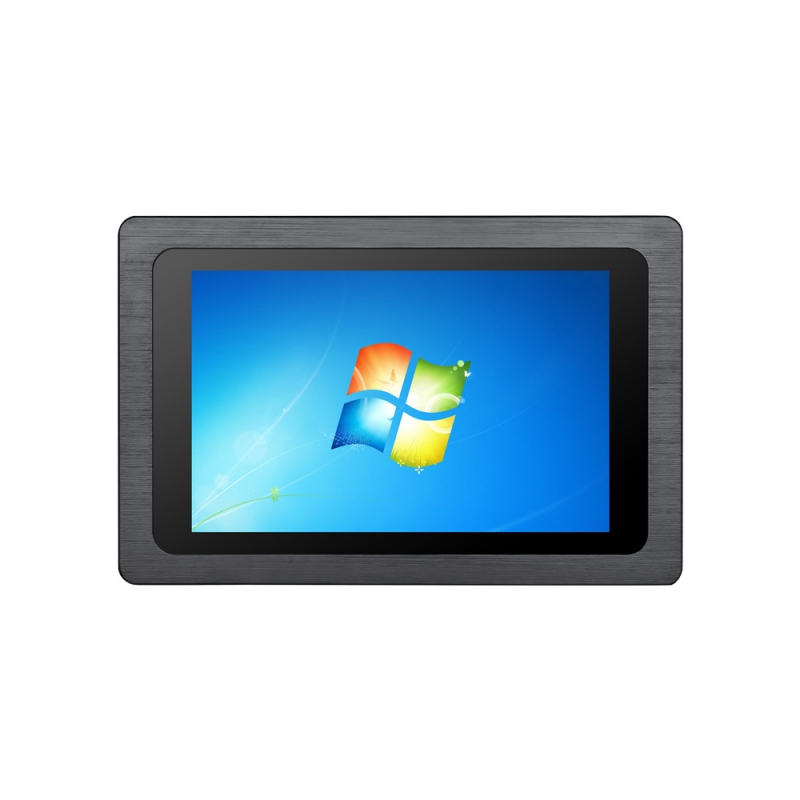

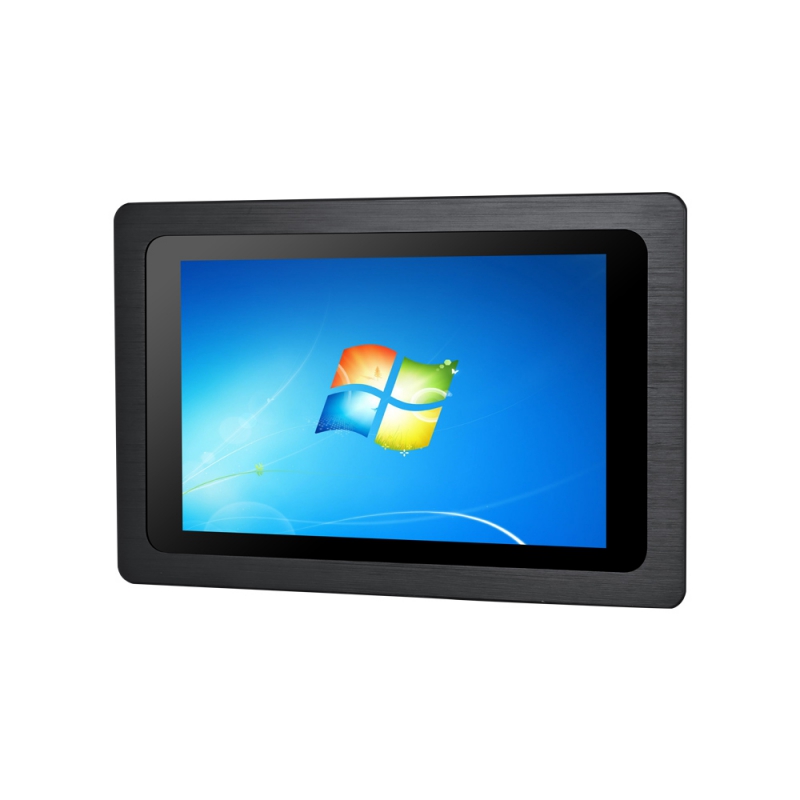

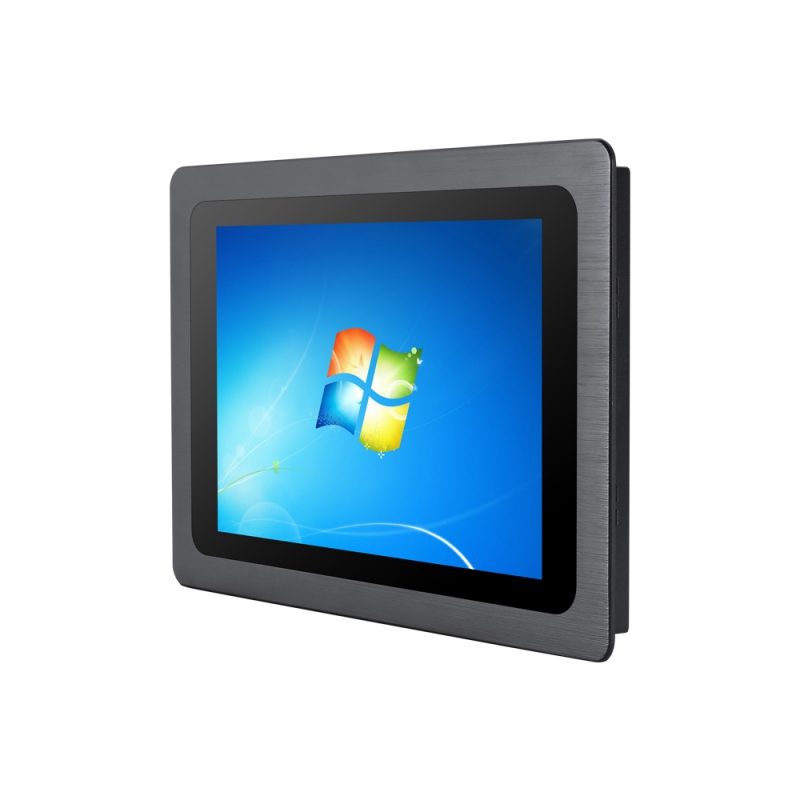

We present this cost-effective Industrial Panel PC featuring Intel Celeron J6412 quad-core processor (2.0GHz) with self-developed X86 architecture motherboard, compatible with 99% industry software, making it ideal for industrial automation.
Key Features
Excellent compatibility: X86 architecture supports mainstream industrial software
Industrial protection: IP65+EMC certified
Flexible expansion: Rich interfaces for various requirements
Product Description

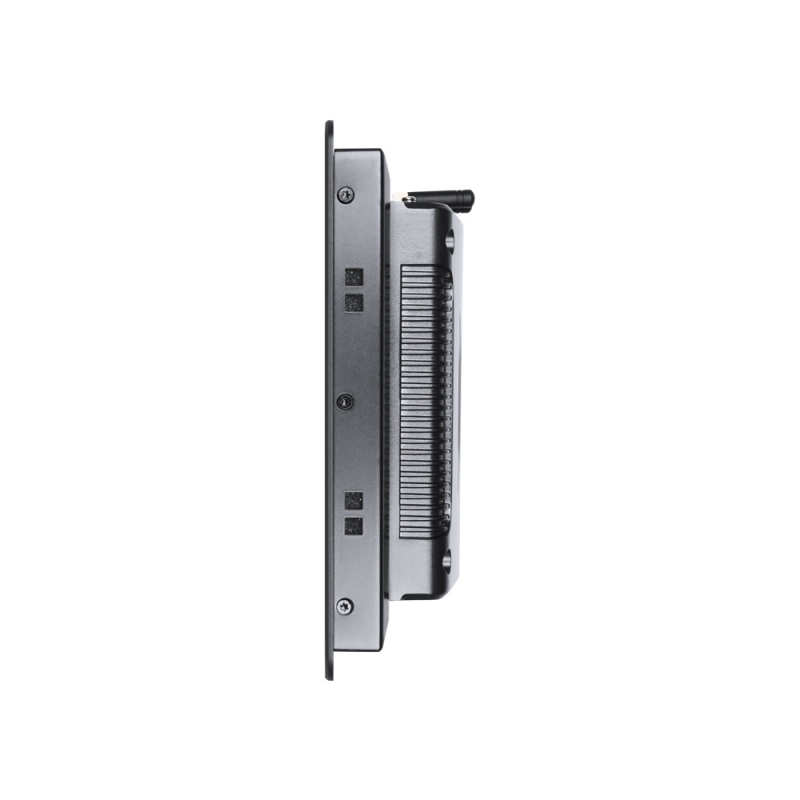

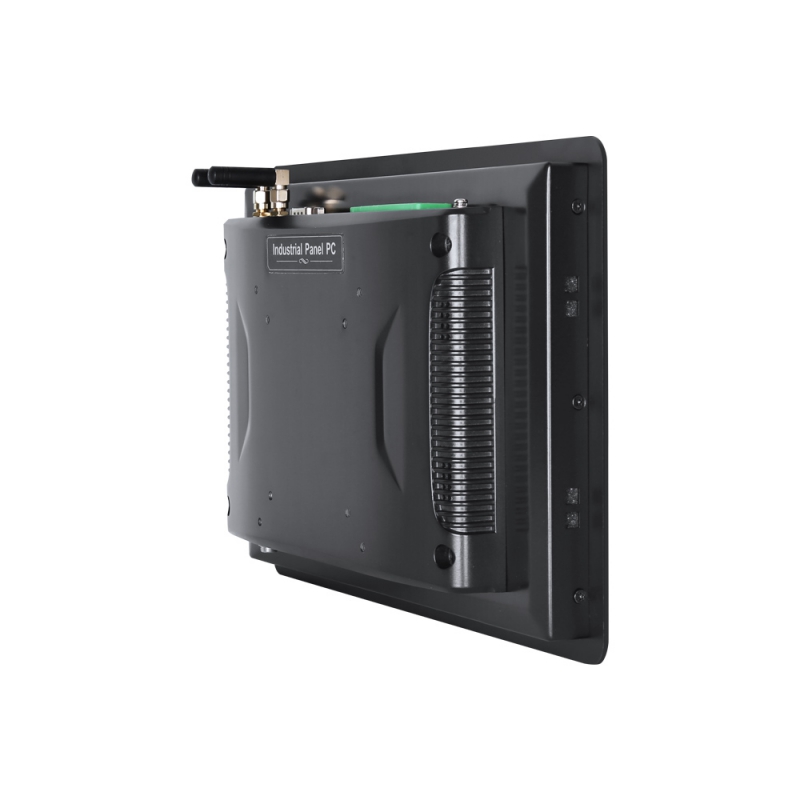

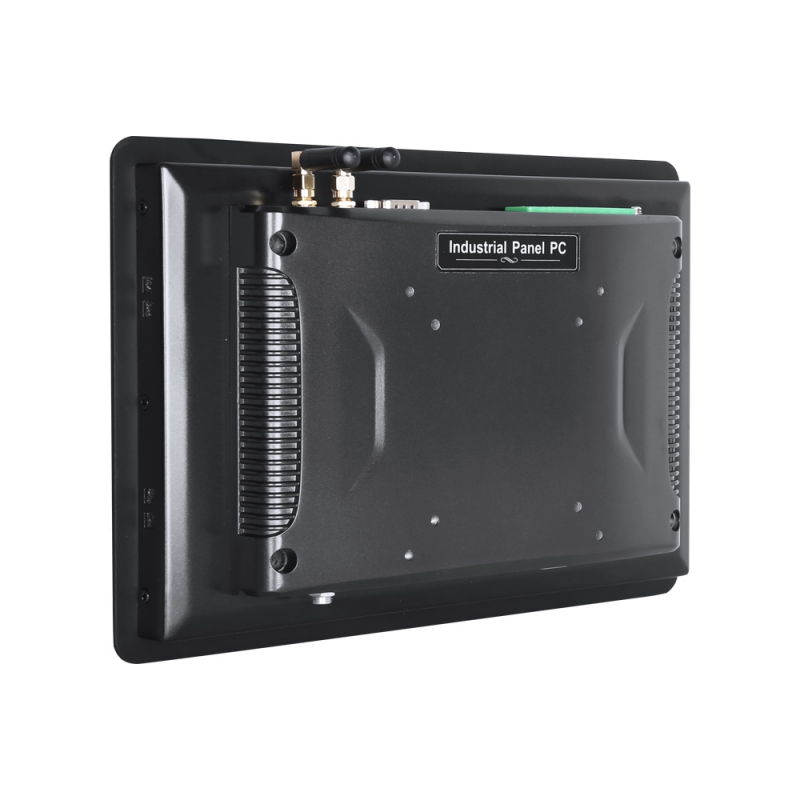

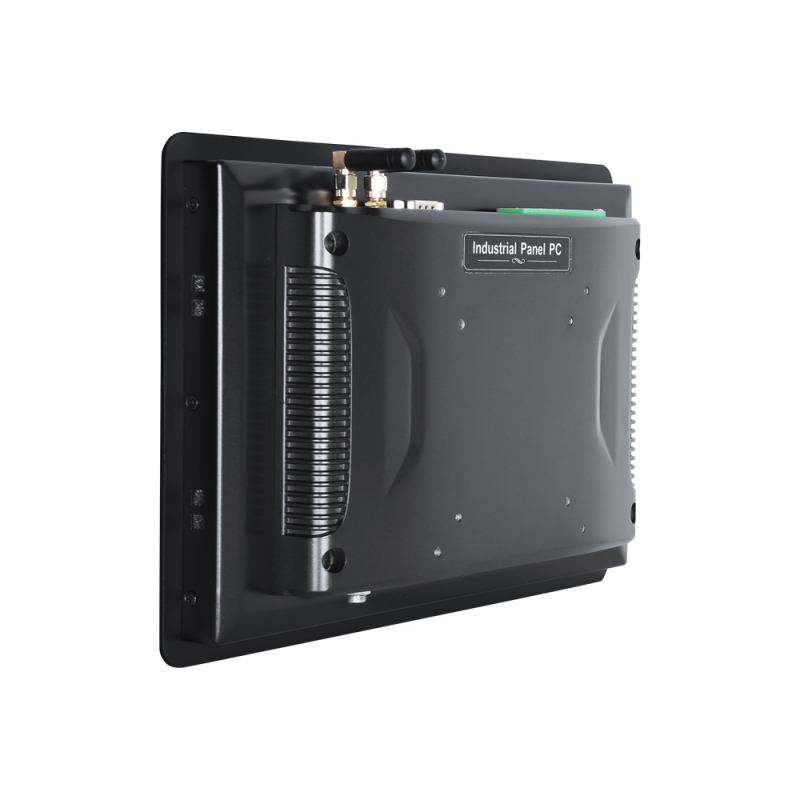

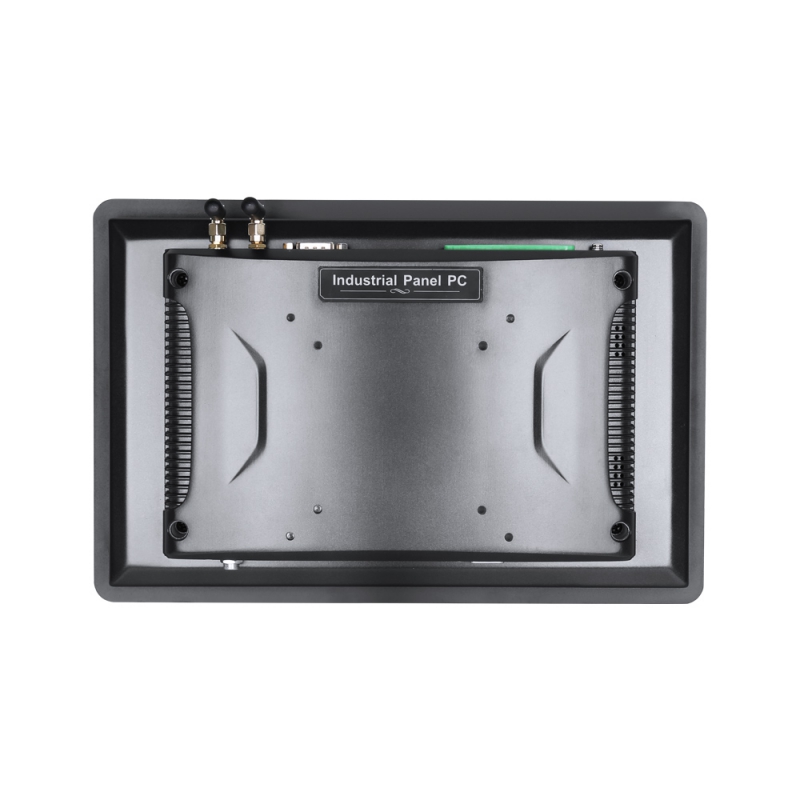

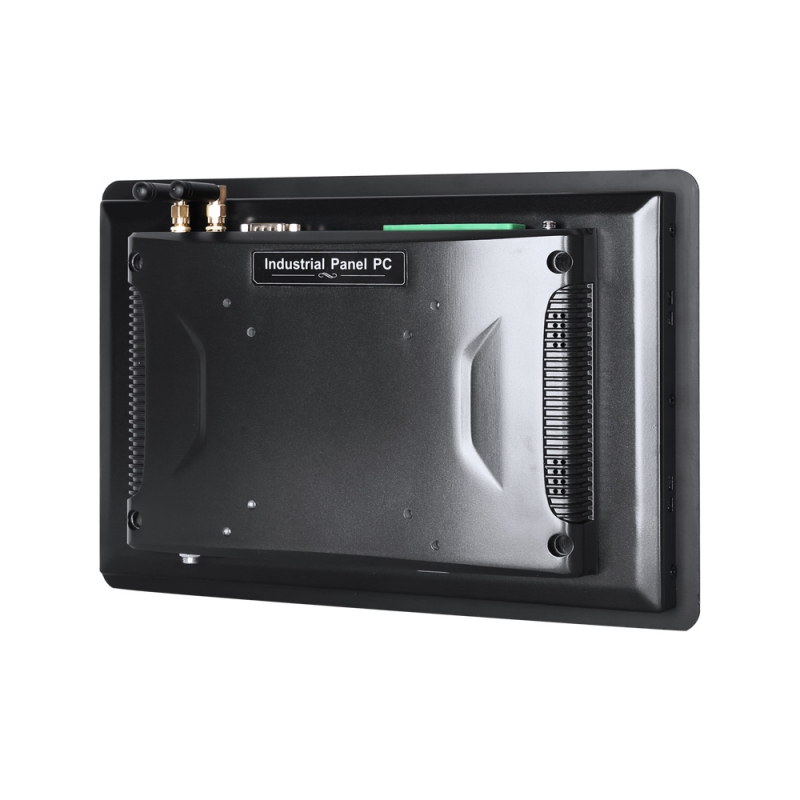

Full aluminum alloy panel structure with an IP65 waterproof front panel and an aluminum alloy rear cover equipped with heat dissipation holes. It is low power consumption.It is suitable for embedded installation applications and supports various external device connections, making it widely applicable in self-service terminals such as self-ser- vice vending machines, inquiry kiosks, parcel lockers, industrial, and medical self-service terminal fields.
Product Size: 10.1"
Non-touch: TPC101-W200-6412
Capacitive touch: TPC101-W210-6412
Resistive touch: TPC101-W220-6412
Screen Parameters:
LCD size: 10.1" TFT LCD
Resolution: 1280×800(16:10)
Viewing angle: 85/85/85/85 (L/R/U/D)
Color: 16.7M
Brightness: 300 cd/m²
Contrast ratio: 1000:1
Physical Characteristics:
Overall dimensions: W293.6X H193.6X D53.5MM
Size of opening: W276.5 X H176.5MM

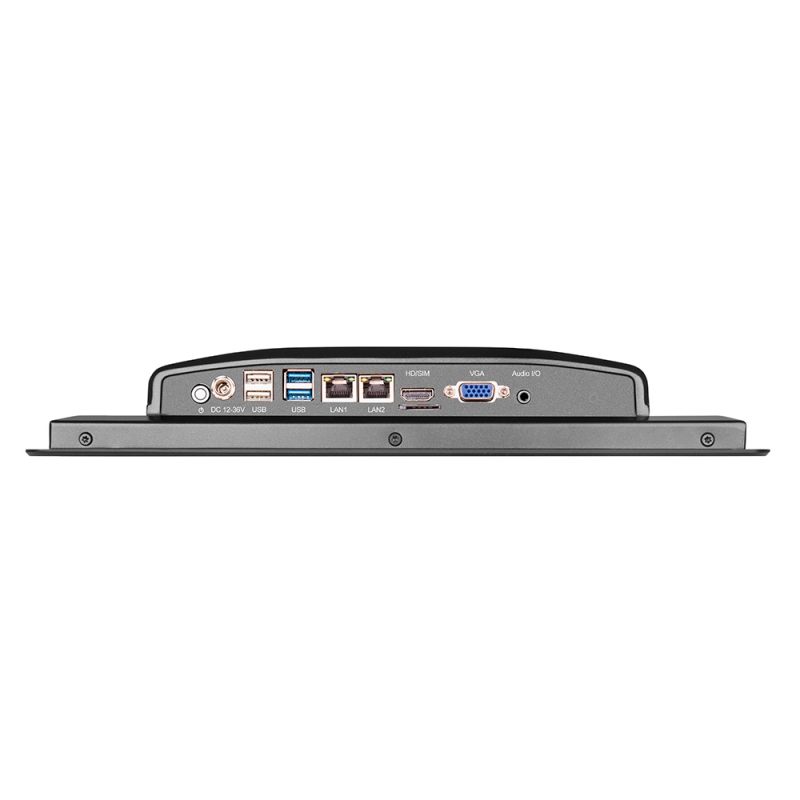

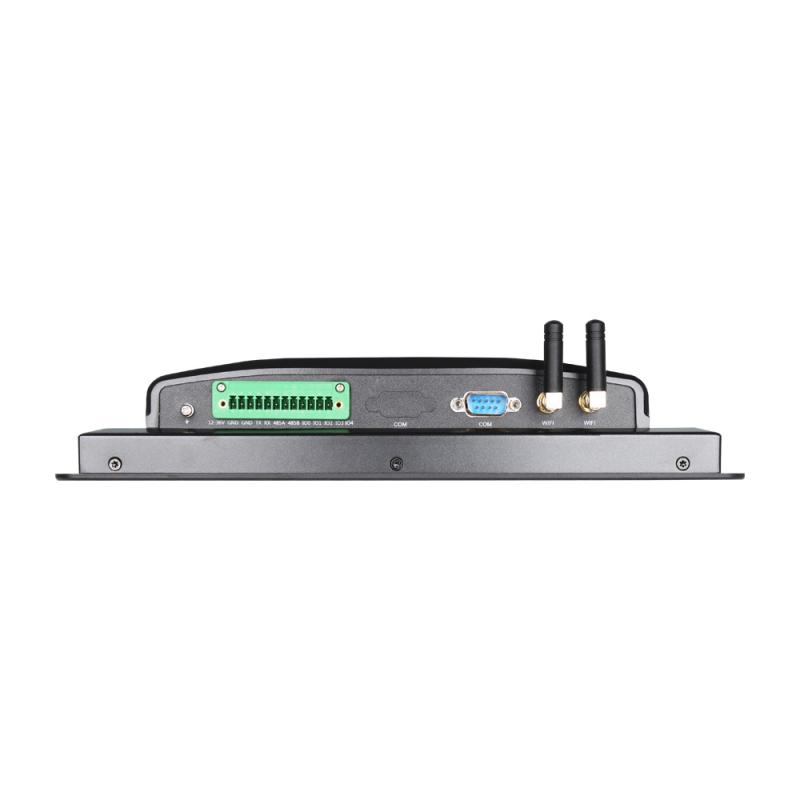

Interface Parameters:
Power interface1: 1*12P Phoenix terminal (Power supply/RS232*1/RS485*1/GPIO*5)
Power interface2: 1*DC2.5, Supporting 12V-36V power input
USB: 2*USB2.0, 2*USB3.0
VGA: 1*VGA
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
Network interface: 2*LAN, 1*Realtek PCI-E NIC RTL8111H (Applicable to 1000Mbps) 1*Realtek PCI-E NIC RT8152B (Applicable to 1000Mbps)
Audio interface: 1*Audio I/O, support audio input and output
COM: 1*RS232
WiFi antenna: 2*WiFi antenna
Grounding post: 1*Grounding post (GND)
Product Reliability: Parameters
Working temperature: -10°C~60°C
Storage temperature: -20°C~70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product certification: CCC/CE/FCC/EMC/CB/ROHS
Waterproof grade: The front panel reaches IP65 protection level
Power Parameters:
Power input: DC 12V~36V
Static power: 18W
Hardware Configuration:
CPU: Intel Celeron J6412 quad-core 2.0GHz CPU
Memory: Standard: 8GB LPDDR4 ( It supports up to 16GB)
Broad pressure: With wide voltage (12V~36V)
Storage: Standard: 256GB SSD (optional 512GB SSD, 1T/2T HDD)
WiFi: Support 2.4GHz/ 5GHz dual-band Wifi
Integrated graphics: Intel UHD Graphics 16 EUs
Bluetooth: BT4.0（Optional）
Operating system: WIN10/11, Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04, Centos7.8/8.4/7.9, Redhat7.4, Debian10.0/11.6
Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:We offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
