Key Advantages
Multiple CPU Options: Three Intel Core i3 generations available
Industrial Protection: IP65 rated aluminum alloy enclosure
Fanless Operation: Proprietary thermal solution for reliable performance
Industrial Connectivity: Dual gigabit Ethernet, 12V-36V wide voltage input
Rich Expansion: Multiple industrial interfaces for peripherals
Specifications
CPU Options: i3-6100U/i3-8145U/i3-10110U
Touchscreen: 10.1" dual-mode capacitive/resistive
Protection: IP65 sealed design
Power Input: 12V-36V wide range
Network: Dual gigabit Ethernet ports
Typical Applications
Industrial automation control systems
Smart warehouse management
Equipment monitoring terminals
Industrial HMI interfaces
Product Description
The overall use of flat aluminum alloy panel, fanless fully enclosed integrated design. Meet the requirements of different equipment in different environments. It is widely used in industrial control, military, communication, power, network, intelligent self-service terminal equipment and other automation applications.
Product Size: 10.1"
Non-touch: TPC101-W1000-I3
Capacitive touch: TPC101-W1010-I3
Resistive touch: TPC101-W1020-I3
Screen Parameters:
LCD Size: 10.1" TFT LCD
Resolution: 1280×800
Viewing Angle: 85/85/85/85 (L/R/U/D)
Colour: 16.7M
Brightness: 300 cd/m2
Contrast ratio: 1000:1
Physical Characteristics:
Overall dimensions: W293.6x H193.6x D58mm
Size of opening: W276.5x H176.5mm

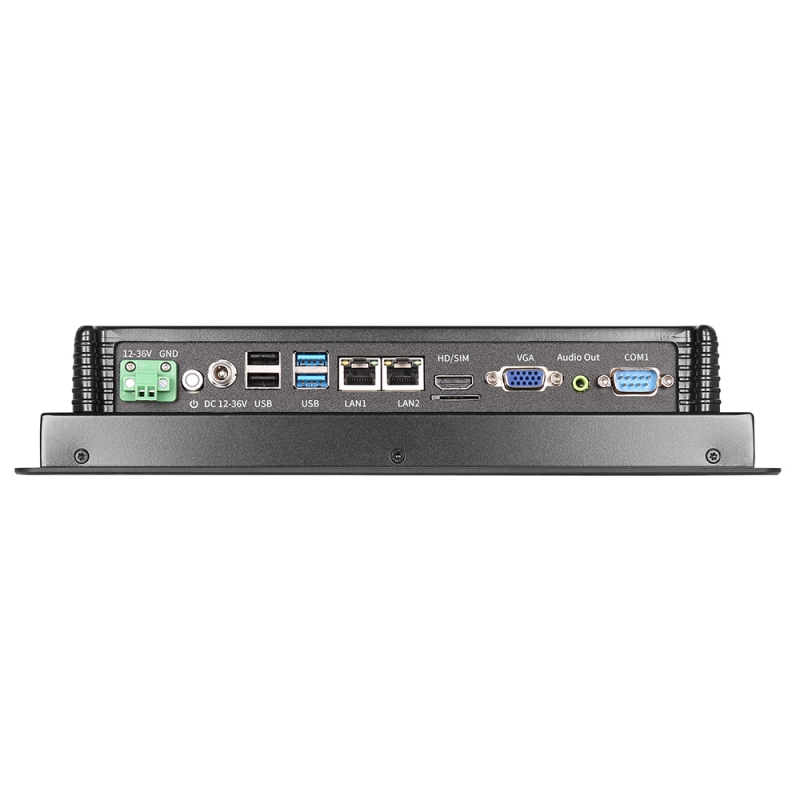

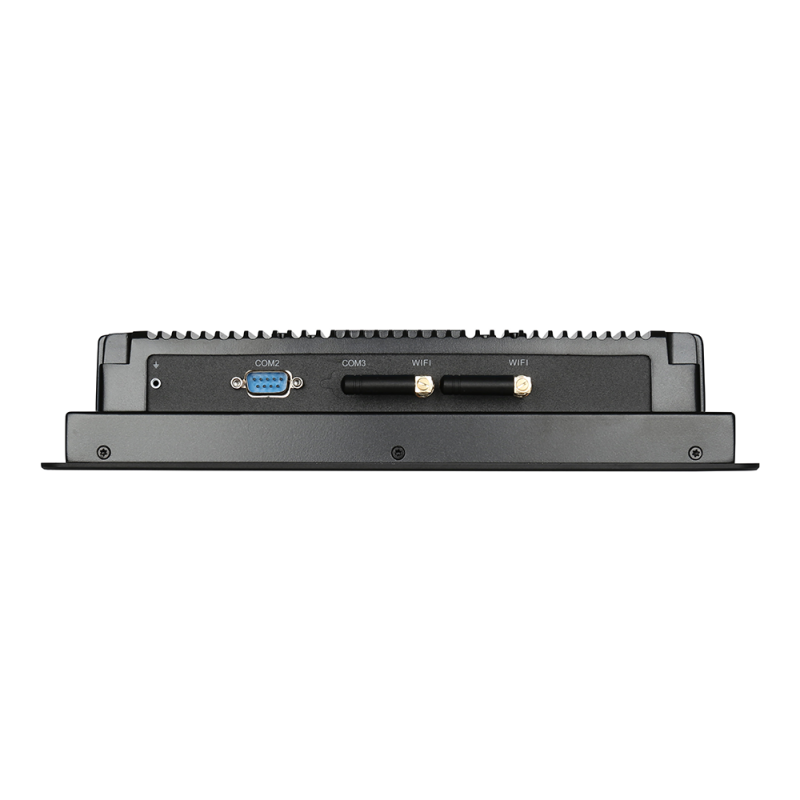

Interface:
Power interface1: 1*DC 2.5, Supporting 12V-36V power input
Power interface2: 1*Industrial terminal, Supporting 12V-36V power input
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
USB: 2*USB 2.0 2*USB 3.0
LAN: 2*LAN, Dual 1000M adaptive Ethernet
AUDIO: 1*Audio Out, Support audio output
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
VGA: 1*VGA
COM: 2*RS232
WiFi antenna: 2*WiFi antenna
POWER: Support (1*POWER)
Grounding post: 1*Grounding post (GND)
Product Reliability:
Working Temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, half sine wave, duration 11ms
Authentication: CCC/CE/FCC/EMC/CB/ROHS
Waterproof: Front panel reaches IP65 protection level
Hardware Configuration:
CPU: I3-6100U / I3-8145U / I3-10110U
CPU frequency: 2.3GHz / 2.1GHz / 2.1GHz
Integrated graphics: Inte HD Graphic 520 / Inte HD Graphic 620 / Intel UHD Graphic 620
RAM: 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 8G DDR4(Optional 16G/32G/64G)
Storage: 128G SSD(256G/512G SSD, 1T/2T HDD Optional)
WiFi: Dual band 2.4G&5G
Bluetooth: BT4.0(Optional)
Operating system: Win7/10/11, Ubuntu/Centos/Redhat/Debian/Linux
Other support: Support RTC real-time clock and timing switch
Power parameters:
Input voltage: DC 12V~36V
Static Power: 18W
