Product Description
Industrial mini pc applications: Logistics, manufacturing, automation, transportation, and healthcare

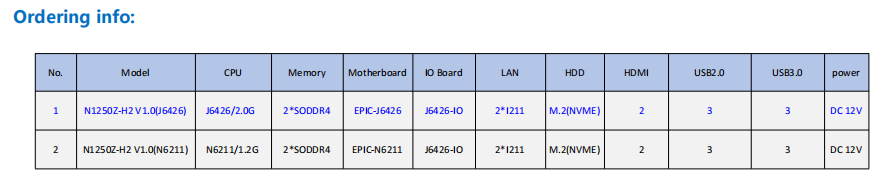

Model No.: N1250Z-H2 V0.1(J6426)
Chassis:
Structure: Fanless aluminum alloy structure, all aluminum alloy
Color: Iron gray
Dimension: 156 x 129 x 51.2MM
Weight (net weight）: 0.85KG
Installation: Desktop/VESA (75 x 75)
Motherboard:
Industrial mini pc CPU: Integrated Intel® Pentuim J6426 2.0~3.0GHz 4-Core/ 4-threads processor; TDP 10W
Integrated Intel® Celeron N6211 1.2~3.0GHz 2-Core/ 2-threads processor; TDP 6.5W (option)
Display: Integrated Intel® UHD Graphics
Memory: 2x DDR4 SODIMM，support 3200MHz memory，up to 32GB
Front I/O interface:
POWER: 1x power switch, 1x reset switch, 1x ACLOSS (power on DIP switch)
LED: 1x power indicator light, 1x hard disk indicator light
USB: 2x USB2.0
Console: 1x Console serial port
Rear I/O interface:
Display interface: 2x HDMI2.0 (4096x2160@60Hz), support dual 4K
LAN: 2x Intel I211 Gigabit Ethernet, supports network wake-up and PXE functions
USB: 1x USB2.0, 3x USB3.0
Audio: 1x Audio, Line out and MIC two-in-one
Power: 1x DC 12V power input
Storage: M.2: 1x M.2, supports Key-B, 2280, NVME PCIEx2 SSD
Expansion:
Mini PCIE: 1x Mini-PCIE, supports WiFi or 4G
M.2: 1x M.2, supports Key-E, 2230, WiFi module
OS support:
Windows: Yes
Linux: Yes
Watch Dog: Support hardware reset function (level 256, 0~255 seconds)
Power Requirement:
Power Type: External power adapter
Voltage Input: DC 12V
Power output: AC To DC (depending on the specific device)
Environment:
Working Temp.: -10℃～50℃
Storage Temp. :-20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
