Overview
This high-efficiency NAS motherboard features the Intel® Celeron J6412 Quad-Core processor (2.0GHz, burst up to 2.6GHz), delivering optimal performance for network-attached storage solutions with low power consumption and robust connectivity.
Key NAS Features:
●Dual-channel memory: 2× DDR4 3200MHz SODIMM slots (up to 16GB)
●High-speed storage expansion:
6× SATA3.0 ports (support RAID 0/1/5/10)
1× M.2 SSD slot (PCIe 3.0 x4)
●Network connectivity:
2× Gigabit Ethernet ports (ideal for link aggregation)
●Flexible expansion:
1× PCIe 3.0 x4 slot (for 10GbE/NVMe expansion cards)
1× M.2 Key E slot (WiFi/Bluetooth modules)
●Multiple display outputs:
1× DisplayPort + 1× HDMI 1.4 (for monitoring/management)
●Industrial reliability:
ATX 20+8pin power input
0℃~60℃ operating temperature
Ideal for:
Home & SMB NAS appliances
Media storage servers
Surveillance NVR systems
Private cloud storage solutions

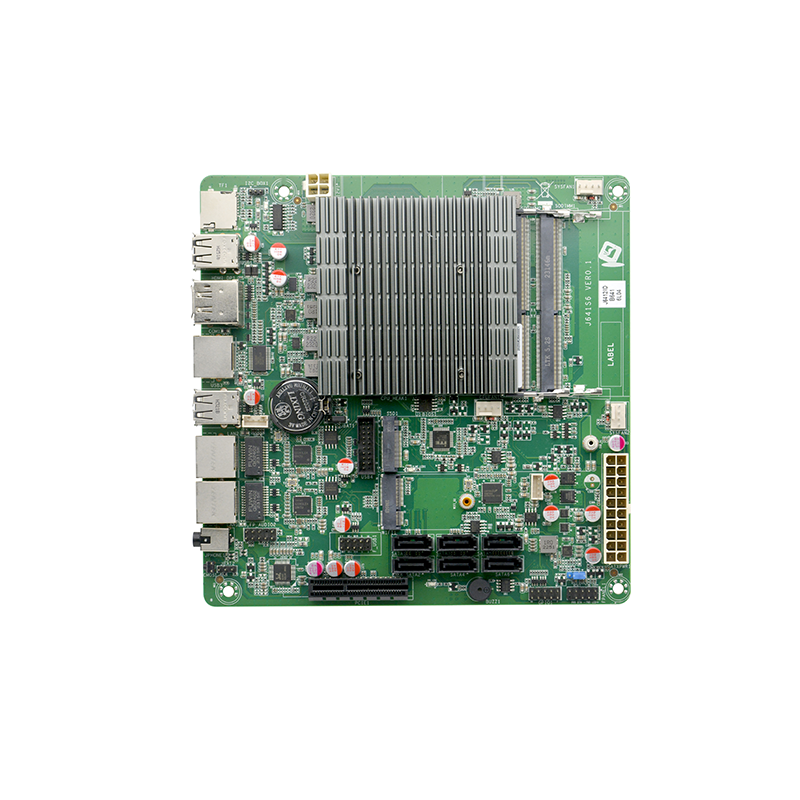

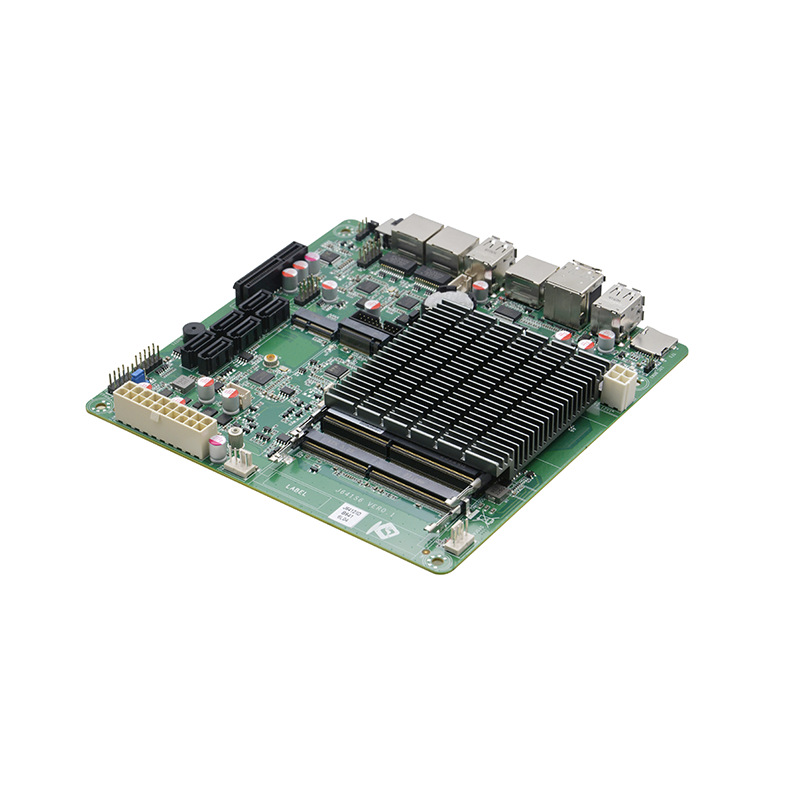

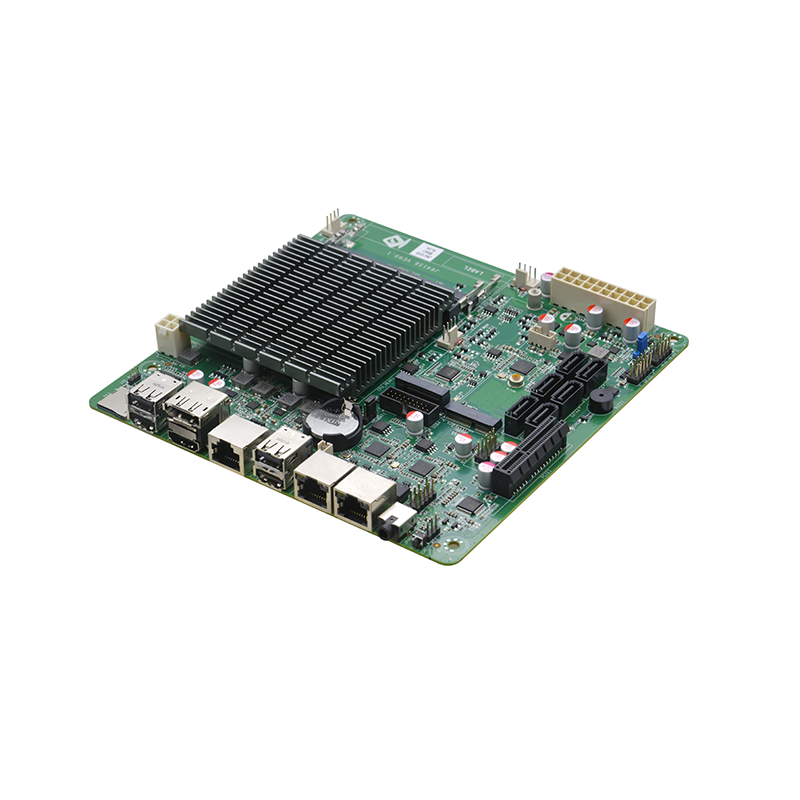

Detail Display
Product Description
Model No.: J641S6 VER:0.1
Processor: Integrated Intel®Celeron J6412 2.0GHz quad-core quad-thread processor , TDP 10W
It is compatible with the full range of Intel® Elkhart Lake CPUs, providing customers with flexible choices
Chipset: SOC
Memory: 2x SODIMM slot, supports dual-channel 3200MHz DDR4 memory up to 16GB
Display: Integrated Intel®HD Graphics GPU,supports DirectX12.1,OpenGL4.5,support 4K
1x DP interface, support the highest resolution is 1920X1200@60Hz
1x HDMI1.4 interface, support the highest resolution is 4096x2304 @24Hz
Network: 2x Intel ®I226V Gigabit Ethernet,supports Wake-on-LAN/PXE function
Storage: 6x SATA3.0 hard disk interface, transmission speed up to 6Gbps
1x M.2 slot, supports M.2 2280 PCIE X1 standard SSD
Audio: Onboard ALC897 7.1+2-channel high-fidelity audio controller, supports MIC/Line-out
Expansion slots:
1x PCIE3.0 X4 slot
1x M.2 slot, supports M.2 2230 Key E WIFI module

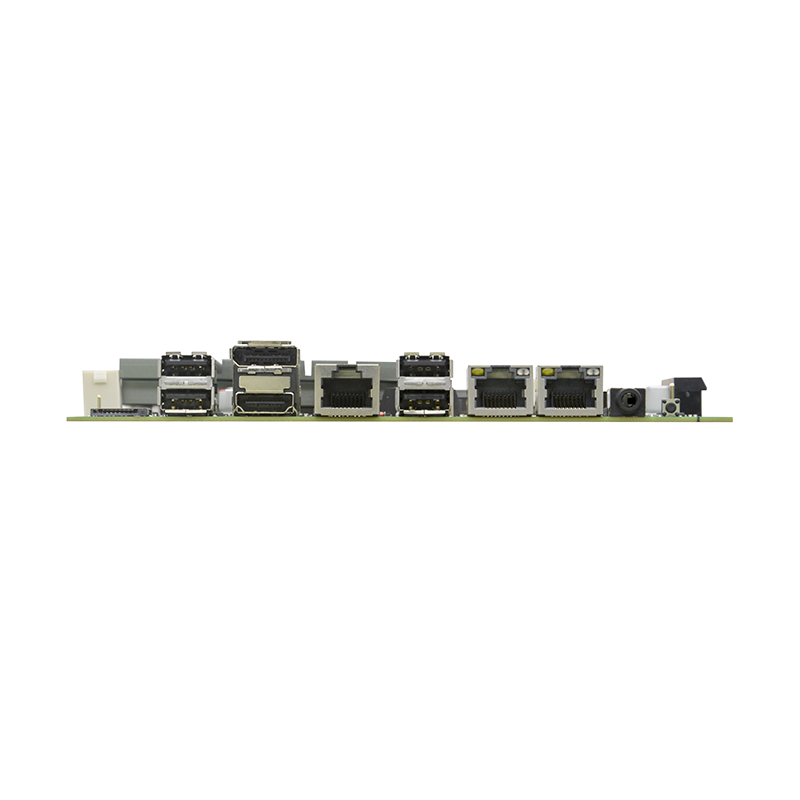

Backplane I/O interface:
1x TF card slot
4x USB2.0 interface
1x DP interface
1x HDMI interface
1x RJ45 serial port
2x RJ45 Gigabit network interface
1x Line-out/MICK two-in-one audio interface
1x Clear CMOS button
Built in I/O interface:
2x USB3.0 interface 2x 10pin
2x USB2.0 interface 2x 5pin
1x UART serial port 1x 4pin
1x Front audio interface 2x 5pin
1x Network indicator light interface 1x 4pin
1x Front panel function button and indicator light interface 2x 5pin
1x 4pin ATX power interface
1x 20pin ATX power interface
Fan: 1x 4pin CPU fan interface; 2x 4pin system fan interface
GPIO: Supports four-in and four-out GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (level 256, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Power supply: Powered by ATX 20Pin and 8pin power supply
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)

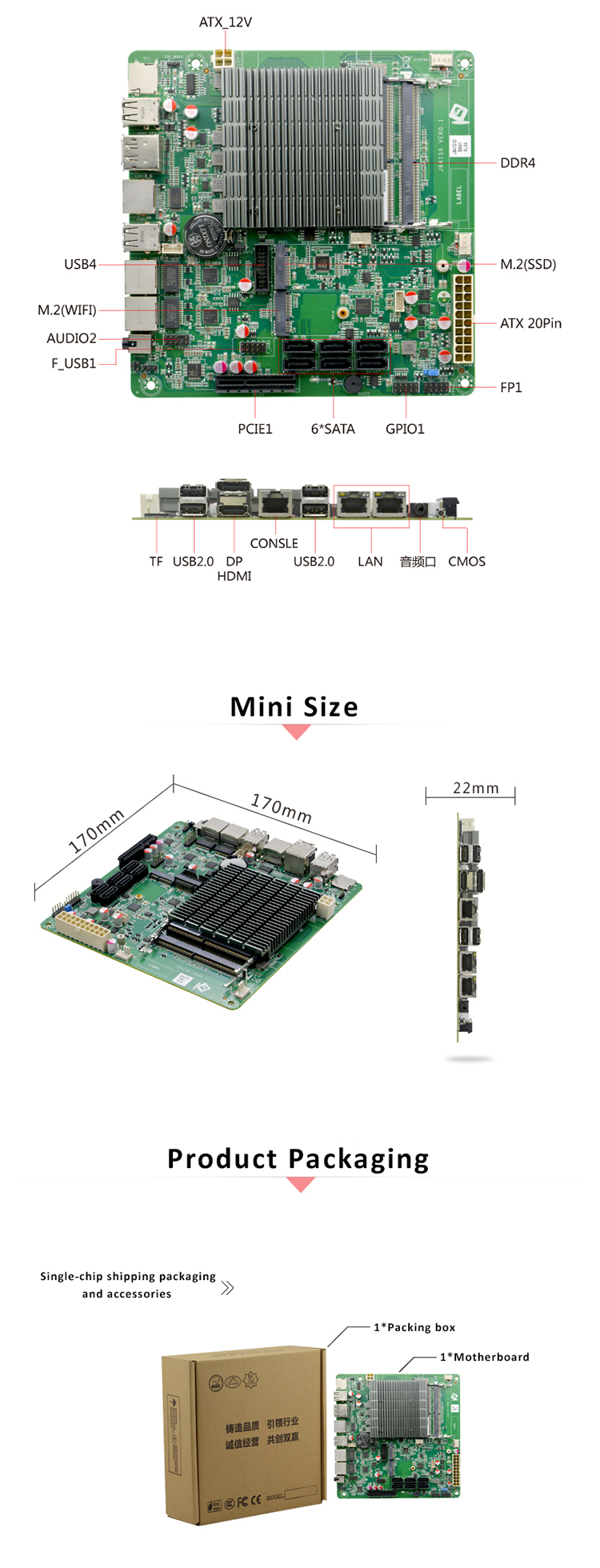

Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
