Overview
This enterprise-grade NAS motherboard is built on the Intel H270 Express chipset with LGA1151 socket, supporting 6th-9th Gen Intel® Core™ processors (up to i9-9900K), delivering exceptional storage performance and expandability for professional network-attached storage solutions.
Key NAS Features:
●Dual-channel high-speed memory: 2× DDR4 2400MHz DIMM (up to 64GB)
●Advanced storage architecture:
6× SATA3.0 ports (support hardware RAID 0/1/5/10)
2× M.2 NVMe slots (PCIe 3.0 x4, up to 32Gbps each)
●High-bandwidth networking:
●Flexible expansion:
1× PCIe 3.0 x16 slot (for SAS/HBA/10GbE cards)
1× TF card slot (for OS boot)
●Professional management:
Console port for headless operation
Watchdog Timer (1-255s programmable)
●Robust power design:
ATX 20+8pin power input
Supports 95W TDP processors
Optimized for:
Enterprise NAS appliances (50+ bay)
ZFS storage servers
4K video editing shared storage
Virtualization datastores (VMware vSAN)
Detail Display
Product Description

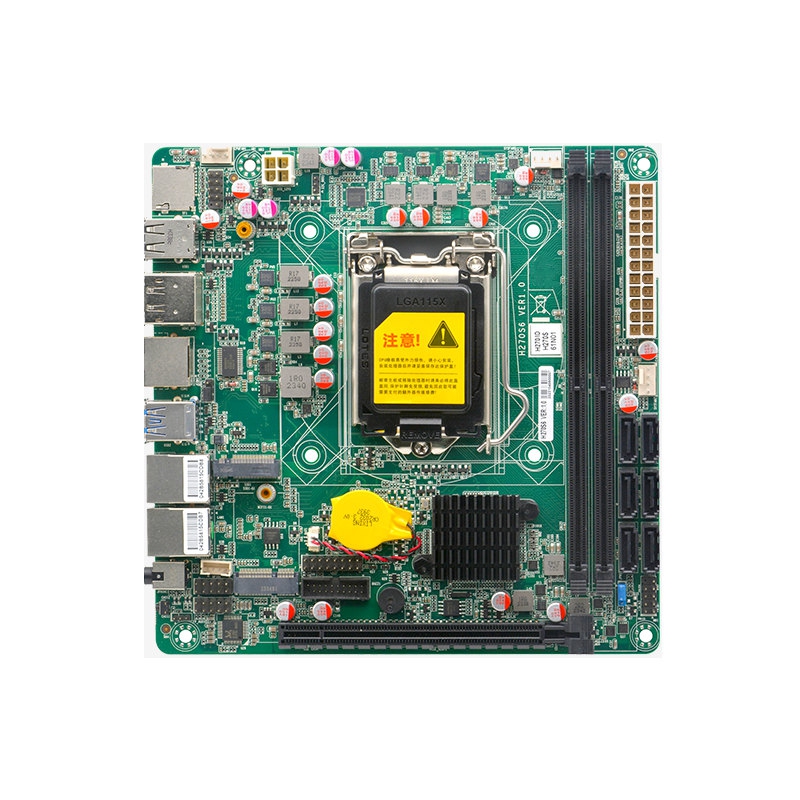

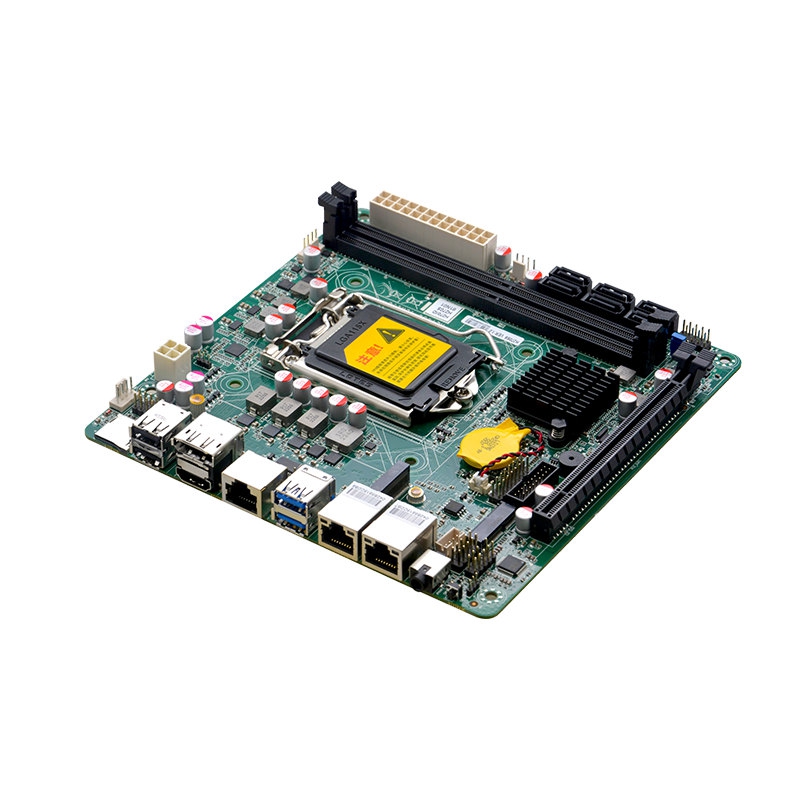

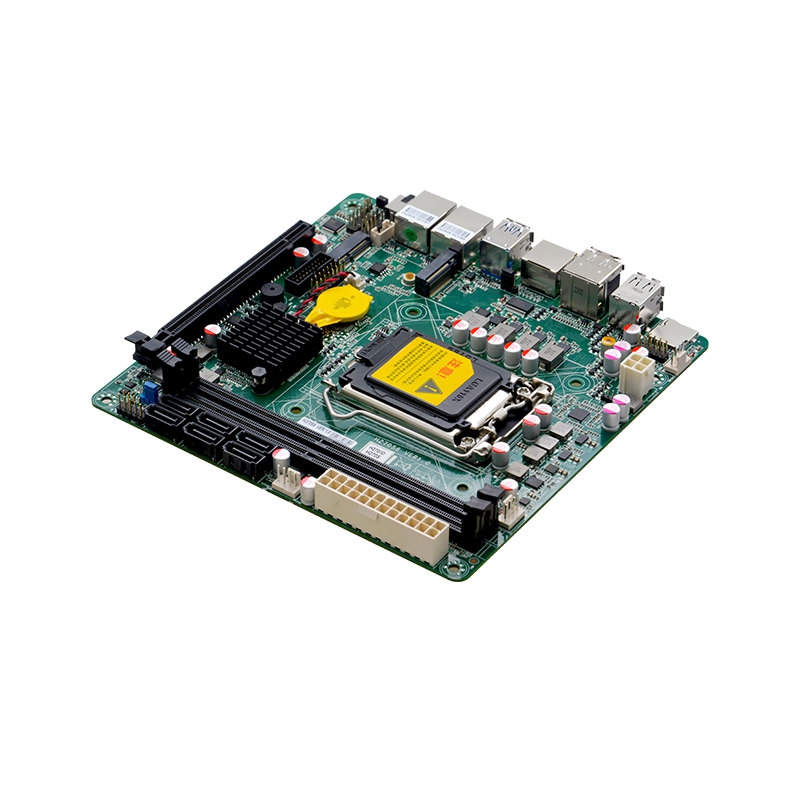

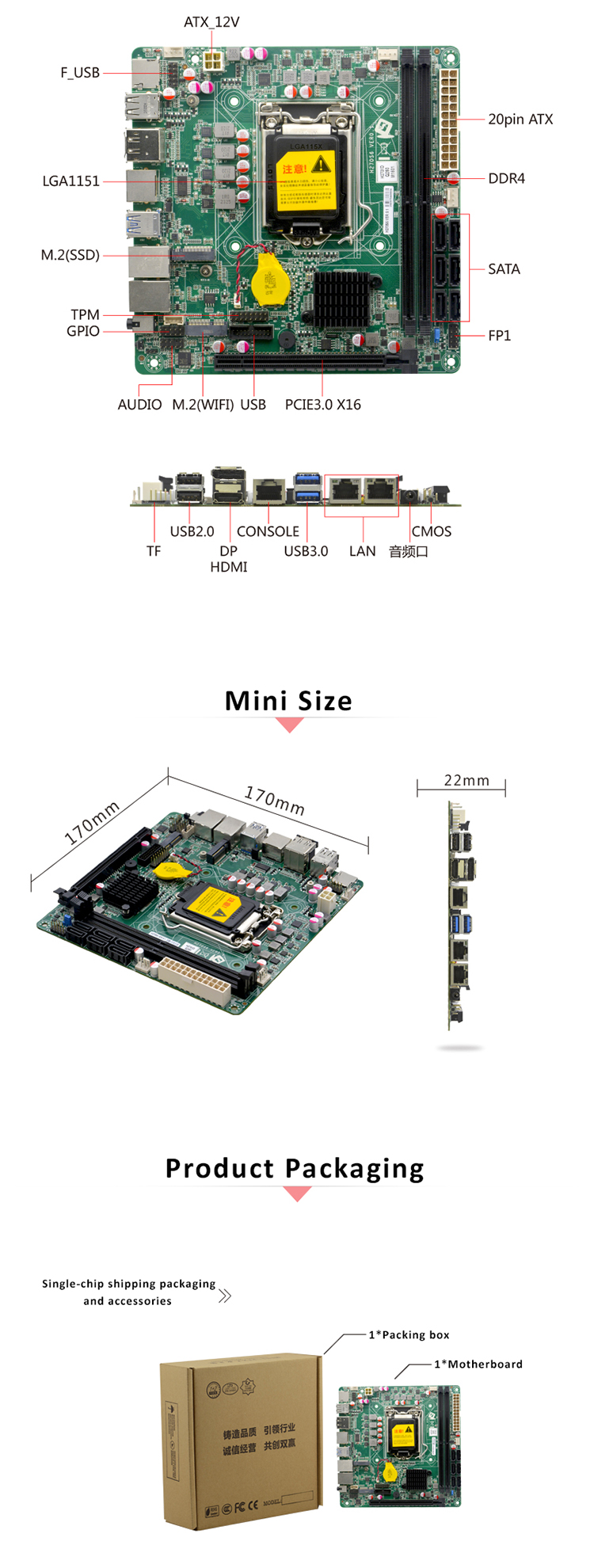

Model No.: H270S6 VER:1.0
Processor: Supports LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note:Supports 6/7gen 95W，The 8th/9th generation only supports: 6-core 65W and below CPUs
Chipset: Using Intel® H270 chipset
Memory: 2x DDR4 DIMM memory slot, supports dual channels,up to 2400MHz memory,up to 64GB
Display: Integrated Intel®HD Graphics ,support DirectX12.1,OpenGL4.5,supports 4K
1x DP,the maximum resolution supported is 4096x2304@60Hz
1x HDMI1.4,the maximum resolution supported is4096x2304 @24Hz
Ethernet: 2x Intel ®I226V Gigabit network card chip, supports wake-on-LAN/PXE function
Storage: 6x SATA3.0 hard disk interface, transmission speed up to 6Gbps, supports RAID 0,1,5,10
1x M.2 slot, supports M.2 2280 NVME PCIE X4 standard SSD
1x M.2 slot, supports M.2 Key E 2230 WIFI module
Audio: Onboard ALC888S 7.1+2-channel high-fidelity audio controller, supports MIC/Line-out
Expansion Slot: 1x PCIE3.0 X16

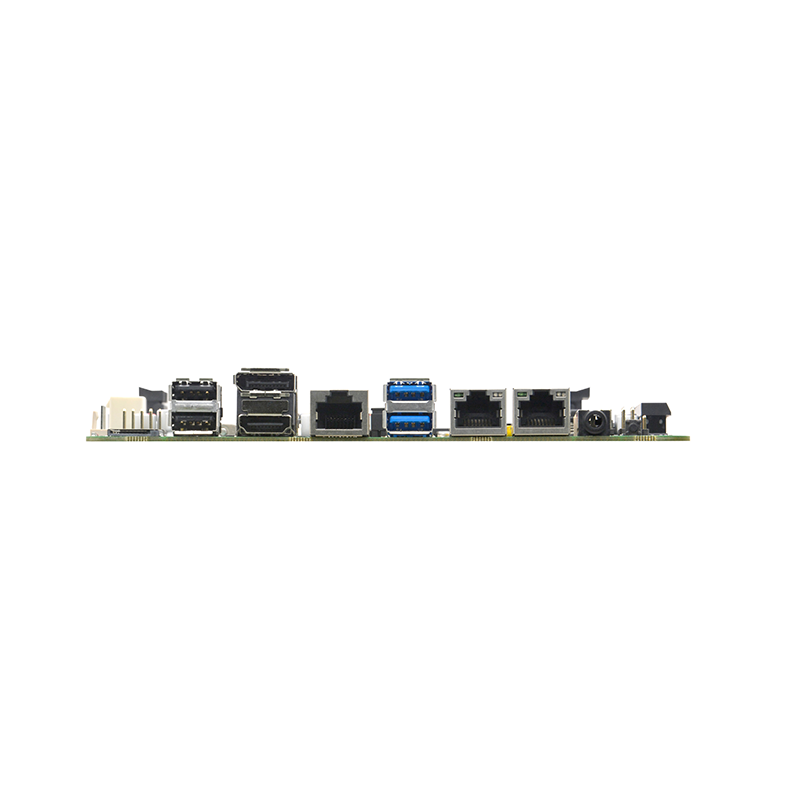

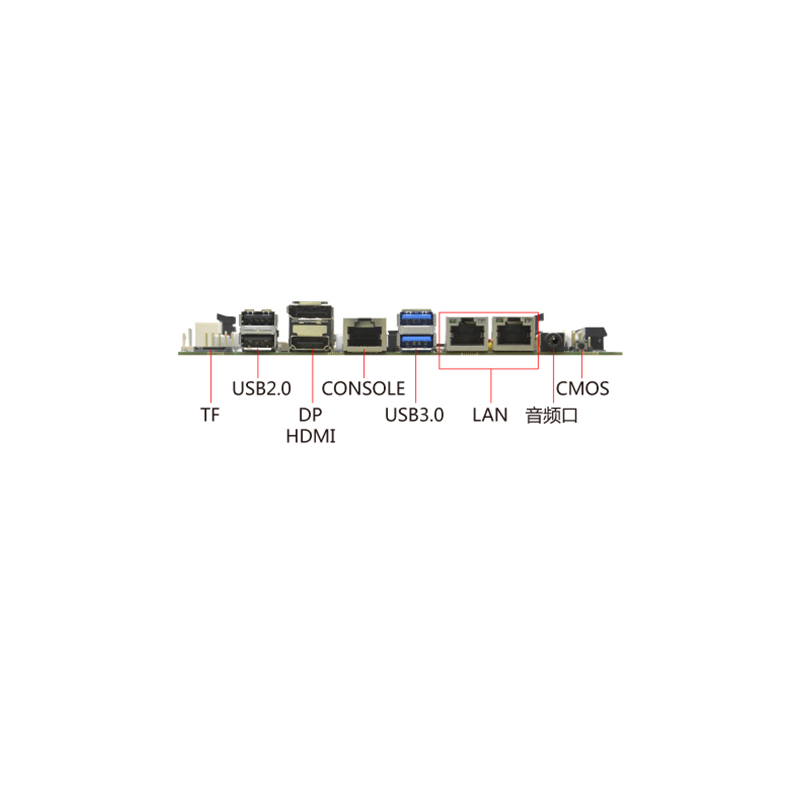

Rear I /O interface:
1x TF card slot
2x USB2.0
1x DP
1x HDMI
1x RJ45
2x USB3.0
2x RJ45 Gigabit network interface
1x Line-out/MICK 2-in-1 audio interface
1x Reset button (CMOS)

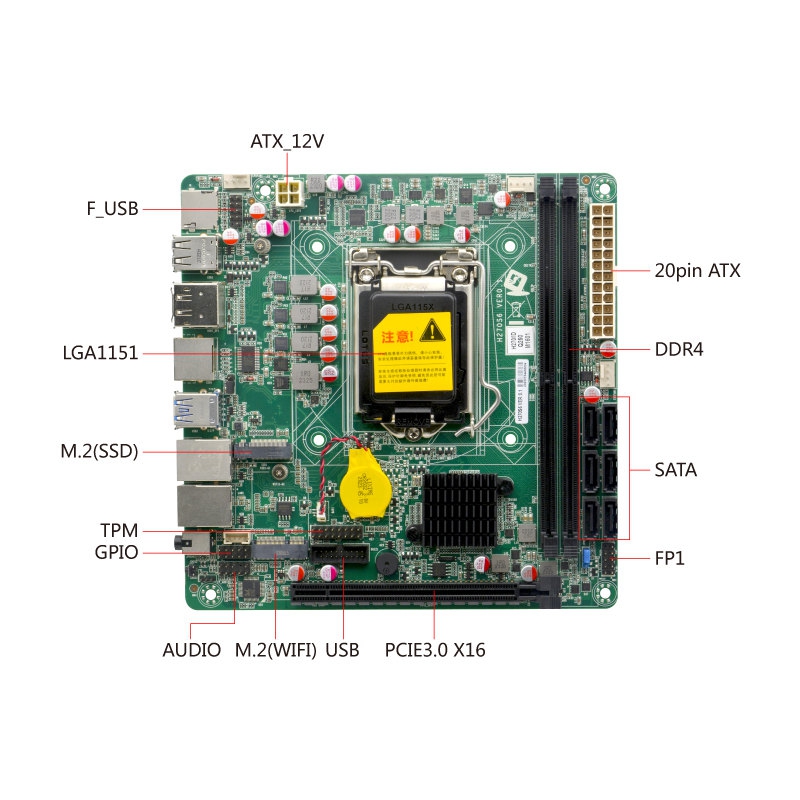

Built in I/O interface:
2x USB3.0, 2*10pin
2x USB2.0, 2*5pin
1x Front audio interface, 2*5pin
1x Network indicator light interface, 1*4pin
1x Front panel function button and indicator light interface,2*5pin
1x 8pin ATX power supply interface
1x 20pin ATX power supply interface
Fan Connector: 1x 4pin CPU fan connector;2x 4pin system fan connector
GPIO: Supports four-in and four-out GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Power Type: Adapt ATX 20Pin and 8pin power supply
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

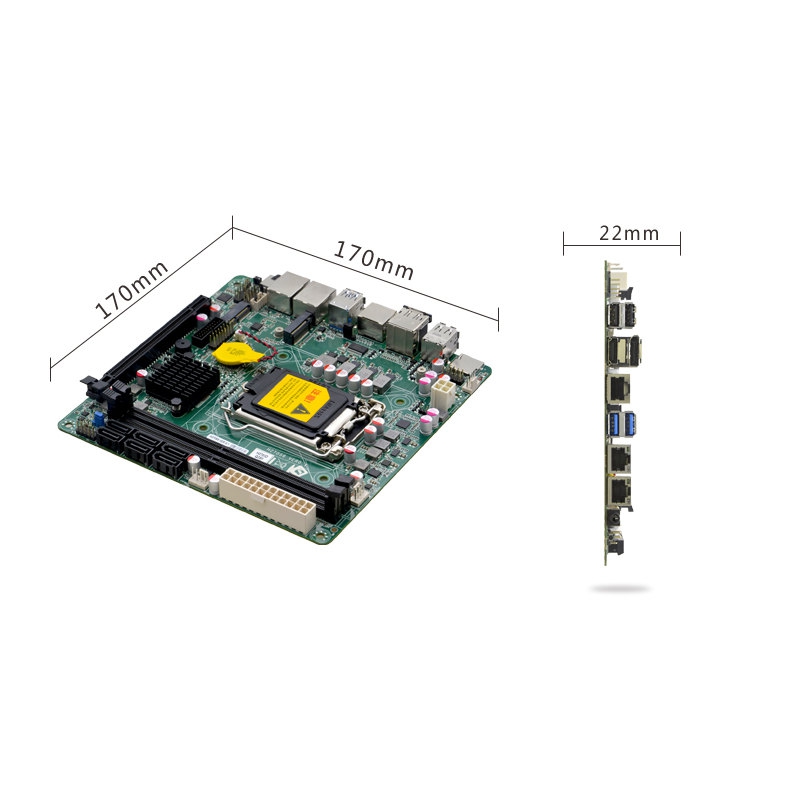

Dimension: 170mm x 170mm
