This energy-efficient NAS motherboard features the Intel® Celeron N5095A Quad-Core processor (2.0GHz, burst up to 2.9GHz) with Intel® UHD Graphics, delivering optimal storage performance in a compact form factor ideal for home and SMB network-attached storage solutions.
Key NAS Features:
●High-speed memory: 2× DDR4 2933MHz SODIMM slots (up to 16GB)
●Ample storage connectivity:
6× SATA3.0 ports (support RAID 0/1/5/10)
1× M.2 slot (PCIe 3.0 x2 for SSD cache)
●Dual-network reliability: 2× Gigabit Ethernet ports
●Flexible expansion:
1× PCIe 3.0 x4 slot (for 10GbE/SAS expansion)
●4K-ready display outputs: DisplayPort + HDMI 1.4
●Industrial durability:
Watchdog Timer (1-255s programmable)
ATX 20+8pin power input
Optimized for:
Small business backup servers
Surveillance NVR systems (up to 16 cameras)
Lightweight private cloud storage

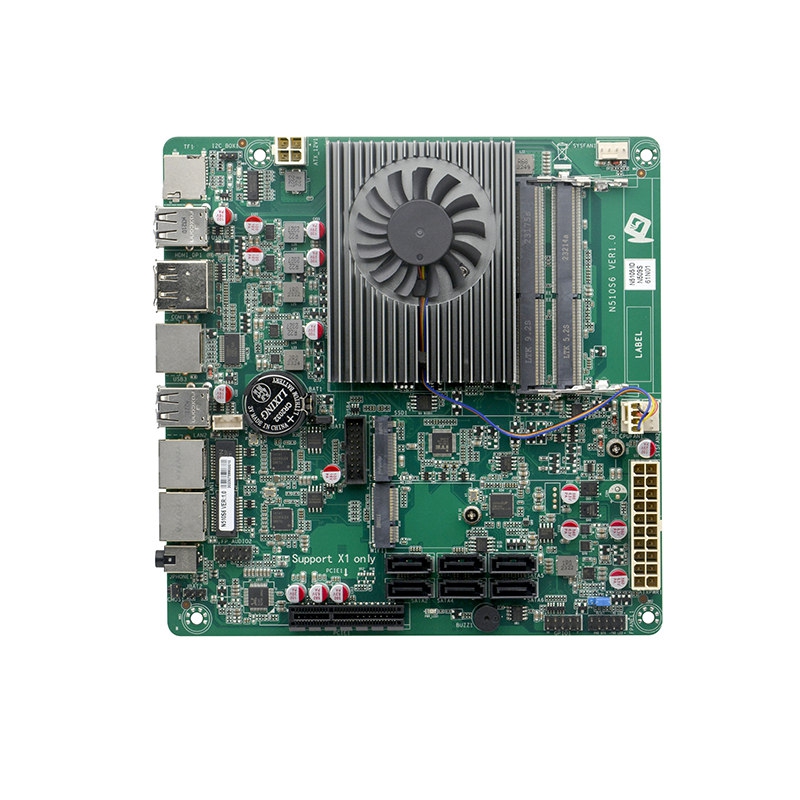

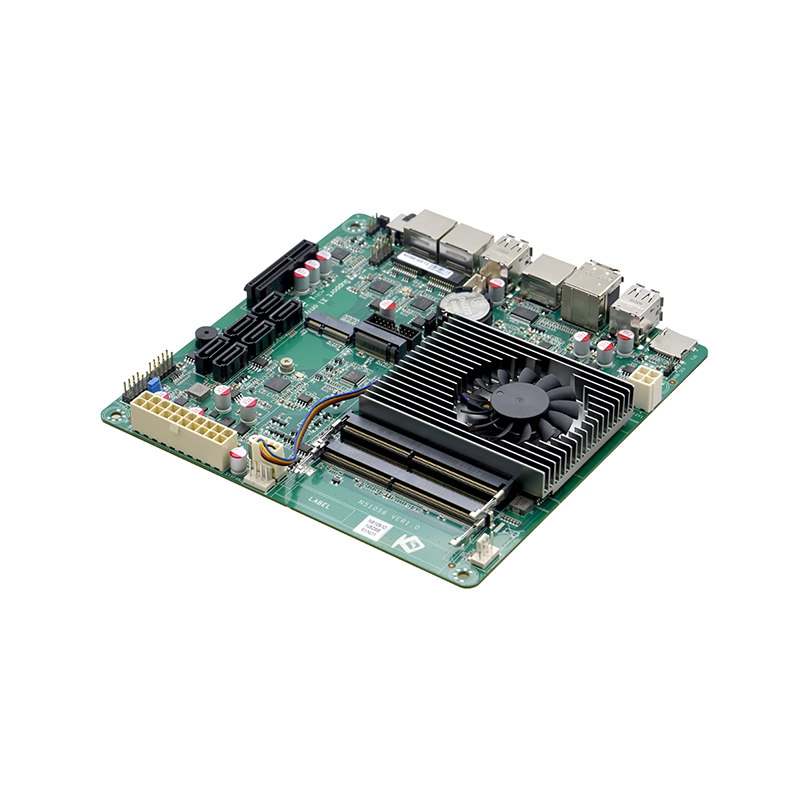

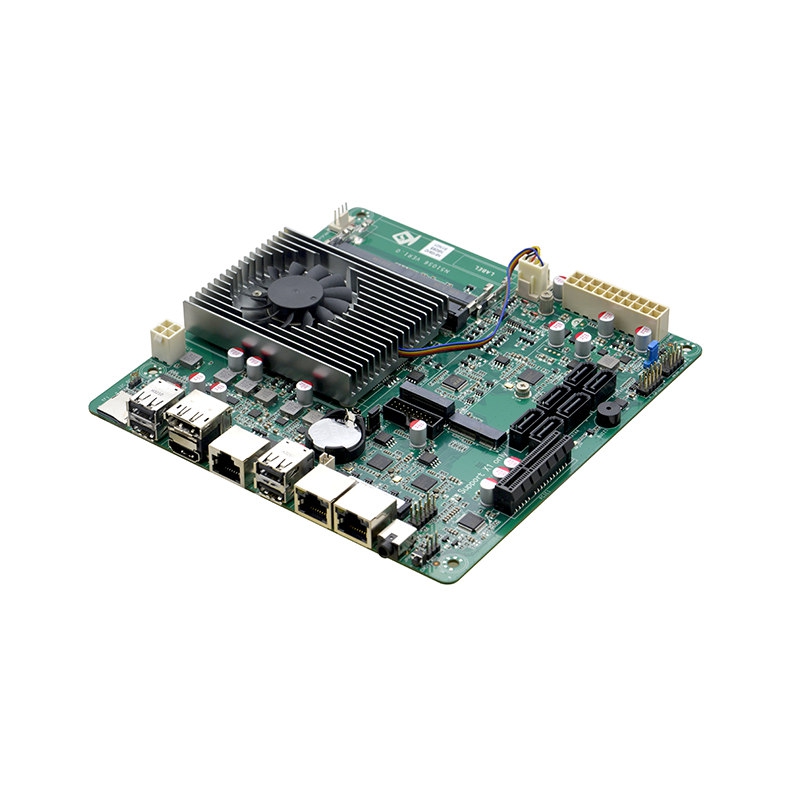

Detail Display

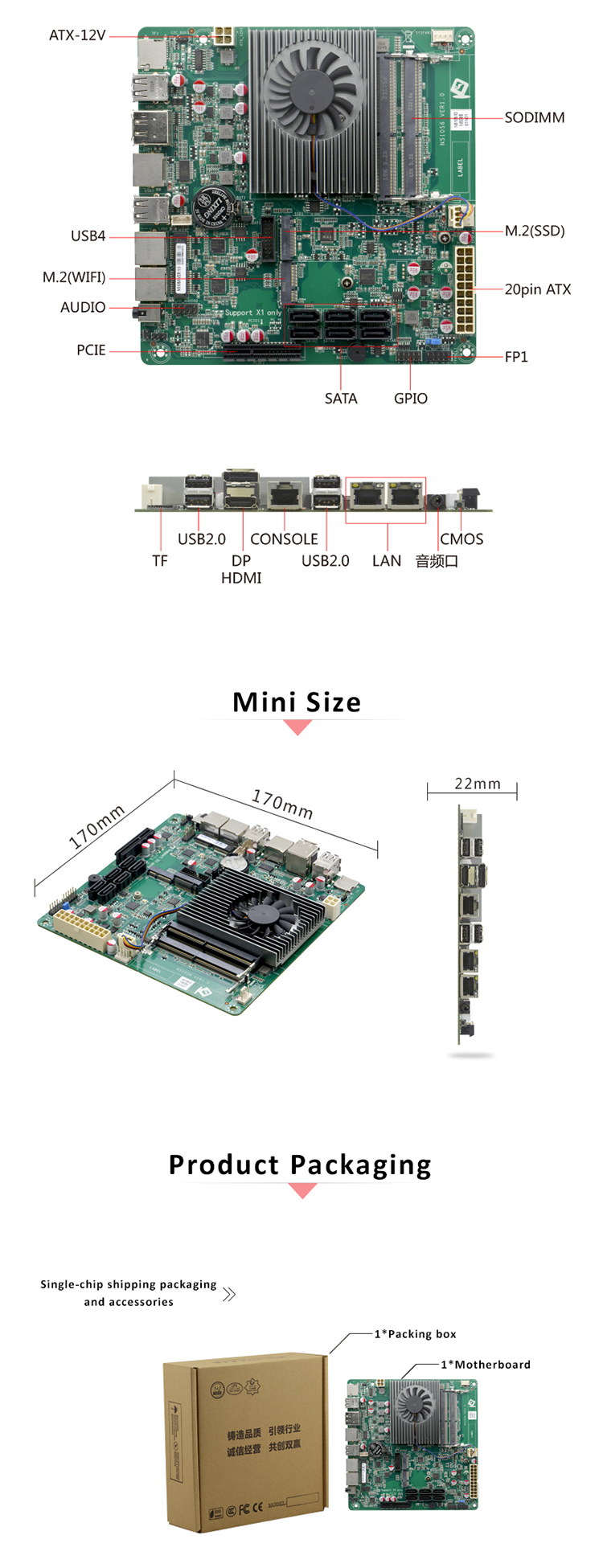

Product Description
Model No.: N510S6 VER:1.0
Processor: Integrated Intel®Celeron N5105 2.0GHz quad-core quad-thread processor,TDP 10W
Compatible with Intel® Jasper Lake all series CPU
Chipset: SOC
Memory: 2x SODIMM memory slot, supports signal channel 2933MHz DDR4 memory, up to 16GB
Display: Integrated Intel®HD Graphics, supports DirectX12.1,OpenGL4.5, supports 4K
1x DP, the maximum resolution supported is: 1920X1200@60Hz
1x HDMI1.4, the maximum resolution supported is: 4096x2304 @24Hz
Ethernet: 2x Intel ®I226V Gigabit Ethernet chip, supports Wake on LAN/PXE function
Storage: 6x SATA3.0, the transfer rate is up to 6Gbps
1x M.2 slot, support M.2 2280 PCIE X12 standard SSD
Audio: Onboard ALC897 7.1+2 channel high fidelity audio controller, support MIC/Line-out
Expansion Slot:
1x PCIE3.0 X4 slot (X1 signal, choose one from WIFI）
1x M.2 slot, support M.2 2230 Key E WIFI module

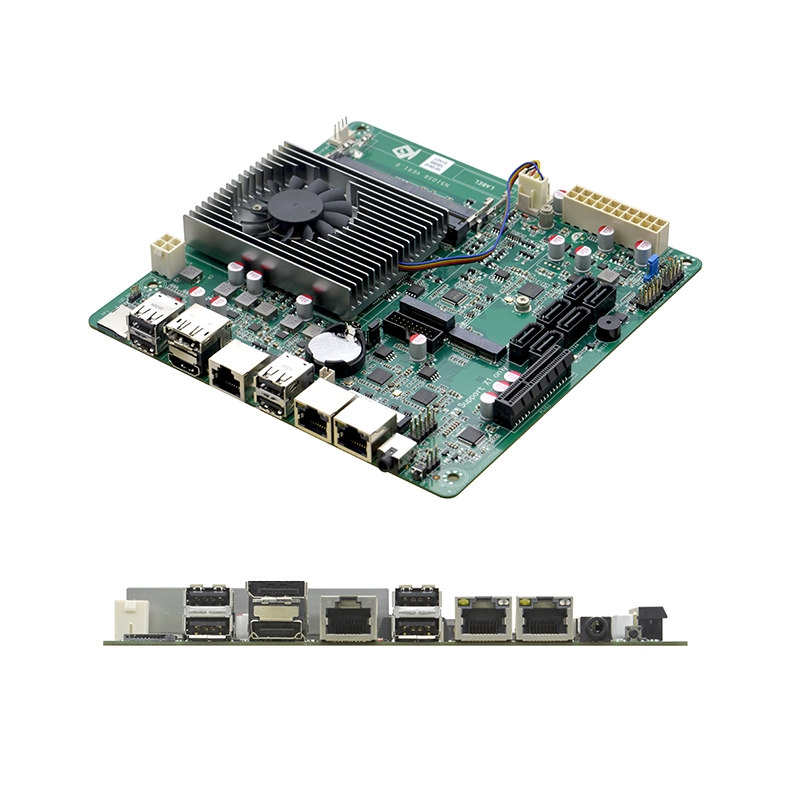

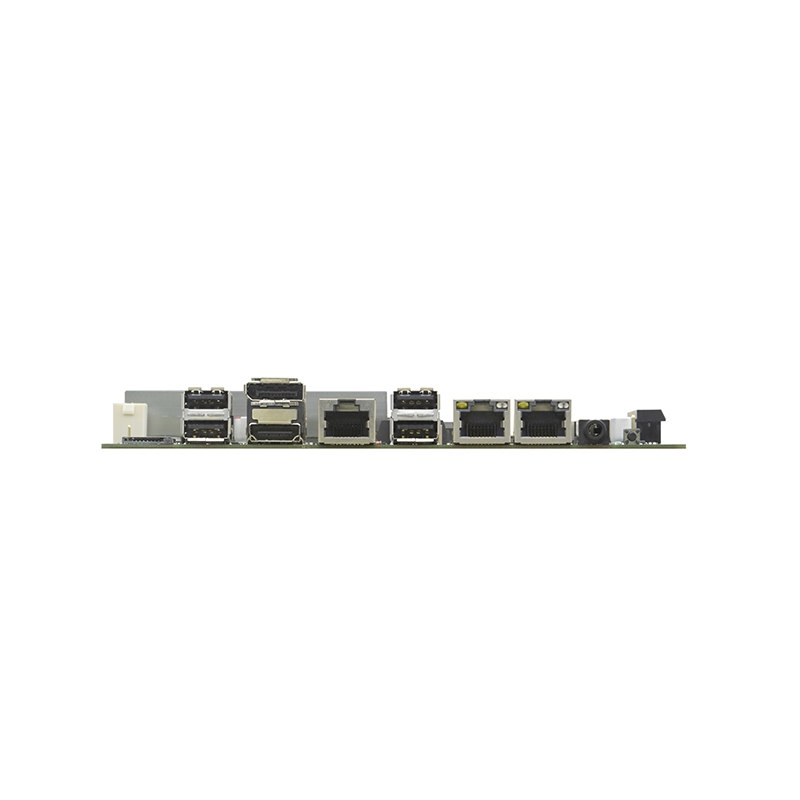

Rear I /O interface:
1x TF card slot
4x USB2.0
1x DP
1x HDMI
1x RJ45 COM
2x RJ45 Gigabit Network Interface
1x Line-out/MICK 2-in-1 audio interface
1x Reset button (CMOS)
Built in I/O interface:
2x USB3.0, 2x 10pin
1x UART serial port, 1x 4pin
1x Front audio interface, 2x 5pin
1x Network indicator light interface, 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
1x 4pin ATX power supply interface
1x 20pin ATX power supply interface
Fan Connector: 1x 4pin CPU fan connector , 2x 4pin system fan connector
GPIO: Supports four-in and four-out GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Power Type: Adapt ATX 20Pin and 8pin power supply
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm x 170mm
