Key Features:
●Compact Nano ITX form factor (120×120mm), ideal for space-constrained embedded systems.
●High-speed connectivity: 2× 2.5G Gigabit Ethernet (RTL8125) with Wake-on-LAN & PXE support.
●Expandable storage: 1× SATA3.0, 1× M.2 SSD, and 1× M.2 Wi-Fi slot.
●Rich I/O: 6× USB, 2× COM (RS232), GPIO, TPM, and Watchdog Timer for reliability.
●Low-power 12V DC input, optimized for fanless designs and industrial applications.
Ideal for: Industrial PCs, digital signage, thin clients, network appliances, and compact edge computing solutions.
Detail Display
Product Description

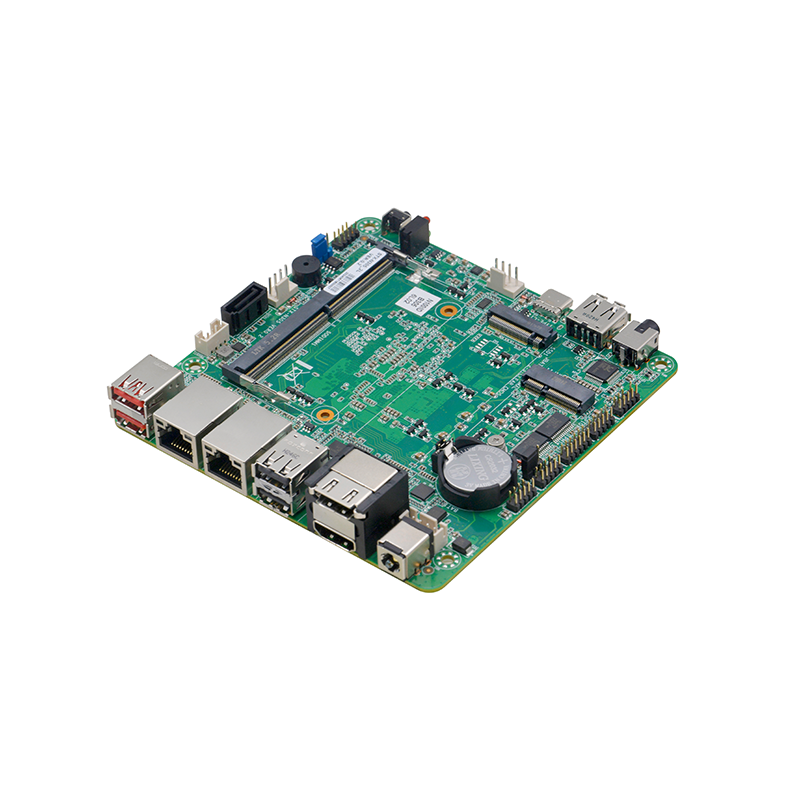

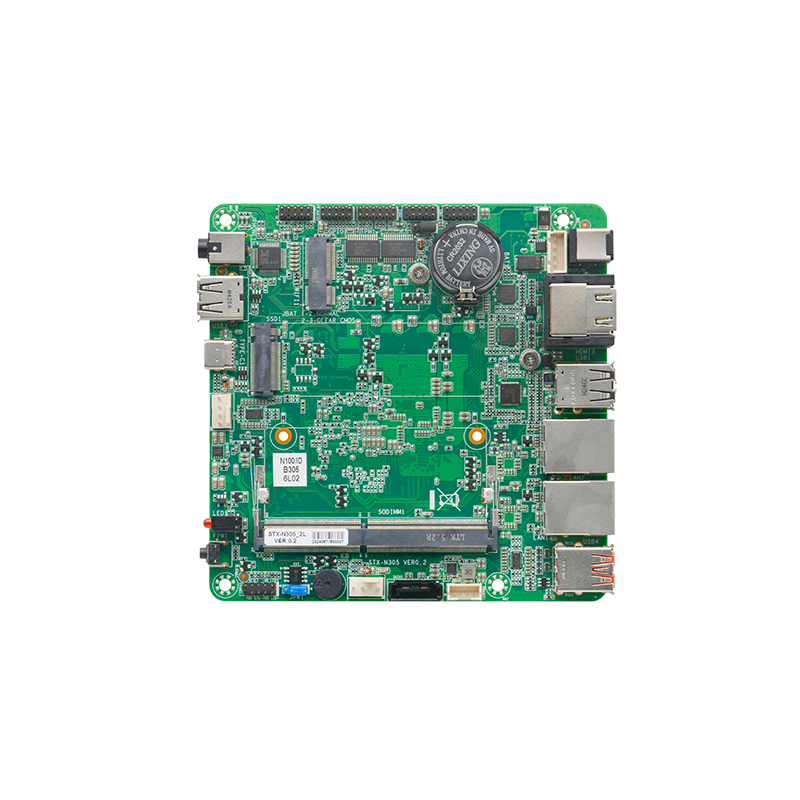

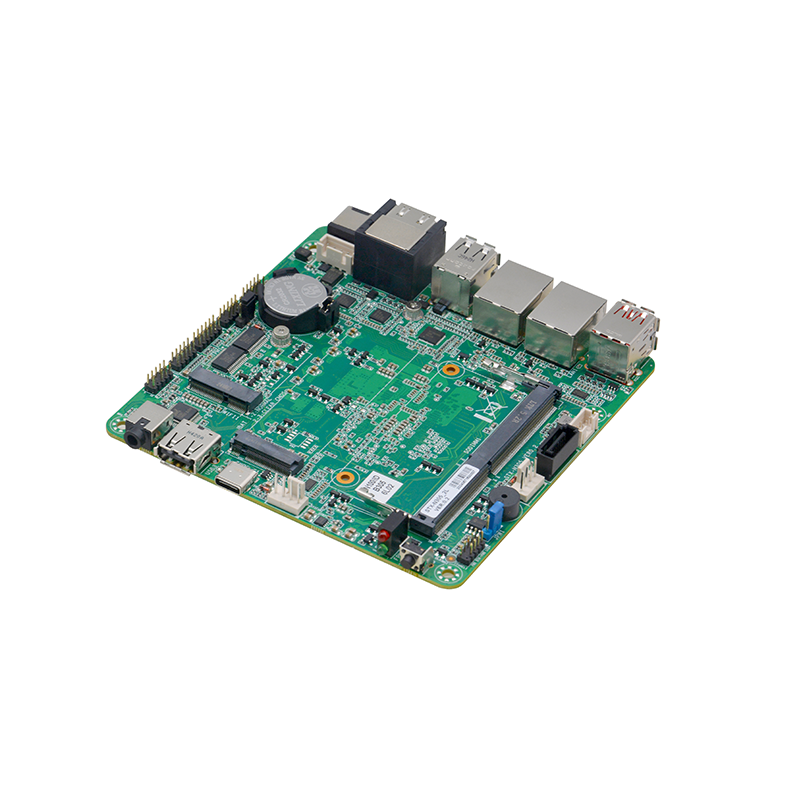

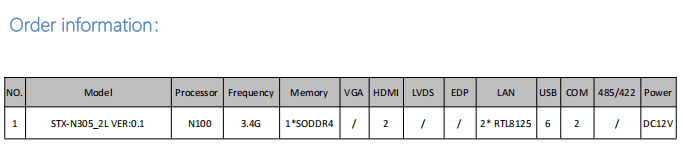

Model No.: STX-N305_2L VER0.1
Processor: Integrated Intel®Alder Lake-N N100 Base Frequency 0.8GHz Max Turbo Frequency 3.4GHz quad-core quad-thread processor, TDP 6W
Compatible with Intel® Alder Lake-N all series CPU
Chipset: SOC
RAM: 1* SODIMM memory slot, support single channel 3200MHz DDR4 memory, up to 16GB
Display: Integrated Intel® UHD Graphics, support DirectX 12.1, OpenGL4.6
2* HDMI2.0, the highest supported resolution is: 4096 x 2160@60Hz
Ethernet: 2* RTL8125 2.5G Gigabit LAN, support Wake-on-LAN, PXE function
Storage:1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
1* M.2 slot, support M.2 Key M 2280 PCIE X1/SATA specification SSD
Audio: Onboard ALC897 7.1+2 channel Hi-Fi audio controller,support MIC/Line-out.Power amplifier
Expand slot: 1* M.2 slot, support M.2 Key E 2230 WIFI module

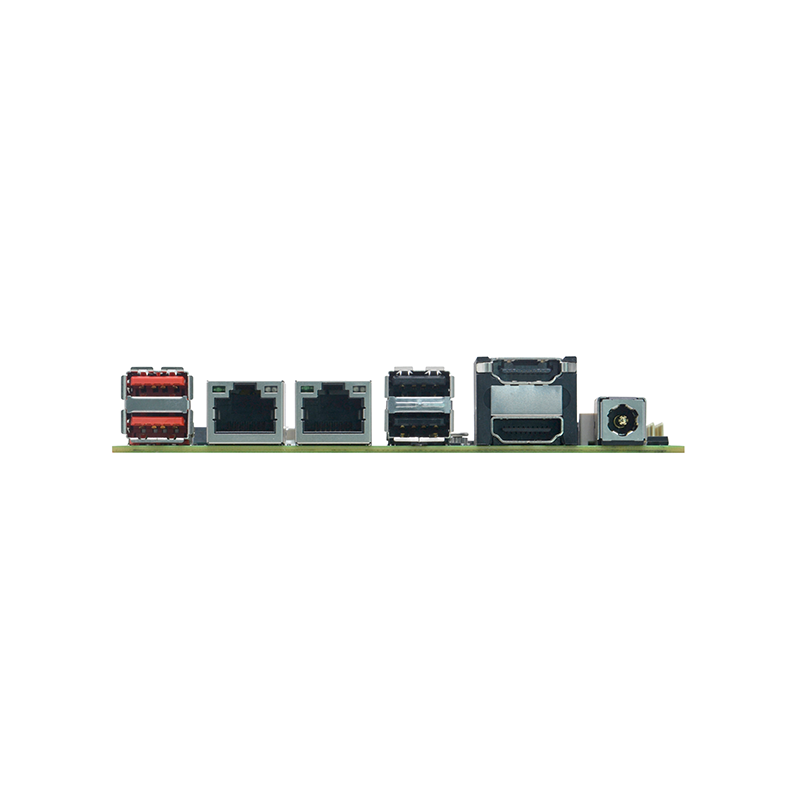

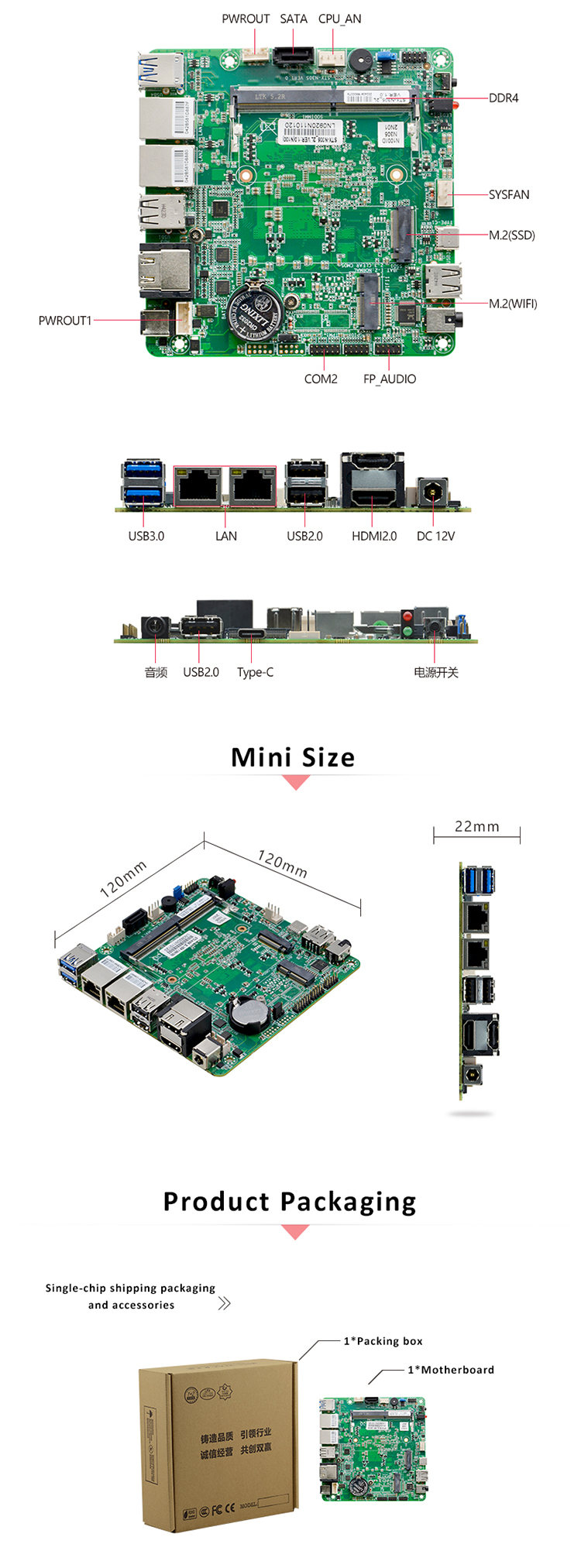

Backplane I/O Interface:
1* DC 12V power supply input interface
2* HDMI2.0
2* USB2.0
2* USB3.2 (10Gbps)
2* RJ45 Gigabit network interface

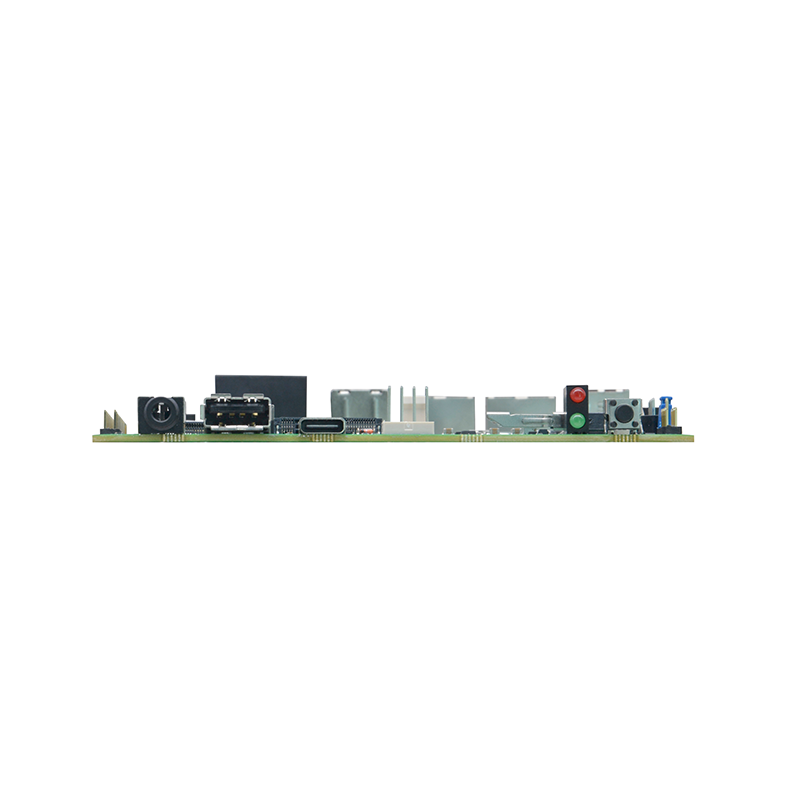

Front I/O Interface:
1* Type-C interface, (USB3.0 signal)
1* USB2.0
1* Power switch
1* Double-layer LED light, red on top and green on bottom, red hard disk light, green power light
1* 2-in-1 audio interface, support Line-out/MICK
Built-in I/O interface:
1* DC power supply interface, 1*4pin support 12V power input output
1* TPM, 2*6pin
2* RS232, 2*5pin
1* Hard drive power supply interface, 1*4pin
1* Front panel audio interface, 2*5pin
1* Front panel function button and indicator interface, 2*5pin
Fan interface: 1*4pin CPU smart fan interface, 1*4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function(256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 120mm x 120mm
