Overview

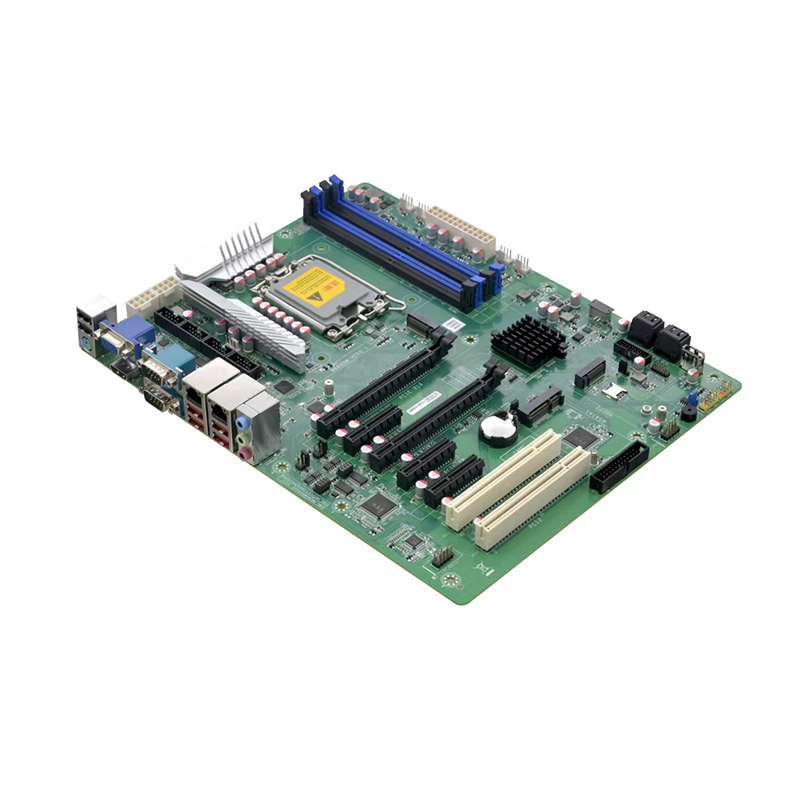

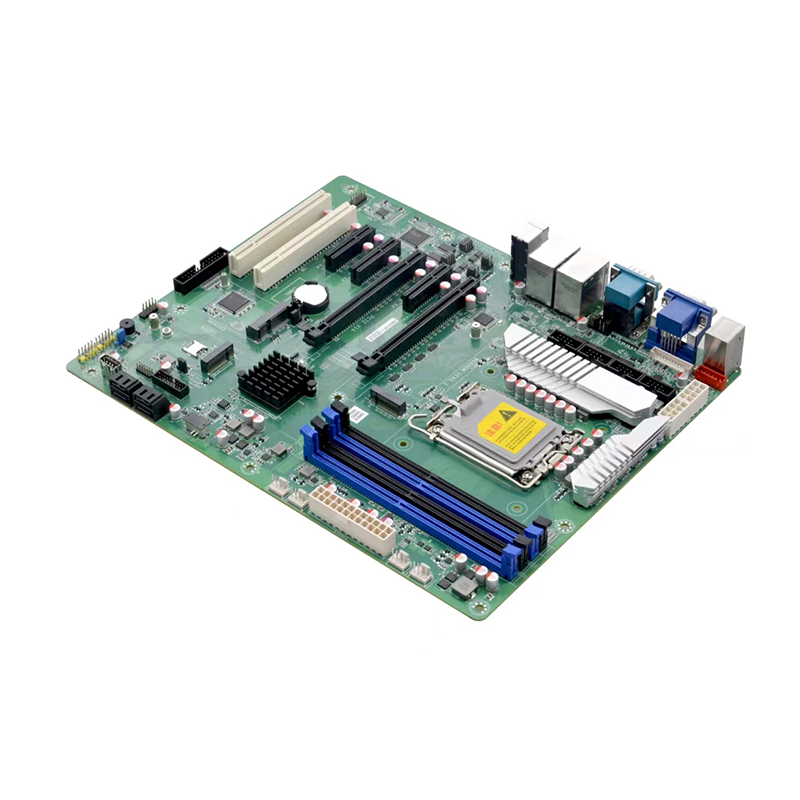

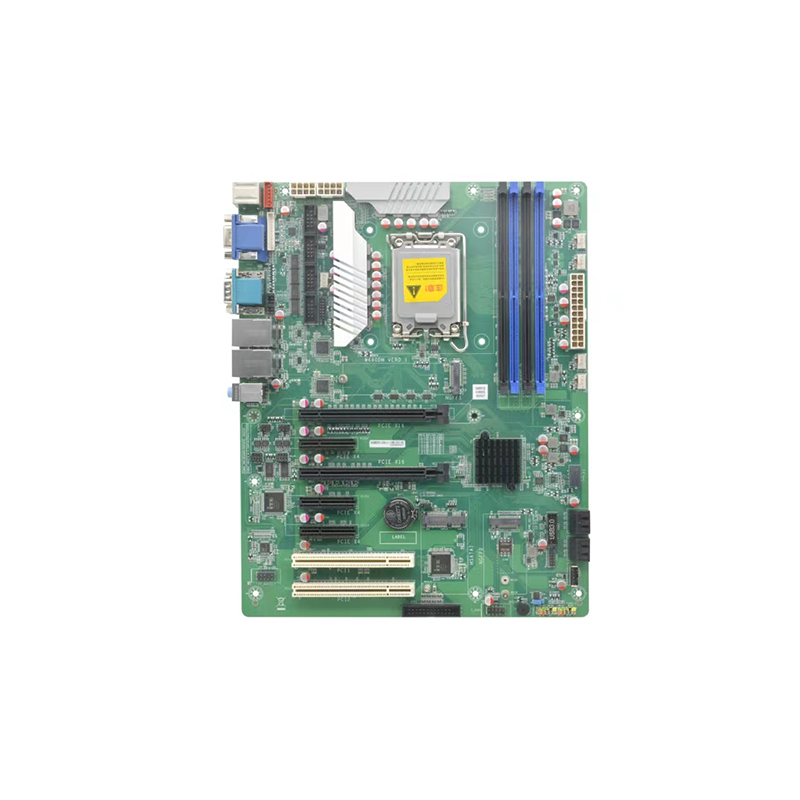

The W680DM VER:0.1(LGA1700) industrial ATX motherboard, equipped with the Intel W680 Express chipset, is compatible with various 12th/13th Gen processors via the LGA1700 interface (TDP up to 125W). Integrated with Intel HD Graphics and featuring 2*HDMI + VGA interfaces, it meets multi-screen display needs. With 4 DDR4 3200MHz memory slots, it supports up to 128GB (ECC supported). Its rich interfaces include network, USB, COM ports, etc., with complete storage and expansion options. 1 ATX 24PIN and 2 ATX 8pin inputs ensure stable power supply. Ideal for industrial automation and other fields, it’s a reliable choice.
Product Description
Product No:W680DM VER:0.1(LGA1700)
Processor:
Support LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 and Xeon processor
Note:Support 125W CPU
Chipset:Adopt Intel® W680 chipset,
RAM:4* DDR4 DIMM memory slots, support dual-channels up to 3200MHz memory, up to 128GB,support ECC memory
Display:
Integrated Intel®HD Graphics core graphics card, support DirectX12.1,OpenGL4.5, support 4K display
1* VGA,support the highest resolution of 1920X1200@60Hz
2* HDMI1.4interface,support the highest resolution of 4096x2160 @24Hz
Ethernet: 2* Intel ®I210AT Gigabit network card chip,,supports Wake on LAN/PXE function
Storage:
4* SATA3.0 hard disk interface, transmission speed up to 6Gbps
1* MSATA slot, supporting Intel SSDS
1 x*M.2 slot, supporting the M.2 Key M 2280 NVME PCIE X4 SSD
Audio:Onboard ALC897 7.1+2 vocal channels high fidelity audio controller,supports MIC/Line-out/Line-in
Expansion slot:
2* PCIE4.0 X16 slot (using 1 PCIE X16 is X16 signal, if using 2 X16 at the same time, it is X8 signal)
3 *PCIE X4 slots, where PCIE2/PCIE4 is 4.0 and PCIE5 is 3.0
2* PCI slot
1 *M.2 slot, supporting M.2 Key B 2242/2252 4G/5G module

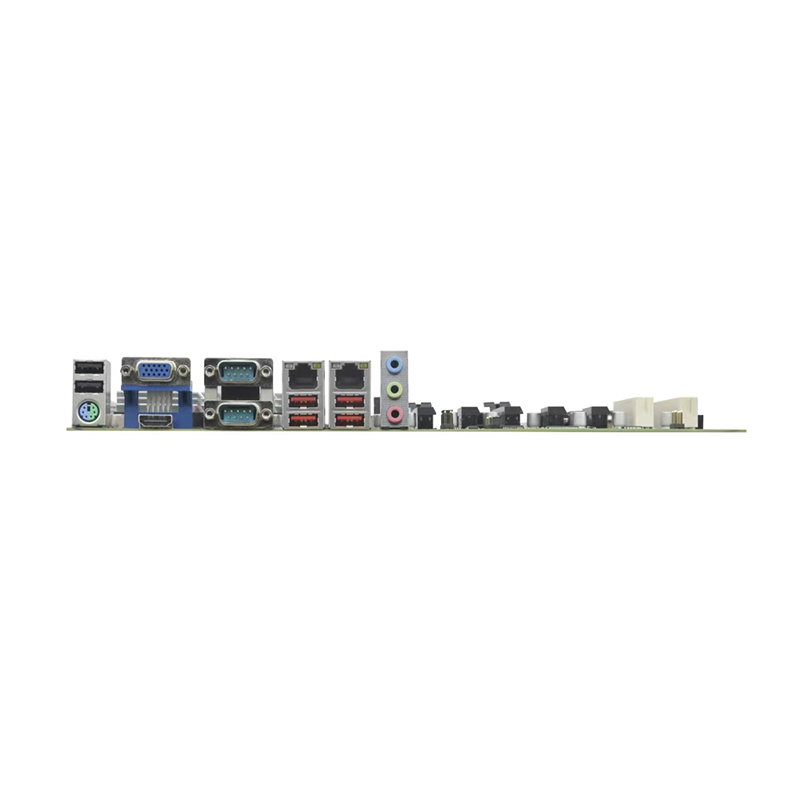

Rear I/O interfaces:
1* PS/2 interface (expandable keyboard and mouse)
1* DB15 VGA
1* HDMI1.4 interface
2* DB9 RS232 serial port, support 9pin live function, support RS485/422
2* USB2.0 port
4* USB3.2 Gen 2x1 interface (10Gbps)
2* RJ-45 Gigabit network interface
1* Layer 3 audio interface, support Line-out,MICK,Line-in
Inner I/O interfaces:
1* Vertical USB2.0 interface
2* USB2.0 interface 2*5pin
1*TYPE-E USB3.0 interface
2* USB3.0 interface 2*10pin
1* Front panel audio interface (2*5pin)
2* Front panel function buttons and indicator ports (2*5pin)
1* 24pin ATX power socket 2* 8pin ATX power socket
1* PS/2 keyboard and mouse interface 1*6pin
1* JVGA port 1*12pin, same signal as DB15
1* JHDMI port 2*8pin
1* TPM port 2*6pin
4* RS232 serial port, 2*5pin
1* SIM card slot
1* LPT interface 2*13pin
Fan interfaces:1*4pin CPU fan connector;4*4pin system fan connector
BIOS:128Mb Flash ROM
Watchdog:Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power type: Powered by ATX 24Pin and 8pin power supply
Operating temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% Relative humidity, non-condensing
Size: 305mm x 245mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
