Product Description

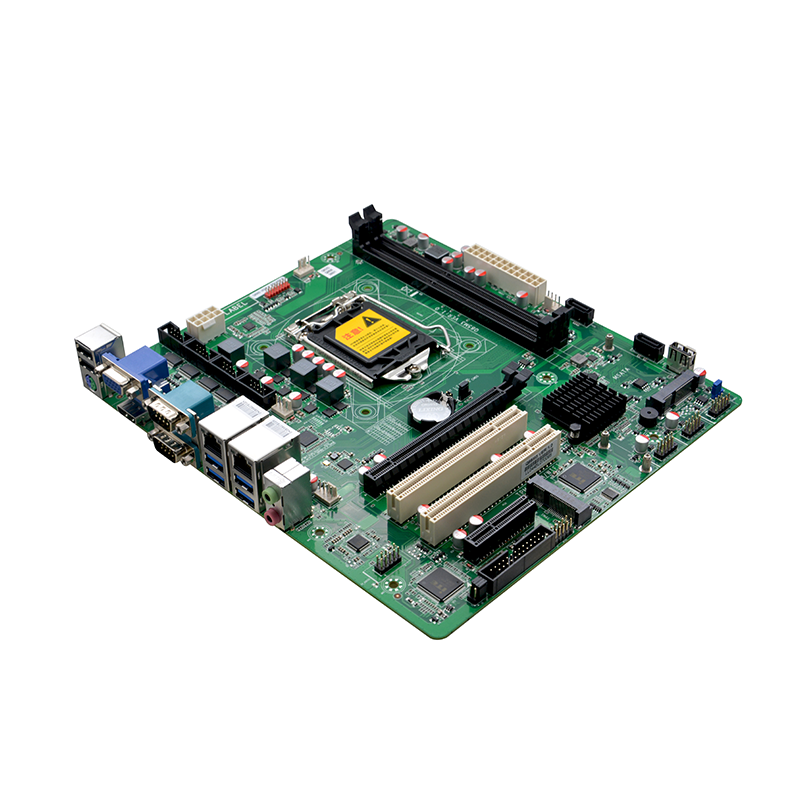

Model No.: Q86M3 VER:1.0
Processor: Support LGA1150 4th Gen Intel Celeron/Pentium/Core i3/i5/i7 processor
Chipset: Intel Q85Express chipset
RAM: 2x DDR3 DIMM RAM slot, dual channel 1600/1333/1066MHz, up to 16GB
Display: Integrated Intel® HD Graphics,1*VGA, 2*HDMI1.4
Support single display, dual display, extended mode
LAN: 2x Intel I210AT Gigabit Ethernet, support Wake On LAN/PXE function
Storage: 2x SATA 3.0 hard disk port, transfer rate up to 6Gbps
1x MSATA SSD port, transfer rate up to 6Gbps
Audio: Integrated ALC888S 7.1+2channel high fidelity audio controller, support MIC/Line out/Line-in
Expansion Slot:
1x PCIE2.0 x16
1x PCE2.0 x4
2x PCI
1x Mini-PCIE slot，WiFI(can support TPM-4COM module with 4x COM port, need flash related BIOS)

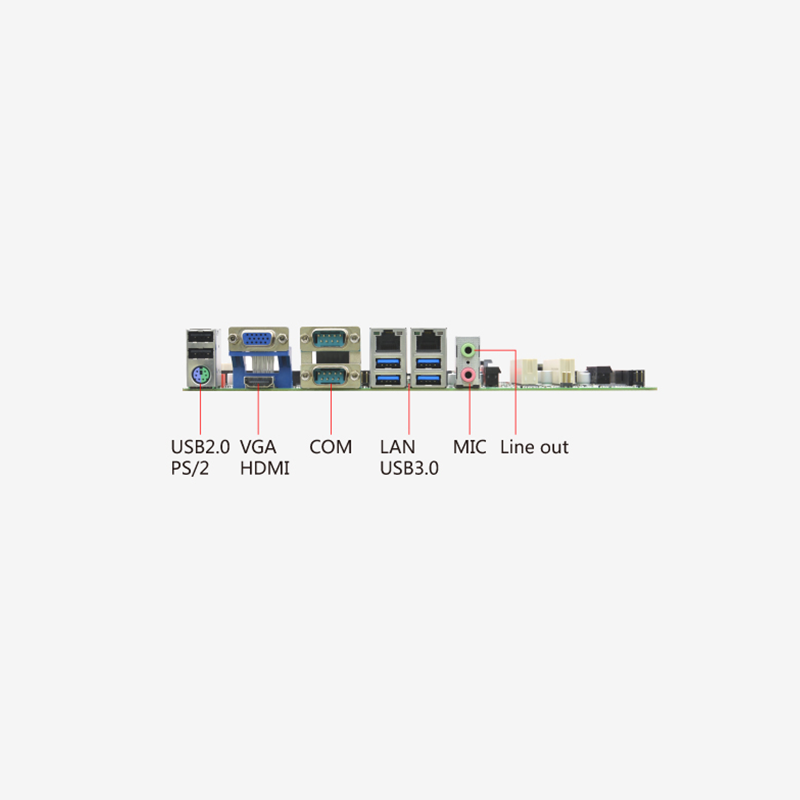

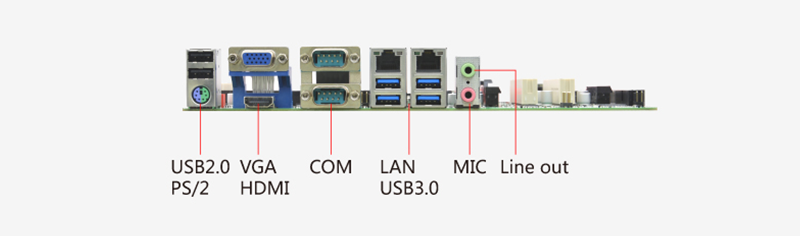

Rear I /O Port:
1x PS/2 KB/MS port
1x VGA
1x HDMI
2x RS232 COM port, support the pin9 charged function, RS485/422 function
2x USB 2.0
4x USB 3.0
2x RJ-45 Gigabit LAN port
1x Line out (green), 1x MIC(red), 1x Line-in(blue)

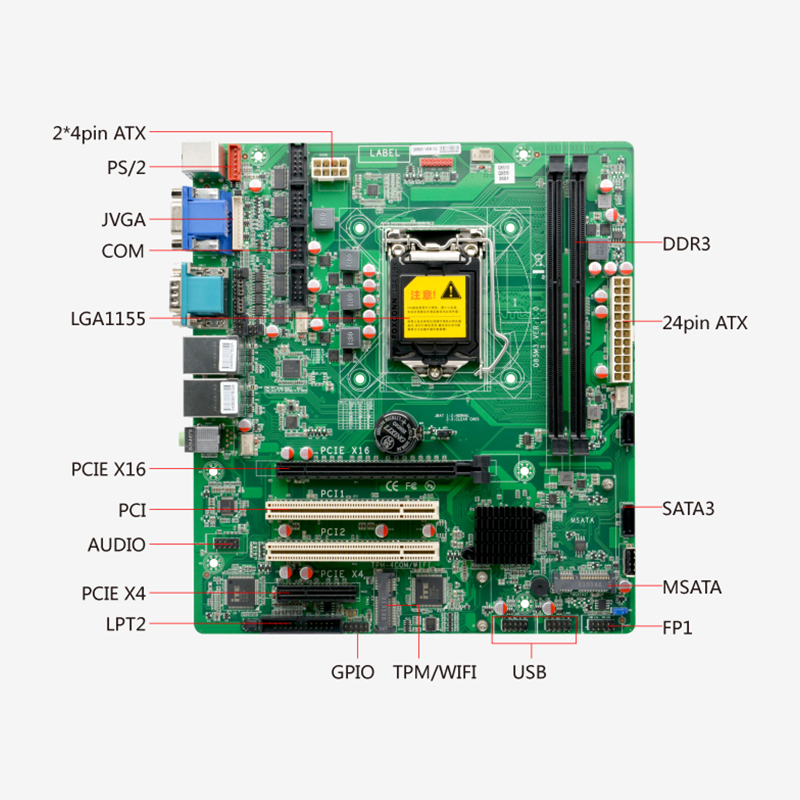

Built-in I /O Port:
4x RS232 COM port, 2x 5pin
1x JVGA,1x 12pin (same signal with external VGA)
1x JHDMI port, 2x 8pin (red)
1x PS/2 KB/MS port, 1x 6pin (red)
1x LPT print port, 2x 13pin
1x Front audio port, 2x 5pin
4x USB 2.0 port, 2x 5pin
1x USB2.0 port, USB TYPE A
1x Front panel function button and LED indicator, 2x 5pin
1x 24pin ATX power input port
1x 8pin ATX power input port
Fan Connector: 2x 4pin CPU smart fan connector, 2x 4pin system fan connector
GPIO: Support 4-in 4-out GPIO
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Support OS: Windows 7/ 10 /Linux
Power Type: 24Pin ATX power connector
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5～90% relative humidity, non-condensing

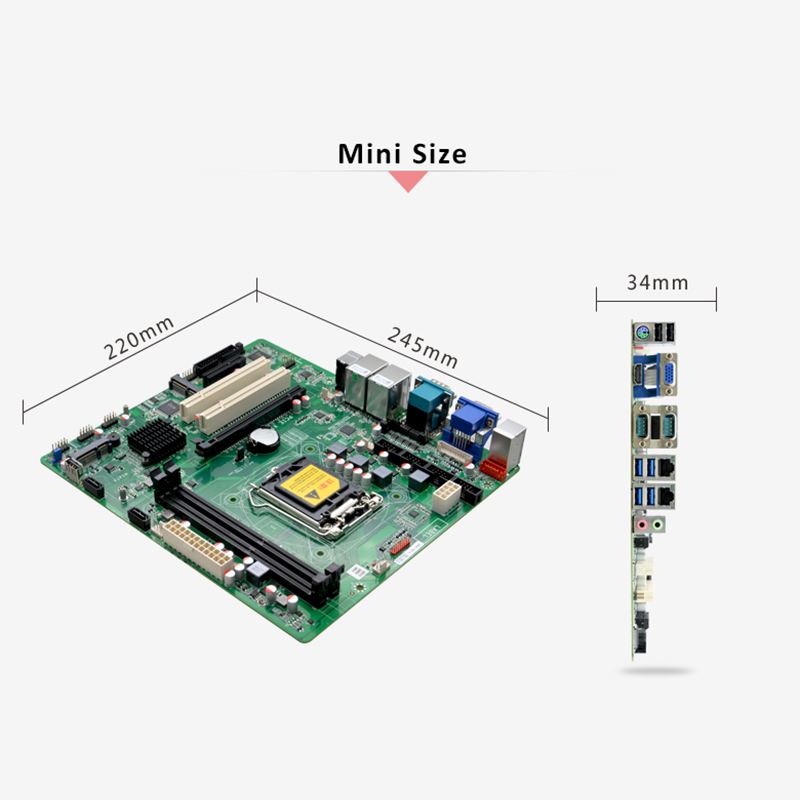

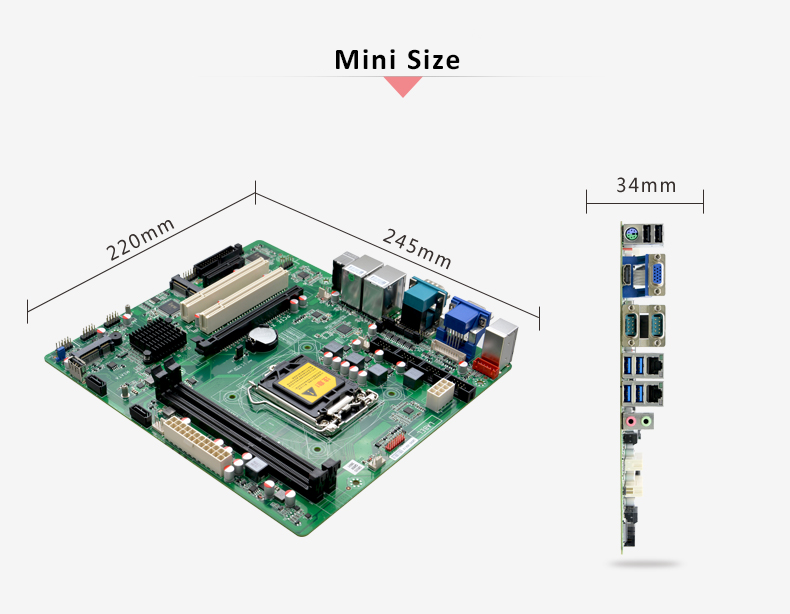

Dimension: 245mm x 220mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

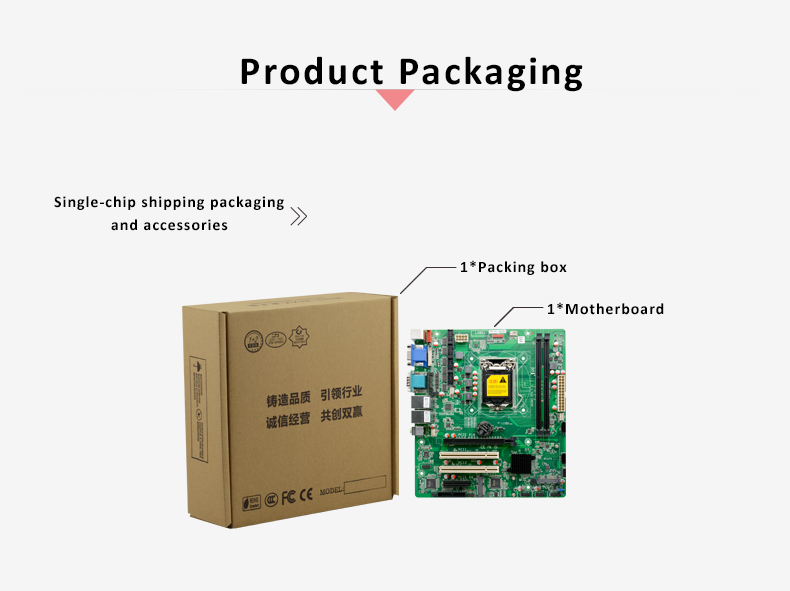

Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
