Overview
Core Performance
The Z270DM VER:1.0 industrial micro atx motherboard, with Intel Z270 chipset, supports 6th - 9th Gen Pentium/Core processors, delivering stable computing power for industrial use.
Display and Memory
Integrated Intel HD Graphics, 2 HDMI + 1 VGA ports enable multi-screen display. Four DDR4 slots support up to 64GB memory, ensuring this industrial micro atx motherboard runs efficiently.
Abundant Interfaces
With 2 Gigabit Ethernet, 11 USB, 6 - 10 COM ports, and various storage interfaces, this industrial micro atx motherboard offers excellent expandability, meeting the connection needs of industrial devices.
Expansion and Power Supply
PCIE3.0, PCI, and other slots adapt to industrial expansion devices. Dual power inputs ensure this industrial micro atx motherboard operates stably in complex industrial conditions.

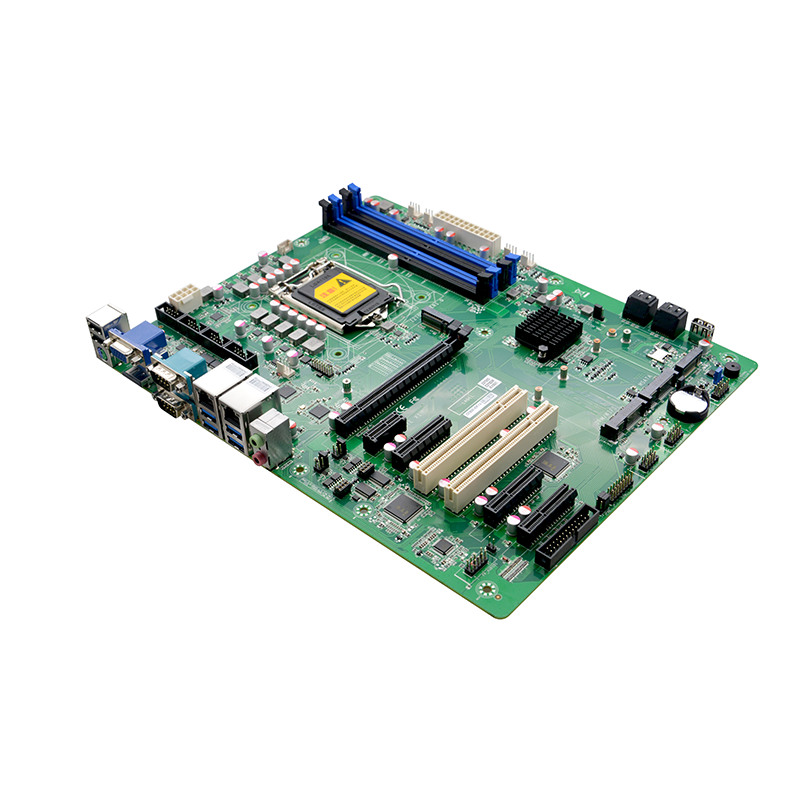

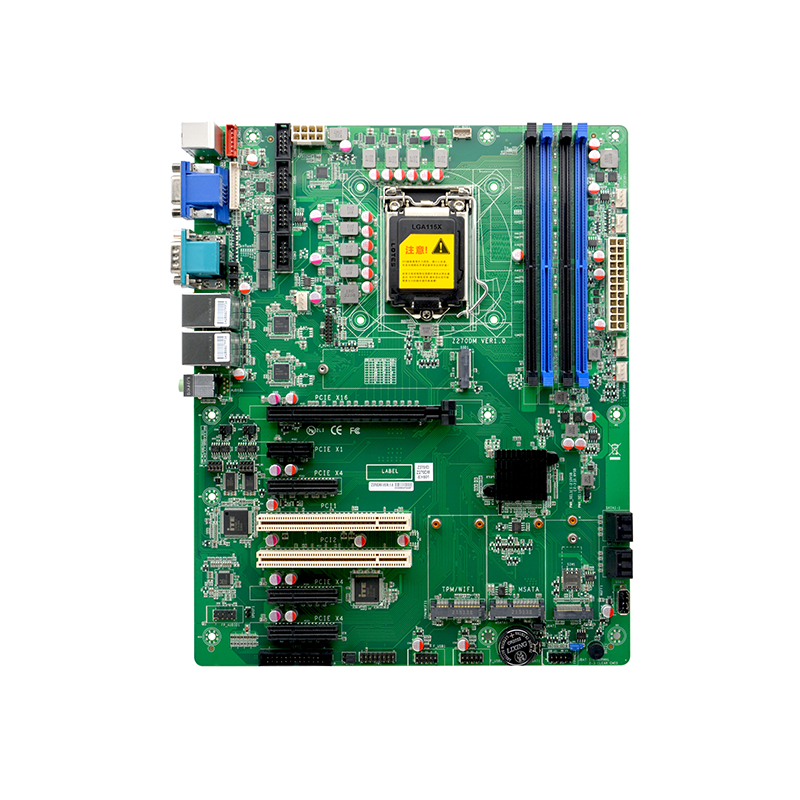

Detail Display
.png)
Product Description
Model No.: Z270DM VER:1.0
Processor:
Supports LGA1151 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7 processor
Note: Supports 6th/7th/8th/9th 95W CPU
Chipset: Intel Z270 High speed chipset
Memory: 4* DDR4 DIMM memory slot, supports dual channels 2133/2400/2666MHz memory,up to 128GB
Display:
Integrated Intel® HD Graphics
1* VGA
2* HDMI1.4
Supports independent display,dual display and extended mode
Storage:
4* SATA3.0 ,the transfer rate is up to 6Gbps
1* MSATA slot, supports Intel protocol SSD，the transfer rate is up to 6Gbps
1* M.2 slot, supports M.2 2280 NVME PCIE x1 (PCB V1.0 only support x1，PCB V1.1 support x1/SATA)
Audio: Onboard ALC888S high fidelity audio controller, supporting Mic、Line out
Expansion Slot:
1* PCIE3.0 x16
3* PCIE3.0 x4
1* PCIE3.0 x1
2* PCI
1* Mini-PCIE， supports WiFi (Optional TPM-4COM can expand 4 serial ports, need to match the corresponding BIOS)
1* M.2 , 2242/2250, supports 4G/5G

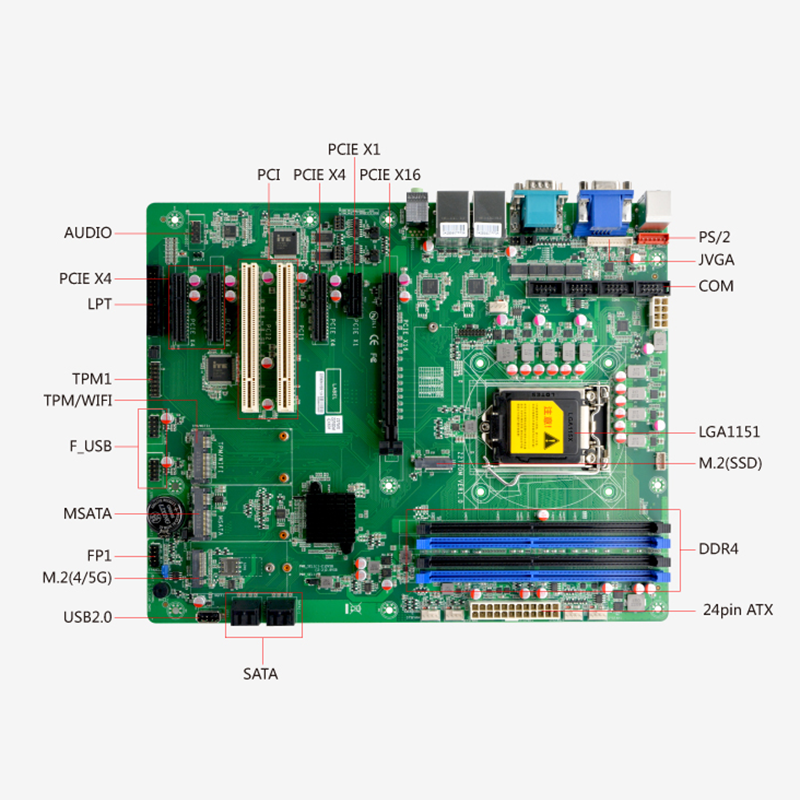

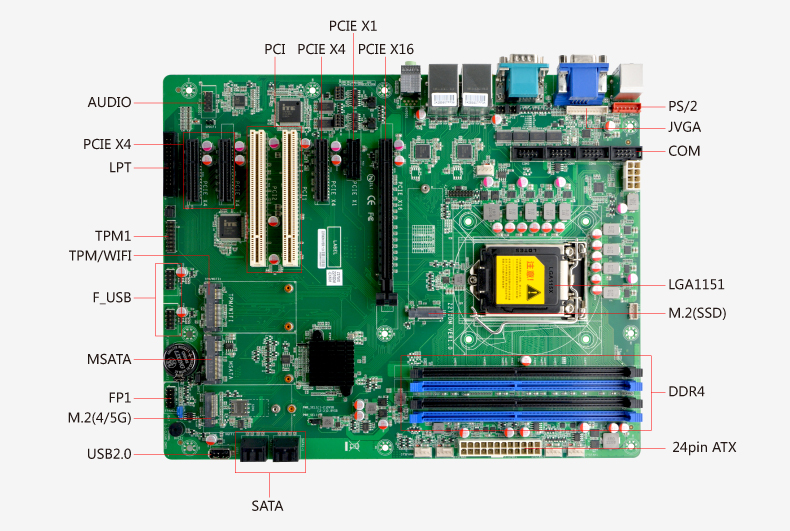

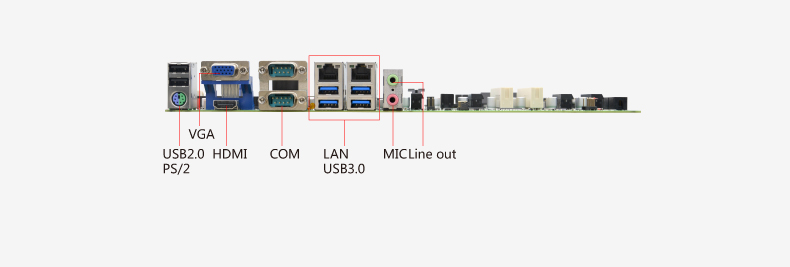

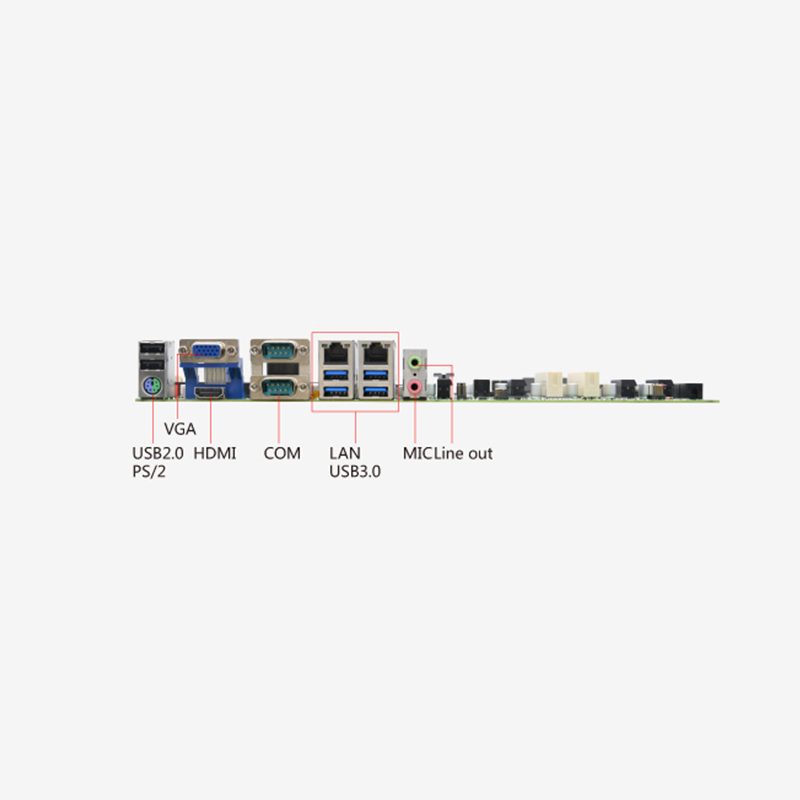

Rear I /O interface:
1* PS/2 keyboard and mouse interface
1* VGA
1* HDMI
2* RS232 (COM1/2 support 5V/12V power supply, COM1/2 support RS485/422 function)
2* RJ45 Gigabit Network Interface
2* USB 2.0
4* USB 3.0
1* Line out (Green), 1* Mic (Red)
Built in I/O interface:
1* PS/2 keyboard and mouse interface, 1*6pin ( Same signal as UK1 )
1* JVGA, 1*12pin (Same signal as external VGA)
1* JHDMI, 2*8pin
4* RS232, 2*5pin
1* Front audio interface, 2*5pin
4* USB 2.0, 2*5Pin
1*USB2.0, USB TYPE-A
1* TPM, 2*8pin
1* Front panel function button and indicator light interface, 2*5pin
1*LPT 2*13 pin (The default printer port can be made into GPIO，the BIOS that needs to configure GPIO)
1* 24pin ATX power input interface
1* 8pin ATX power input interface
Fan Connector: 1*4pin CPU smart fan connector, 4* 4pin system smart fan connector
BIOS: 64Mb Flash ROM
OS: Windows 7 / 10 / Linux
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: ATX
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

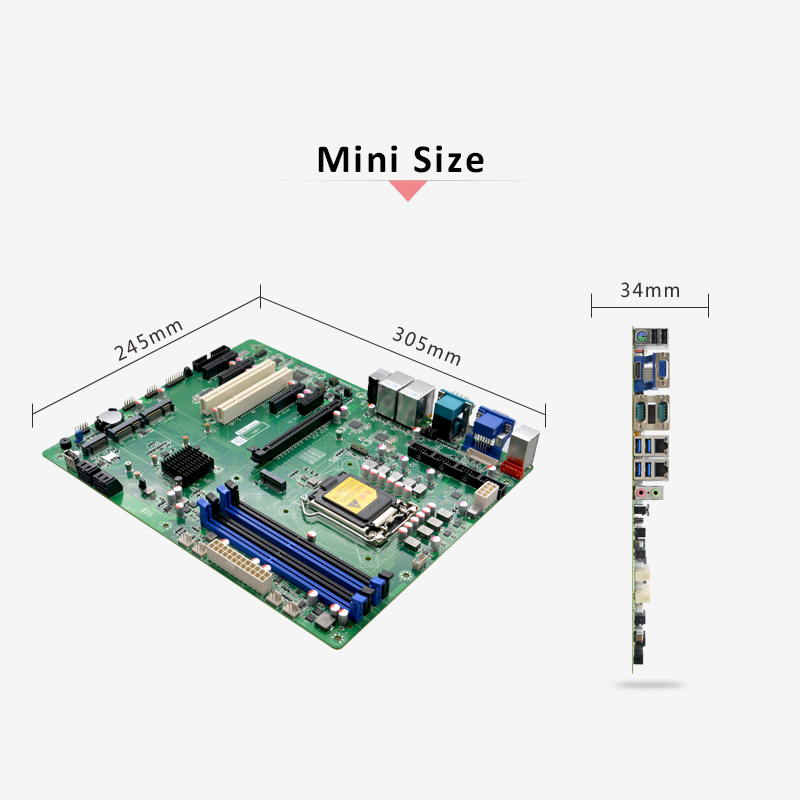

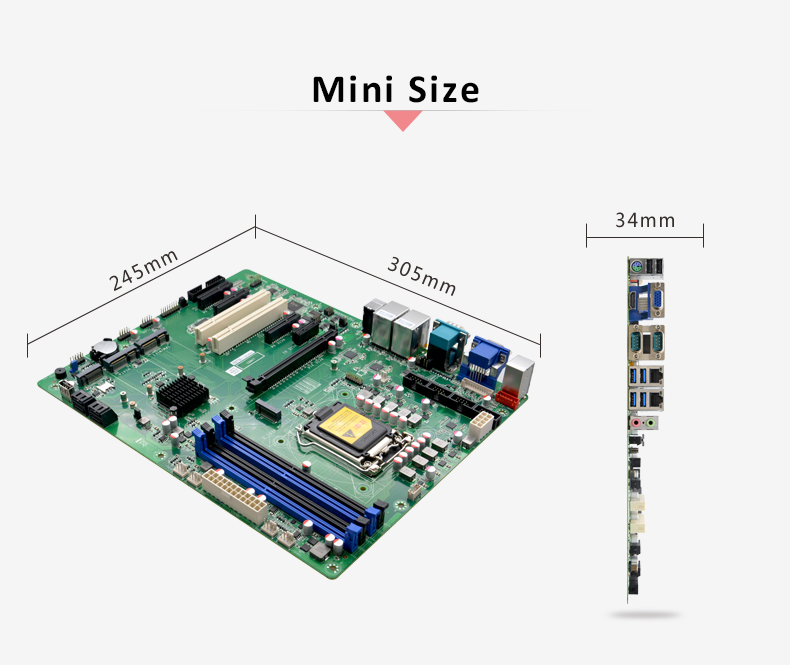

Dimension: 305mm x 245mm(ATX)
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
