Overview
Core Configuration
The Q250M3 VER:1.0 industrial micro atx motherboard, with Intel Q250 chipset, supports 6th-9th Gen Celeron/Pentium/Core processors via LGA1151, delivering stable computing for industrial use.
Display & Memory
Integrated Intel HD Graphics with HDMI+VGA enables multi-screen display; 2 DDR4 slots support up to 64GB memory, ensuring this industrial micro atx motherboard runs efficiently.
Interfaces & Expansion
Featuring 2 Gigabit LAN, 11 USB, 6 COM ports, 4 SATA3.0, 1 mSATA, and 1 NVMe M.2; PCIE x16/x4, 2 PCI slots, etc., this industrial micro atx motherboard adapts to industrial device connections.
Power & Reliability
Dual ATX power inputs with WDT ensure this industrial micro atx motherboard operates stably in harsh industrial conditions, meeting high-reliability requirements for automation scenarios.

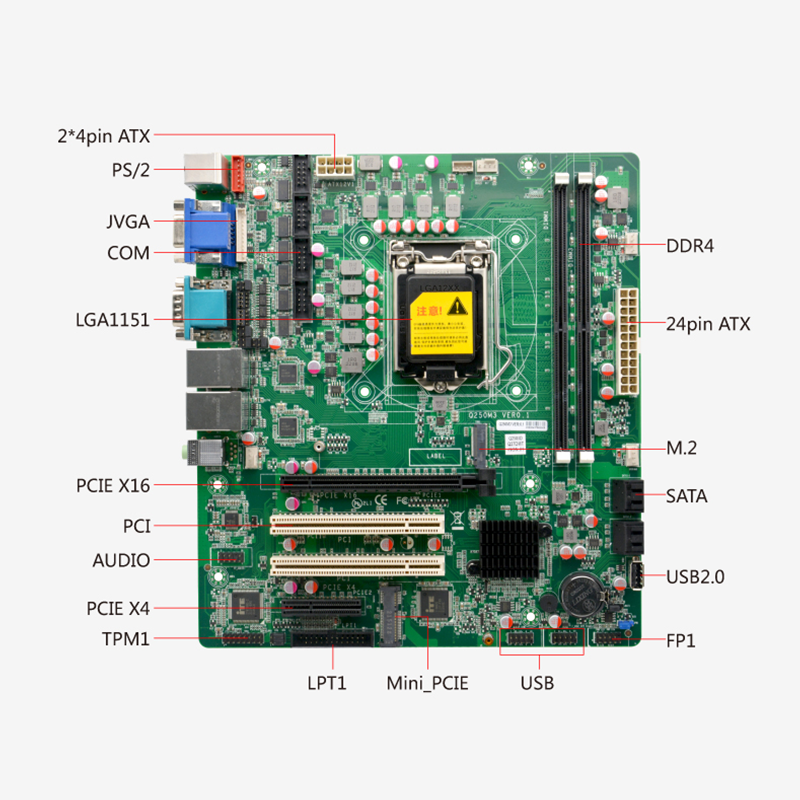

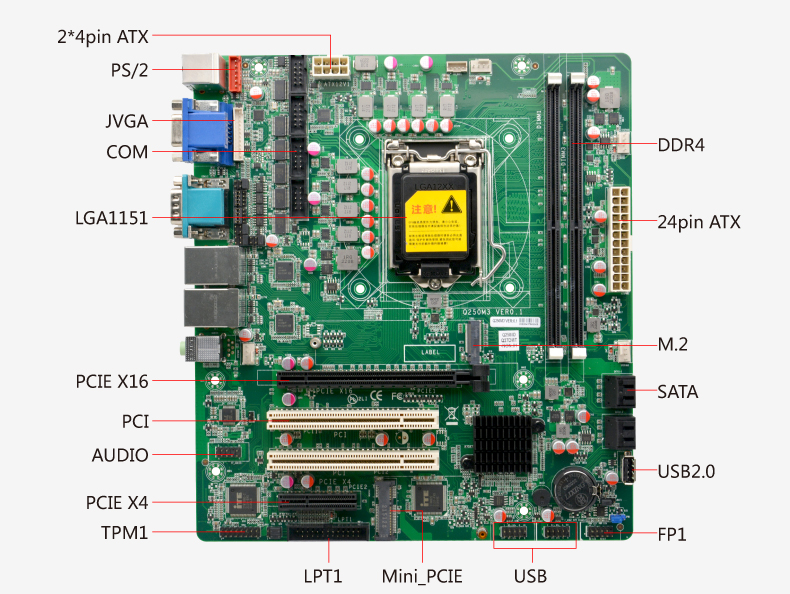

Detail Display
Product Description
Model No.:Q250M3 VER:1.0(LGA1151)
Processor:
Support LGA1151 6th/7th/8th/9th Celeron/Pentium/Core™ i3/i5/i7 processor
Note: Support 6/7/8/9 generation 95W CPU
Chipset: Intel Q250 Express Chipset
Memory: 2x DDR4 DIMM slot, supports dual channel 2133/2400/2666MHz memory, up to 64GB
Graphics:
Intel® HD Graphics
1x VGA; 1x HDMI1.4
Support single display, dual display mode, and extended mode
Network: 2x Intel I211AT Gigabit network card, support network wake-up、PXE function
Storage:
4x SATA3.0 hard disk interface, SATA transmission speed can reach 6Gbps
1x MSATA interface, supports Intel protocol SSD, transmission rate reaches 6Gbps
1x M.2 slot, supports M.2 2280 PCIE x4/SATA adaptive standard SSD
Audio: Onboard ALC888S high-fidelity audio controller, supports Mic, Line out
Expansion slots:
1x PCIE3.0 X16
1x PCIE 3.0 X4
2x PCI

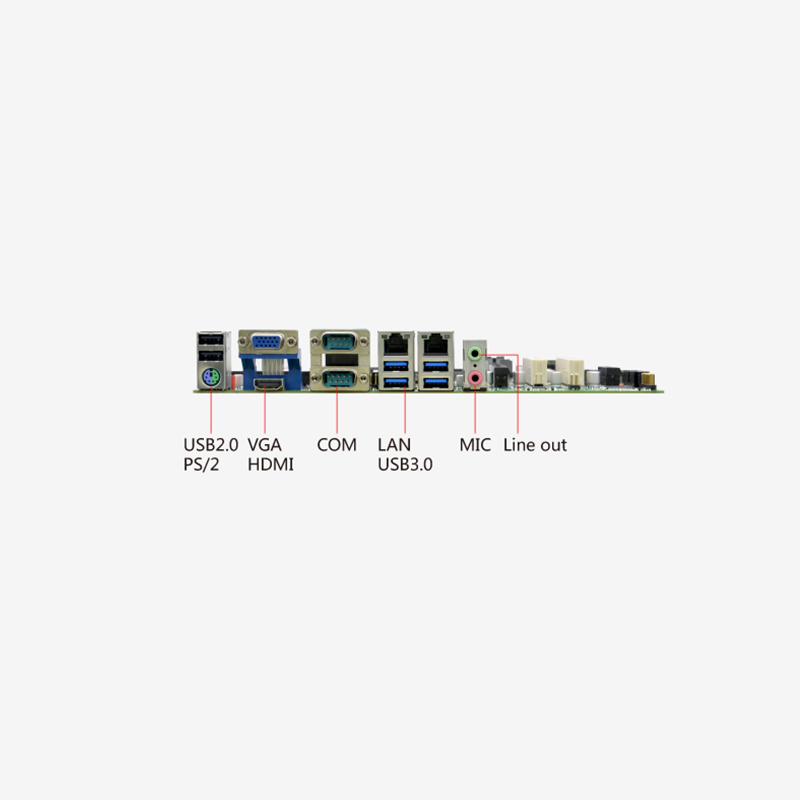

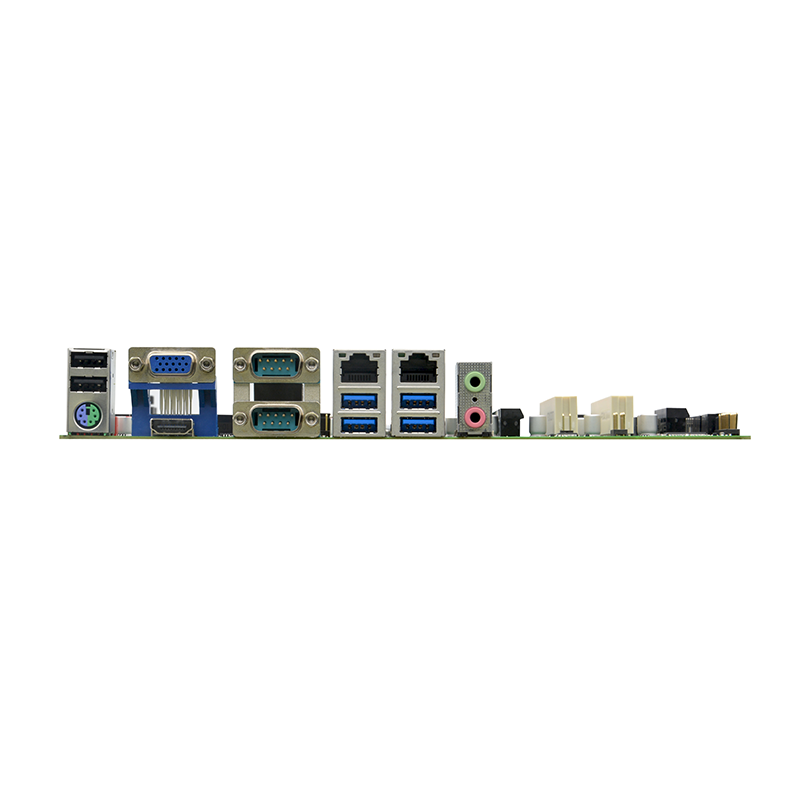

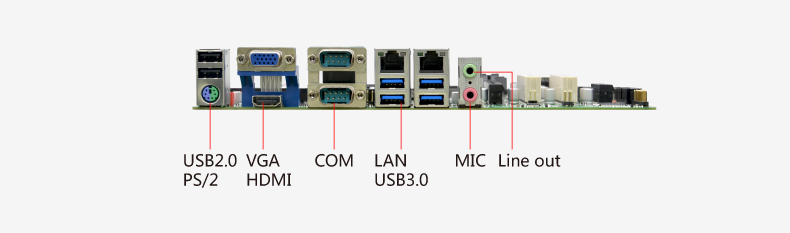

Rear I/O interface:
1x PS/2 keyboard and mouse interface
1x VGA
1x HDMI
2x RS232 serial port (COM1/2 supports 5V/12V power function, COM1/2 supports RS485/422 function)
2x RJ45 Gigabit network interface
2x USB 2.0
4x USB 3.0
1x Line out interface (green), 1x Mic interface (red)
Built in I/O interface:
1x PS/2 keyboard and mouse interface 1*6pin pin header, same signal as UK1
1x JVGA interface 1*12pin pin header, same signal as DB15
4x RS232 serial port 2*5pin pin header
1x front audio interface 2*5pin pin header
4x USB 2.0 interface 2*5Pin pin header
1x USB2.0 interface USB TYPE-A
1x TPM interface 2*8pin pin header
1x front panel function button and indicator interface 2*5pin pin header
1x LPT 2*13 pin pin header
1x 24pin ATX power input interface
1x 8pin ATX power input interface
Fan interface: 1x 4pin CPU smart fan interface,3x 4pin system fan interface
Power input: ATX power supply
BIOS: 64Mb Flash ROM
OS: Windows 7/Windows 10/Linux
GPIO: N/A
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Working Temp.: 0℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)

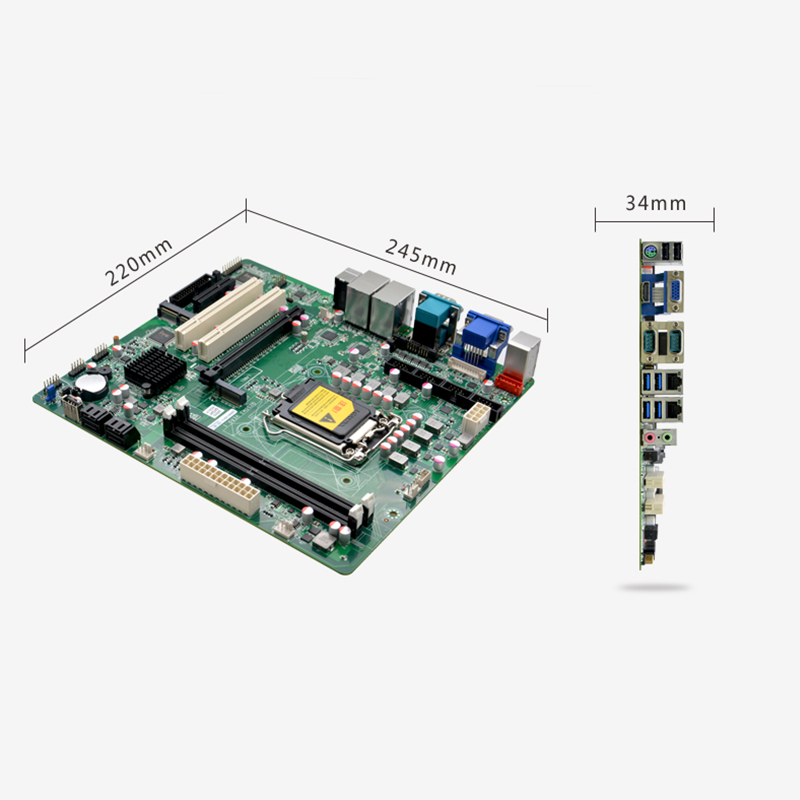

Dimension: 245mm x 220mm(mATX)
