Product Description
Chassis:
Structure: All aluminum alloy, fanless cooling structure
Dimension: 235mm*200mm*52mm
Color: Black
Installation: Support VESA installation/desktop/wall-mounted
Motherboard:
Processor: Integrated Intel® i3-5005U/2.0GHz 2-cores / 4-threads processor
Chipset: Intel SOC
Graphics: Integrated Intel HD Graphics
Memory: 1x SO-DIMM slot, 1333/1600MHz DDR3L Memory, up to 16GB

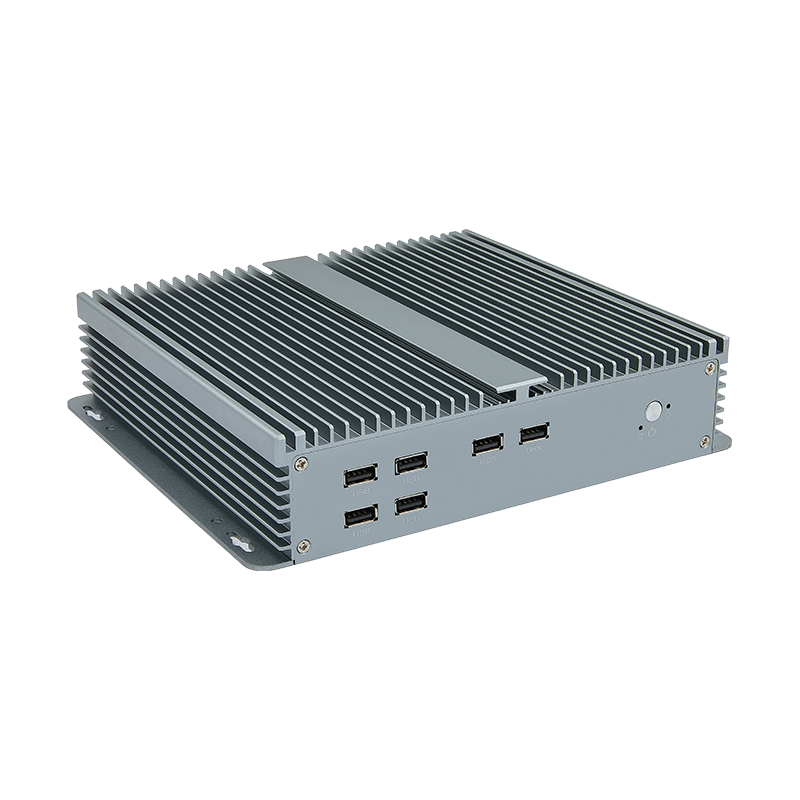

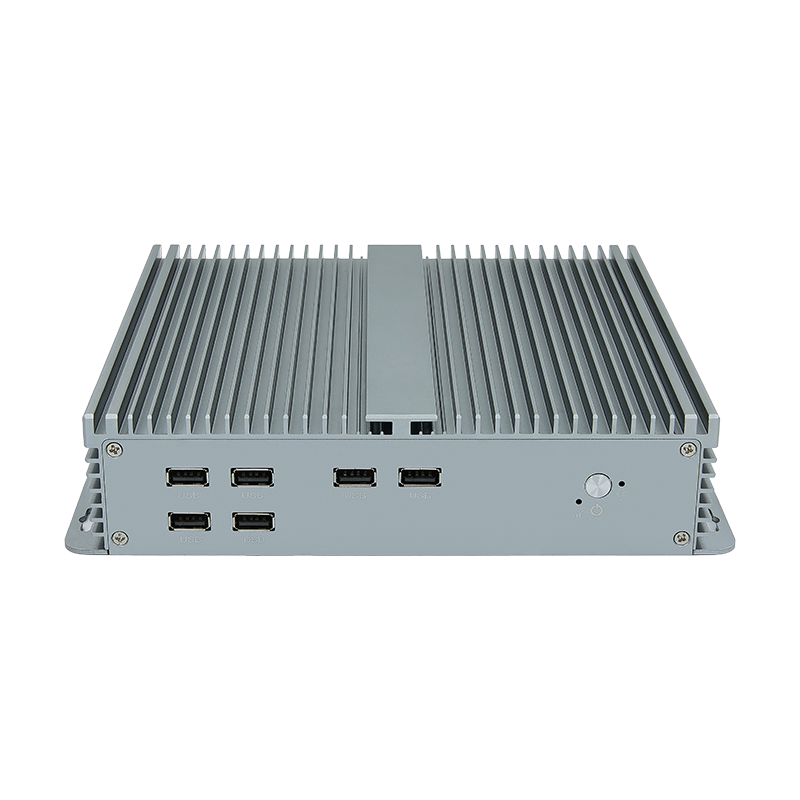

Front Panel:
Switch: 1x Power switch; 1x Power LED
USB: 4x USB2.0 (dual-lay TYPE-A interface)

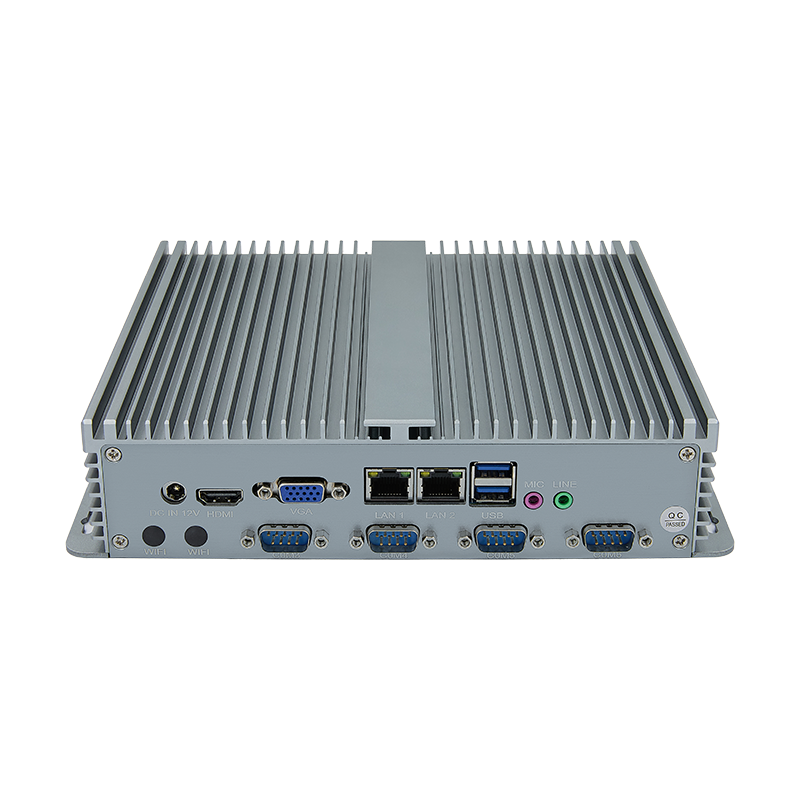

Rear Panel:
LAN: 2x RTL8111H Gigabit electrical port, supports network wake-up and PXE functions
Display interface: 1x VGA, 1x HDMI
USB: 2x USB3.0; 2x USB2.0 (Dual-layer TYPE-A interface, shared layout with RJ45)
Audio: 1x Line; 1xMIC
COM: 4x COM RS-232 (COM2/3 9th pin can be powered by 5V/12V, COM2/3 supports RS485)
Power: 1x DC 12V
Storage: M.2: 1x M.2, 2280, NVME/SATA SSD
Expansion: Mini PCIE: 1*Min-PCIE, supports WIFI/BT/3G/4G module (Half Card/Full Card)
OS Support:
Windows: YES
Linux: YES
Watchdog: Support hardware reset function (level 256, 0~255 seconds)
Power Supply:
Power supply: External power adapter
Voltage input: DC 12V
Power output: AC TO DC、60W
Reliability:
Working Temp.: - 10℃ ~ 60℃
Storage Temp.: -20℃ ~ 85℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
