Product Description
Chassis:
Structure: All aluminum alloy, fanless cooling structure
Dimension: 156mm*127.5mm*52.5mm (L x W x H)
Color: Gray
Installation: Support VESA / Desktop / Wall-mount / D-Rail
Motherboard:
Processor:Integrated Intel® Alder Lake-N Celeron N100 ( 0.8 ~ 3.4GHz ) quad-core four- threads processor; TDP 6W
Chipset: Intel SoC
Graphics:Integrated Intel HD Graphics
Memory:1x SO-DIMM slot,3200MHz DDR4 Memory, up to 16GB

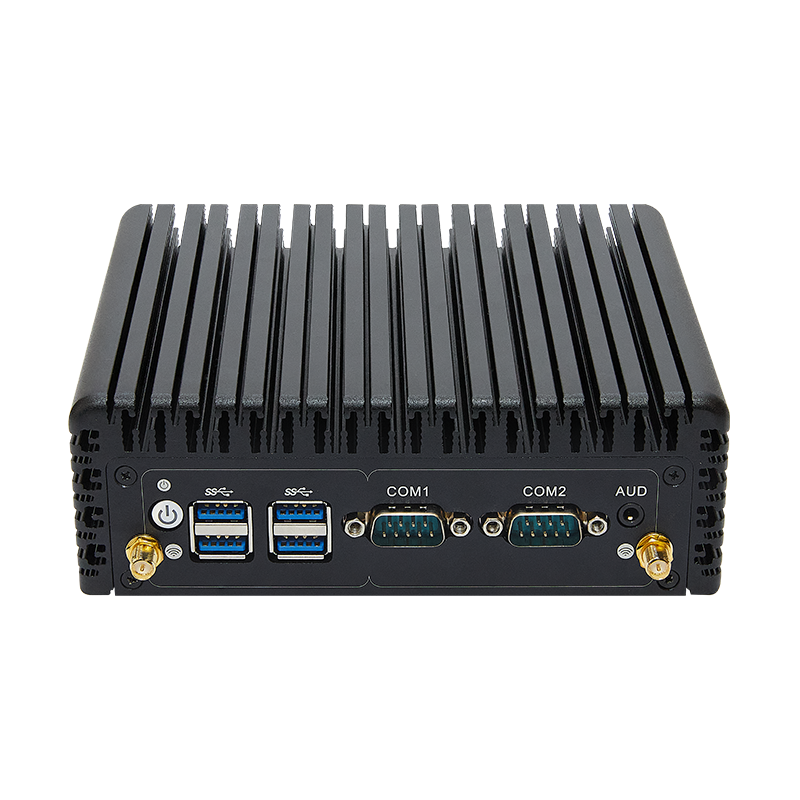

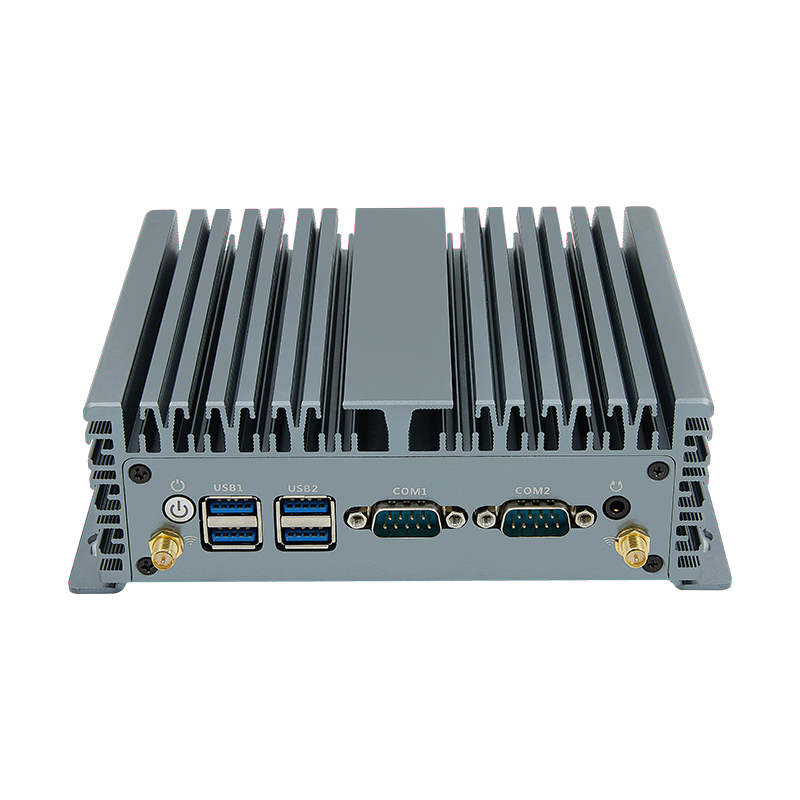

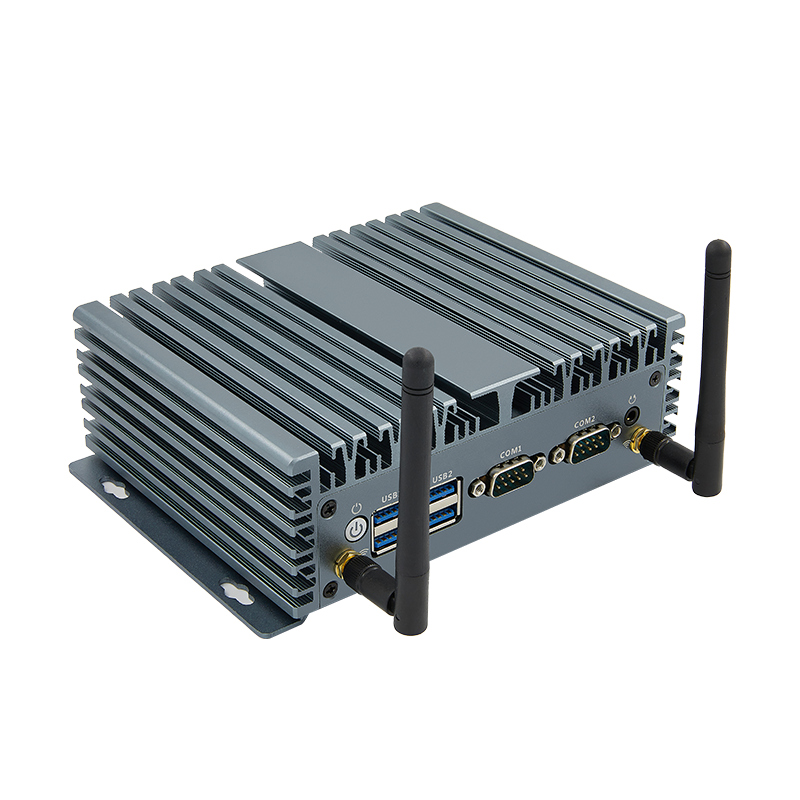

Front Panel:
Switch:1x Power switch (integrated POWER LED)
USB: 4x USB3.0
COM: 2x RS232 DB9 (COM2 support RS485 DB9; the 9 TH PIN support 5V/12V )
Audio: 1x Audio (HP_Jack)
Antenna: 2x Antennas holes ( for WIFI&BT / 4G LTE/ 5G / GPS)

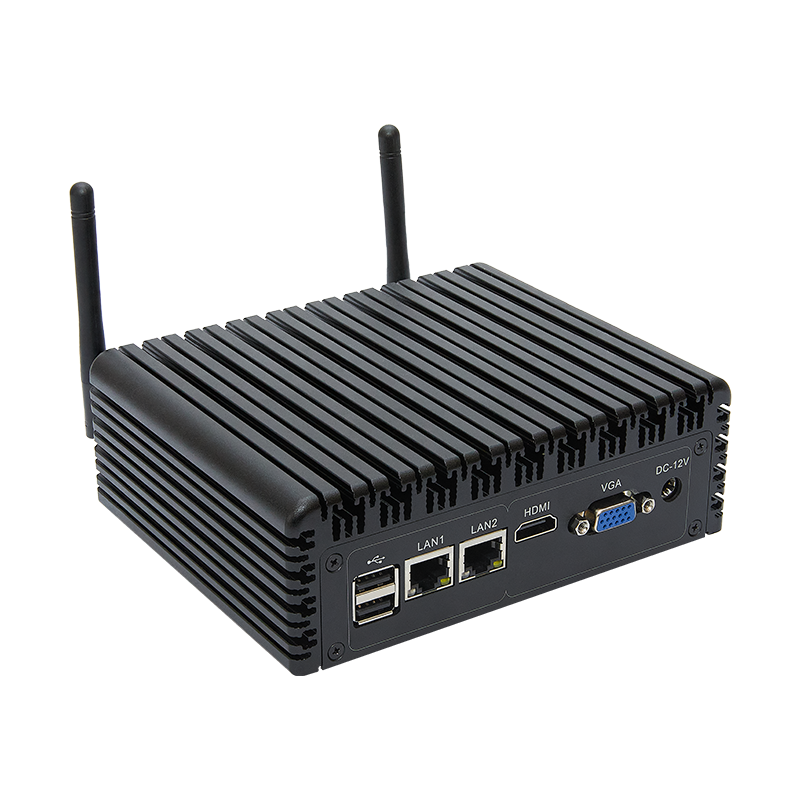

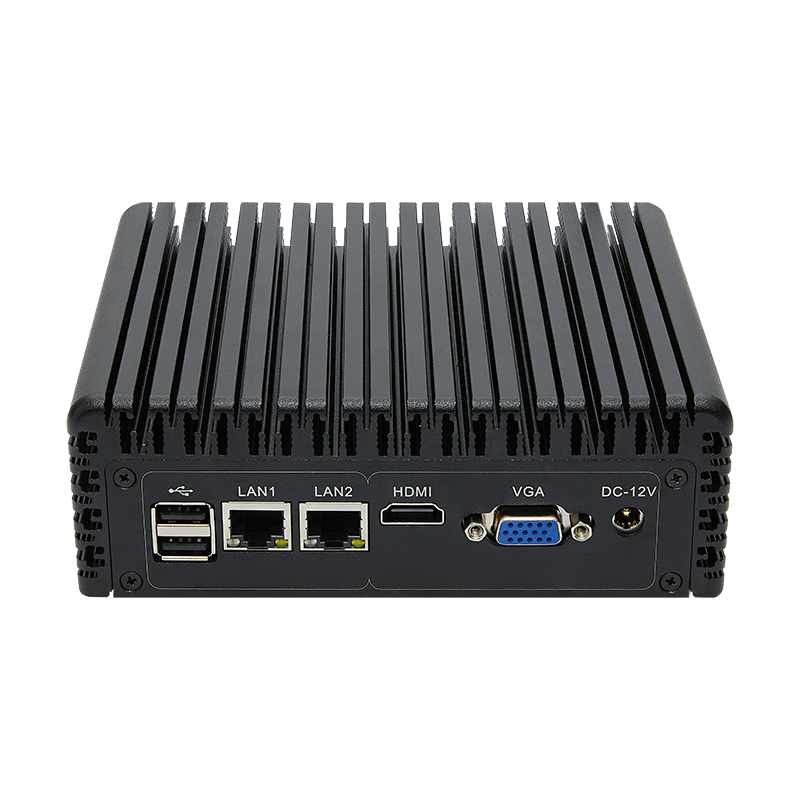

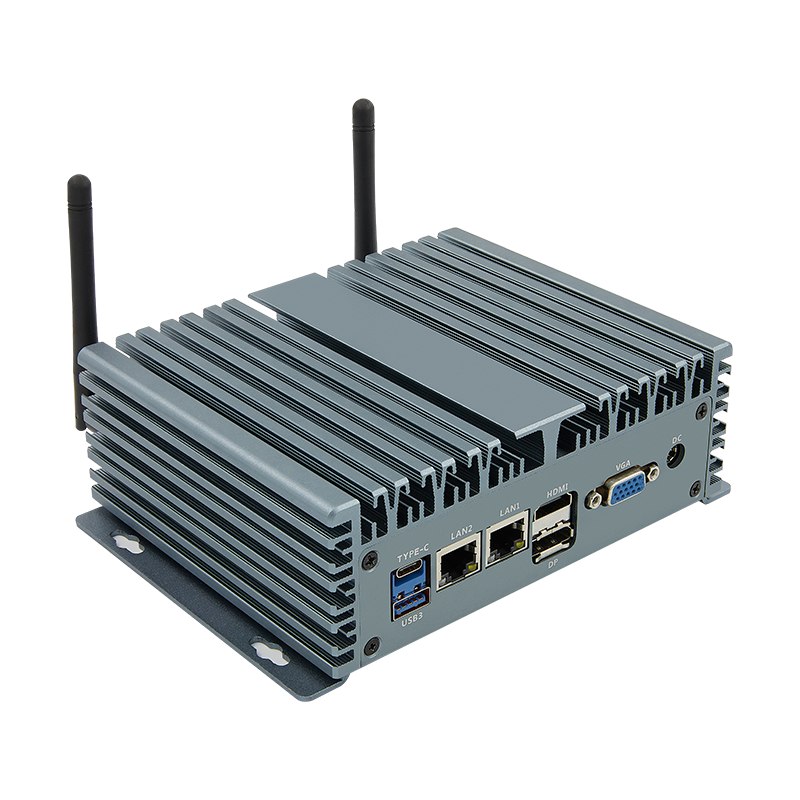

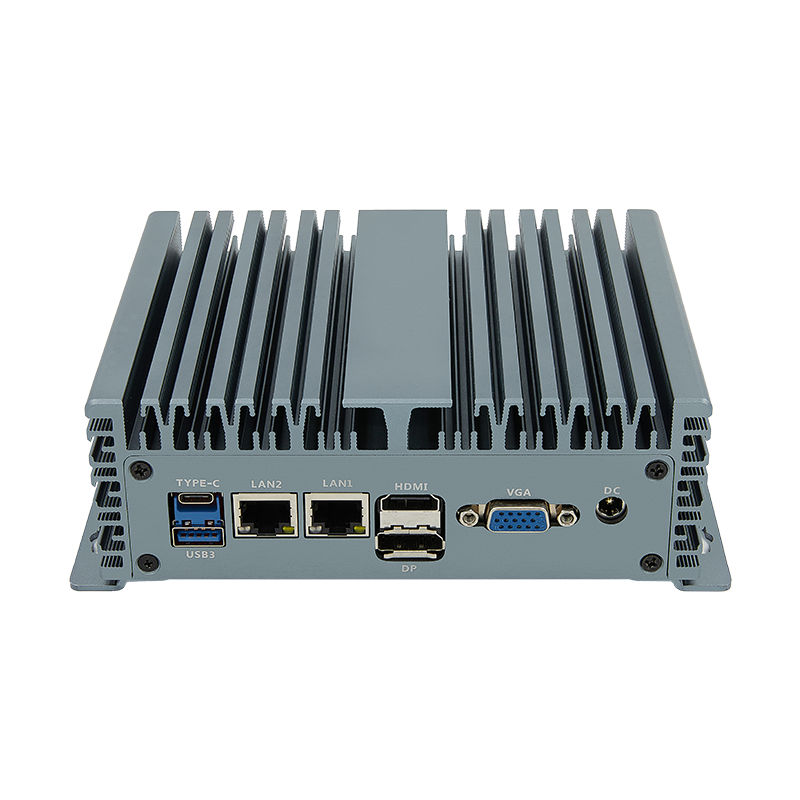

Rear Panel:
LAN: 2x RJ45 GbE (RTL8111H Gigabit Ethernet Controller), supports WoL / PXE
Display: 1x VGA / 1x HDMI2.0(4096x2160 @60Hz) / 1x DP++ (4096x2160 @60Hz)
USB: 1x USB3.0
Type-C: 1x Type-C ( USB3.0 signal )
DC_IN: 1x DC_Jack 12V/19V adaptive（5.5*2.5）
Storage:
SATA: 1x 2.5-inch HDD/SSD installation Bay
M.2: 1x M.2 Key-M，SSD/2280
Expansion: Mini PCIE: 1*Min-PCIE,supportsWIFI&BT/4G5Gmodule
OS Support:
Windows: Windows 10 / 11
Linux: Ubuntu
Watch Dog: Support hardware reset function (level 256, 0~255 seconds)
Power Supply:
Power supply: External power adapter
Voltage input: DC 12V /19V adaptive
Power output :AC TO DC 60W
Reliability:
Working Temp.: -10℃~ 60℃ 5%-95% relative humidity, non-condensing
Storage Temp. :-20℃~ 85℃ 5%-95% relative humidity, non-condensing
ESD: GB/T17618 A Standard ; Contact: ±4KV；Air：±8KV
EMC: GB/T17618 related Standard
Working Vibration: 0.5g rms/5-500HZ/random/operating
