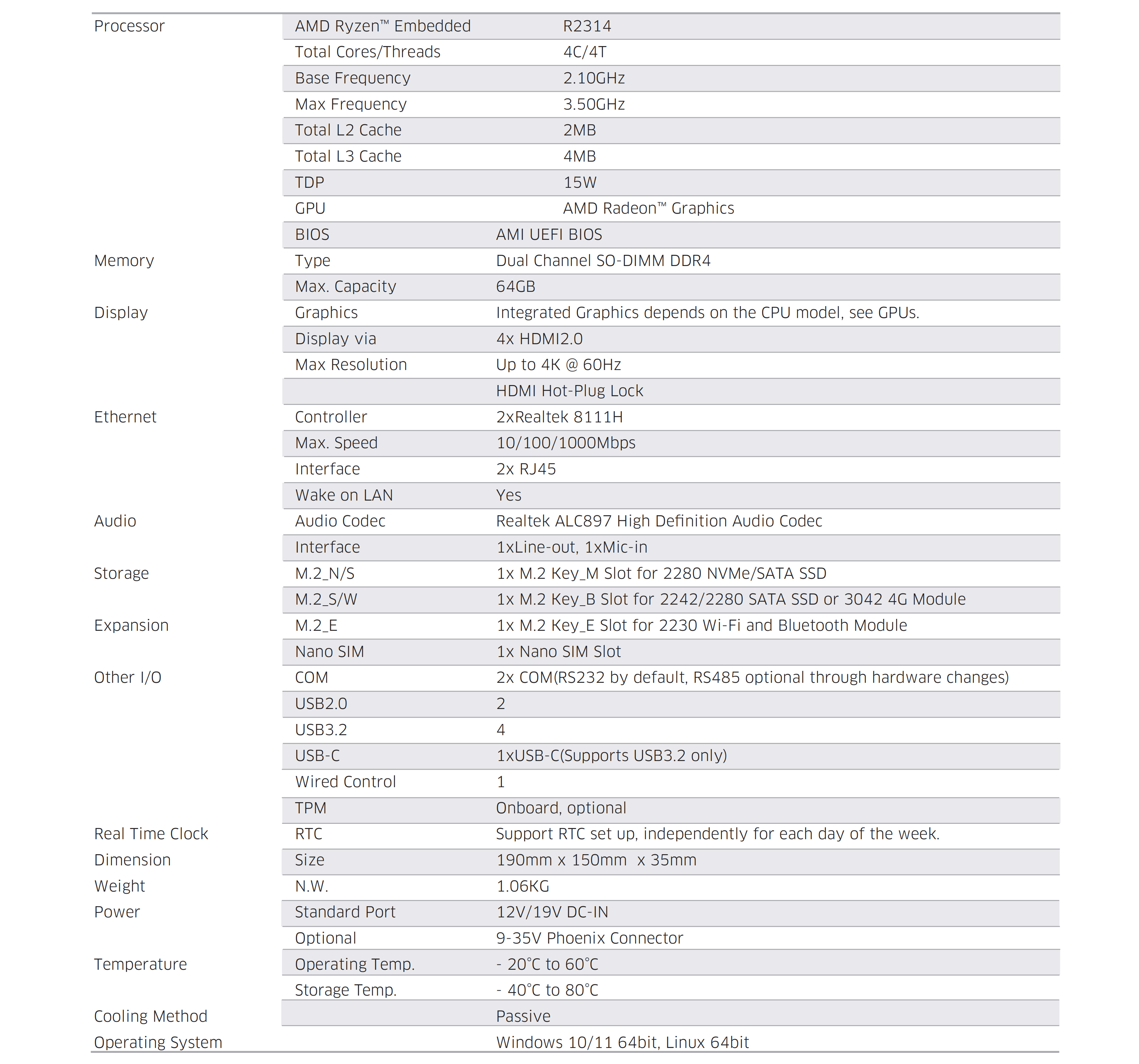

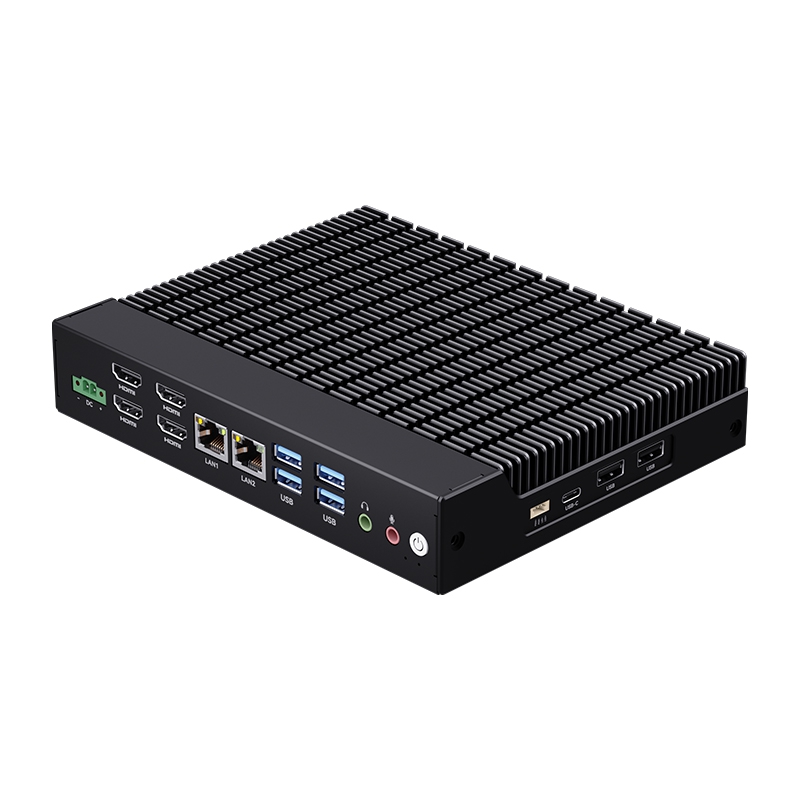

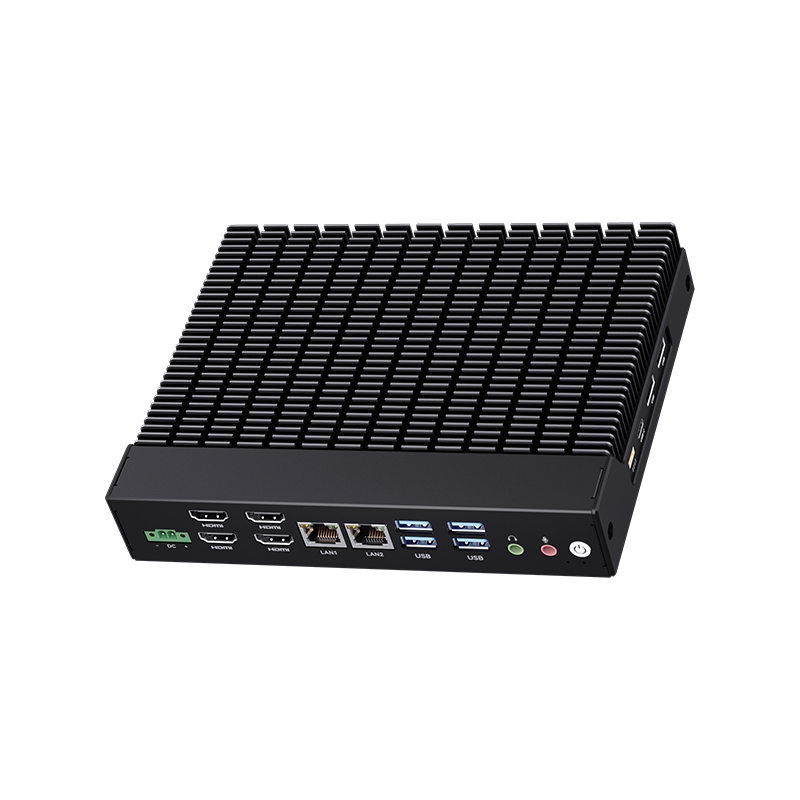

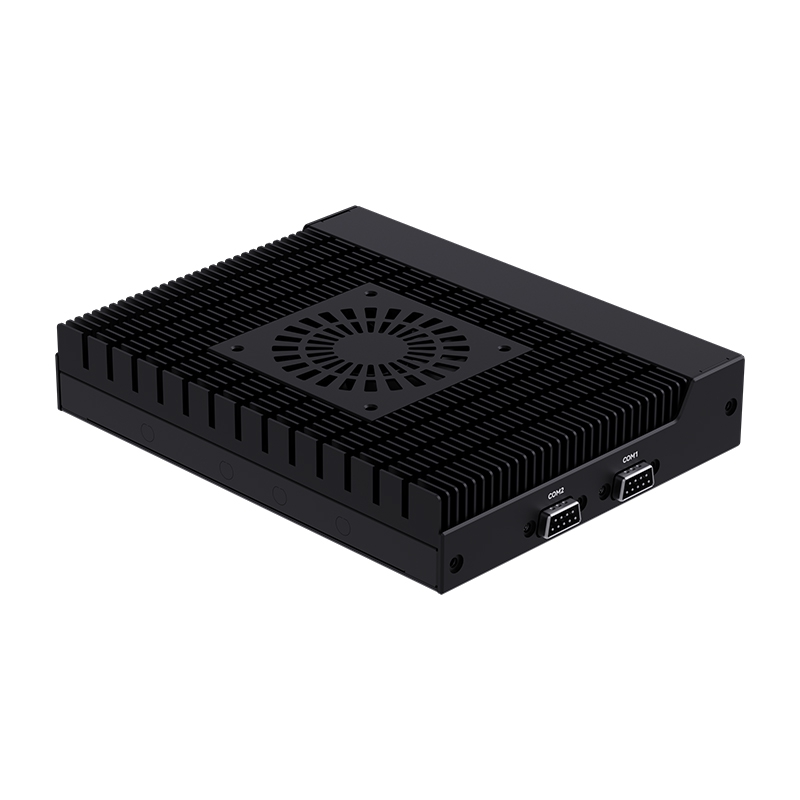

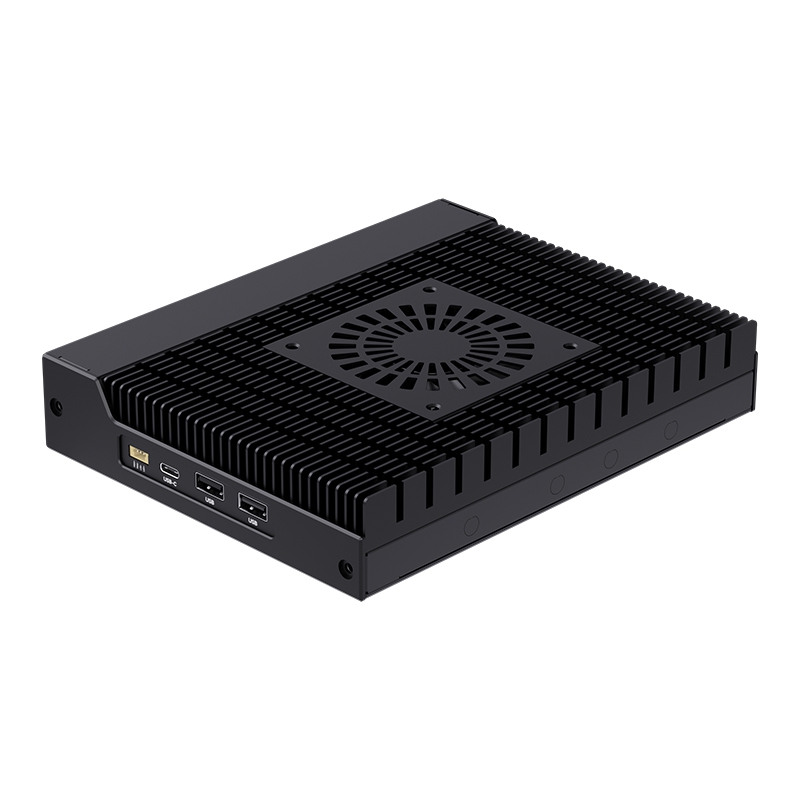

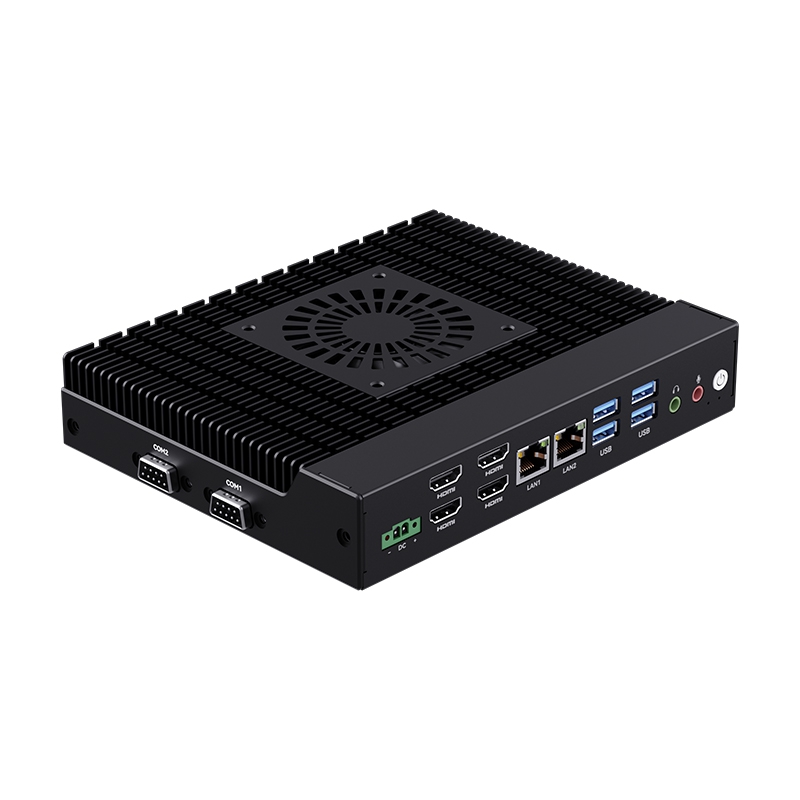

2 Lan R2314 DDR4 Fanless AMD Industrial Computer

Model No.:SXC-FP530
♦Fanless cooling structure
♦Integrated AMD R2314 quad core processor, TDP 15W
♦AMD Radeon Graphics; 4* HDMI2.0
♦2*DDR4 SO-DIMM socket, up to 64GB
♦2*RJ45 GbE LAN
♦1*M.2 Key_M 2280 NVMe/SATA SSD
♦1x M.2 Key_B 2242/2280 SATA SSD / 3042 4G Module
♦1*M.2 Key_E 2230 Wi-Fi&BT
♦1*Nano SIM Slot

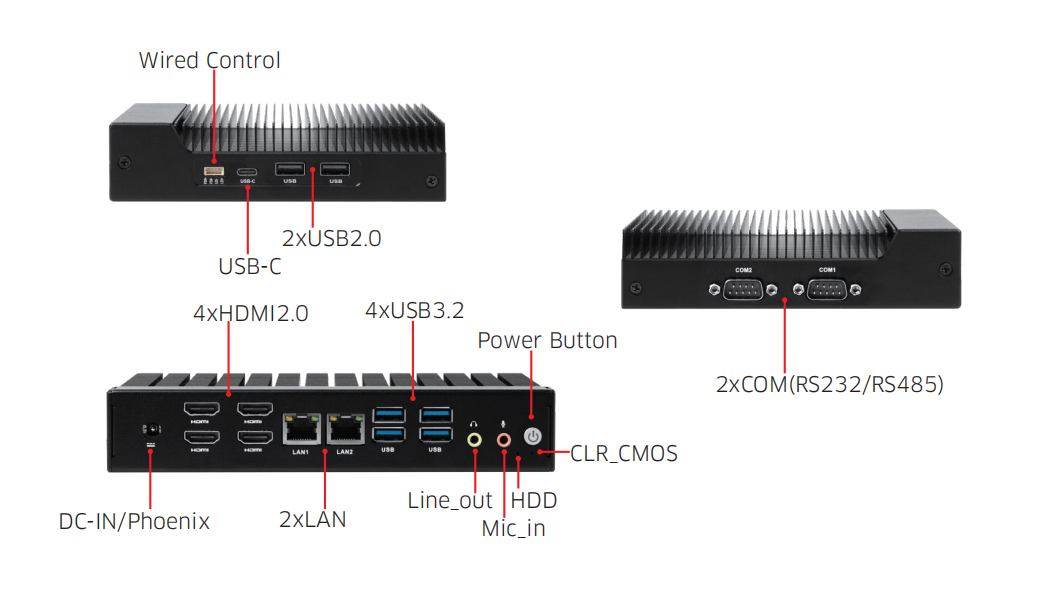

♦4*USB3.2 / 2*USB2.0 / 1*USB-C / 2*RS232/485 / Watchdog
♦Support DC 12V/19V power supply ; Support Windows&Linux O/S
  • Description
    Overview
    This Fanless AMD Industrial Computer features a completely sealed passive cooling structure, enabling silent operation and high reliability, making it ideal for demanding industrial environments with dust, vibration, or requirements for continuous operation. As an efficient Fanless AMD Embedded PC, it integrates a low-power AMD R2314 quad-core processor (15W TDP) with AMD Radeon Graphics, delivering stable computing and smooth graphical performance without any moving parts for cooling.

    This AMD Embedded Fanless Computer boasts exceptional connectivity and expansion capabilities. It provides 4x HDMI 2.0 ports for multi-display 4K output and a rich set of I/O including 6x USB ports, RS232/485 serial ports, and dual Gigabit LAN, meeting diverse peripheral connection needs. For storage and communication, it offers multiple M.2 slots supporting simultaneous use of NVMe/SATA SSDs, a 4G module (with a Nano SIM slot), and Wi-Fi & BT modules, complemented by a Watchdog timer for system stability. This robust Fanless AMD Industrial Computer is the perfect solution for digital signage, industrial automation, and edge gateway applications.

    Detail Display

    Product Description
    Delivery
    We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.

    Company Profile

    FAQ
    Q1.Do you accept OEM / ODM order?
    A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
    Q2:What payment method do you accept?
    A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
    Q3:How long is the warranty of your products?
    A3:We offer 2 years warranty for all of our products.
    Q4:How many days will samples be finished? And how about the mass production?
    A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
    Q5:If we come to China,can you arrange the visiting to your factory?
    A5:We warmly welcome and look forward to your visiting to our factory at any time.
